Hyster Lift Cylinder Overhead Kit 337268 Instruction Manual

1. Introduction

This instruction manual provides essential information for the proper handling, installation, and maintenance of the Hyster Lift Cylinder Overhead Kit 337268. This kit is designed to replace critical components within the lift cylinder overhead assembly of compatible Hyster equipment.

The Hyster Lift Cylinder Overhead Kit 337268 is manufactured with high-quality components, ensuring consistent performance and reliability. It has undergone pressure and computer testing to meet stringent quality standards.

2. Safety Information

Always prioritize safety when working with machinery and replacement parts. Improper installation or handling can lead to equipment malfunction, injury, or property damage.

• Ensure the equipment is powered off, de-energized, and properly secured before beginning any work.
• Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and protective clothing.
• Refer to the original equipment manufacturer's service manual for specific lift cylinder disassembly and reassembly procedures.
• It is highly recommended that installation be performed by a qualified and experienced technician.
• Keep all components clean and free from contaminants during installation.

3. Package Contents

The Hyster Lift Cylinder Overhead Kit 337268 typically includes a set of seals and rings necessary for the overhaul of a lift cylinder overhead assembly. Please verify all components are present and undamaged upon receipt.

Figure 3.1: Hyster Lift Cylinder Overhead Kit 337268 as received in its sealed packaging, showing the product label.

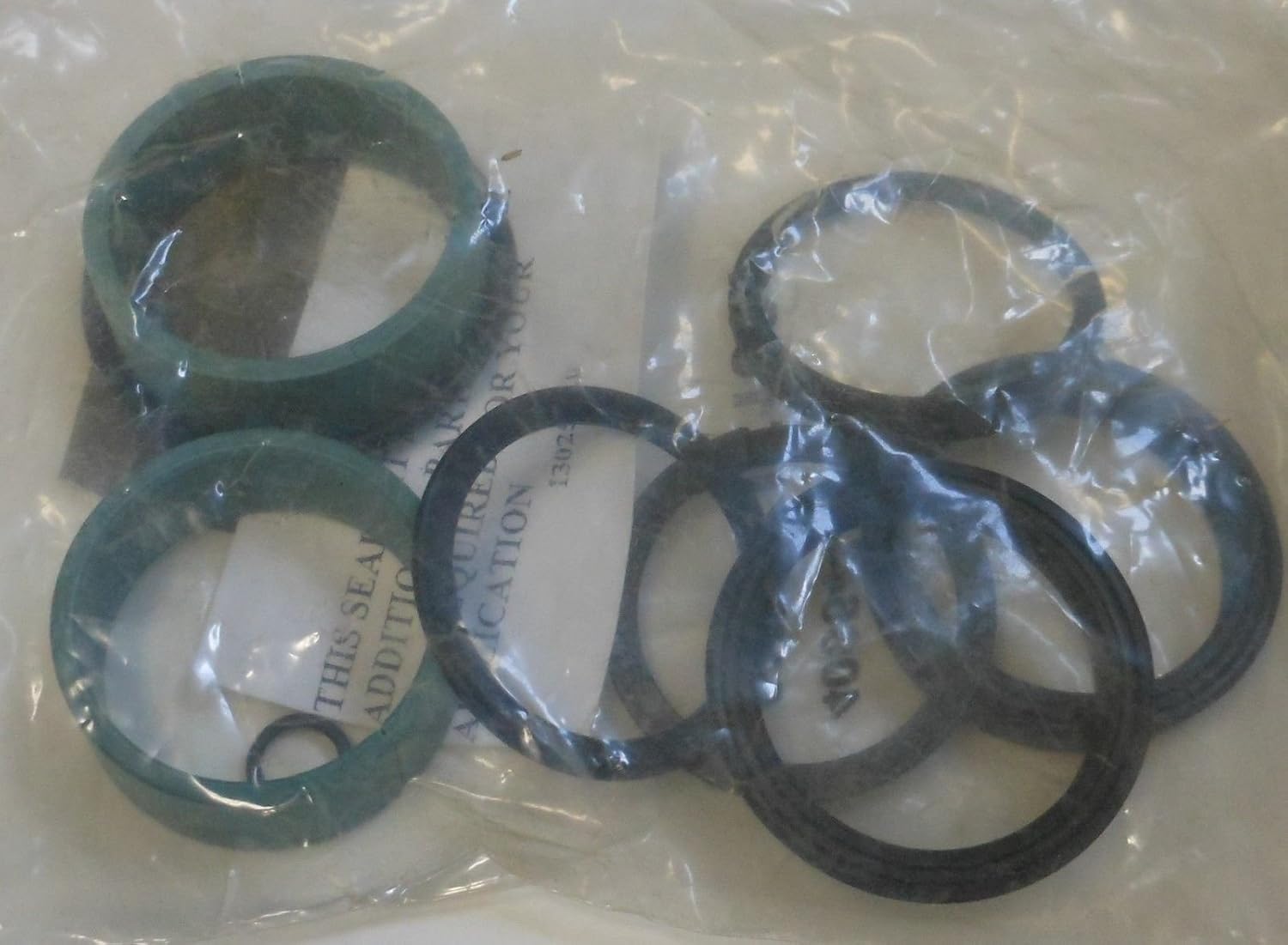

Figure 3.2: A closer view of the components inside the Hyster Lift Cylinder Overhead Kit 337268 packaging, illustrating the assortment of seals and rings.

4. Installation Instructions

This kit is intended for the overhaul of a lift cylinder overhead assembly. The installation process involves disassembling the existing lift cylinder, replacing worn seals and rings with the new components from this kit, and then reassembling the cylinder.

1. Preparation: Ensure the lift cylinder is clean and free of debris. Have all necessary tools readily available.
2. Disassembly: Carefully disassemble the lift cylinder according to the Hyster service manual. Pay close attention to the order and orientation of existing seals and components.
3. Component Replacement: Remove all old seals and rings. Clean all grooves and surfaces where new seals will be seated. Install the new seals and rings from the kit, ensuring they are correctly oriented and not twisted or damaged during installation. Use appropriate seal installation tools if necessary to prevent damage.
4. Reassembly: Reassemble the lift cylinder, ensuring all components are properly seated and torqued to manufacturer specifications.
5. Testing: After reassembly, perform a functional test of the lift cylinder and the overall system to confirm proper operation and absence of leaks.

Note: Detailed step-by-step instructions for lift cylinder overhaul are specific to the equipment model and are typically found in the official Hyster service manual. This kit provides the replacement parts; the installation procedure should follow established repair guidelines.

5. Function and Purpose

The Hyster Lift Cylinder Overhead Kit 337268 contains critical sealing components designed to restore the hydraulic integrity and proper function of a Hyster lift cylinder's overhead assembly. These seals prevent hydraulic fluid leakage and maintain the necessary pressure for the lift cylinder to operate efficiently and safely, ensuring smooth and controlled lifting and lowering operations.

6. Maintenance

Once installed, the components of this kit are part of the lift cylinder's internal sealing system. Regular maintenance of the lift cylinder and the hydraulic system it operates within is crucial for longevity and performance.

• Fluid Checks: Regularly check hydraulic fluid levels and quality. Contaminated or low fluid can accelerate wear on seals.
• Leak Inspection: Periodically inspect the lift cylinder for any signs of hydraulic fluid leaks. Early detection of leaks can prevent further damage.
• System Cleanliness: Maintain overall hydraulic system cleanliness to prevent particulate contamination from damaging seals.

7. Troubleshooting

If issues arise after the installation of the Hyster Lift Cylinder Overhead Kit 337268, consider the following common points:

• Hydraulic Leaks: If leaks are observed, re-check the installation of all seals. Ensure they are not pinched, cut, or improperly seated. Verify that mating surfaces are clean and free of burrs.
• Improper Lift Function: If the lift cylinder does not operate correctly (e.g., slow movement, erratic behavior, loss of lift capacity), this could indicate improper seal installation, air in the hydraulic system, or issues with other hydraulic components.
• Professional Assistance: For persistent or complex issues, it is strongly recommended to consult a certified hydraulic technician or Hyster service professional.

8. Specifications

9. Warranty and Support

The Hyster Lift Cylinder Overhead Kit 337268 comes with a 6 Months Unlimited Warranty. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or any inquiries regarding this product, please contact the seller or authorized distributor from whom the kit was purchased. Provide your purchase details and the product model number (337268) when seeking assistance.
