1. Introduction
This manual provides essential instructions for the safe and efficient operation of your Elite Gourmet EAF-1506D Electric Digital Hot Air Fryer. Please read all instructions carefully before first use and retain for future reference.
The Elite Gourmet EAF-1506D is designed for healthy cooking, utilizing hot air circulation to prepare a variety of foods with minimal to no oil. Its 3.5-quart capacity non-stick basket can hold up to 2.5 lbs of food, making it suitable for family-sized meals. The digital controls allow for precise temperature and timer settings, enhancing cooking versatility.
Figure 1: Elite Gourmet EAF-1506D Digital Hot Air Fryer.
2. Setup
2.1 Unpacking
- Carefully remove all packaging materials from the air fryer and its accessories.
- Inspect the appliance for any damage. Do not operate if damaged.
- Retain packaging for storage or disposal.
2.2 Initial Cleaning
Before first use, clean all removable parts and the interior of the air fryer.
- Wash the removable pot and basket in warm, soapy water. Rinse thoroughly and dry completely.
- Wipe the interior and exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
2.3 Placement
- Place the air fryer on a stable, heat-resistant surface.
- Ensure there is adequate space (at least 6 inches) around the appliance for proper air circulation.
- Do not place near flammable materials or heat sources.
Figure 2: Air Fryer Components: Base, Removable Pot, and Removable Basket.
3. Operation
3.1 Control Panel Overview
The air fryer features a digital touch screen for easy control of cooking functions, time, and temperature.
Figure 3: Digital Control Panel with Pre-set Functions.
3.2 Cooking Process
- Prepare Food: Place your desired food into the removable basket. Do not overfill.
- Insert Basket: Ensure the basket is properly seated within the removable pot, and the pot is securely placed in the main unit. Close the lid.
- Power On: Plug the air fryer into a grounded electrical outlet. The display will illuminate.
- Set Cooking Parameters:
- Pre-set Functions: Press the 'MENU' button to cycle through pre-set cooking options (e.g., Bake, Meat, Fish, Veg, Cheese, Fries). Each pre-set has a default time and temperature.
- Manual Settings: Alternatively, use the temperature and time adjustment buttons to set your desired cooking temperature and duration.
- Start Cooking: Press the 'START/STOP' button to begin the cooking cycle.
- Monitor & Shake (Optional): For even cooking, especially with smaller items like fries or nuggets, you may open the lid and shake the basket halfway through the cooking time. The air fryer will pause automatically when opened and resume when closed.
- Completion: The air fryer will beep when the cooking cycle is complete. Carefully open the lid and remove the cooked food.
3.3 Cooking Examples
The Elite Gourmet EAF-1506D is versatile for various dishes. Below are examples of food preparation using the air fryer.
Video 1: Demonstration of various cooking applications including meat, baked goods, and fried items. This video illustrates the process of loading food, setting controls, and serving finished dishes like pork chops, cinnamon rolls, shrimp, and fries.
4. Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the life of your air fryer.
4.1 Cleaning the Removable Parts
- Always unplug the air fryer and allow it to cool completely before cleaning.
- The non-stick basket and removable pot are dishwasher safe for convenient cleaning.
- Alternatively, wash them in warm, soapy water using a non-abrasive sponge. Rinse thoroughly and dry completely.
- Do not use metal utensils or abrasive cleaning materials on the non-stick surfaces.
Figure 4: Removing the Non-Stick Basket for Cleaning.
4.2 Cleaning the Main Unit
- Wipe the exterior of the air fryer with a damp cloth.
- Clean the interior heating element and fan area with a soft brush to remove any food residue.
- Never immerse the main unit, power cord, or plug in water or any other liquid.
5. Troubleshooting
If you encounter issues with your air fryer, consult the following table for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Not plugged in; power outlet issue; appliance not assembled correctly. | Ensure the power cord is securely plugged into a working outlet. Check if the removable pot and basket are correctly inserted and the lid is closed. |
| Food is not cooked evenly. | Basket is overfilled; food not shaken or flipped. | Do not overfill the basket. Shake or flip food items halfway through cooking for even results. |
| White smoke coming from the appliance. | Grease residue from previous use; fatty foods being cooked. | Clean the basket and pot thoroughly after each use. For fatty foods, drain excess fat during cooking. |
| Food is not crispy. | Insufficient cooking time or temperature; too much moisture. | Increase cooking time or temperature. Ensure food is patted dry before air frying. |
6. Specifications
| Feature | Detail |
|---|---|
| Model Name | Elite Gourmet EAF-1506D |
| Capacity | 3.5 Quarts (1.13 Liters) / Up to 2.5 lbs food |
| Output Wattage | 1400 Watts |
| Voltage | 120 Volts |
| Control Method | Touch (Digital) |
| Special Feature | Programmable |
| Non-stick Coating | Yes |
| Dishwasher Safe Parts | Yes (Removable Pot, Basket) |
| Product Dimensions (D x W x H) | 15.59" x 12.36" x 11.42" |
| Item Weight | 12.35 Pounds |
| Material | Aluminum (inner), Plastic (outer) |

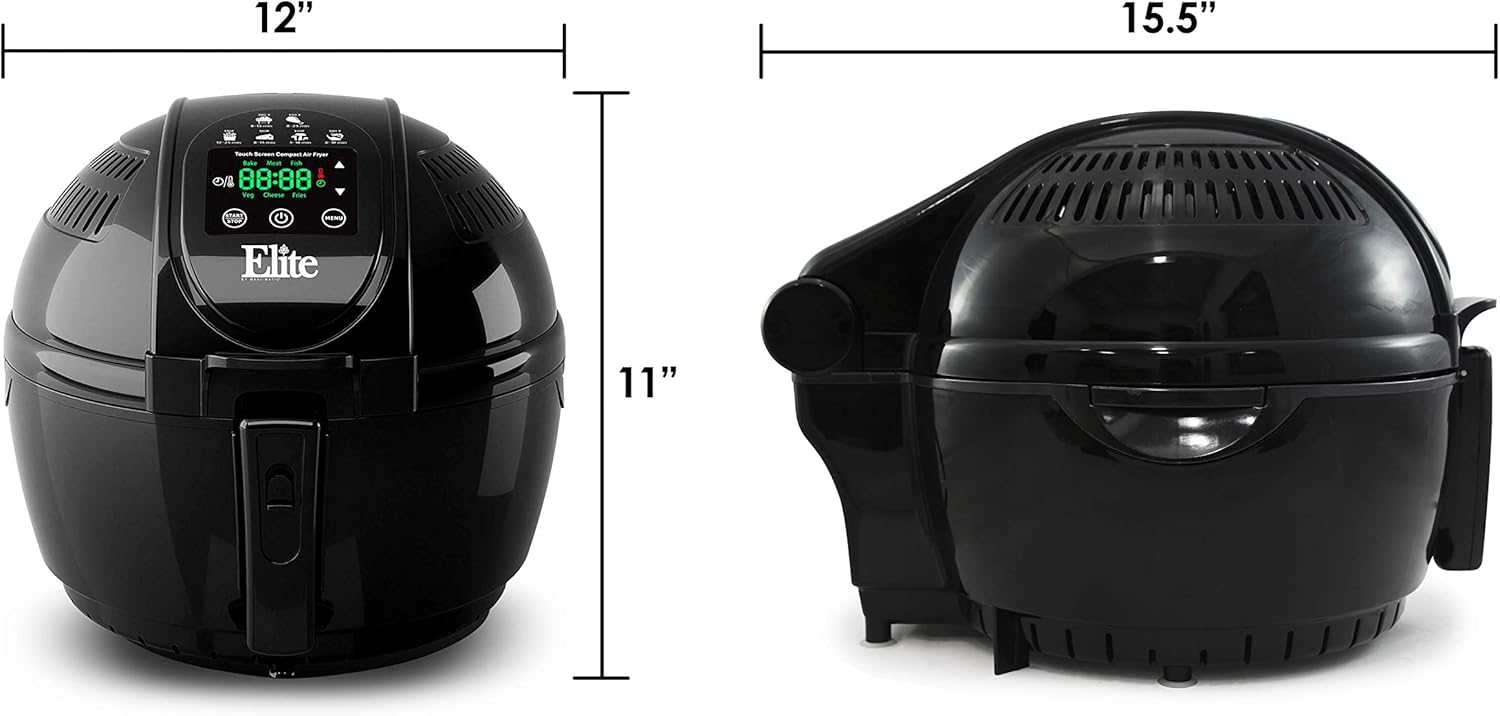

Figure 5: Product Dimensions.
7. Warranty and Support
For warranty information or technical support, please refer to the warranty card included with your product or contact Elite Gourmet customer service. Keep your purchase receipt as proof of purchase for warranty claims.
