BLACK+DECKER 90567079 Lever Replacement Part Instruction Manual

Introduction

This manual provides essential information for the installation, function, and care of your BLACK+DECKER 90567079 Lever. This component is an original equipment manufacturer (OEM) authorized replacement part designed for various BLACK+DECKER power tools. Please read this manual thoroughly before attempting any installation or maintenance to ensure proper and safe use.

Product Overview

The BLACK+DECKER 90567079 Lever is a durable plastic component, black in color, specifically engineered as a direct replacement part. It measures approximately 1 inch in length and 1 inch in width, weighing about 0.16 ounces. This lever is crucial for the intended operation of the power tool it is integrated into, often related to mechanisms requiring a specific engagement or release action.

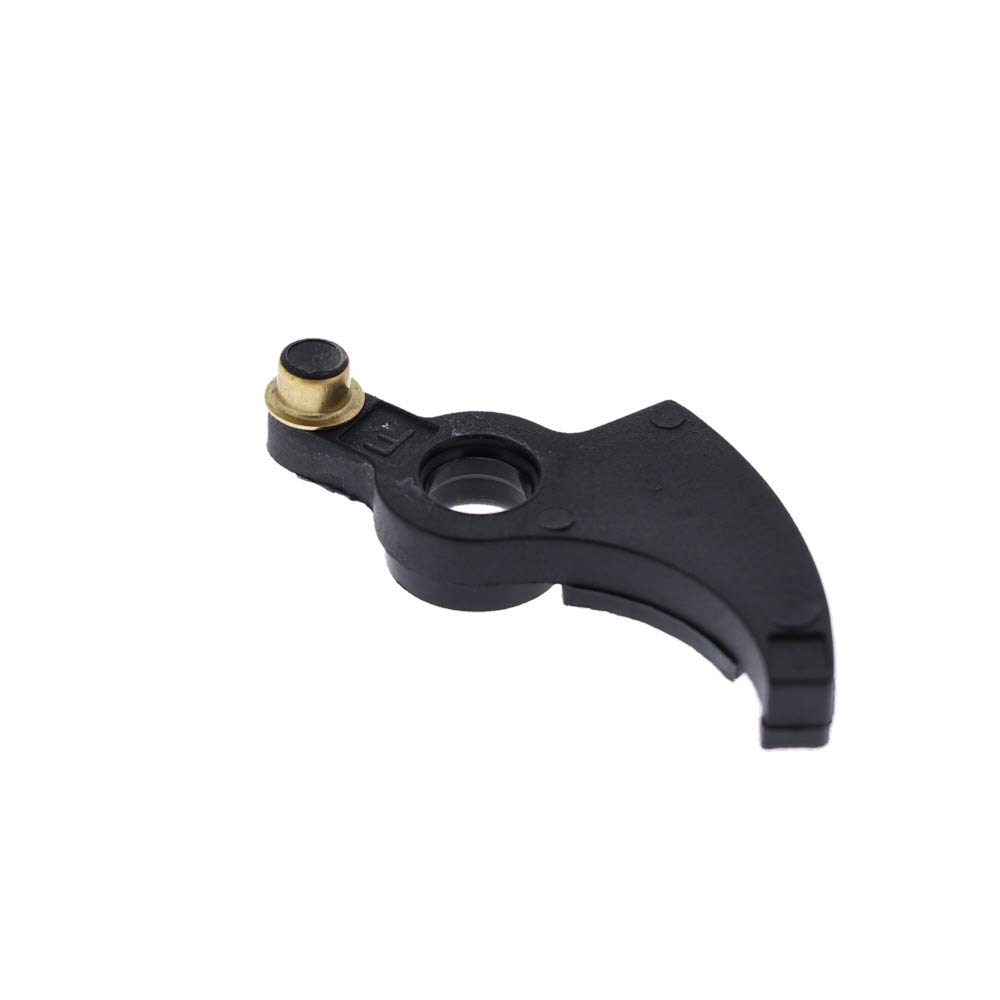

Figure 1: The BLACK+DECKER 90567079 Lever, a black plastic component with a brass-colored pin at one end.

Specifications

• Part Number: 90567079
• Brand: BLACK+DECKER
• Material: Plastic
• Color: Black
• Product Dimensions: 1"L x 1"W (approximately)
• Item Weight: 0.16 ounces
• Included Components: 1 Lever
• Special Feature: Easy to Install

Installation

This lever is designed for straightforward replacement. Always ensure the power tool is disconnected from its power source before beginning any installation or maintenance procedures.

1. Safety First: Disconnect the power tool from its power source (unplug from outlet, remove battery pack).
2. Access the Area: Locate the existing lever or the area where the new lever needs to be installed on your BLACK+DECKER tool. This may require disassembling certain parts of the tool. Refer to your specific tool's manual for detailed disassembly instructions.
3. Remove Old Lever (if applicable): Carefully remove the old or damaged lever. Note its orientation and how it was connected.
4. Install New Lever: Position the new 90567079 Lever in the correct orientation. It is designed to fit in one or two specific ways. Ensure it seats properly and any pins or fasteners align.
5. Secure the Lever: Re-secure any components that were removed during disassembly. Ensure all parts are firmly in place.
6. Test Functionality: Reconnect the power tool to its power source. Perform a brief test to ensure the lever operates correctly and the tool functions as expected.

If you are unsure about any step, consult a qualified technician or the original instruction manual for your specific BLACK+DECKER power tool.

Operation

The 90567079 Lever is a functional component within a larger BLACK+DECKER power tool. Its operation is integral to the tool's overall function. For example, in some string trimmers, this type of lever may be part of the automatic line feed mechanism, engaging or disengaging the spool to advance the cutting line. Once correctly installed, the lever will function automatically or manually as designed by the specific tool's engineering. Refer to your power tool's primary instruction manual for details on how the lever contributes to its specific operation.

Maintenance

To ensure the longevity and proper function of your 90567079 Lever:

• Cleaning: Keep the lever and surrounding area free from debris, dust, and grime. Use a dry cloth or a soft brush for cleaning. Avoid harsh chemicals that may damage the plastic.
• Inspection: Periodically inspect the lever for signs of wear, cracks, or damage. If the lever appears worn or broken, replace it promptly to maintain tool performance and safety.
• Storage: Store the power tool in a clean, dry environment when not in use to protect all components, including the lever, from environmental damage.

Troubleshooting

If your power tool is not functioning correctly after replacing the 90567079 Lever, consider the following:

• Incorrect Installation: Double-check that the lever is installed correctly and securely, matching the orientation of the original part.
• Incorrect Part: Verify that the 90567079 Lever is the correct replacement part for your specific BLACK+DECKER tool model. Refer to your tool's manual or BLACK+DECKER's parts list.
• Other Issues: If the lever is correctly installed and is the right part, the malfunction may stem from another component of the power tool. Consult the main tool's instruction manual for comprehensive troubleshooting steps or contact BLACK+DECKER customer support.

Warranty and Support

As an OEM replacement part, the warranty for the 90567079 Lever typically aligns with the warranty terms of the original BLACK+DECKER power tool it is intended for, or specific terms for replacement parts. For detailed warranty information, please refer to the documentation that came with your original BLACK+DECKER tool or visit the official BLACK+DECKER website.

For further assistance, technical support, or to locate authorized service centers, please visit the BLACK+DECKER Store or their official corporate website.
