1. Introduction
This manual provides essential information for the safe and efficient use of your Philips Fremont LED Spot Light. Please read these instructions carefully before installation and operation, and retain them for future reference.
The Philips Fremont LED Spot Light is designed with balanced lines, featuring an elegant glass cylinder that houses sophisticated LEDs. It provides warm white light while consuming minimal energy, offering an aesthetic and bright illumination comparable to halogen lighting.
Image 1.1: Front view of the Philips Fremont LED Spot Light.
2. Safety Information
Important Safety Instructions:
- Always disconnect power before installation, maintenance, or cleaning.
- Installation must be performed by a qualified electrician in accordance with local electrical codes.
- Do not modify the product in any way. Unauthorized modifications may void the warranty and create safety hazards.
- This product is designed for indoor use only (IP20 rating). Do not expose to water or high humidity.
- Ensure the mounting surface can support the weight of the fixture.
- Do not look directly into the LED light source when illuminated.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- Philips Fremont LED Spot Light fixture (1 unit)
- Installation hardware (screws, wall plugs) - Note: Screws may not be included in all packages. Please check.
- Instruction Manual

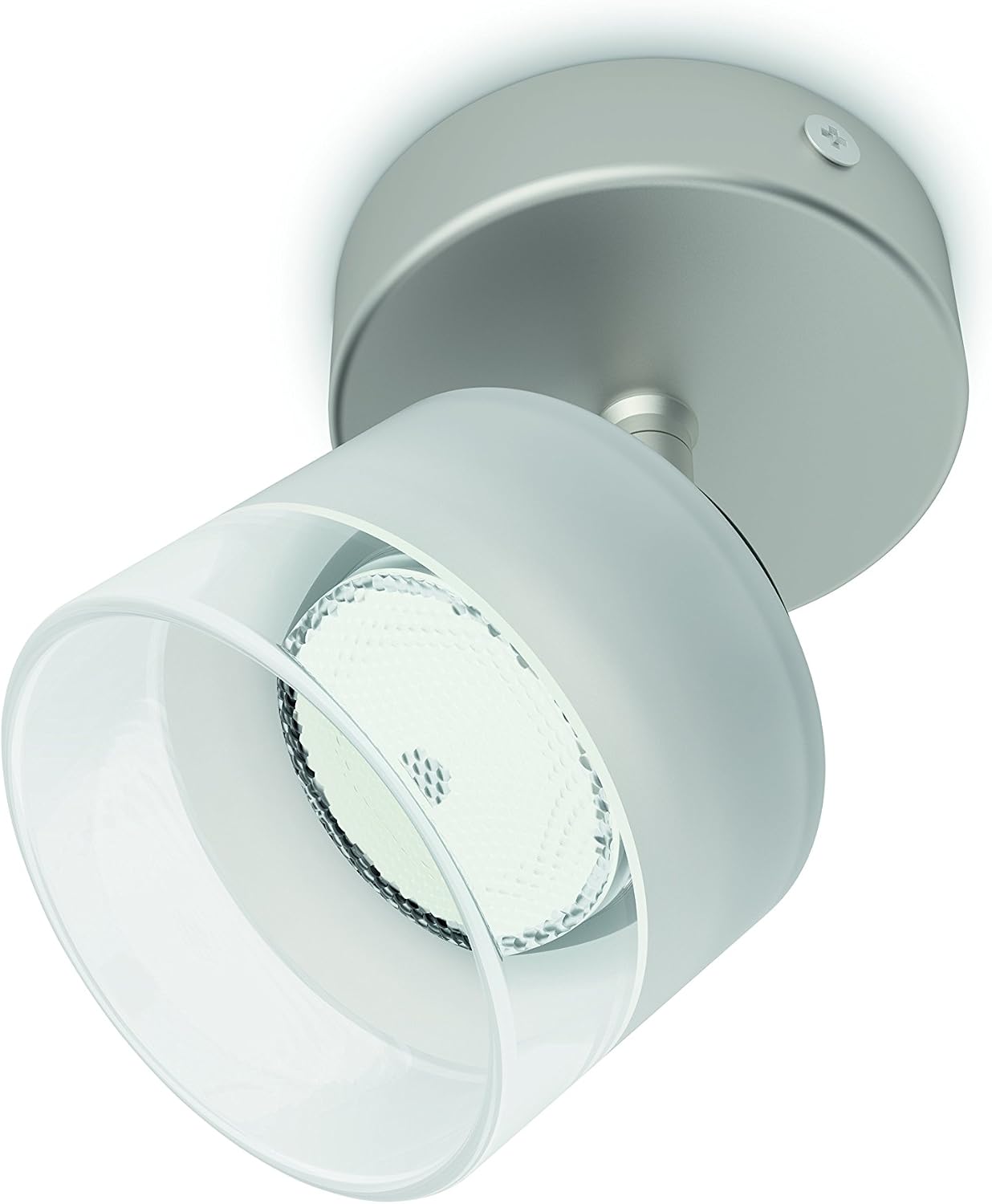

Image 3.1: Side view of the Philips Fremont LED Spot Light, showing its compact design.
4. Setup and Installation
This section outlines the steps for installing your Philips Fremont LED Spot Light. If you are unsure about any step, consult a qualified electrician.
- Prepare the Installation Area:
- Turn off the main power supply at the circuit breaker before starting any electrical work.
- Identify the desired mounting location on the ceiling or wall. Ensure there are no hidden wires or pipes.
- Mount the Fixture Base:
- Carefully detach the mounting base from the main light fixture if it's not already separate.
- Position the mounting base against the surface and mark the drilling points.
- Drill holes at the marked points and insert appropriate wall plugs (if necessary).
- Secure the mounting base to the surface using the provided screws.
- Electrical Connection:
- Connect the household electrical wires to the terminals on the fixture base. Follow standard wiring color codes: Live (L), Neutral (N), and Earth (E) if applicable.
- Ensure all connections are secure and properly insulated.
- Attach the Light Fixture:
- Carefully attach the main light fixture body to the mounted base, ensuring it is securely fastened.
- Restore Power:
- Once installation is complete, turn the main power supply back on at the circuit breaker.
- Test the light fixture to ensure proper operation.
Image 4.1: Angled view of the Philips Fremont LED Spot Light, highlighting its adjustable head.
5. Operating Instructions
The Philips Fremont LED Spot Light is designed for simple operation.
- Turning On/Off: Use the standard wall switch connected to the fixture to turn the light on or off.
- Adjusting the Spot Head: The spot head is adjustable. Gently pivot the light head to direct the light beam to your desired area.
- Dimming (if applicable): If connected to a compatible dimmer switch, you can adjust the light intensity by operating the dimmer control. Ensure your dimmer switch is suitable for LED lighting.
Image 5.1: The Philips Fremont LED Spot Light installed, providing bright, focused illumination in a room.
Image 5.2: The Philips Fremont LED Spot Light installed, providing warm, ambient illumination in a room.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your LED spot light.
- Cleaning:
- Before cleaning, ensure the power supply to the fixture is turned off.
- Wipe the fixture with a soft, dry, or slightly damp cloth.
- Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
- LED Replacement: The integrated LED light source is designed for a long lifespan (up to 25,000 hours) and is not user-replaceable. If the LED fails, the entire fixture may need to be replaced.
7. Troubleshooting
If you encounter issues with your Philips Fremont LED Spot Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. |
|
|
| Light flickers or dims unexpectedly. |
|
|
| Light is too dim or too bright. |
|
|
If the problem persists after attempting these solutions, contact Philips customer support or a qualified electrician.
8. Specifications
Detailed technical specifications for the Philips Fremont LED Spot Light (Model 915004936701):
| Brand | PHILIPS |
| Model Number | 915004936701 |
| Product Dimensions (L x W x H) | 8 x 8 x 12.4 cm |
| Item Weight | 268 grams |
| Material | Metal |
| Color | Chrome |
| IP Rating | IP20 (Indoor Use) |
| Number of Bulbs | 1 (Integrated LED) |
| Voltage | 230 Volts |
| Wattage | 4 Watts |
| Luminous Flux | 800 Lumen |
| Color Temperature | 2700 Kelvin (Warm White) |
| Incandescent Equivalent | 31 Watts |
| Average Lifespan | 25,000 Hours |
| Energy Label | A+ |
| Special Features | Dimmable, Adjustable Head |
| Installation Type | Semi-flush mount |
| Switch Style | Push-button (via wall switch) |
9. Warranty and Support
Philips offers a warranty for this product. Please refer to the official Philips website or your purchase documentation for detailed warranty terms and conditions.
- LED Warranty: This product includes a 5-year warranty on the LED module.
- For technical support, product information, or warranty claims, please visit the official Philips website or contact their customer service department.
Image 9.1: Philips 5-Year LED Warranty Badge.
