TJEP PQZ-64 Stapler Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your TJEP PQZ-64 Compressed Air Stapler. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage.

2. Product Overview

The TJEP PQZ-64 is a robust compressed air stapler designed for various fastening applications, including flooring, panels, and cables. Its user-friendly design incorporates features for enhanced efficiency and ease of use.

Key Features:

• Adjustable Blow-off Opening: Allows for precise control over air discharge.
• Quick Removal of Bent Staples: Facilitates easy clearing of jammed or deformed staples.
• Top Loading Magazine: Simplifies the process of loading fasteners.
• Interchangeable Noses: Includes a special nose for flooring applications and a standard nose for panels.

Figure 1: Front view of the TJEP PQZ-64 Compressed Air Stapler, showcasing its ergonomic design and magazine.

3. Safety Instructions

Always follow these safety guidelines to prevent accidents and ensure safe operation:

• Personal Protective Equipment (PPE): Always wear safety glasses with side shields. Hearing protection is recommended.
• Work Area: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents.
• Tool Handling: Never point the tool at yourself or others. Keep fingers away from the trigger when not fastening.
• Air Supply: Ensure the air compressor is properly maintained and set to the recommended pressure. Disconnect the air supply before making adjustments, clearing jams, or servicing the tool.
• Fasteners: Use only fasteners specified for this tool.
• Maintenance: Do not modify the tool. Only qualified personnel should perform repairs.

4. Setup

4.1 Connecting to Air Supply

1. Ensure the air compressor is off and the air tank is drained.
2. Attach a suitable air hose (e.g., TJEP 106082 Superflex Compressed Air Hose) to the tool's air inlet connector.
3. Set the air compressor's pressure regulator to the recommended operating pressure (refer to specifications).
4. Turn on the air compressor and check for leaks.

4.2 Loading Staples

1. Disconnect the tool from the air supply.
2. Open the top-loading magazine.
3. Insert a strip of compatible staples (e.g., TJEP PQ-15 or PZ-16 series) into the magazine, ensuring the points face downwards.
4. Close the magazine securely.

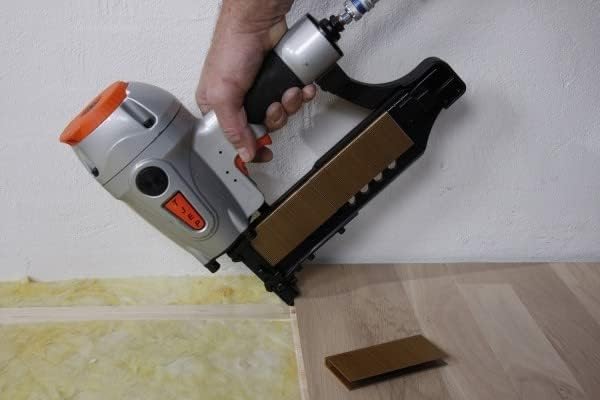

Figure 2: A hand demonstrating the top-loading mechanism for staples in the TJEP PQZ-64 stapler.

4.3 Changing Noses

The tool comes with a special nose for flooring and a standard nose for panels. To change the nose, disconnect the air supply, then follow the instructions provided with the nose attachments to safely remove and install the desired nose piece.

5. Operating Instructions

5.1 General Operation

1. Ensure the tool is properly connected to the air supply and loaded with staples.
2. Place the nose of the tool firmly against the workpiece where the staple is to be driven.
3. Press the trigger to drive a staple.
4. Release the trigger after each staple.

Figure 3: A user operating the TJEP PQZ-64 stapler to fasten a wooden panel, demonstrating typical usage.

5.2 Specific Applications

• Flooring: Use the special flooring nose for optimal placement and countersinking of staples in parquet and other flooring materials.
• Panels: The standard nose is suitable for fastening plasterboard, Fermacell, and other panel materials.
• Steel Decking & Fixing Wire: Ensure appropriate staple length and type are used for these applications to achieve secure fastening.

Figure 4: The TJEP PQZ-64 stapler in use on a curved wooden surface, highlighting its versatility for various construction tasks.

5.3 Adjustable Blow-off Opening

The adjustable blow-off opening allows you to direct the exhaust air. Adjust it by rotating the cap near the air outlet to prevent dust or debris from blowing into your face or sensitive areas.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your stapler.

• Daily Lubrication: Apply a few drops of pneumatic tool oil (e.g., TJEP 100 ml oil, item no. 100892) into the air inlet before each use or at the start of each workday.
• Cleaning: Keep the tool clean and free of debris. Use compressed air to blow out dust from the magazine and firing mechanism.
• Inspection: Regularly inspect the tool for worn or damaged parts, loose screws, or air leaks. Do not use a damaged tool.
• Storage: Store the tool in a dry, clean environment when not in use. Disconnect it from the air supply.

7. Troubleshooting

This section addresses common issues you might encounter with your TJEP PQZ-64 stapler.

• Staples not firing or weak firing:
  • Check air pressure; ensure it's within the recommended range.
  • Verify air hose connection for leaks.
  • Ensure magazine is loaded correctly with compatible staples.
  • Apply pneumatic tool oil.
• Staples jamming:
  • Disconnect air supply.
  • Open the magazine and carefully remove any bent or jammed staples. The tool features quick removal of bent staples.
  • Ensure you are using the correct staple size and type.
• Air leaks:
  • Check all air connections for tightness.
  • Inspect O-rings and seals for wear or damage. Replace if necessary.

If problems persist, contact a qualified service technician or the manufacturer's support.

8. Specifications

9. Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support, service, or spare parts, please contact your authorized TJEP dealer or visit the official TJEP website for contact details.

Manufacturer: TJEP
