1. Introduction and Product Overview
This instruction manual provides essential information for the assembly, operation, and maintenance of your Inter Link Vaisselier. This versatile furniture piece is designed for dining rooms or kitchens, offering ample storage with its combination of drawers and doors. Crafted from solid pine, it features a white painted finish with contrasting brown/sepia top and accents. This product is supplied as a flat-pack kit for home assembly.
Product Dimensions: 131 cm (Length) x 45 cm (Width) x 181 cm (Height)
Material: Solid Pine
Weight: 66 Kilograms
Figure 1.1: Front view of the Inter Link Vaisselier, showcasing its design with glass-fronted upper cabinets, three central drawers, and five solid lower doors.

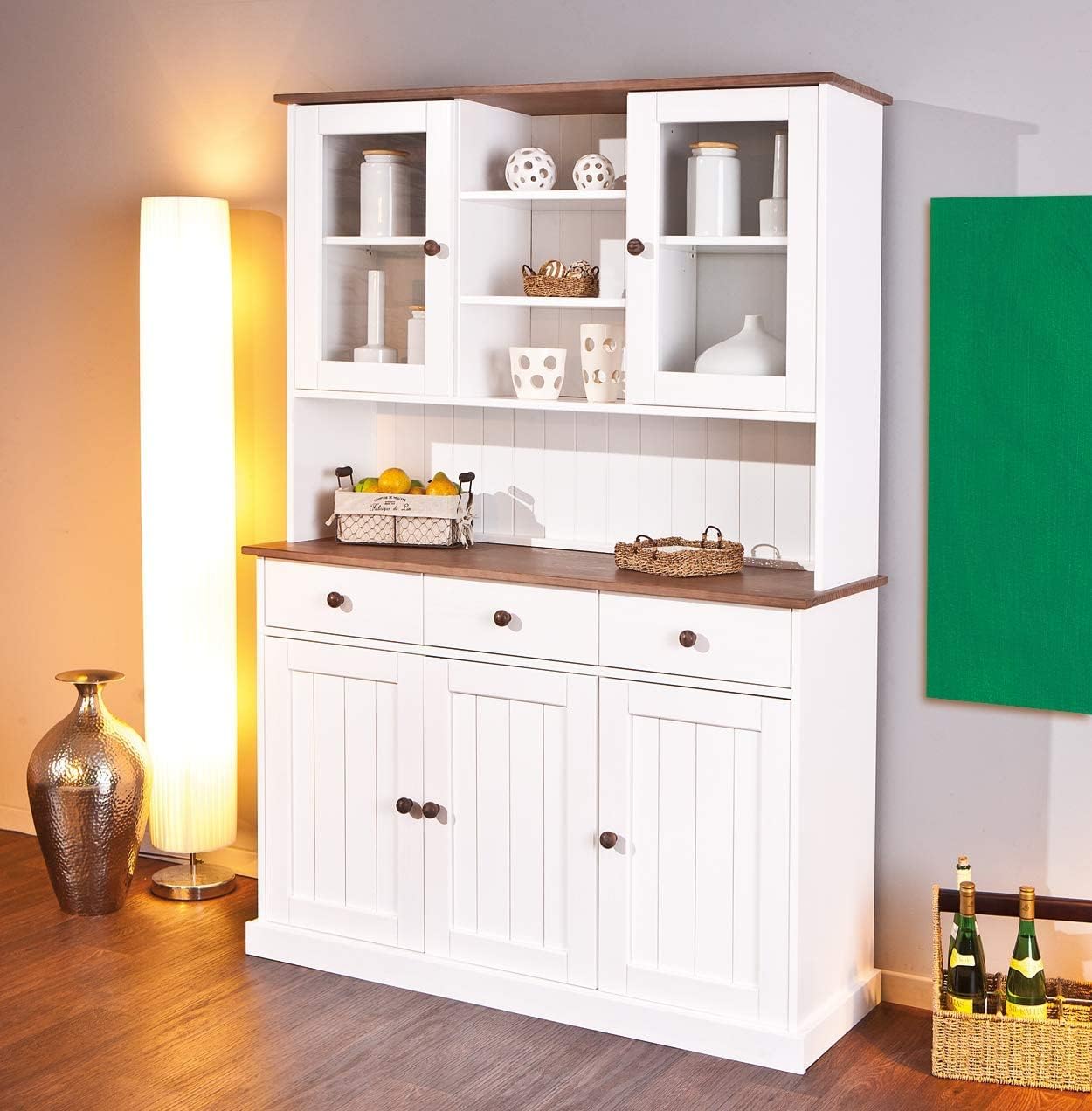

Figure 1.2: The Vaisselier integrated into a dining room, demonstrating its functional and aesthetic appeal as a display and storage unit.
2. Safety Information
While no specific safety warnings beyond general furniture safety practices were provided by the manufacturer, please observe the following precautions:
- Always assemble the unit on a clean, flat, and soft surface to prevent scratches and damage.
- Keep all small parts and assembly hardware out of reach of children during assembly.
- Ensure all screws and fasteners are securely tightened before using the furniture.
- For stability and to prevent tipping, it is highly recommended to secure the unit to a wall using appropriate anti-tip hardware (not included, but generally advised for tall furniture).
- Do not overload shelves or drawers, as this may compromise the stability and integrity of the unit.
3. Package Contents
Your Inter Link Vaisselier is delivered as a flat-pack kit and will arrive in multiple packages. These packages may be delivered with a maximum of 72 hours difference. Please ensure you have received all boxes before beginning assembly.
Upon opening, verify that all components listed in the included assembly manual are present and undamaged. Typical contents include:
- Main frame panels (sides, back, top, bottom)
- Shelf panels
- Door panels (glass and solid)
- Drawer components
- Hardware pack (screws, dowels, hinges, drawer slides, knobs)
- Assembly instruction manual
Figure 3.1: Illustration of multiple packages, indicating that the product is shipped in separate boxes which may arrive at different times.
4. Setup and Assembly Instructions
This product requires self-assembly. Please follow the detailed, step-by-step assembly manual included in your packaging. It is recommended to have at least two people for assembly due to the size and weight of some components.
General Assembly Steps:
- Unpack and Organize: Carefully unpack all components and lay them out on a soft, clean surface. Group similar parts and hardware.
- Identify Parts: Refer to the parts list in your manual to identify each component.
- Follow Step-by-Step Instructions: Assemble the unit strictly according to the sequence provided in the manufacturer's manual. Pay close attention to diagrams and warnings.
- Secure Connections: Ensure all screws, dowels, and cam locks are fully tightened for a stable structure. Do not overtighten.
- Install Doors and Drawers: Attach hinges to doors and drawer slides to the cabinet and drawer boxes. Adjust hinges as needed for proper door alignment.
Figure 4.1: The Vaisselier with all compartments open, illustrating the internal structure and various storage areas, useful for assembly reference.
Figure 4.2: Detail of a door hinge, crucial for proper door installation and alignment during assembly.

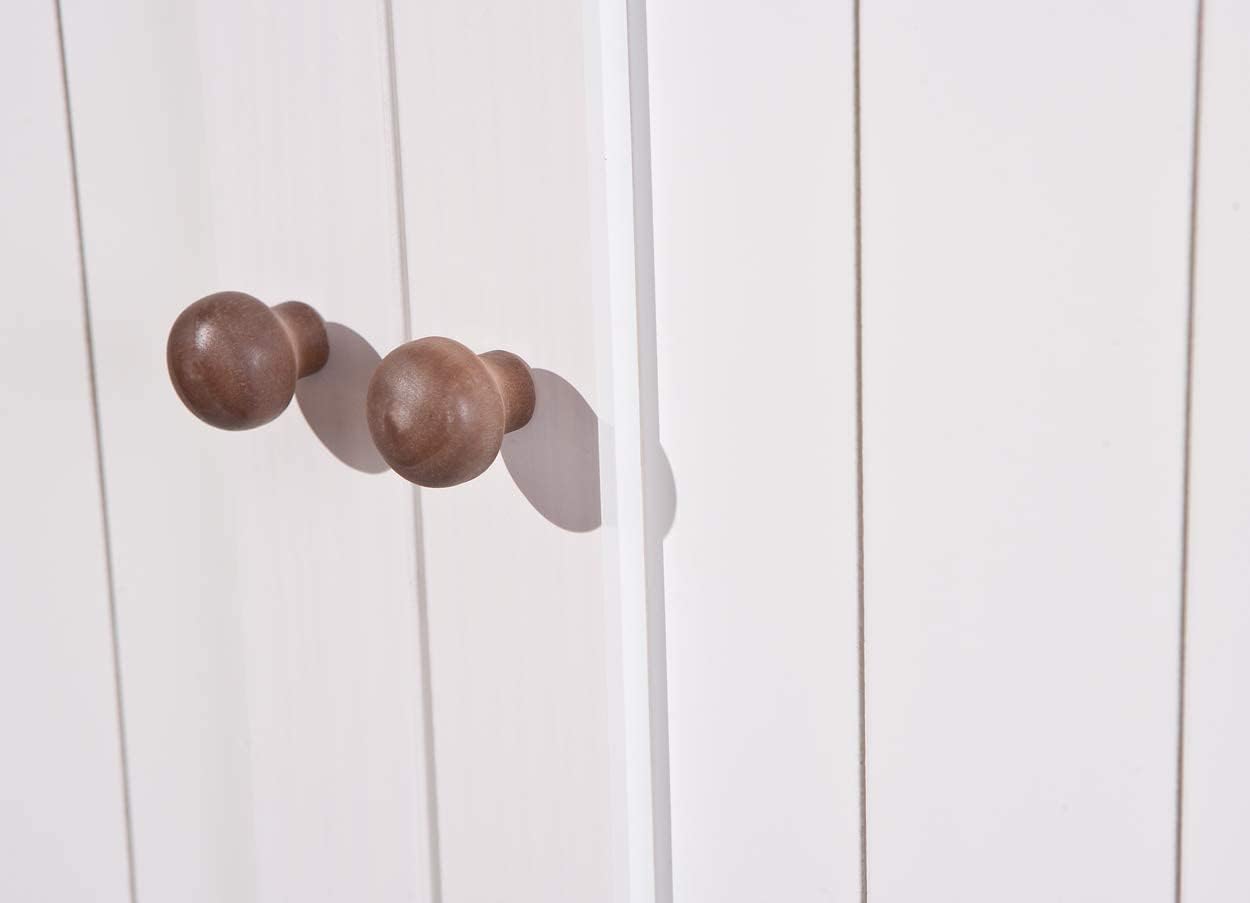

Figure 4.3: Detail of the wooden knobs, which are installed on the drawers and doors during assembly.
5. Operating Instructions (Usage)
The Inter Link Vaisselier is designed to provide extensive storage and display solutions for your home. Its various compartments cater to different storage needs.
- Upper Glass-Fronted Cabinets: Ideal for displaying dinnerware, glassware, or decorative items. The glass doors protect contents from dust while keeping them visible.
- Central Drawers: The three smooth-gliding drawers are perfect for storing cutlery, linens, or smaller kitchen/dining accessories.
- Lower Solid-Door Cabinets: These five spacious compartments are suitable for larger items such as pots, pans, serving dishes, or pantry staples.
Ensure drawers and doors are opened and closed gently to prevent wear and tear on the hardware and finishes. Avoid placing excessively heavy items on shelves or in drawers to maintain the structural integrity of the unit.
Figure 5.1: Detail of an open drawer, demonstrating its construction and functionality for storage.
6. Maintenance and Care
Proper care will help preserve the beauty and longevity of your Inter Link Vaisselier.
- Cleaning: Regularly dust the surfaces with a soft, dry, lint-free cloth. For spills, wipe immediately with a slightly damp cloth and then dry thoroughly.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, strong detergents, or chemical sprays, as these can damage the painted finish and wood.
- Sunlight Exposure: Avoid prolonged exposure to direct sunlight, which can cause fading or discoloration of the wood and paint.
- Humidity: Maintain a stable room temperature and humidity level to prevent wood from warping or cracking.
- Hardware Check: Periodically check all screws, bolts, and fasteners to ensure they remain tight. Retighten as necessary to maintain stability.
7. Troubleshooting
If you encounter any issues with your Vaisselier, consider the following common troubleshooting steps:
- Unit is Wobbly: Ensure the unit is placed on a level surface. Check all assembly screws and bolts, and tighten any that are loose. If applicable, adjust leveling feet.
- Drawers Sticking or Not Closing Smoothly: Check for any obstructions in the drawer slides. Ensure the drawer slides are properly aligned and securely attached to both the drawer box and the cabinet frame.
- Doors Not Closing Properly or Misaligned: Inspect the hinges for proper installation. Most hinges allow for minor adjustments (up/down, left/right, in/out) using a screwdriver. Refer to the hinge adjustment section in your assembly manual if available.
- Missing Parts: If you discover missing parts during assembly, do not proceed. Contact the retailer or manufacturer's customer service immediately.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Inter Link |
| Model Number | 20901467 |
| Color | White with Brown/Sepia accents |
| Dimensions (L x W x H) | 131 x 45 x 181 cm |
| Material | Solid Pine |
| Item Weight | 66 Kilograms |
| Assembly Required | Yes (Kit Assembly) |
| Number of Drawers | 3 |
| Number of Doors | 5 (2 glass, 3 solid) |
9. Warranty and Support
Warranty information for the Inter Link Vaisselier is not explicitly provided in the product details. For specific warranty terms, product support, or to inquire about replacement parts, please refer to the documentation included with your purchase or contact Inter Link customer service directly through their official website or contact channels.
