GRS Tools 022-612 C-Max Carbide Graver 2mm Square Blank Instruction Manual

1. Introduction

This manual provides essential instructions for the proper use, setup, maintenance, and troubleshooting of your GRS Tools 022-612 C-Max Carbide Graver 2mm Square Blank. This high-quality carbide graver is designed for precision engraving tasks in various materials, commonly used in jewelry making, metalworking, and fine art engraving. Please read this manual thoroughly before using the tool to ensure safe and effective operation.

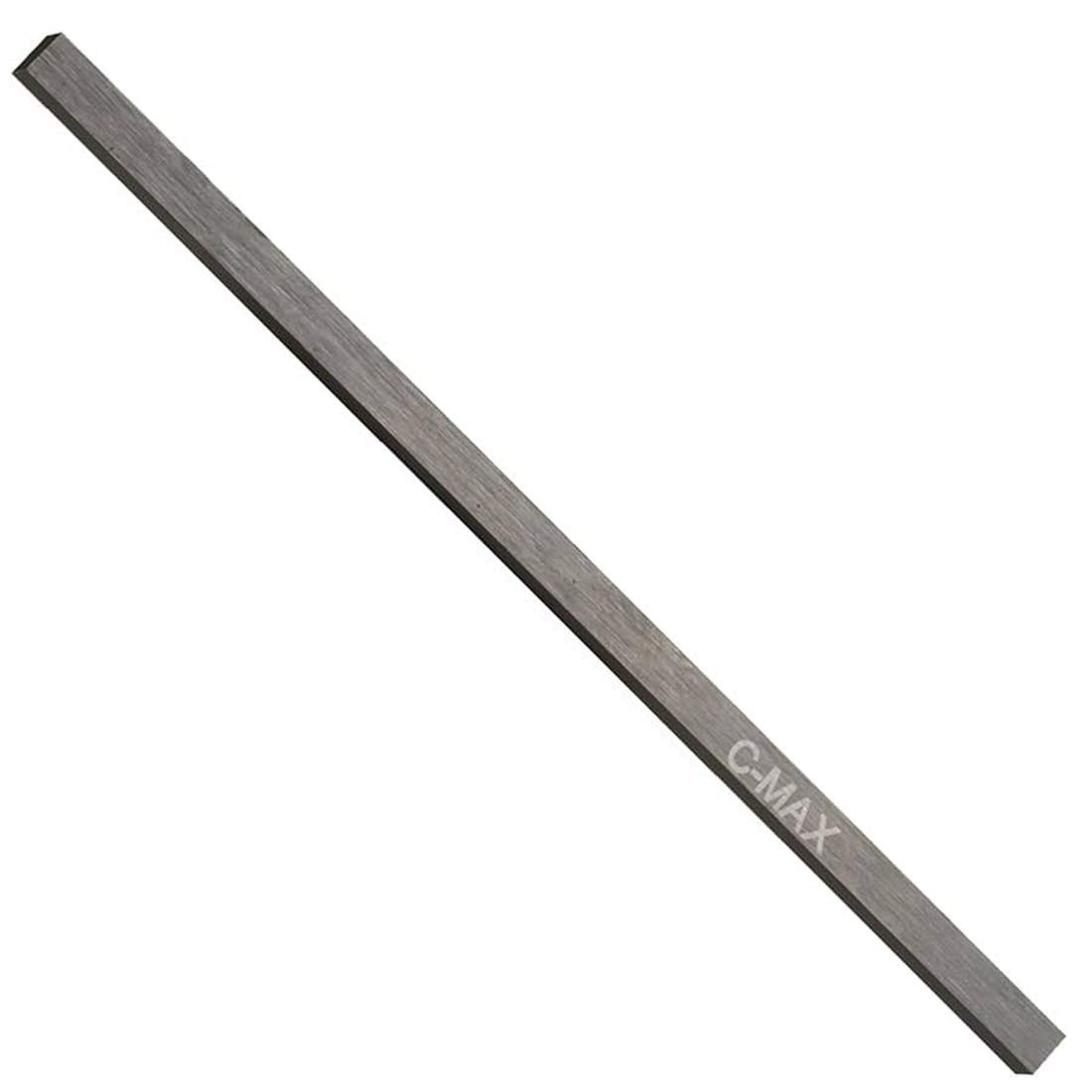

Figure 1: GRS Tools 022-612 C-Max Carbide Graver 2mm Square Blank. This image displays the carbide graver blank, which is a solid piece of carbide material, typically with a square cross-section, ready for custom shaping and sharpening.

2. Safety Information

Always prioritize safety when working with engraving tools. Failure to follow these safety guidelines may result in injury or damage to the tool.

• Eye Protection: Always wear appropriate eye protection (safety glasses or goggles) to shield against flying debris or tool fragments.
• Hand Protection: Use gloves to protect hands from sharp edges, especially during sharpening and handling.
• Ventilation: Ensure adequate ventilation when sharpening, as dust from carbide can be harmful if inhaled.
• Secure Workpiece: Always secure your workpiece firmly to prevent movement during engraving, which could lead to slips and injury.
• Tool Handling: Handle the graver with care. It is extremely sharp and can cause severe cuts. Store it in a protective holder when not in use.
• Children and Pets: Keep tools out of reach of children and pets.

3. Setup

The GRS 022-612 graver is a blank and requires shaping and sharpening before use. Proper setup is crucial for optimal performance and safety.

3.1 Unpacking and Inspection

• Carefully remove the graver blank from its packaging.
• Inspect the graver for any visible damage or defects. Do not use a damaged tool.

3.2 Shaping and Sharpening

This graver blank must be shaped and sharpened to your desired profile and angle using a suitable sharpening system (e.g., GRS GraverMach, GraverMax, or a dedicated sharpening fixture with diamond wheels). Refer to your sharpening system's manual for detailed instructions.

• Choose a Profile: Determine the appropriate graver profile (e.g., V-point, flat, round) for your specific engraving task.
• Sharpening Angles: Select the correct face and heel angles. Common angles for carbide gravers are typically steeper than for high-speed steel gravers due to carbide's brittleness.
• Polish: Achieve a mirror polish on all cutting surfaces for the cleanest cuts and extended tool life.

3.3 Mounting in a Handpiece

Once shaped and sharpened, the graver needs to be securely mounted in an appropriate handpiece.

• Insert the non-cutting end of the graver into the collet or chuck of your chosen handpiece (e.g., GRS QC handpiece, traditional wooden handle).
• Ensure the graver is seated firmly and tightened securely to prevent rotation or slippage during use.
• Adjust the length of the graver protruding from the handpiece to a comfortable and controlled working length.

4. Operating

Using the GRS C-Max Carbide Graver requires practice and a steady hand. Always start with scrap material to familiarize yourself with the tool's behavior.

4.1 Holding the Tool

• Hold the handpiece firmly but comfortably, allowing for precise control.
• Position your non-dominant hand to support the workpiece or guide the graver, ensuring it is clear of the cutting path.

4.2 Engraving Techniques

• Angle of Attack: Maintain a consistent, shallow angle of attack relative to the workpiece surface. Too steep an angle can cause the graver to dig in, while too shallow can cause it to skate.
• Pressure: Apply steady, controlled pressure. Carbide gravers require less pressure than steel gravers due to their hardness.
• Movement: Use smooth, deliberate movements. For fine lines, rotate the workpiece against the stationary graver. For broader cuts, push the graver through the material.
• Lubrication: For some materials, a small amount of cutting lubricant can improve cut quality and extend tool life.

4.3 Material Compatibility

C-Max Carbide gravers are exceptionally hard and suitable for engraving a wide range of materials, including:

• Various metals (gold, silver, platinum, steel, titanium)
• Hardwoods
• Plastics
• Glass (with appropriate technique and coolant)

5. Maintenance

Proper maintenance ensures the longevity and performance of your GRS C-Max Carbide Graver.

5.1 Cleaning

• After each use, clean the graver to remove any metal shavings or debris. A soft brush or compressed air can be used.
• Avoid using harsh chemicals that could damage the carbide or handpiece.

5.2 Resharpening

• Carbide gravers retain their sharpness for a long time, but will eventually dull. Resharpen as soon as you notice a decrease in cutting performance or quality.
• Always use diamond abrasives for sharpening carbide. Silicon carbide or aluminum oxide abrasives are ineffective and can damage the tool.
• Maintain the original angles and polish for best results.

5.3 Storage

• Store the graver in a protective holder or case to prevent accidental damage to the cutting edge and to protect yourself from injury.
• Keep the graver in a dry environment to prevent corrosion, although carbide is highly resistant to rust.

6. Troubleshooting

Here are some common issues and their potential solutions:

7. Specifications

• Model Number: 022-612
• Material: C-Max Carbide
• Shape: Square Blank
• Size: 2mm (cross-section)
• Application: Precision engraving, jewelry making, metalworking, fine art.
• Compatibility: Requires shaping and sharpening with diamond abrasives. Compatible with various handpieces.

8. Warranty & Support

For specific warranty information regarding your GRS Tools 022-612 C-Max Carbide Graver, please refer to the documentation provided at the time of purchase or contact your authorized GRS dealer or the manufacturer directly. As a consumable tool that requires custom shaping and sharpening, warranty coverage typically applies to manufacturing defects only, not wear and tear or damage from improper use or sharpening.

For technical support, product inquiries, or to purchase accessories, please contact GRS Tools customer service or visit their official website. Contact details are usually available on the product packaging or the manufacturer's website.
