1. Introduction
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Siemens SN66M039EU fully integrated dishwasher. Please read this manual carefully before using the appliance to ensure safe and efficient operation.
The Siemens SN66M039EU is a high-performance dishwasher designed for seamless integration into your kitchen. It features a capacity of 13 place settings, an A++ energy efficiency rating, and a low noise level of 44 dB. Key technologies include the Speedmatic hydraulic system, IQdrive brushless motor, AquaSensor, and a 3-level self-cleaning filter system. It also offers VarioFlex baskets for flexible loading and special functions like VarioSpeed Plus for faster wash cycles.
2. Safety Information
Always adhere to the following safety guidelines to prevent injury or damage to the appliance:
- Ensure the appliance is correctly installed and grounded by a qualified professional.
- Do not allow children to play with or operate the dishwasher. The appliance includes a child safety lock.
- Only use detergents and rinse aids specifically designed for automatic dishwashers.
- Do not open the door during operation, especially during the hot wash cycle, as hot water or steam may escape.
- In case of a malfunction, switch off the appliance and disconnect it from the power supply before attempting any repairs. Contact authorized service personnel.
- The AquaStop system provides protection against water damage; however, regularly check hoses for signs of wear or damage.
3. Setup and Installation
Proper installation is crucial for the optimal performance and longevity of your dishwasher. Refer to the diagrams below for precise measurements and connection points.

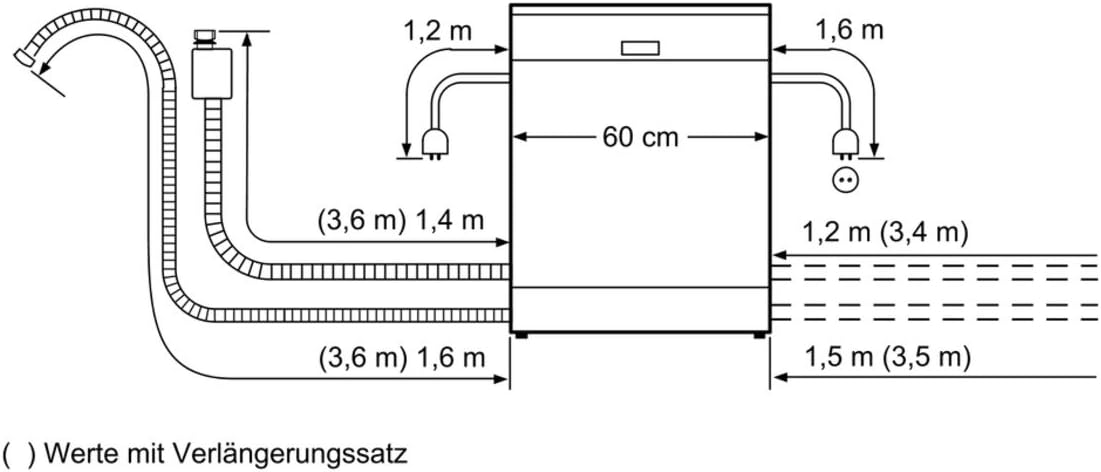

Figure 3.1: Installation diagram showing water inlet, drain hose, and electrical connections. Note the hose lengths and potential extensions.
Figure 3.2: Detailed dimensions for integrating the dishwasher into a standard kitchen cabinet. Measurements are in millimeters.
3.1. Positioning the Appliance
The dishwasher should be placed on a level, stable surface. Ensure there is adequate space for ventilation and access to water and electrical connections. The appliance dimensions are 815 mm (Height) x 598 mm (Width) x 550 mm (Depth).
3.2. Water Connection
Connect the water inlet hose to a cold or hot water supply (up to 60°C). The appliance is equipped with an AquaStop system for enhanced safety against water leaks. Connect the drain hose to a suitable drain pipe, ensuring it is securely fastened and free from kinks.
3.3. Electrical Connection
Connect the appliance to a properly grounded electrical outlet. Ensure the voltage and frequency match the specifications on the rating plate of the dishwasher. Do not use extension cords or multiple socket adapters.

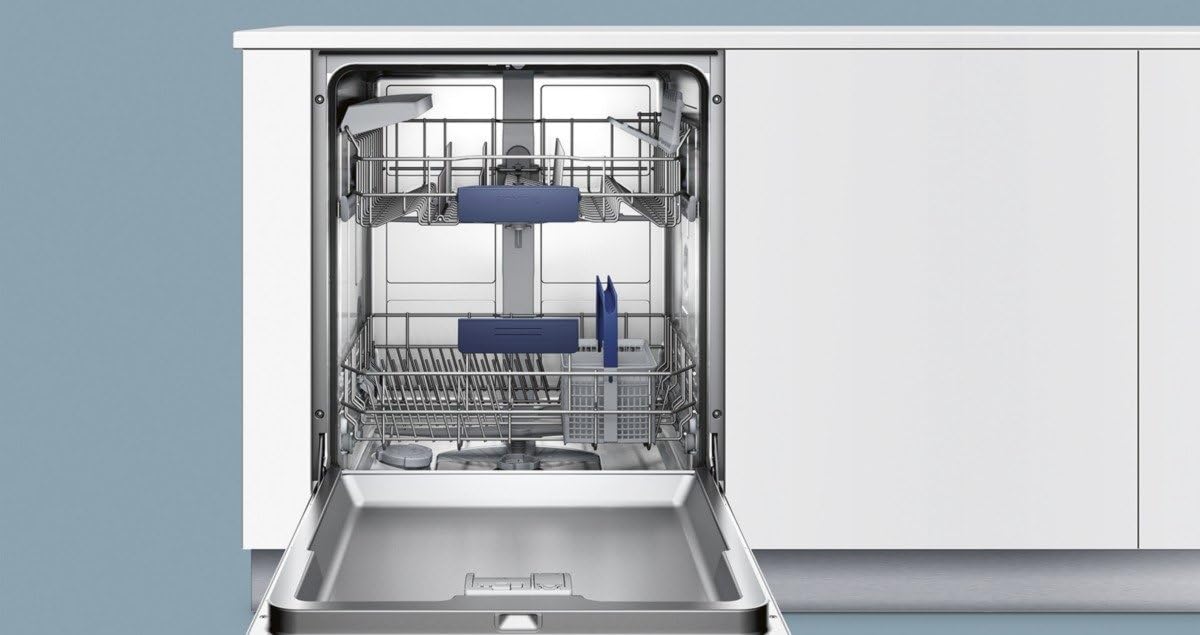

Figure 3.3: The Siemens SN66M039EU fully integrated dishwasher installed in a kitchen, with the door open to reveal the interior racks.
4. Operating Instructions
Familiarize yourself with the control panel and various programs to achieve optimal cleaning results.

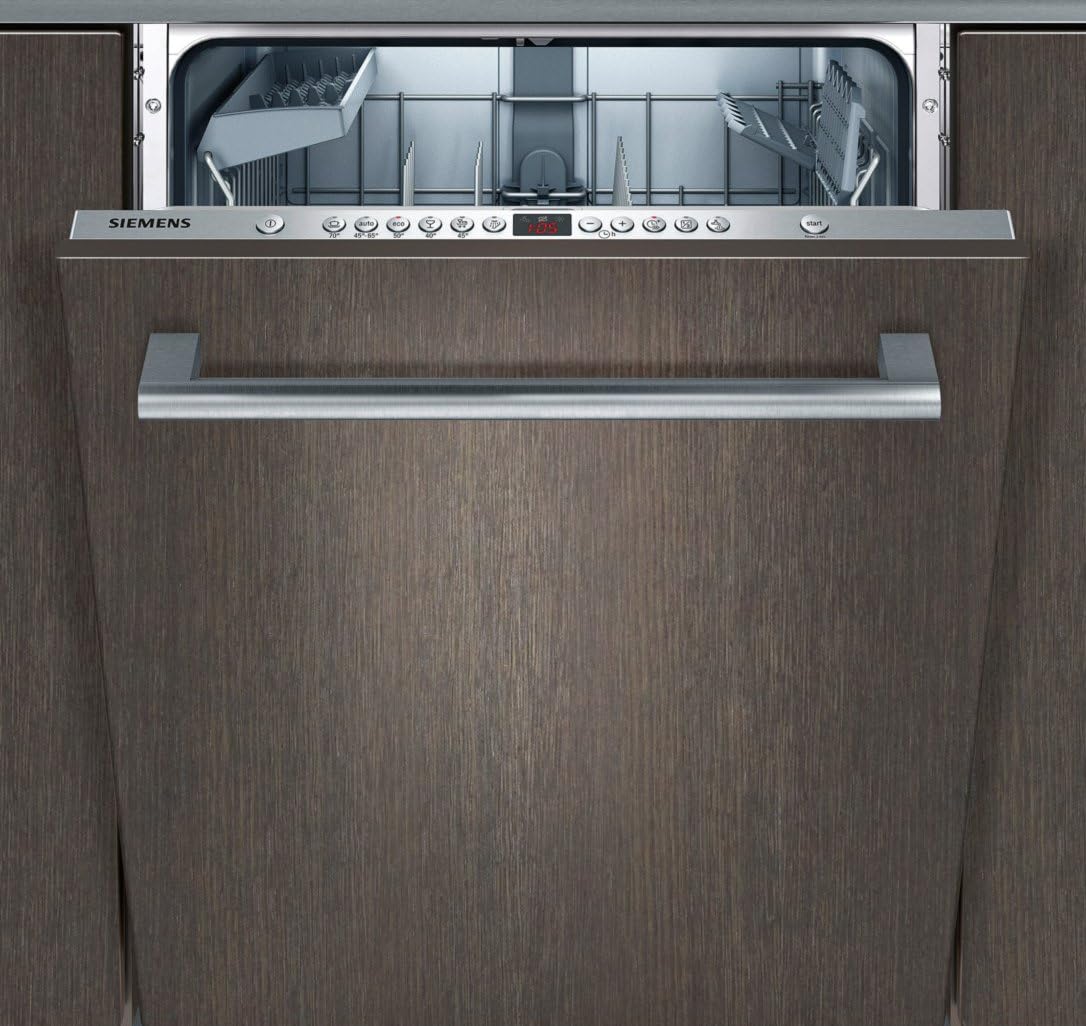

Figure 4.1: The Siemens SN66M039EU dishwasher with its control panel exposed, showing program selection buttons and digital display.
Figure 4.2: A detailed view of the control panel, highlighting the program icons, digital timer, and function buttons.
4.1. Control Panel Overview
The control panel features intuitive buttons for program selection, special functions, and a digital display for remaining time and settings. The Infolight feature projects a light spot onto the floor during operation, indicating the dishwasher is running.
Figure 4.3: The Infolight feature, projecting a blue light onto the floor to indicate the dishwasher is in operation.
4.2. Loading the Dishwasher
The VarioFlex basket system allows for flexible loading of various dish sizes. Utilize the foldable etageres and spikes to secure items. Ensure spray arms are not obstructed.
Figure 4.4: The lower basket of the dishwasher, demonstrating how plates and cutlery can be arranged for optimal cleaning.
Figure 4.5: The upper basket, showing flexible loading options for glasses, cups, and smaller kitchen items.
4.3. Detergent and Rinse Aid
Use only automatic dishwasher detergent. The EcoDosage system ensures optimal dissolving of detergent tablets. The appliance features 'Multitab' detergent recognition for combined detergents. Fill the rinse aid dispenser as needed; the indicator light will signal when it's low.
4.4. Program Selection
Choose from the following programs based on your dishwashing needs:
- Intensive 70°C: For heavily soiled pots, pans, and non-delicate dishes.
- Auto 45-65°C: Automatically adjusts cleaning performance based on soil level.
- Eco 50°C: The most efficient program for normally soiled dishes, optimizing water and energy consumption.
- Glass 40°C: Gentle program for delicate glassware.
- Quick 45°C: For lightly soiled dishes and quick washes.
- Prewash: For rinsing dishes before a full wash cycle.
4.5. Special Functions
Enhance your wash cycle with these functions:
- VarioSpeed Plus: Reduces program time by up to 66% while maintaining excellent cleaning and drying results.
- Half Load: For smaller loads, saving water and energy.
- Distributed: (Specific function, details may vary by model, generally related to water distribution or load sensing).
- Delayed Start: Set the program to start after 1 to 24 hours.
5. Maintenance and Care
Regular maintenance ensures the longevity and efficiency of your dishwasher.
5.1. Cleaning the Filter System
The dishwasher features a 3-level self-cleaning filter system with a corrugated microfilter. Periodically check and clean the filters to prevent blockages and ensure optimal wash performance. Refer to the appliance's internal diagrams for filter removal and cleaning instructions.
5.2. Cleaning the Interior and Exterior
Wipe the exterior surfaces with a soft, damp cloth. For the interior, periodically run a dishwasher cleaner or a hot cycle with vinegar to remove grease and limescale buildup. The stainless steel inner tub is designed for durability and easy cleaning.
5.3. Glass Protection System
The integrated glass protection system helps to prevent corrosion and maintain the shine of your delicate glassware. Ensure proper rinse aid levels for best results.
6. Troubleshooting
Before contacting service, try these common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishes not clean | Improper loading, clogged spray arms, insufficient detergent, incorrect program. | Reload dishes correctly, clean spray arm nozzles, check detergent dispenser, select appropriate program. |
| Water not draining | Clogged filter, kinked drain hose, blocked drain pump. | Clean filter system, check and straighten drain hose, clear any obstructions from the drain pump. |
| Dishwasher not starting | Door not closed properly, power supply issue, delayed start active. | Ensure door is latched, check power connection, deactivate delayed start. |
| Excessive noise | Dishes rattling, foreign object in pump, improper installation. | Rearrange dishes, check pump area for debris, ensure appliance is level. |
If the problem persists after attempting these solutions, please contact Siemens customer service.
7. Specifications
Key technical specifications for the Siemens SN66M039EU dishwasher:
- Model Number: SN66M039EU
- Capacity: 13 Place Settings
- Energy Efficiency Class: A++
- Noise Level: 44 dB (re 1 pW)
- Annual Energy Consumption: 262 kWh/year
- Dimensions (HxWxD): 815 x 598 x 550 mm
- Weight: 38 kg
- Programs: Intensive 70°C, Auto 45-65°C, Eco 50°C, Glass 40°C, Quick 45°C, Prewash
- Special Functions: VarioSpeed Plus, Half Load, Distributed
- Motor: IQdrive (brushless)
- Water Safety System: AquaStop (guaranteed for life)
- Interior Material: Stainless Steel
8. Warranty and Support
Your Siemens SN66M039EU dishwasher comes with a comprehensive warranty. The AquaStop system, providing protection against water damage, is guaranteed for the lifetime of the appliance.
For warranty claims, technical support, or service inquiries, please contact Siemens customer service. Ensure you have your model number (SN66M039EU) and purchase details available when contacting support.
You can find contact information for Siemens customer service on the official Siemens website or in the documentation provided with your appliance.
