TOOLPORT 6x10 m Party Tent Marquee User Manual

1. Introduction and Overview

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your TOOLPORT 6x10 m Party Tent Marquee. Please read this manual thoroughly before setting up and using the tent to ensure safe and proper operation.

The TOOLPORT Party Tent is designed to provide a spacious and protected area for various outdoor events and gatherings. It features a robust galvanized steel frame and a high-quality 700 N PVC tarpaulin, offering durability and weather resistance.

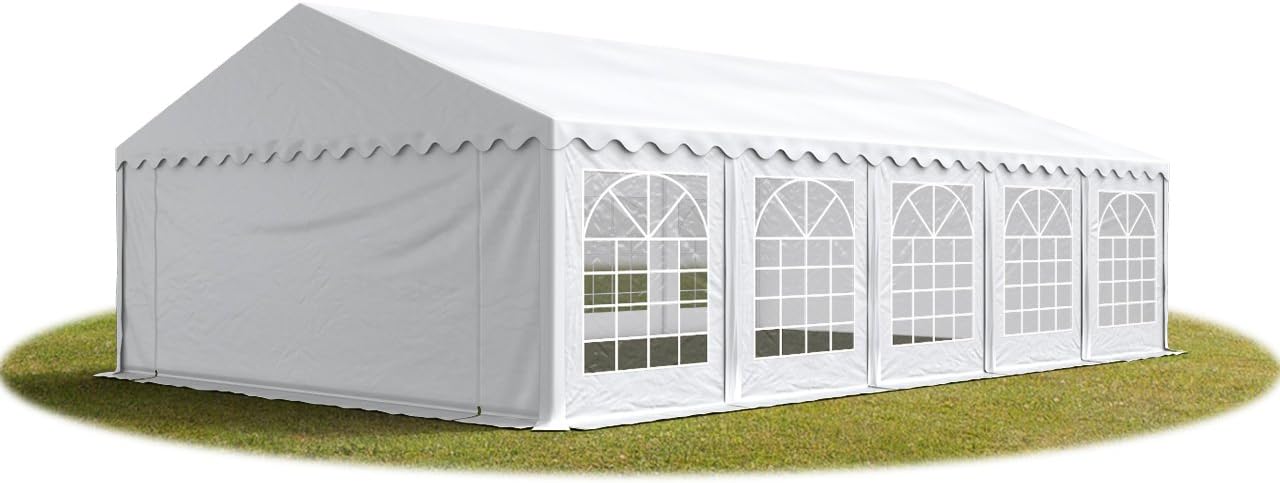

Figure 1.1: The TOOLPORT 6x10 m Party Tent Marquee.

2. Safety Information

Important Safety Guidelines:

• Wind and snow loads have not been tested for these tents. The manufacturer disclaims all responsibility for damage of this nature.
• Always assemble the tent strictly according to the provided instructions.
• In case of light snowfall, immediately remove snow from the roof to prevent accumulation.
• When wind conditions increase, utilize a storm kit (sold separately or as recommended by the manufacturer) to secure the tent.
• In case of strong gusts or heavy snowfall, it is highly recommended to temporarily dismantle the tent to prevent damage.
• For tents with a side height of 2.6 m or more, a Safety Pack Plus may be available upon request, which provides static calculations for wind and snow resistance limits.
• Further safety instructions are detailed in the assembly manual included with your product.
• The manufacturer disclaims all responsibility for direct and indirect damage caused to persons, animals, and materials. Always observe all safety instructions.

3. Product Components

Your TOOLPORT Party Tent package includes the following main components:

• Steel Metal Construction: Composed of fully galvanized steel tubes (approx. 38mm diameter) and connectors (approx. 42mm diameter). Features bolted assembly with wing screws for strong load resistance.
• Roof Tarpaulin: High-quality 700 N PVC, single-piece design for stability, 100% waterproof, tear-resistant, and weather-resistant. Features welded seams and an overhanging panel to limit drafts. UV protection 50+. Resists temperatures between -20 and +50 °C.
• Side Tarpaulins: Multiple 2-meter sections of high-quality PVC tarpaulin, equipped with wind deflectors and transparent window sections. Side sections are mountable/detachable every two meters.
• Gable Tarpaulins: Two gable tarpaulins, including an entrance gable with a strong zippered door.
• Ground Fixation Kit: Includes pegs/stakes and guy ropes for secure ground fixation.
• Tensioners: For securing the tarpaulins.
• Assembly Instructions: Clear and easy-to-understand manual with numbered tubes for quick assembly.
• Assembly Tools: All necessary tools for assembly are provided.

Figure 3.1: Detail of the robust bolted frame connection.

Figure 3.2: Key structural and material components.

Figure 3.3: Roof and structure feature highlights.

4. Setup and Assembly

The TOOLPORT Party Tent is designed for quick and easy installation. Follow the numbered tubes and the clear assembly instructions provided in your package.

4.1 Assembly Steps (General Overview)

1. Unpack Components: Lay out all parts and verify against the packing list. Familiarize yourself with the numbered tubes.
2. Assemble Frame: Connect the galvanized steel tubes using the provided connectors and wing screws. Follow the numbering system for correct assembly.
3. Attach Roof Tarpaulin: Carefully place the single-piece roof tarpaulin over the assembled frame. Ensure it is centered and properly aligned.
4. Install Side and Gable Tarpaulins: Attach the side sections and gable tarpaulins using the elastic fasteners. Ensure the zippered entrance is correctly positioned.
5. Secure to Ground: Use the pegs/stakes and guy ropes to firmly secure the tent to the ground. This is crucial for stability, especially in windy conditions.

4.2 Estimated Assembly Time

The time required for assembly varies depending on the tent width and number of people:

• 3m wide tents: 1 to 1.5 hours with two people.
• 4m wide tents: 1.5 to 2 hours with 3 or 4 people.
• 5m wide or wider tents (including this 6x10m model): 2 to 2.5 hours with 3 or 4 people.

Figure 4.1: Assembly time and component overview.

5. Operating Instructions

Once assembled and securely anchored, your TOOLPORT Party Tent is ready for use. The tent provides a sheltered space for various activities.

5.1 Ventilation and Access

• The side sections can be easily removed every two meters to allow for increased airflow or additional access points.
• The main entrance features a robust zipper for easy opening and closing.
• The wind deflectors on the side tarpaulins and the overhanging roof panel help regulate internal temperature and limit drafts.

Figure 5.1: Interior view of the tent.

5.2 Capacity Guidelines

To estimate the available space under your tent:

• Seating Capacity: Tent surface area (m²) divided by 1.2. For a 6x10m tent (60m²), this is approximately 50 seats.
• Standing Capacity: Tent surface area (m²) divided by 0.5. For a 6x10m tent (60m²), this is approximately 120 standing places.

6. Maintenance

Proper maintenance will extend the lifespan of your party tent.

• Cleaning Tarpaulins: Clean PVC tarpaulins with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the material or its UV protection. Rinse thoroughly and allow to dry completely before storage.
• Frame Inspection: Periodically inspect the galvanized steel frame for any signs of rust, bending, or damage. Ensure all bolted connections are tight.
• Ground Fixation: Regularly check the tension of guy ropes and the security of pegs, especially after strong winds or rain. Re-tension or re-secure as needed.
• Snow Removal: As per safety guidelines, immediately remove any snow accumulation from the roof to prevent structural stress.
• Storage: When not in use for extended periods, dismantle the tent and store all components in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure tarpaulins are clean and completely dry to prevent mold or mildew.

7. Troubleshooting

This section addresses common issues you might encounter.

7.1 Tent Instability

• Issue: Tent feels unstable or sways in light wind.
• Solution: Ensure all ground pegs are fully inserted and secure. Check that guy ropes are properly tensioned and anchored. Verify all frame connections are tightly bolted. Consider using a storm kit for added stability in windy conditions.

7.2 Water Pooling on Roof

• Issue: Water collects on the roof, causing sagging.
• Solution: Ensure the roof tarpaulin is taut and evenly stretched over the frame. Verify that the frame is assembled correctly and not sagging. Remove any accumulated water promptly to prevent damage.

7.3 Difficulty with Zipper

• Issue: Zipper on entrance door is stiff or difficult to operate.
• Solution: Ensure the fabric around the zipper is not caught. Apply a silicone-based lubricant to the zipper teeth if necessary. Avoid forcing the zipper.

8. Specifications

Figure 8.1: Tent dimensions diagram.

9. Warranty and Support

Information regarding specific warranty terms and conditions for the TOOLPORT 6x10 m Party Tent Marquee is not available in the provided product data. Please refer to the documentation included with your purchase or contact TOOLPORT customer support directly for warranty details and assistance.

For further inquiries or support, please visit the official TOOLPORT website or contact their customer service department.
