Introduction
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your Seville Classics UltraGraphite Commercial Heavy-Duty Wood Top Workbench with Drawers on Wheels. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your product.
The Seville Classics UltraGraphite Commercial Heavy-Duty Wood Top Workbench with Drawers on Wheels.
The workbench features industrial-strength powder-coated steel construction, a 1.5-inch thick polyurethane-coated solid wood top, and 3-inch rolling casters (two with locks). It includes two steel drawers with stainless steel handles and commercial-grade ball-bearing sliders. This versatile workbench is suitable for various environments including garages, warehouses, mailrooms, basements, or workshops.
Setup and Assembly
Assembly of the workbench is required. Detailed instructions and necessary tools are included with your product. Please follow the provided step-by-step guide carefully. Ensure all components are present before beginning assembly.
Workbench dimensions for planning your space.
Key Assembly Steps:
- Unpack all components and verify against the parts list.
- Attach the legs to the main frame using the provided hardware.
- Install the 3-inch rolling casters into the leg bases. Ensure the two locking casters are positioned for easy access.
- Assemble the two steel drawers, including the stainless steel handles and ball-bearing sliders.
- Mount the polyurethane-coated solid wood top securely to the frame.
- Insert the non-slip drawer liners into the assembled drawers.
Detail of the heavy-duty caster wheel with locking feature.

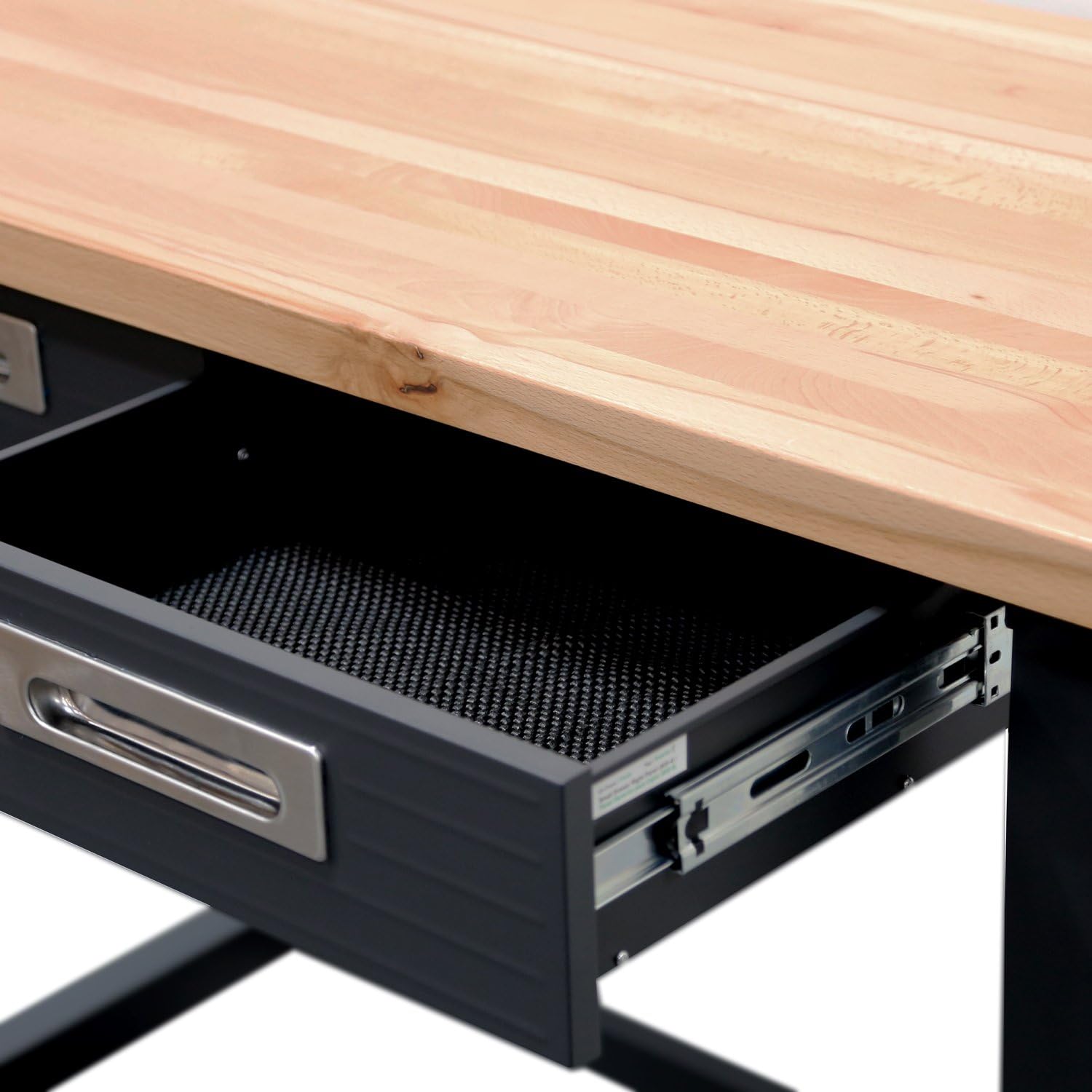

View of an open drawer with its non-slip liner.
Product Overview Video:
This video provides an overview of the Seville Classics UltraHD product line, showcasing design, materials, and quality manufacturing processes relevant to your workbench.
Operating Instructions
Your workbench is designed for heavy-duty use and provides a stable surface for various tasks. The integrated features enhance its functionality.
Using the Workbench:
- Work Surface: The solid wood top provides a durable surface for projects. Avoid direct contact with sharp objects or harsh chemicals to preserve the finish.
- Drawers: The two steel drawers operate on commercial-grade ball-bearing sliders for smooth opening and closing. The included non-slip liners help keep tools and items organized and prevent shifting.
- Mobility: The workbench is equipped with four 3-inch rolling casters. Two of these casters include locking mechanisms. To move the workbench, unlock the casters. To secure it in place, engage the locks on the two casters.
- Weight Capacity: The workbench has a maximum weight capacity of 500 lbs, evenly distributed across the top surface. Do not exceed this limit.
Example of workbench use in a garage environment.

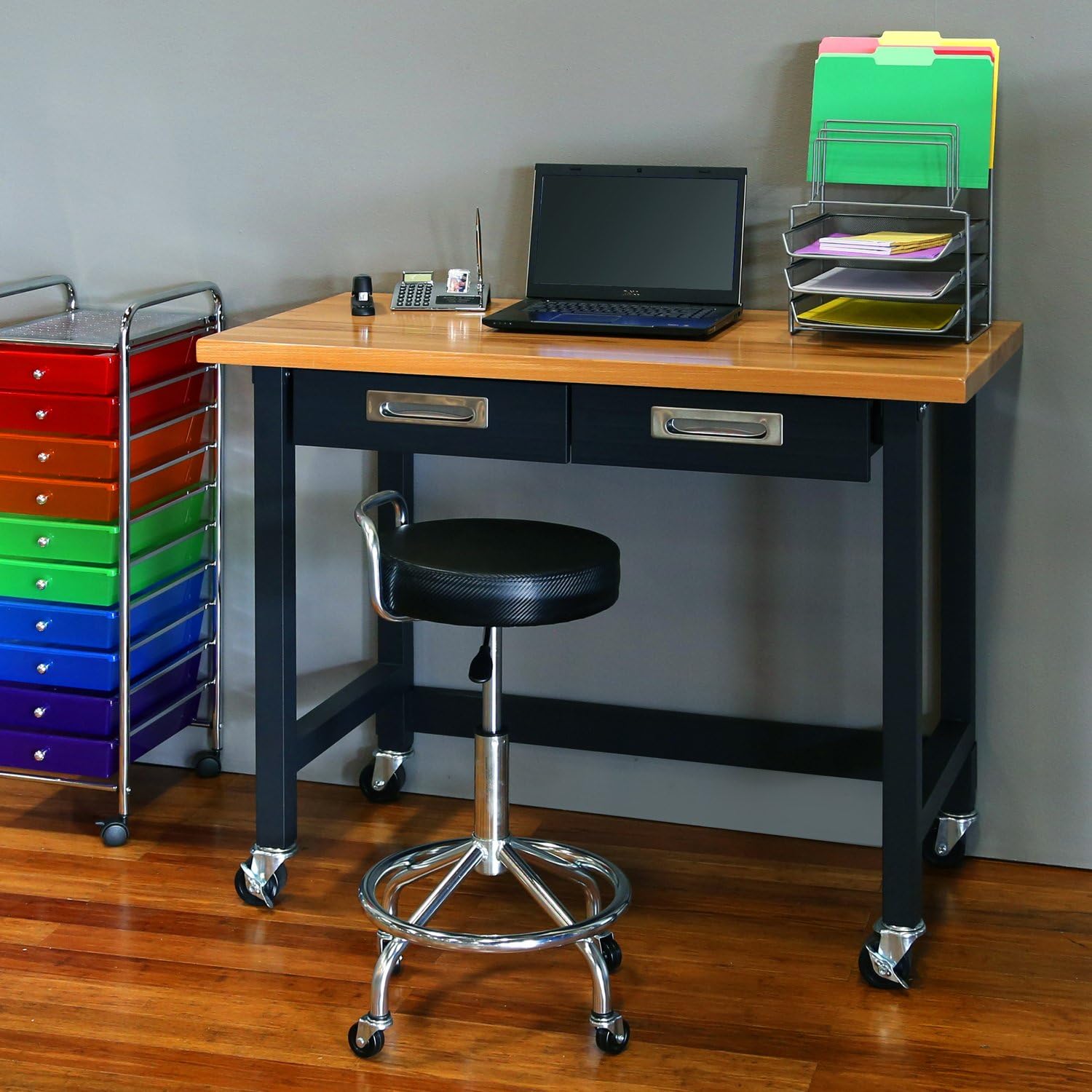

Example of workbench use in an office setting.
Care and Maintenance
Regular maintenance will help preserve the appearance and functionality of your workbench.
- Wood Top: Clean the polyurethane-coated wood top with a damp cloth and mild soap. Avoid abrasive cleaners or solvents that could damage the finish. For stubborn marks, a wood-safe cleaner can be used sparingly.
- Steel Frame: Wipe the powder-coated steel frame with a damp cloth. Dry immediately to prevent water spots. Avoid scratching the finish, as this can lead to corrosion.
- Drawers and Sliders: Periodically check the drawer sliders for smooth operation. If they become stiff, a small amount of silicone lubricant can be applied to the tracks. Keep the drawers free of excessive dust and debris.
- Casters: Ensure casters are free of debris that could impede rolling. Periodically check that the caster bolts are tight.
Detail of the durable wood top.
Troubleshooting
If you encounter any issues with your workbench, refer to the following common problems and solutions:
- Workbench is Wobbly:
Ensure all assembly bolts are securely tightened. Check that the workbench is on a level surface. Adjust leg levelers if applicable (this model uses casters, so ensure casters are locked on uneven surfaces or consider shims if necessary). - Drawers are Sticking or Difficult to Open/Close:
Check for obstructions in the drawer tracks. Ensure the drawer sliders are properly aligned and free of debris. Apply a small amount of silicone lubricant to the ball-bearing sliders if needed. - Casters Not Rolling Smoothly:
Inspect casters for tangled hair, string, or other debris. Clean the wheels and axles. Ensure the caster locks are disengaged when attempting to roll. - Scratches on Wood Top:
Minor scratches can sometimes be buffed out with fine-grit sandpaper and a suitable wood finish, but this should be done with caution to avoid damaging the polyurethane coating. For deeper scratches, professional repair may be necessary.
Product Specifications
| Feature | Specification |
|---|---|
| Model Number | UHD20271B |
| Dimensions (W x D x H) | 48" x 24.7" x 37.4" |
| Weight | 83.6 lbs |
| Weight Capacity | 500 lbs (evenly distributed) |
| Material | Wood, Steel |
| Frame Material | Powder-Coated Steel |
| Top Material | Polyurethane-Coated Solid Wood (1.5" thick) |
| Drawers | 2 Steel Drawers with Ball-Bearing Sliders |
| Casters | 4 (3-inch), 2 locking |
| Color | Gray (frame) |
| Assembly Required | Yes |
| UPC | 722651048315, 017641202717 |
Warranty Information
Seville Classics products are backed by a 1-year limited warranty unless otherwise specified. This warranty protects against original defects in material or workmanship under normal home or office use for the duration of the warranty period. Please retain your proof of purchase for warranty claims.
Customer Support
For further assistance, missing parts, or warranty inquiries, please contact Seville Classics customer support. Refer to the contact information provided with your product packaging or visit the official Seville Classics website for support details.
