Monsieur Bébé CHAISEPTITMALO
Monsieur Bébé Ptit High Chair Instruction Manual
Model: CHAISEPTITMALO
1. Introduction
The Monsieur Bébé Ptit high chair is designed to provide a safe, comfortable, and practical solution for your child's mealtime. This foldable, adjustable high chair is ideal for children who can sit up unaided, up to three years of age or a maximum weight of 15 kg. Its robust steel structure and thoughtful design ensure stability and ease of use, making it a valuable addition to your family's daily routine.

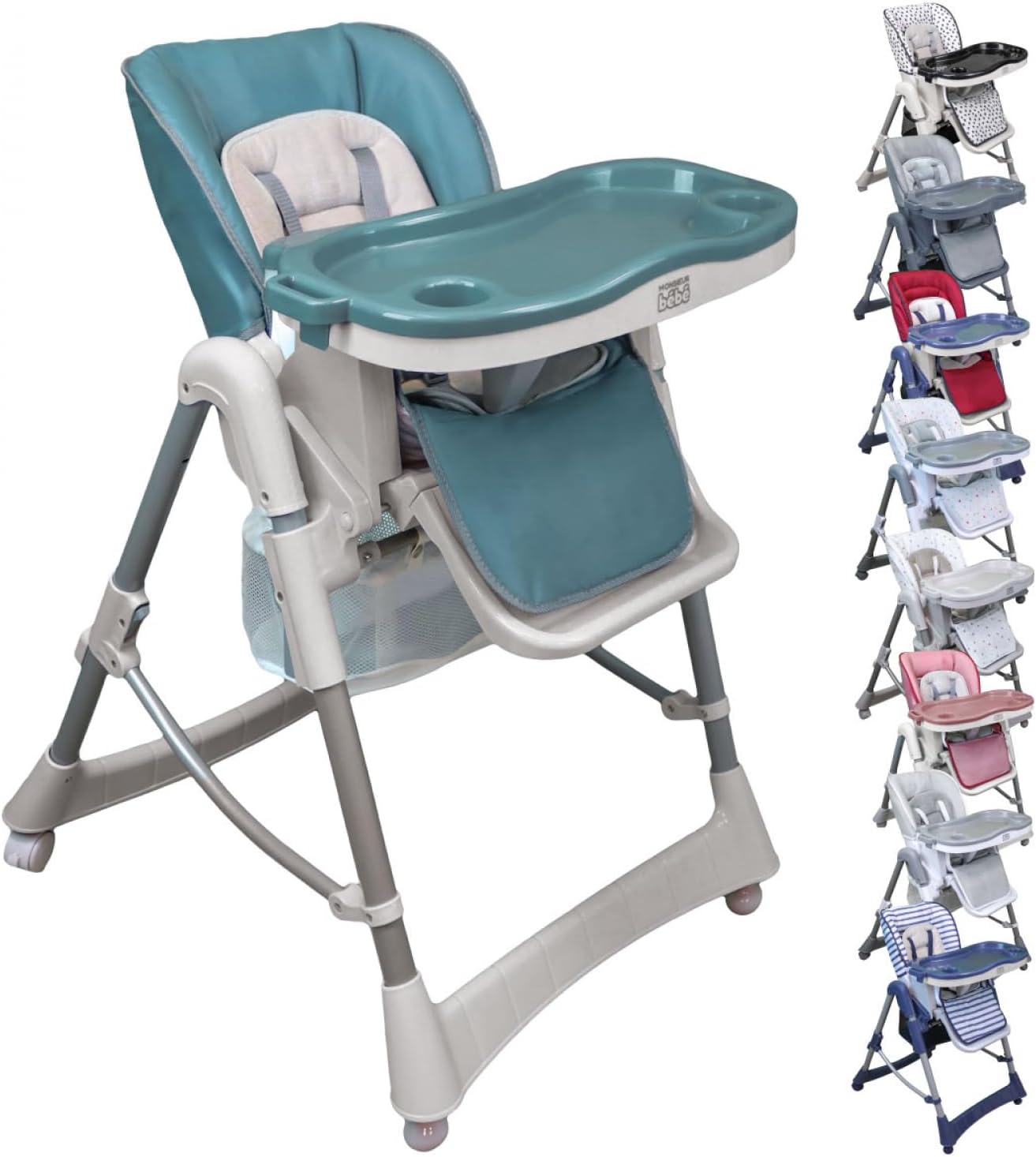

Image 1.1: The Monsieur Bébé Ptit High Chair, available in multiple colors.
2. Safety Information
Your child's safety is paramount. Please read and follow all safety instructions carefully before using the high chair.
- This high chair is intended for children who can sit up unaided, up to 3 years of age or a maximum weight of 15 kg.
- Always use the 5-point safety harness to secure your child in the high chair. Ensure all straps are properly adjusted and fastened.
- Never leave your child unattended in the high chair.
- Ensure the high chair is placed on a flat, stable surface. Engage the wheel locking system when the chair is stationary.
- Keep children away from the high chair during assembly and folding to prevent injury.
- Regularly inspect the high chair for any signs of wear, damage, or loose parts. Discontinue use if any damage is found.
- Do not use accessories or replacement parts other than those approved by Monsieur Bébé.
- Be aware of the risk of open fires and other sources of strong heat in the vicinity of the high chair.
Image 2.1: The adjustable 5-point safety harness, designed for security and comfort.
The harness is both resistant and soft against your child's skin. To detach, press and slide the entire block.
3. Assembly and Setup
The Monsieur Bébé Ptit high chair is designed for straightforward assembly. While specific step-by-step diagrams are not provided here, the general process involves attaching the main frame components, securing the seat unit, and installing the tray and footrest.
3.1 Unpacking
- Carefully remove all components from the packaging.
- Verify that all parts listed in the product manual (included in the box) are present and undamaged.
3.2 Initial Assembly
- Connect the leg frames as indicated in the product manual. Ensure all locking mechanisms click into place securely.
- Attach the seat unit to the assembled frame.
- Install the footrest and the detachable tray.
For detailed assembly instructions, please refer to the specific manual provided with your product packaging.
4. Operating Instructions
The Monsieur Bébé Ptit high chair offers several adjustable features for your child's comfort and convenience.
4.1 Height Adjustment
The high chair features 3 adjustable height positions, ranging from 45 cm to 65 cm (height of the seat). To adjust, locate the height adjustment levers on the side of the chair, press them, and slide the seat to the desired height. Ensure both sides are locked into position.
4.2 Backrest Recline
The backrest can be reclined into 3 different positions for optimal comfort, whether your child is eating or resting. Use the recline mechanism, typically located behind or on the sides of the backrest, to adjust the angle.
4.3 Tray Adjustment and Removal
The feeding tray offers 3 adjustment positions to accommodate your child as they grow. It is also fully detachable for easy cleaning and allows you to bring the chair closer to a dining table. To remove, locate the release levers on the underside or sides of the tray and pull it away from the chair.
4.4 Armrest Adjustment
The armrests are designed to be raised, providing flexibility for positioning the chair or for storage.
4.5 Folding Mechanism
For convenient storage and portability, the high chair is foldable to a compact thickness of 35 cm. Follow the folding instructions in your product manual to safely collapse the chair. Ensure all parts are securely folded before moving or storing.
Image 4.1: Adjusting the backrest and tray, and the chair's folded state.
4.6 Mobility and Stability
The high chair is equipped with 2 wheels for easy movement and 2 anti-slip feet for stability. The wheels include a locking system to keep the chair securely in place during use.

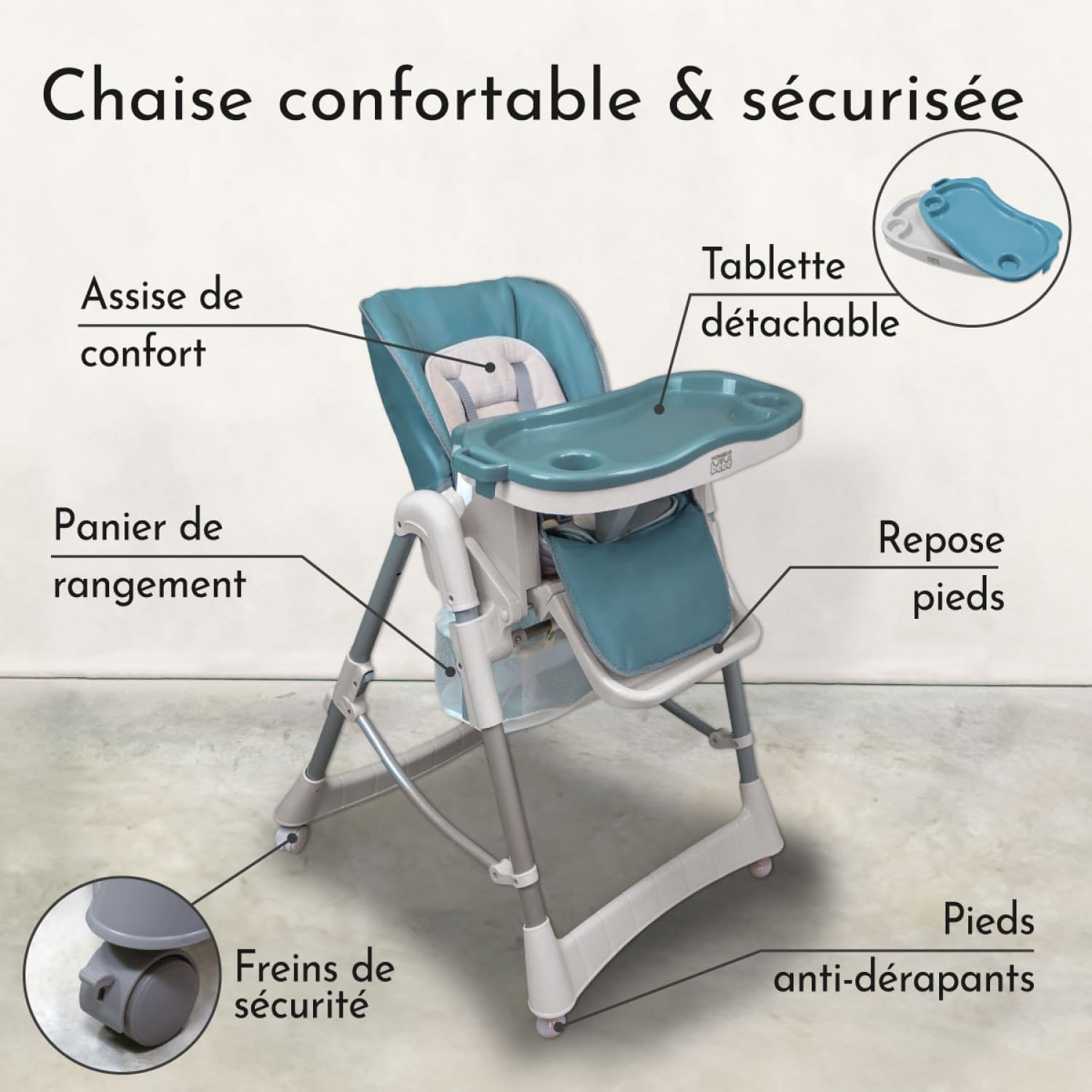

Image 4.2: Key features of the Monsieur Bébé Ptit High Chair.

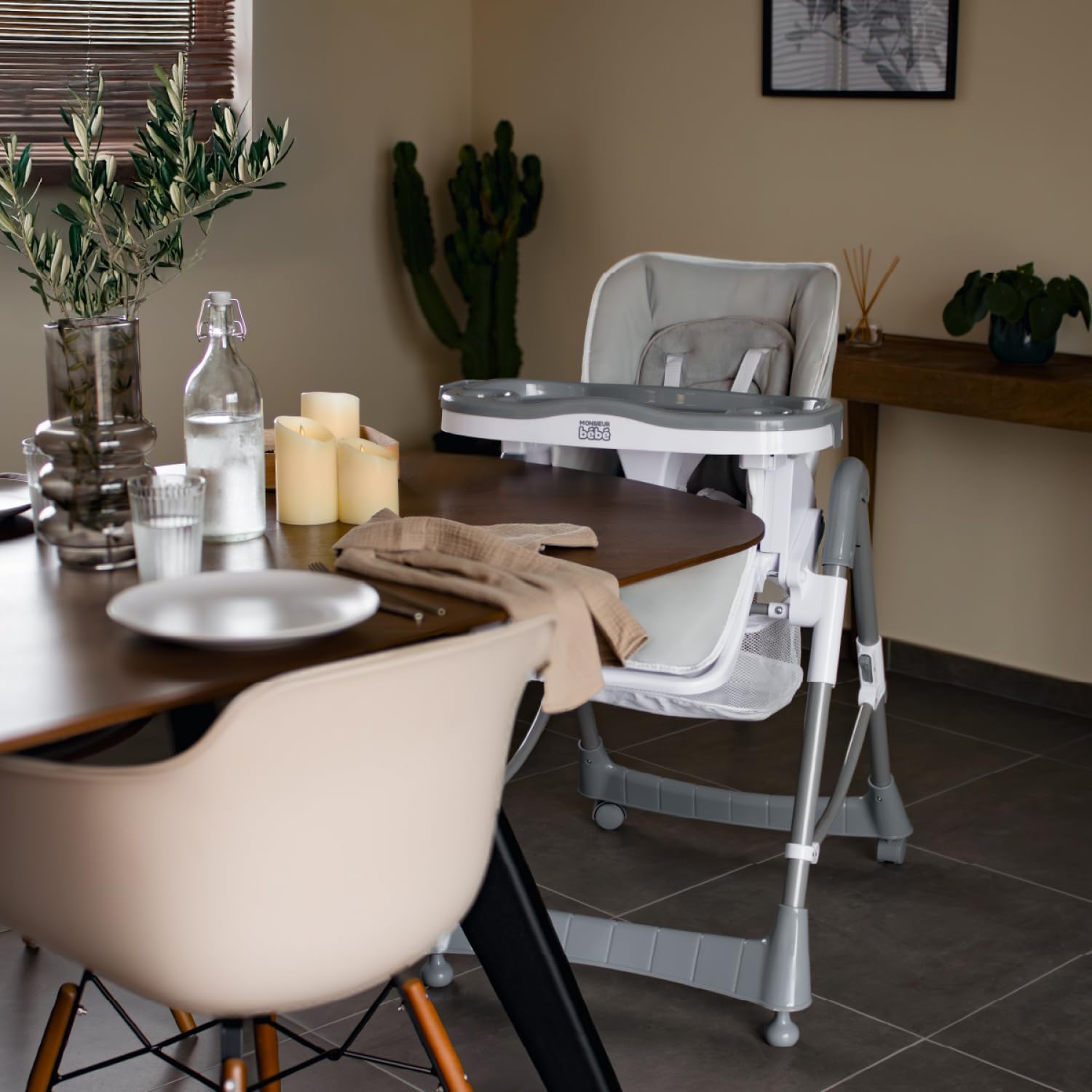

Image 4.3: The high chair in use at a standard dining table height.
Image 4.4: The high chair can also be used in a lower position.
5. Maintenance
Regular cleaning and maintenance will ensure the longevity and hygiene of your high chair.
- Seat Cover: The anti-transpirant seat cover and additional comfort cushion are machine washable. Follow the care instructions on the fabric label for best results.
- Tray: The detachable tray is washable. It can be easily cleaned with soap and water or wiped down after each use.
- Frame: Wipe down the steel frame and plastic components with a damp cloth and mild soap. Avoid abrasive cleaners.
- Harness: Clean the harness straps regularly with a damp cloth. Ensure they are dry before re-using the chair.
- Storage Basket: The detachable storage basket can be removed and cleaned as needed.
6. Troubleshooting
If you encounter any issues with your Monsieur Bébé Ptit high chair, please refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not fold or unfold smoothly. | Locking mechanisms are engaged or components are misaligned. | Ensure all release buttons/levers are pressed simultaneously. Check for any obstructions. Refer to the folding instructions in your product manual. |
| Tray is difficult to attach or detach. | Release levers not fully pressed or tray is misaligned. | Press both release levers firmly and ensure the tray rails are aligned with the slots on the chair. |
| High chair feels unstable. | Wheels not locked or chair not on a flat surface. | Engage the wheel locking system. Ensure the chair is placed on a firm, level surface. Check that all leg connections are secure. |
| Harness straps are too tight or too loose. | Straps require adjustment. | Adjust the harness straps using the buckles to ensure a snug but comfortable fit for your child. Refer to the harness diagram for adjustment points. |
7. Specifications
- Model: CHAISEPTITMALO
- Dimensions (Unfolded): 75 cm (Depth) x 60 cm (Width) x 100 cm (Height)
- Seat Depth: 25 cm
- Dimensions (Folded): 35 cm (Thickness)
- Weight: 9.6 kg
- Material: Alloy Steel (frame), Polypropylene & Nylon (harness)
- Height Adjustment: 3 positions (45 cm to 65 cm seat height)
- Backrest Recline: 3 positions
- Tray Adjustment: 3 positions, detachable and washable
- Safety Harness: 5-point, adjustable
- Mobility: 2 wheels with locking system, 2 anti-slip feet
- Recommended Age/Weight: Children capable of sitting unaided, up to 3 years or 15 kg

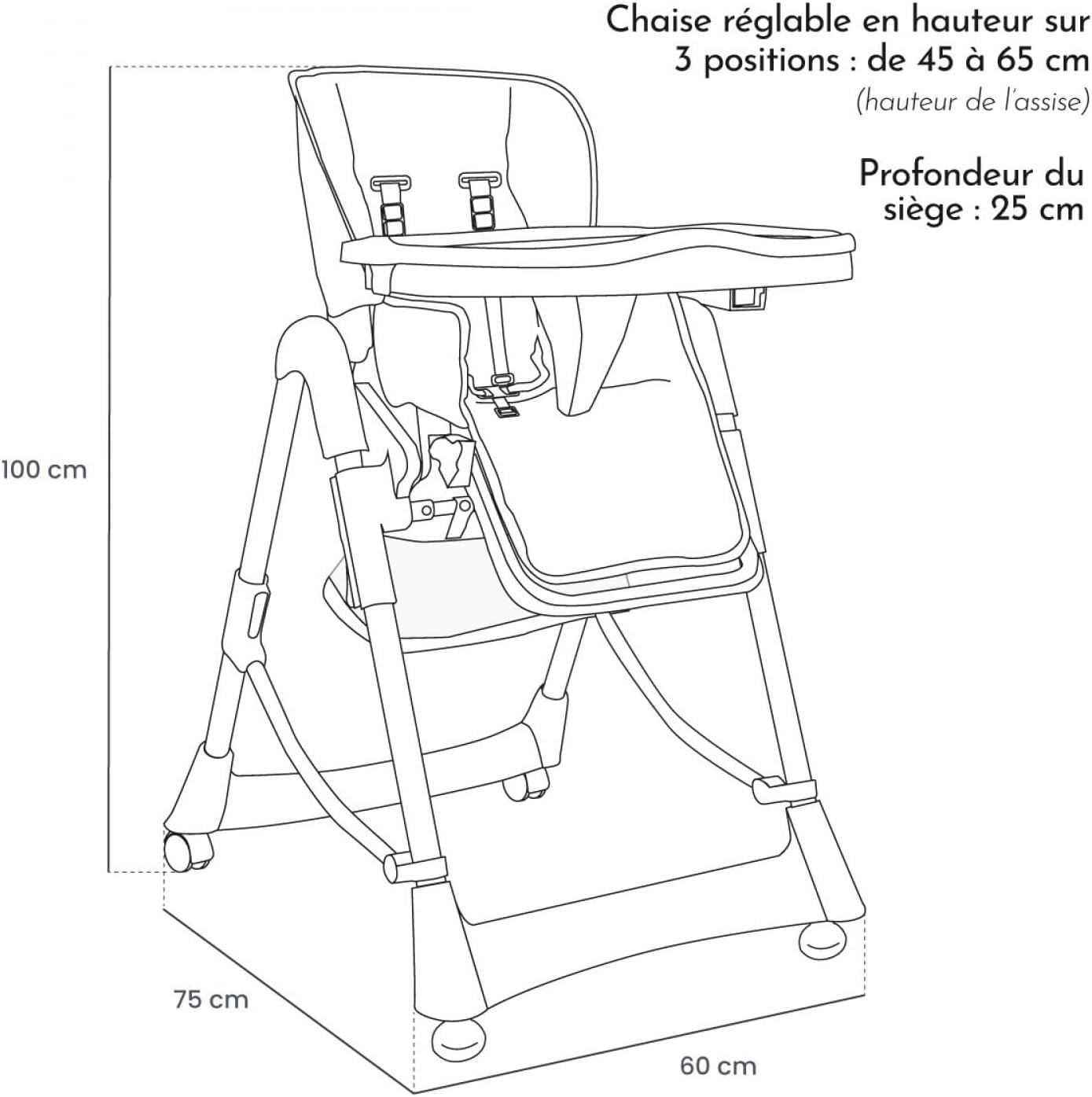

Image 7.1: Detailed dimensions of the Monsieur Bébé Ptit High Chair.
8. Warranty and Support
Monsieur Bébé is committed to providing high-quality products. For any questions, concerns, or warranty claims regarding your Ptit High Chair, please contact our customer support.
- Customer Service: Please refer to the contact information provided in your product packaging or visit the official Monsieur Bébé website.
- Warranty: Specific warranty terms and conditions are typically outlined in the documentation accompanying your purchase. Please retain your proof of purchase for any warranty claims.
