1. Introduction
This manual provides instructions for the proper installation, operation, and maintenance of the Electriduct Stainless Steel Wire Guard Surface Raceway. This product is designed to protect and conceal cables in both indoor and outdoor environments, offering durability and a clean aesthetic.
Key Features:
- Material: High-quality Stainless Steel for corrosion resistance and durability.
- Dimensions: Large Channel Size: 2.1" W x 0.65" H. Total Product Dimensions: 0.7" H x 3.125" W x 58" L (approximate).
- Application: Suitable for both indoor and outdoor cable management, protecting various wires such as coax and phone lines.
- Installation: Features pre-drilled mounting holes for quick and secure attachment.
2. Safety Information
Please read and understand all safety information before installation and use. Failure to follow these instructions may result in injury or damage to the product.
- WARNING: The Electriduct Stainless Steel Wire Guard Surface Raceway has very sharp edges. Exercise extreme caution during handling and installation to prevent cuts or injuries. It is recommended to wear protective gloves.
- Always ensure the mounting surface is suitable and can support the weight of the raceway and its contents.
- Do not overload the raceway with more cables than its specified channel capacity.
- Keep out of reach of children.
3. Package Contents
Verify that all components are present before beginning installation:
- 1 x Electriduct Stainless Steel Wire Guard Surface Raceway (Large, 4.8 Feet / 58 Inch)
- (Mounting hardware is not included and must be purchased separately, suitable for your specific application.)
4. Setup and Installation
Follow these steps for proper installation of your wire guard surface raceway:
- Prepare the Raceway: Carefully remove the blue protective film from the raceway prior to installation. This film protects the finish during shipping.
- Plan Placement: Determine the desired path for your cables. Ensure the raceway covers all exposed wires effectively.
- Mark Mounting Points: Hold the raceway against the desired surface. The raceway features pre-drilled mounting holes, approximately 27 inches apart and 2.5 inches from each end. Mark these hole locations on your wall or surface.
- Select Fasteners: Choose appropriate screws or nails for your specific mounting surface (e.g., wood, drywall, masonry). Ensure fasteners are strong enough to hold the raceway and its contents securely.
- Secure the Raceway: Align the raceway with your marked points and use the selected fasteners to secure it firmly to the surface. Ensure it is level and straight.
- Insert Cables: Once the raceway is securely mounted, carefully place your cables inside the channel.

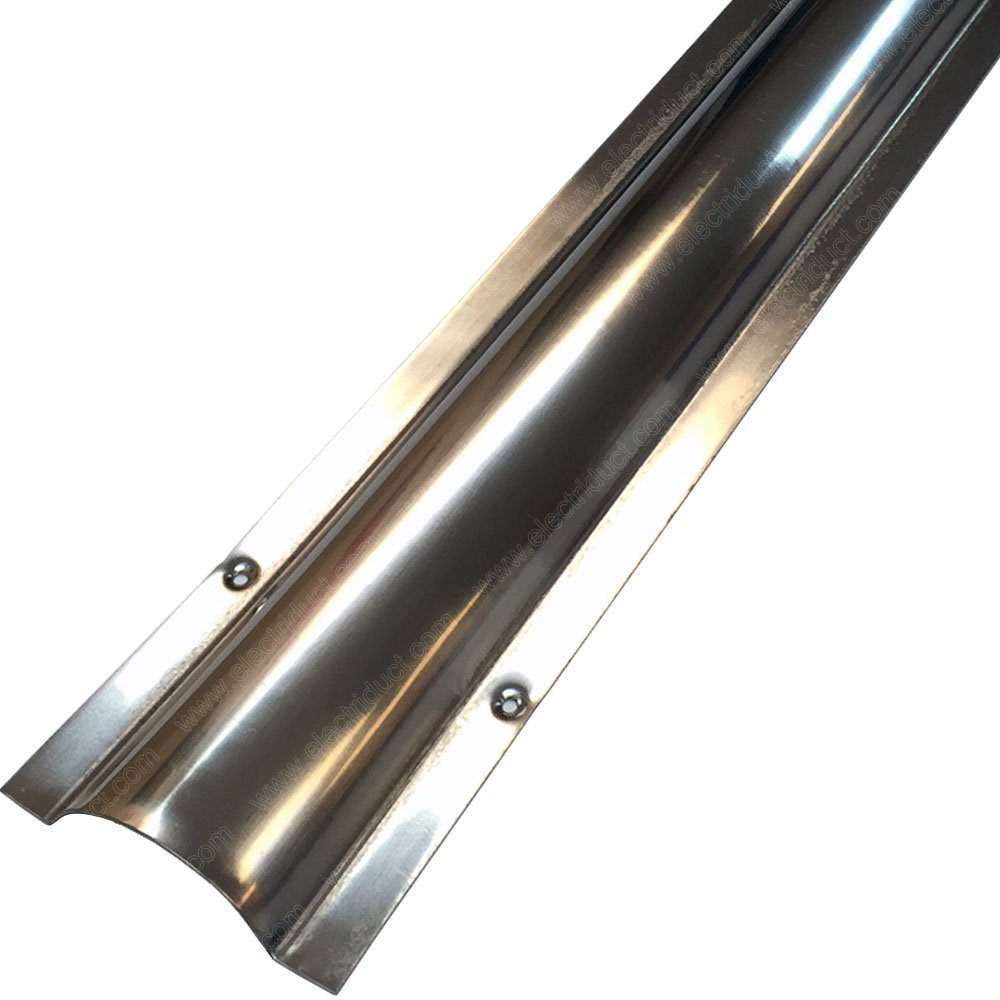

Figure 1: Example of the Electriduct Stainless Steel Wire Guard Surface Raceway installed, showing its application for cable protection.
5. Operating Instructions
The Electriduct Stainless Steel Wire Guard Surface Raceway is a passive cable management solution. Once installed and cables are placed within, no further operational steps are required. Its primary function is to provide physical protection and concealment for your wiring.
6. Maintenance
To ensure the longevity and appearance of your stainless steel wire guard raceway, follow these simple maintenance guidelines:
- Cleaning: Wipe the surface with a soft, damp cloth to remove dust and dirt. For stubborn marks, use a mild stainless steel cleaner and polish in the direction of the grain. Avoid abrasive cleaners or scouring pads, which can scratch the finish.
- Inspection: Periodically inspect the raceway for any signs of damage or loose fasteners. Tighten fasteners as needed.
- Environmental Exposure: While designed for outdoor use, extreme environmental conditions may require more frequent inspection and cleaning.
7. Troubleshooting
This section addresses common concerns you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Raceway feels loose after installation. | Fasteners are not adequately tightened or are unsuitable for the mounting surface. | Ensure fasteners are appropriate for the material and securely tightened. If necessary, use stronger or different types of fasteners. |
| Scratches on the raceway surface. | Protective film not removed carefully, or abrasive cleaning materials used. | For minor scratches, a stainless steel polish may help. Always remove protective film gently and use soft cloths for cleaning. |
| Cables do not fit inside the channel. | Exceeding the channel's capacity. | Verify the total diameter of your cables does not exceed the channel dimensions (2.1" W x 0.65" H). Consider using multiple raceways or a larger size if available. |
8. Specifications
| Brand: | Electriduct |
| Model Number: | SR-CSX-SS-3.2-58-SV |
| Material: | Stainless Steel |
| Color: | Silver |
| Channel Size (Internal): | 2.1" W x 0.65" H |
| Total Product Dimensions: | 0.7" H x 3.125" W x 58" L (approximate) |
| Length: | 4.8 Feet / 58 Inch |
| Lip Size: | 0.5" |
| Item Weight: | 1.5 pounds |
| Mounting Holes: | Pre-drilled (approx. 27" apart, 2.5" from ends) |
9. Warranty and Support
For warranty information or technical support, please contact Electriduct directly through their official website or customer service channels. Please have your product model number (SR-CSX-SS-3.2-58-SV) and purchase details available when contacting support.
You can visit the Electriduct store for more information: Electriduct Store
