DNJ WP638 Water Pump Instruction Manual

Product Overview

The DNJ WP638 Water Pump is a critical component designed for the engine cooling system. It is engineered to circulate coolant throughout the engine block and cylinder heads, dissipating heat and maintaining optimal operating temperatures. This premium water pump is a direct replacement part, ensuring proper fitment and function for specified vehicle models.

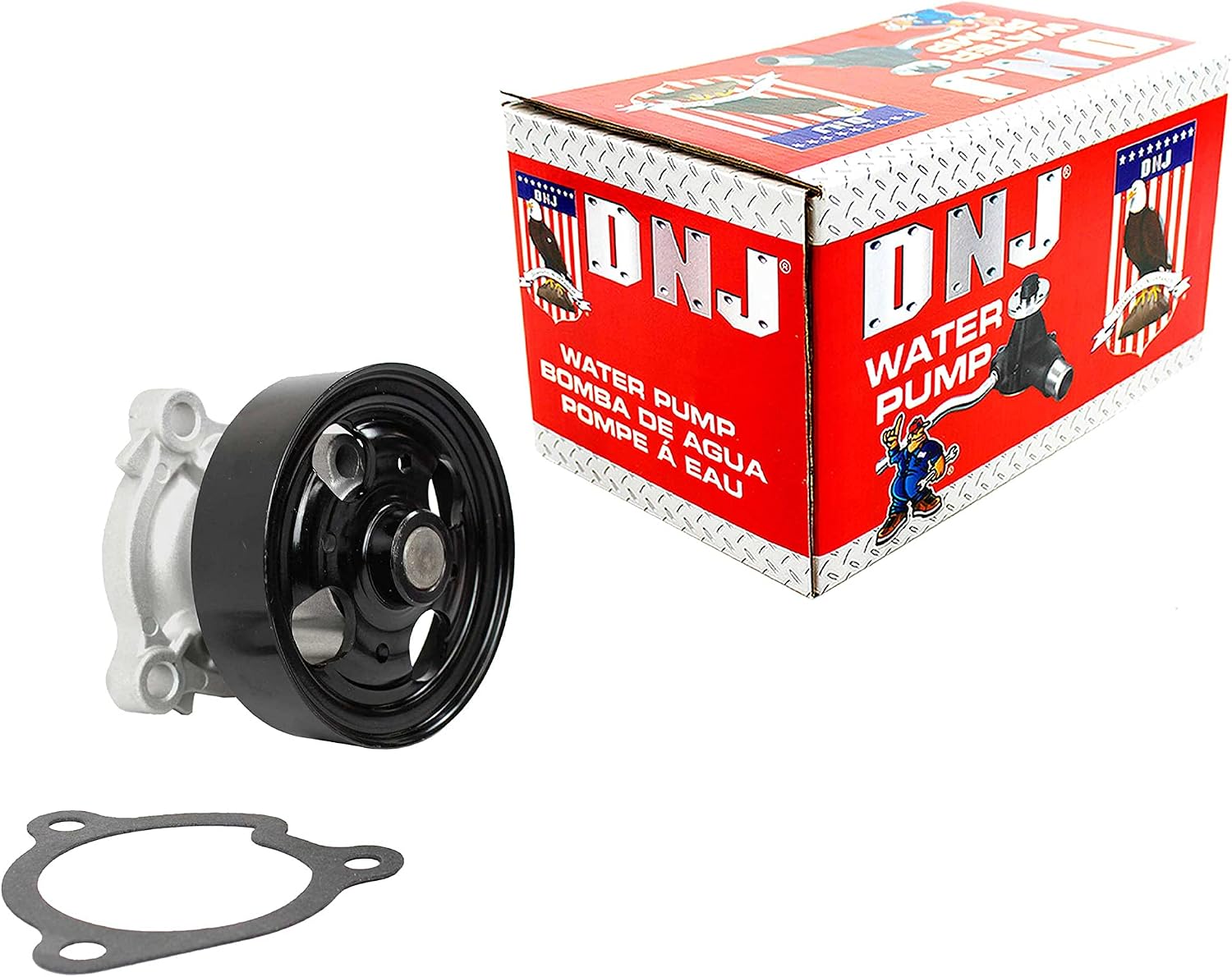

Image: The DNJ WP638 Water Pump shown alongside its product packaging. This image highlights the pump's overall appearance and the branding.

Compatibility

This water pump (DNJ WP638) is specifically designed to fit the following vehicle applications:

• Years: 2002-2015
• Make: Nissan
• Models: Rogue Select, Altima, Rogue, Sentra
• Engine: 2.5L L4 DOHC Naturally Aspirated QR25DE

Always verify compatibility with your vehicle's specific year, make, model, and engine code before installation.

Setup and Installation

Installation of a water pump requires mechanical expertise and specialized tools. It is highly recommended that installation be performed by a certified automotive technician. Improper installation can lead to engine damage or coolant leaks.

Required Tools and Materials:

• Appropriate socket and wrench set
• Torque wrench
• Drain pan for coolant
• New engine coolant (compatible with your vehicle)
• Gasket scraper or wire brush for cleaning mating surfaces
• Safety glasses and gloves
• Shop rags

General Installation Steps (Consult Service Manual for Specifics):

1. Safety First: Ensure the engine is cool. Disconnect the negative battery terminal.
2. Drain Coolant: Place a drain pan under the radiator and open the drain cock to drain the engine coolant.
3. Remove Obstructions: Carefully remove any components obstructing access to the water pump (e.g., belts, pulleys, hoses, covers).
4. Remove Old Water Pump: Unbolt and remove the old water pump. Be prepared for residual coolant.
5. Clean Mounting Surface: Thoroughly clean the engine block's mating surface, removing all old gasket material and corrosion. A clean surface is crucial for a leak-free seal.
6. Install New Water Pump:


   Image: Front view of the DNJ WP638 Water Pump, showing the pulley mounting surface and bolt holes. Ensure the new gasket is properly seated before installation.



   Image: Rear view of the DNJ WP638 Water Pump, revealing the impeller blades. This part is responsible for circulating coolant.
   Apply a thin layer of RTV sealant (if specified by vehicle manufacturer) to the new gasket, then carefully position the new water pump and gasket onto the engine block. Install bolts and tighten them to the manufacturer's specified torque settings in the correct sequence.
7. Reassemble: Reinstall all removed components (hoses, belts, pulleys, etc.).
8. Refill Coolant: Refill the cooling system with the appropriate coolant. Follow vehicle manufacturer's bleeding procedures to remove air pockets.
9. Test for Leaks: Start the engine and allow it to reach operating temperature. Monitor for any coolant leaks and ensure the temperature gauge remains stable.

Important: Always refer to your vehicle's specific service manual for detailed, step-by-step instructions and torque specifications. These general steps are for informational purposes only.

Operating Principles

The water pump is driven by the engine's accessory belt system. Its primary function is to circulate coolant from the radiator, through the engine block and cylinder head passages, and back to the radiator. This continuous flow of coolant absorbs heat generated by the engine's combustion process and transfers it to the radiator, where it is dissipated into the atmosphere. A properly functioning water pump is essential for preventing engine overheating and maintaining engine longevity.

Maintenance

While the water pump itself is generally a sealed unit and does not require routine maintenance, its performance is directly tied to the overall health of the cooling system. Regular maintenance of the cooling system includes:

• Coolant Level Check: Regularly check the coolant level in the reservoir and radiator (when cool). Top up with the correct type of coolant as needed.
• Coolant Flush and Replacement: Follow your vehicle manufacturer's recommendations for coolant flush and replacement intervals. Old or contaminated coolant can lead to corrosion and premature failure of cooling system components, including the water pump.
• Hose and Clamp Inspection: Inspect all coolant hoses for cracks, leaks, or swelling. Check hose clamps for tightness.
• Belt Inspection: Ensure the serpentine belt (which drives the water pump) is in good condition, free of cracks, and properly tensioned.
• Leak Detection: Periodically inspect the area around the water pump for any signs of coolant leaks (e.g., drips, stains, or a sweet smell).

Troubleshooting

Common symptoms of a failing water pump include:

• Coolant Leaks: Often seen as puddles under the front of the vehicle, or visible drips from the water pump housing.
• Overheating Engine: The engine temperature gauge rises above normal operating range. This is a critical symptom requiring immediate attention.
• Whining or Grinding Noises: A failing bearing within the water pump can produce these sounds, which typically increase with engine RPM.
• Steam from Engine Bay: Indicates severe overheating or a significant coolant leak.
• Loose Pulley: If the water pump pulley wobbles or has excessive play, it indicates a worn bearing.

If you experience any of these symptoms, it is crucial to have your vehicle inspected by a qualified mechanic immediately to prevent further engine damage.

Specifications

Note: Item weight of 0.01 ounces is as provided in product specifications. Actual shipping weight may vary.

Warranty and Support

Specific warranty details for the DNJ WP638 Water Pump are typically provided by the manufacturer or the point of purchase. Please refer to the documentation included with your product or contact DNJ Engine Components directly for warranty claims and technical support.

For further assistance or inquiries, you may visit the official DNJ website or contact their customer service department. Always provide your product model number (WP638) and purchase details when seeking support.
