1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your DNJ Engine Components WP150 Water Pump. The water pump is a critical component of your vehicle's cooling system, responsible for circulating coolant to maintain optimal engine temperature. Please read this manual thoroughly before proceeding with any installation or maintenance.
2. Safety Information
Automotive repair can be hazardous. Always prioritize safety to prevent injury or damage to your vehicle. It is highly recommended that installation be performed by a qualified automotive technician.
- Always wear appropriate personal protective equipment, including safety glasses and gloves.
- Ensure the engine is completely cool before working on the cooling system to avoid burns from hot coolant or engine components.
- Disconnect the vehicle's battery before starting work to prevent electrical hazards.
- Properly dispose of old coolant according to local environmental regulations.
- Refer to your vehicle's specific service manual for detailed instructions and torque specifications.
3. Product Overview
The DNJ WP150 Water Pump is designed as a direct replacement component for specific vehicle applications. It is engineered to meet or exceed OEM specifications, ensuring reliable performance and efficient coolant circulation within your engine's cooling system.

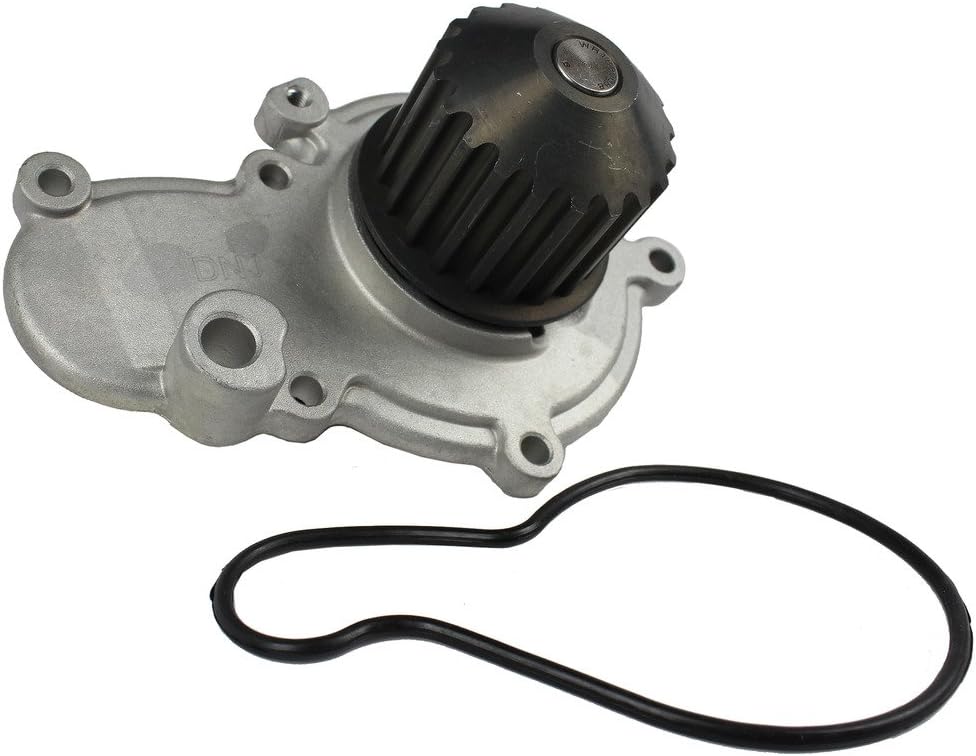

Figure 3.1: Front view of the DNJ WP150 Water Pump, showing the pulley and mounting points. This image illustrates the external housing and the drive mechanism for the pump.
Figure 3.2: Rear view of the DNJ WP150 Water Pump, displaying the impeller and the included gasket. The impeller is responsible for moving coolant through the engine.
4. Setup and Installation
Proper installation is crucial for the longevity and performance of your water pump. Consult your vehicle's specific repair manual for detailed, step-by-step instructions relevant to your make and model. The following is a general guide.
4.1. Pre-Installation Checks
- Verify that the new water pump (DNJ WP150) matches the old unit and is correct for your vehicle application.
- Inspect the new pump for any signs of damage during shipping.
- Ensure all necessary gaskets and mounting hardware are present.
4.2. Tools and Materials Required (General)
- Socket/Wrench set
- Torque wrench
- Drain pan
- Coolant (appropriate type for your vehicle)
- Gasket scraper/cleaning tools
- Shop rags
4.3. General Installation Steps
- Drain Coolant: With the engine cool, place a drain pan under the radiator and open the drain cock to drain the cooling system.
- Remove Components: Disconnect any hoses, belts, or other components that obstruct access to the water pump. This may include the serpentine belt, fan, and various pulleys.
- Remove Old Pump: Unbolt and carefully remove the old water pump. Be prepared for additional coolant spillage.
- Clean Mounting Surface: Thoroughly clean the engine block's water pump mounting surface. Remove all traces of old gasket material and corrosion to ensure a proper seal.
- Install New Pump: Apply a thin, even coat of RTV sealant (if specified by your vehicle's manual) to the new gasket, then position the gasket and the new DNJ WP150 water pump onto the engine block. Install mounting bolts and tighten them to the manufacturer's specified torque in the correct sequence.
- Reassemble: Reinstall all removed components, including hoses, belts, and pulleys. Ensure all connections are secure.
- Refill Coolant: Refill the cooling system with the correct type and amount of coolant.
- Bleed Air: Start the engine and allow it to reach operating temperature with the heater on full. Monitor the coolant level and add more as needed to bleed air from the system. Check for leaks.
5. Operating Considerations
Once installed, the water pump operates continuously with the engine. Proper operation is indicated by stable engine temperatures and no signs of leaks. After installation, closely monitor your vehicle's temperature gauge and coolant levels for the first few driving cycles.
6. Maintenance
Regular maintenance of your vehicle's cooling system helps ensure the longevity of your DNJ WP150 Water Pump and overall engine health.
- Coolant Level Check: Regularly check the coolant level in the reservoir and radiator (when cool). Top off with the correct coolant type as needed.
- Coolant Condition: Inspect the coolant for discoloration or debris, which can indicate internal corrosion or contamination.
- Leak Inspection: Periodically inspect the water pump area, hoses, and radiator for any signs of coolant leaks.
- Coolant Flush: Follow your vehicle manufacturer's recommendations for cooling system flushes and coolant replacement intervals. This helps prevent corrosion and maintains coolant effectiveness.
7. Troubleshooting
If you experience issues with your cooling system, consider the following common problems related to the water pump:
| Symptom | Possible Cause | Action |
|---|---|---|
| Coolant Leak | Loose hose clamp, damaged gasket, cracked housing, worn shaft seal. | Inspect connections, replace gasket, replace pump if housing or seal is damaged. |
| Grinding/Whining Noise | Worn bearings within the water pump. | Replace the water pump. |
| Engine Overheating | Failed water pump (no coolant circulation), low coolant, thermostat issue, clogged radiator. | Check coolant level, inspect water pump for function, test thermostat, check radiator. Replace water pump if it's not circulating coolant. |
| Loose Pulley/Belt | Improper belt tension, worn pulley bearing. | Adjust belt tension, inspect pulley for wobble. Replace pump if pulley bearing is worn. |
If troubleshooting does not resolve the issue, it is recommended to consult a professional automotive technician.
8. Specifications
| Attribute | Value |
|---|---|
| Brand | DNJ |
| Model Number | WP150 |
| Manufacturer | DNJ ENGINE COMPONENTS |
| Item Weight | 2.25 pounds |
| Product Dimensions | 5.81 x 4.96 x 4.91 inches |
| Vehicle Service Type | Car, Truck |
9. Warranty and Support
For specific warranty information regarding your DNJ WP150 Water Pump, please refer to the documentation provided with your purchase or contact DNJ Engine Components directly through their official website or customer service channels. Warranty terms typically cover manufacturing defects for a specified period.
For technical support or further assistance, please contact your point of purchase or the manufacturer.
