DNJ EV3143 Exhaust Valve Instruction Manual

1. Product Overview

The DNJ EV3143 is a new exhaust valve designed for specific 3.8L V6 OHV engines. This component is crucial for the proper functioning of the engine's exhaust system, facilitating the release of combustion gases from the cylinder.

Key Features:

• Designed for 1996-2009 Buick, Pontiac, Chevrolet, and Oldsmobile vehicles with 3.8L V6 OHV Naturally Aspirated or Supercharged engines.
• Features a Nitride Coated finish for enhanced durability.
• Specific dimensions: 1 Groove, 36.6mm Head Diameter, 7.96mm Stem Diameter, 119.7mm Overall Length.
• Manufactured by DNJ Engine Components, a provider of domestic and Japanese engine parts.

This exhaust valve is a direct replacement part, ensuring compatibility and performance when installed correctly.

Image 1.1: DNJ EV3143 Exhaust Valve and its retail packaging. The valve is shown separately on the right, highlighting its form.

2. Specifications

Image 2.1: Detailed view of the DNJ EV3143 Exhaust Valve, highlighting the stem and head.

3. Installation Guidelines

Installation of an exhaust valve is a complex automotive procedure that requires specialized tools, knowledge, and experience. It involves disassembling engine components, including the cylinder head. Professional installation by a certified mechanic is highly recommended.

Compatibility:

• Vehicle Models: Buick, Chevrolet, Oldsmobile, Pontiac (1996-2009)
• Engine Type: 3.8L V6 OHV (Naturally Aspirated, Supercharged)

General Steps (for informational purposes only; consult a service manual for your specific vehicle):

1. Ensure the engine is cool and disconnect the battery.
2. Drain engine fluids as necessary (coolant, oil).
3. Remove components obstructing access to the cylinder head (e.g., intake manifold, exhaust manifold, valve covers).
4. Carefully remove the cylinder head from the engine block.
5. Using appropriate valve spring compressors, remove the old exhaust valve.
6. Inspect valve guides and seats for wear or damage. Perform necessary repairs or replacements.
7. Install the new DNJ EV3143 exhaust valve, ensuring proper seating and clearance.
8. Reassemble the engine components, adhering to manufacturer's torque specifications and procedures.
9. Refill fluids and perform necessary checks before starting the engine.

Incorrect installation can lead to severe engine damage. Always refer to the vehicle's specific service manual for detailed, step-by-step instructions and safety precautions.

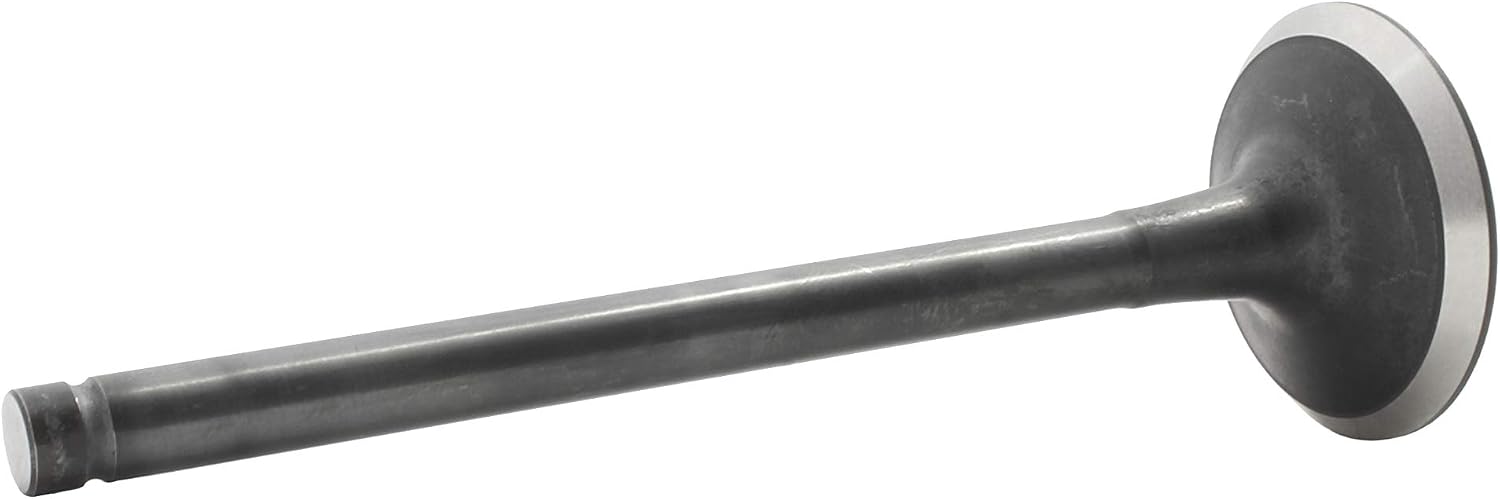

Image 3.1: Angled perspective of the DNJ EV3143 Exhaust Valve, highlighting the precision-machined surfaces.

4. Operating Principles

The exhaust valve is an integral part of the internal combustion engine's valvetrain. Its primary function is to open at the end of the power stroke and during the exhaust stroke, allowing spent combustion gases to exit the cylinder and flow into the exhaust manifold. It then closes to seal the combustion chamber during the intake and compression strokes.

The precise timing of the valve's opening and closing is controlled by the camshaft, ensuring optimal engine performance and efficiency. The Nitride coating on the DNJ EV3143 valve enhances its resistance to wear and high temperatures encountered during engine operation.

5. Maintenance

Exhaust valves are internal engine components and are not subject to routine user maintenance. Their longevity is directly tied to the overall health and maintenance of the engine.

To ensure the maximum lifespan of your DNJ EV3143 exhaust valve and other engine components, adhere to the following general engine maintenance practices:

• Regular Oil Changes: Use the manufacturer-recommended engine oil and follow the prescribed oil change intervals. Clean oil lubricates valve stems and guides, preventing premature wear.
• Proper Cooling System Maintenance: Ensure the engine's cooling system is functioning correctly to prevent overheating, which can stress valve components.
• Fuel Quality: Use high-quality fuel to minimize carbon deposits that can accumulate on valve heads and seats.
• Timely Tune-ups: Follow vehicle manufacturer's recommendations for engine tune-ups and inspections.

6. Troubleshooting

Issues with exhaust valves typically manifest as significant engine performance problems. Diagnosing and repairing valve-related issues requires advanced automotive diagnostic tools and expertise. If you suspect a faulty exhaust valve, it is crucial to seek professional assistance.

Common Symptoms of a Faulty Exhaust Valve:

• Engine Misfires: A bent or improperly sealing valve can cause a cylinder to lose compression, leading to misfires.
• Reduced Engine Power: Loss of compression due to valve issues will result in a noticeable decrease in engine power.
• Rough Idling: An engine with a faulty valve may idle roughly or inconsistently.
• Unusual Engine Noises: Ticking, tapping, or clattering sounds from the engine can indicate valvetrain problems, including worn or damaged valves.
• Increased Oil Consumption: Worn valve guides or seals can lead to oil entering the combustion chamber and being burned.

If any of these symptoms are observed, consult a qualified automotive technician for a thorough diagnosis and repair. Attempting to diagnose or repair complex engine issues without proper training and tools can lead to further damage or personal injury.

7. Warranty and Support

Warranty Information:

All DNJ® Parts, including the EV3143 Exhaust Valve, carry a limited 12-month or 12,000-mile warranty, whichever occurs first. This warranty is specifically limited to the replacement of a defective product only. For full warranty terms and conditions, please refer to the official DNJ warranty documentation or contact DNJ customer service.

Customer Support:

For technical assistance, warranty claims, or product inquiries, please contact DNJ Engine Components directly or the authorized seller from whom the product was purchased. You can often find contact information on the manufacturer's official website or through your retailer.
