DNJ FPS3194 Brass Freeze Plug Set: Installation and Maintenance Manual

Introduction

This manual provides detailed instructions for the proper installation and maintenance of the DNJ FPS3194 Brass Freeze Plug Set. This set is designed to replace the original freeze plugs in compatible vehicle engines, ensuring proper sealing and protection against engine block damage from freezing coolant or internal pressure buildup. Adherence to these instructions is crucial for optimal performance and longevity of the product.

Important Safety Information

Always observe the following safety precautions:

• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when working on vehicle engines.
• Ensure the engine is completely cool before beginning any work to prevent burns from hot coolant or engine components.
• Disconnect the vehicle's battery to prevent accidental starting or electrical shorts.
• Work in a well-ventilated area.
• Properly dispose of old coolant according to local regulations.
• If you are unsure about any step, consult a qualified automotive technician.

Compatibility and Fitment

The DNJ FPS3194 Brass Freeze Plug Set is specifically designed for the following applications:

• Vehicle Models: 1970-1990 Chevrolet, GMC Bel Air, Biscayne, Blazer
• Engine Type: 7.4L V8 16V OHV (7439cc) Naturally Aspirated

Verify your vehicle's make, model, year, and engine specifications before installation to ensure proper fitment. This set is made from brass for enhanced corrosion resistance.

Package Contents

Upon opening the package, ensure all components are present and undamaged:

• DNJ FPS3194 Brass Freeze Plug Set (Quantity as required for engine)

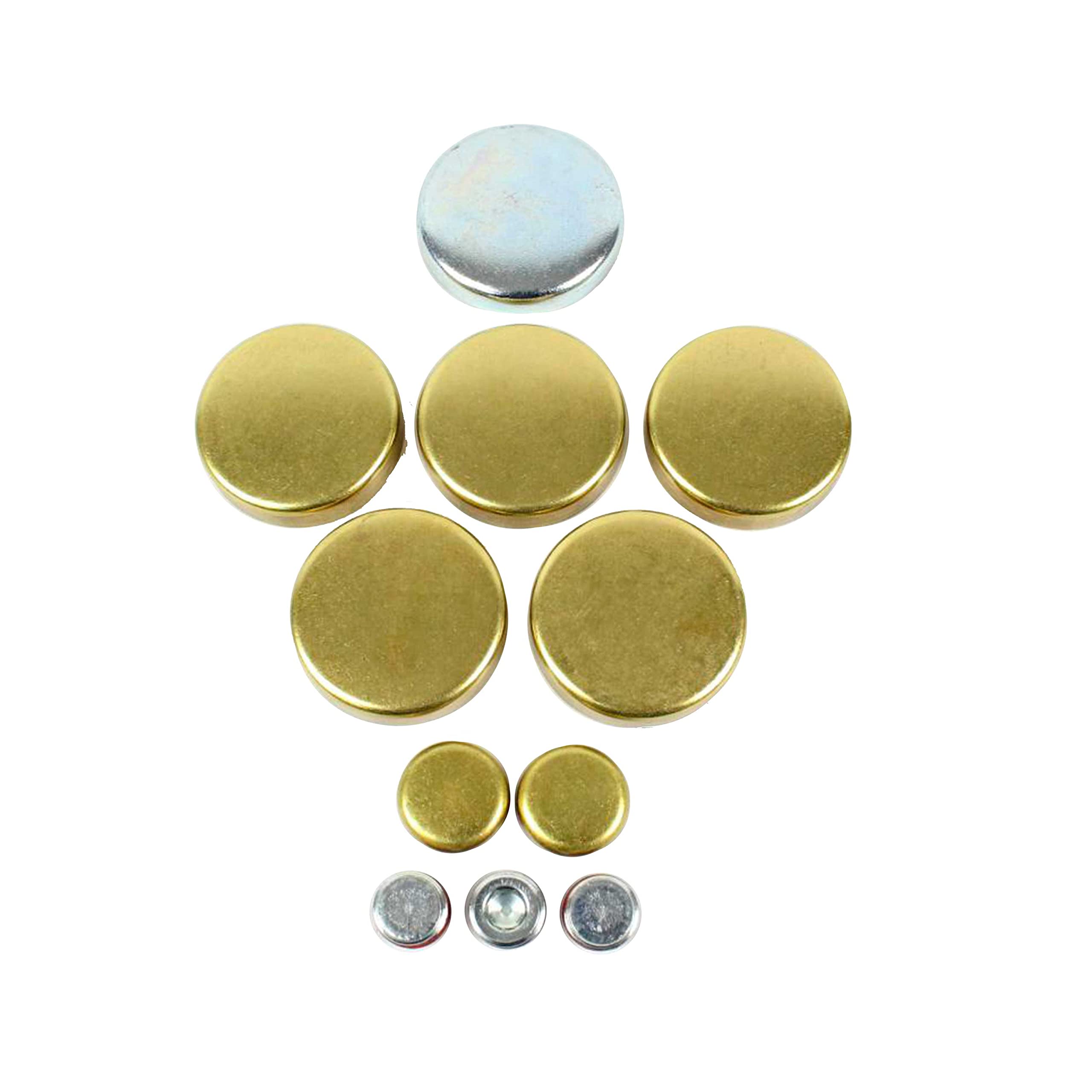

Figure 1: Example of DNJ FPS3194 Brass Freeze Plug Set. The actual number of plugs may vary based on engine requirements.

Setup and Installation

The following steps outline the general procedure for replacing freeze plugs. Specific engine configurations may require additional steps or specialized tools. Refer to your vehicle's service manual for detailed instructions.

Required Tools and Materials:

• Safety glasses and gloves
• Drain pan for coolant
• Hammer
• Punch or chisel (for removing old plugs)
• Appropriate size socket or freeze plug installation tool (for new plugs)
• Gasket scraper or wire brush
• Sealant (e.g., RTV silicone, if recommended by vehicle manufacturer)
• New engine coolant

Installation Steps:

1. Drain Coolant: Place a drain pan under the radiator and open the drain cock to completely drain the engine coolant.
2. Access Plugs: Identify the location of the freeze plugs on the engine block. Depending on the engine, this may require removing other components (e.g., exhaust manifolds, engine mounts).
3. Remove Old Plugs: Using a hammer and a punch or chisel, strike the edge of the old freeze plug to rotate it within its bore. Once rotated, pry it out with a screwdriver or pliers. Be careful not to damage the engine block bore.
4. Clean Bore: Thoroughly clean the freeze plug bore in the engine block. Remove any rust, corrosion, or old sealant using a gasket scraper or wire brush. The bore must be clean and smooth for proper sealing.
5. Apply Sealant (Optional): If recommended by your vehicle's manufacturer or if you prefer an extra layer of protection, apply a thin, even coat of RTV silicone sealant around the outer edge of the new brass freeze plug.
6. Install New Plugs: Position the new brass freeze plug squarely in the bore. Using an appropriate size socket or a dedicated freeze plug installation tool that matches the diameter of the plug, gently tap the plug into place with a hammer. Ensure the plug is seated flush or slightly below the engine block surface, depending on the plug design and manufacturer specifications. Do not over-drive the plug, as this can deform it or damage the engine block.
7. Repeat: Repeat the removal and installation process for all remaining freeze plugs.
8. Reassemble: Reinstall any components that were removed to gain access to the freeze plugs.
9. Refill Coolant: Close the radiator drain cock and refill the cooling system with the appropriate type and amount of new engine coolant.
10. Bleed Air: Start the engine and allow it to reach operating temperature. Monitor the coolant level and add more as needed to ensure all air is bled from the system. Check for leaks.

Post-Installation Checks and Initial Operation

After installation, perform the following checks to ensure proper function:

• Leak Inspection: With the engine running and at operating temperature, carefully inspect all newly installed freeze plugs and surrounding areas for any signs of coolant leaks.
• Coolant Level: Verify that the coolant level in the radiator and overflow reservoir is at the recommended mark. Top up if necessary after the engine has cooled.
• Temperature Monitoring: Monitor the engine temperature gauge during the first few drives to ensure the cooling system is functioning correctly and there are no overheating issues.

Maintenance

Freeze plugs are generally maintenance-free once properly installed. However, regular cooling system maintenance is essential for their longevity:

• Coolant Quality: Ensure your engine coolant is maintained at the correct concentration and replaced according to your vehicle manufacturer's recommendations. Old or diluted coolant can lead to corrosion and reduced freeze protection.
• Visual Inspection: Periodically inspect the freeze plugs for any signs of corrosion, rust, or leaks, especially during other engine maintenance procedures.
• System Pressure: Ensure the cooling system maintains proper pressure. A faulty radiator cap or leaks elsewhere in the system can affect freeze plug integrity.

Troubleshooting

If you encounter issues after installing the DNJ FPS3194 Brass Freeze Plug Set, consider the following:

If troubleshooting steps do not resolve the issue, consult a professional mechanic.

Specifications

Warranty Information

The DNJ FPS3194 Brass Freeze Plug Set comes with a limited warranty:

• Warranty Period: 1 year or 12,000 miles, whichever occurs first.
• Coverage: This warranty is limited to the replacement of a defective product only.
• Limitations: This warranty does not cover labor, incidental, or consequential damages. It applies only to the original purchaser and is non-transferable.

For full warranty terms and conditions, please refer to the official DNJ Engine Components documentation or contact customer support.

Customer Support

If you have questions regarding the installation, compatibility, or warranty of your DNJ FPS3194 Brass Freeze Plug Set, please contact DNJ Engine Components customer support through their official channels. Refer to the packaging or the DNJ website for contact information.

For additional information about DNJ products, you may visit the DNJ Store on Amazon.
