1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the Hydro-Gear Brake, Park Spline ID Part # 50754. This component is a genuine OEM replacement part designed for specific Hydro-Gear systems. Please read these instructions thoroughly before proceeding with any installation or maintenance to ensure safe and correct usage.
2. Product Overview
The Hydro-Gear Brake, Park Spline ID Part # 50754 is a critical component for the braking system in compatible Hydro-Gear transmissions. It ensures the proper engagement and disengagement of the parking brake mechanism.
- Part Number: 50754
- Type: Brake, Park Spline ID
- Manufacturer: Hydro-Gear
- Key Feature: Genuine, OEM Hydro-Gear Replacement Part

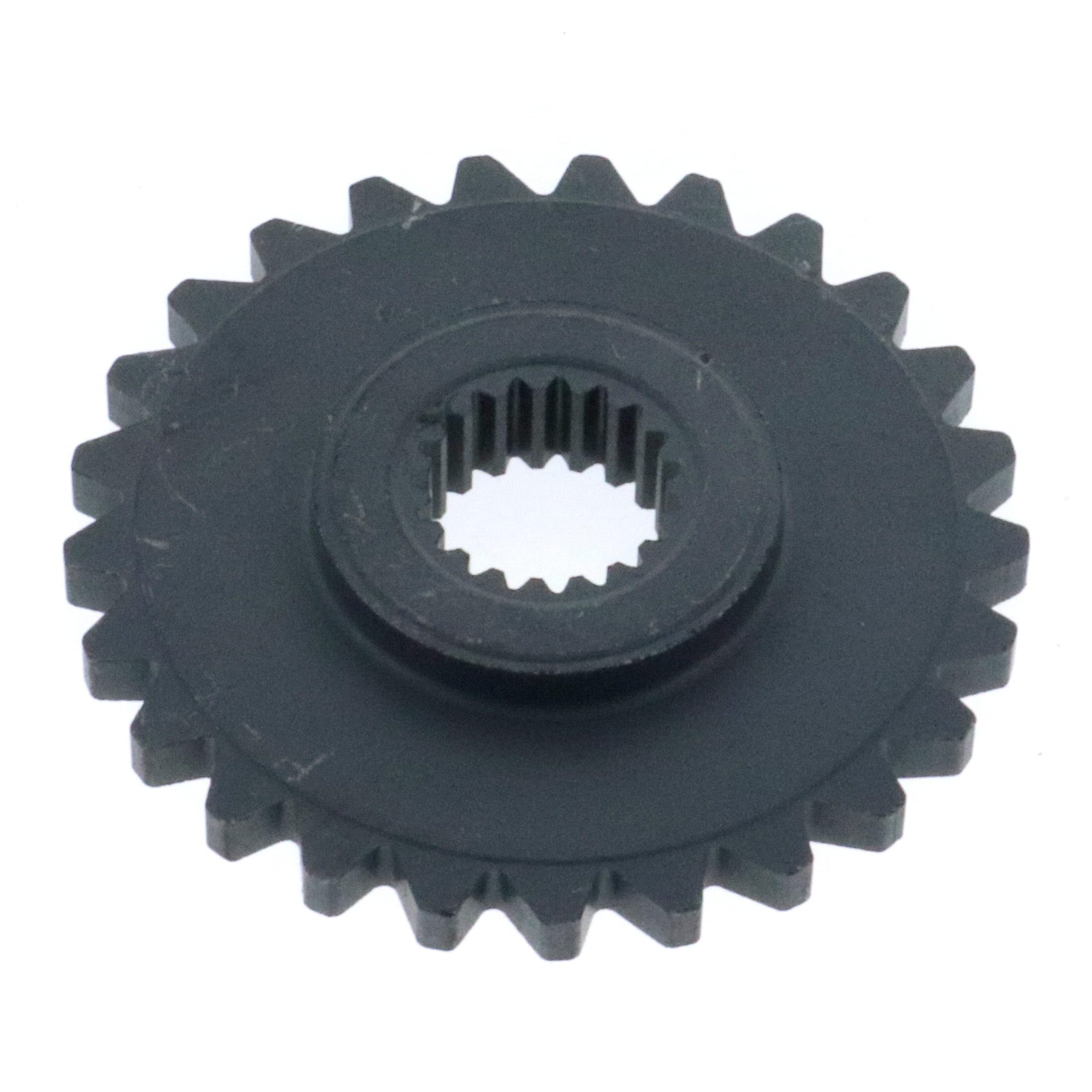

Figure 2.1: An image showing the Hydro-Gear Brake, Park Spline ID Part # 50754, a genuine OEM replacement component. This part is essential for the parking brake function in compatible Hydro-Gear systems.
3. Setup and Installation
Installation of the Hydro-Gear Brake, Park Spline ID Part # 50754 requires mechanical aptitude and appropriate tools. If you are unsure about any step, it is recommended to consult a qualified service technician.
3.1 Safety Precautions
- Always disconnect the battery and ensure the equipment is turned off and cooled down before beginning any work.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Ensure the equipment is stable and properly supported to prevent accidental movement.
- Refer to your equipment's specific service manual for detailed disassembly and reassembly procedures related to the transmission and brake system.
3.2 Installation Steps (General Guide)
Note: These are general steps. Specific procedures may vary depending on your equipment model.
- Locate the existing brake assembly on your Hydro-Gear transmission. This typically involves removing covers or other components to gain access.
- Carefully remove the old brake, park spline ID part. Note its orientation and how it connects to other components.
- Clean the area where the new part will be installed, removing any debris or old lubricant.
- Install the new Hydro-Gear Brake, Park Spline ID Part # 50754, ensuring it is correctly seated and aligned with the spline.
- Secure any fasteners according to the torque specifications provided in your equipment's service manual.
- Reassemble any covers or components that were removed.
- Test the parking brake function thoroughly before operating the equipment.
4. Operating and Usage
Once installed, the Hydro-Gear Brake, Park Spline ID Part # 50754 functions as part of your equipment's parking brake system. Its operation is integrated with the equipment's controls.
- Engaging the Parking Brake: Follow your equipment manufacturer's instructions to engage the parking brake. This typically involves moving a lever or pedal to a locked position.
- Disengaging the Parking Brake: Follow your equipment manufacturer's instructions to disengage the parking brake before operating the equipment.
- Regular Checks: Periodically check the parking brake's effectiveness. If it feels loose or does not hold the equipment securely, inspect the brake system for wear or damage.
5. Maintenance
Proper maintenance ensures the longevity and reliable performance of your Hydro-Gear Brake, Park Spline ID Part # 50754 and the overall braking system.
- Inspection: Regularly inspect the brake spline ID for signs of wear, corrosion, or damage. Replace the part if any significant wear or damage is observed.
- Cleaning: Keep the brake area clean and free from dirt, debris, and excessive grease, which can impede proper function.
- Lubrication: Refer to your equipment's service manual for any specific lubrication requirements for the brake assembly.
6. Troubleshooting
If you experience issues with your parking brake system after installing this part, consider the following:
- Parking Brake Not Holding:
- Ensure the part is correctly installed and all fasteners are tightened to specification.
- Check for wear on other components of the parking brake assembly.
- Verify that the parking brake linkage or cable is properly adjusted and not stretched or damaged.
- Difficulty Engaging/Disengaging Brake:
- Inspect for obstructions or debris in the brake mechanism.
- Check for proper lubrication of moving parts (if applicable per equipment manual).
- Ensure the brake lever/pedal mechanism is not binding.
For persistent issues, consult your equipment's service manual or contact a qualified service technician.
7. Specifications
| Part Number | 50754 |
| Manufacturer | Hydro-Gear |
| Product Dimensions | 1 x 1 x 1 inches |
| Item Weight | 2.08 ounces |
| Type | Brake, Park Spline ID |
8. Warranty and Support
As a genuine OEM part, this product is typically covered by Hydro-Gear's standard warranty for replacement parts. For specific warranty terms and conditions, please refer to the documentation provided with your original equipment or contact Hydro-Gear directly.
For technical support or inquiries regarding this part, please contact Hydro-Gear customer service or an authorized Hydro-Gear dealer. You may also refer to the service manual of the equipment in which this part is installed.
Hydro-Gear Official Website: www.hydro-gear.com
