1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your UAC HA 5701C A/C Manifold Hose Assembly. This component is designed as an OE replacement, ensuring compatibility and performance within your vehicle's air conditioning system. It is crucial to follow these instructions to ensure safe and effective use.
The UAC HA 5701C A/C Manifold Hose Assembly is engineered to carry refrigerant throughout your vehicle's A/C system. Each assembly undergoes rigorous testing to meet or exceed original equipment (OE) specifications, including pressure testing for leaks to ensure product quality.

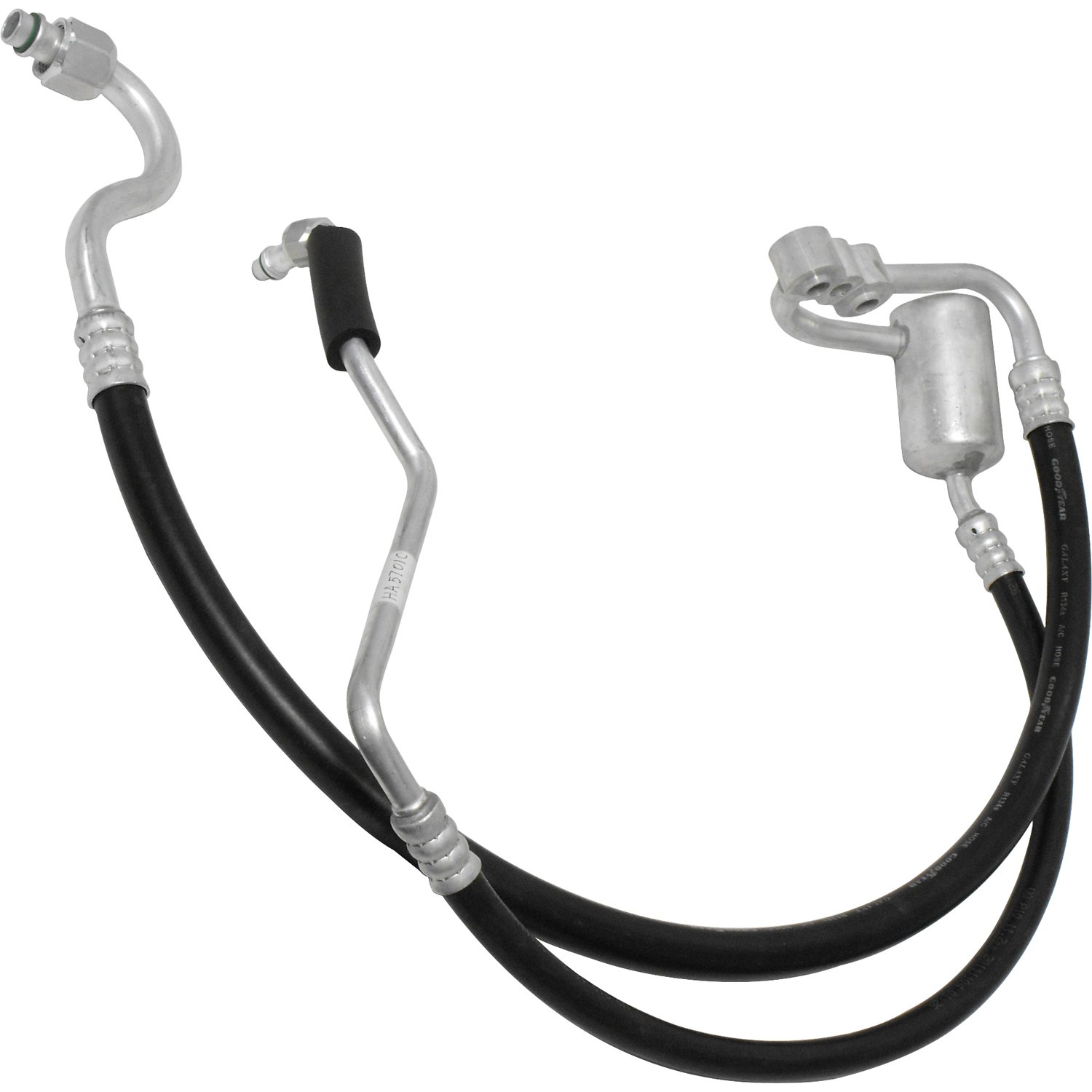

Figure 1: UAC HA 5701C A/C Manifold Hose Assembly. This image displays the complete hose assembly, showing its various connections and overall structure.
Key Features:
- Brand New, OE replacement: UAC branded Suction and Discharge Assembly.
- 100% Guaranteed Fit: Verify compatibility with your vehicle (year/make/model).
- Premium ISO/TS 16949 quality; tested to meet or exceed OEM specifications.
- Goodyear / Veyance / Contitech Galaxy hoses used in the assembly.
- All units are pressure tested for leaks to ensure product quality.
2. Installation Instructions
Proper installation is critical for the performance and longevity of the A/C manifold hose assembly. It is recommended that installation be performed by a qualified automotive technician. Always refer to your vehicle's specific service manual for detailed procedures.
Safety Precautions:
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Ensure the vehicle's A/C system is fully discharged by a certified technician before beginning any work. Refrigerant is under high pressure and can cause severe injury.
- Disconnect the vehicle's battery to prevent accidental electrical discharge.
- Work in a well-ventilated area.
Installation Steps:
- Prepare the Vehicle: Safely lift and support the vehicle if necessary to access the A/C components. Ensure the engine is cool.
- Locate and Remove Old Assembly: Identify the existing A/C manifold hose assembly. Carefully disconnect all fittings and mounting brackets. Be prepared for residual refrigerant or oil.
- Inspect Components: Before installing the new assembly, inspect all connecting components (compressor, condenser, evaporator, expansion valve) for damage, corrosion, or debris. Replace any compromised O-rings or seals.
- Install New Assembly: Position the UAC HA 5701C A/C Manifold Hose Assembly. Connect all fittings, ensuring they are properly seated and tightened to the manufacturer's specified torque values. Use new O-rings lubricated with appropriate A/C system oil.
- Secure Mounting Points: Reattach any mounting brackets or clamps to secure the hose assembly, preventing vibration and abrasion.
- Evacuate and Recharge System: After installation, the A/C system must be properly evacuated using a vacuum pump to remove air and moisture. Then, recharge the system with the correct type and amount of refrigerant and oil, according to the vehicle manufacturer's specifications.
- Leak Test: Perform a thorough leak test using an electronic leak detector or UV dye to ensure all connections are sealed.
- Test System Operation: Start the vehicle and test the A/C system for proper cooling and pressure readings.
3. Operation
The UAC HA 5701C A/C Manifold Hose Assembly is a passive component within your vehicle's air conditioning system. Its primary function is to provide a sealed pathway for refrigerant to circulate between the compressor, condenser, and evaporator, facilitating the heat exchange process necessary for cooling the cabin.
Once correctly installed and the A/C system is charged, the hose assembly operates continuously whenever the air conditioning system is engaged. It is designed to withstand the pressures and temperatures associated with automotive A/C operation.
4. Maintenance
Regular inspection and maintenance can help extend the life of your A/C system and prevent premature failure of components, including the hose assembly.
Recommended Maintenance Checks:
- Visual Inspection: Periodically inspect the hose assembly for any signs of wear, cracks, chafing, or damage. Look for oil residue around fittings, which may indicate a leak.
- Connection Integrity: Ensure all connections remain tight. Do not overtighten, as this can damage fittings.
- System Performance: If you notice a decrease in cooling performance, have your A/C system inspected by a qualified technician. This could indicate a refrigerant leak, which might originate from a hose or fitting.
- Cleanliness: Keep the area around the hose assembly clean from dirt and debris, which can contribute to wear.
5. Troubleshooting
This section addresses common issues related to the A/C manifold hose assembly. For complex issues, consult a professional automotive technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerant Leak | Loose fittings, damaged O-rings, hose abrasion, manufacturing defect. | Inspect all connections and the hose body for signs of leakage (oil residue, hissing sound). Tighten fittings, replace O-rings, or replace the hose assembly if damaged. A professional leak test is recommended. |
| Poor A/C Performance | Low refrigerant charge due to a leak, blockage in the system, faulty compressor or other components. | While a hose assembly issue could contribute to a leak, poor performance often indicates a broader system problem. Have the entire A/C system diagnosed by a qualified technician. |
| Noise from Hose Area | Hose rubbing against other components, loose mounting bracket, excessive vibration. | Inspect hose routing and mounting. Ensure the hose is not touching other parts of the engine bay. Secure any loose brackets. |
6. Specifications
The following specifications pertain to the UAC HA 5701C A/C Manifold Hose Assembly:
- Model: HA 5701C
- Brand: UAC
- Material: Rubber (Hose)
- Item Weight: Approximately 1 pound
- Product Dimensions: Approximately 1.76 x 30.91 x 20.04 inches
- Manufacturer Part Number: HA 5701C
- OEM Part Numbers: 153589; 15561147; 4811858; 34733;
- UPC: 711307082773
- Quality Standard: Premium ISO/TS 16949
7. Warranty Information
The UAC HA 5701C A/C Manifold Hose Assembly is backed by an industry-leading warranty. For specific details regarding warranty coverage, duration, and claims procedures, please refer to the warranty documentation provided with your purchase or contact UAC customer support directly. Keep your proof of purchase for warranty purposes.
8. Customer Support
If you have any questions regarding the installation, operation, or maintenance of your UAC HA 5701C A/C Manifold Hose Assembly, or if you require technical assistance, please contact UAC customer support. It is recommended to have your product model number (HA 5701C) and purchase information available when contacting support.
For professional installation or diagnosis of complex A/C system issues, always consult a certified automotive technician.
