OVENTE 4 Cup Steam Espresso Machine

Introduction

Thank you for choosing the OVENTE 4 Cup Steam Espresso Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new espresso machine. Please read all instructions carefully before first use and retain this manual for future reference.

Image: Front view of the OVENTE 4 Cup Steam Espresso Machine, showcasing its compact design and components like the carafe and steam wand.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Scalding may occur if the pressure cap is removed during the brewing cycle.

Parts Identification

Familiarize yourself with the components of your espresso machine:

• Pressure Cap: Located on top, secures the water reservoir.
• Steam Wand/Frother: For frothing milk.
• Filter Holder: Holds the coffee filter basket.
• Filter Basket: For ground coffee.
• Glass Carafe: With handle and measurement markings.
• Drip Tray: Collects excess liquid.
• Control Knob: Selects brewing or steam function.
• Tamper/Spoon: For tamping coffee grounds and measuring.

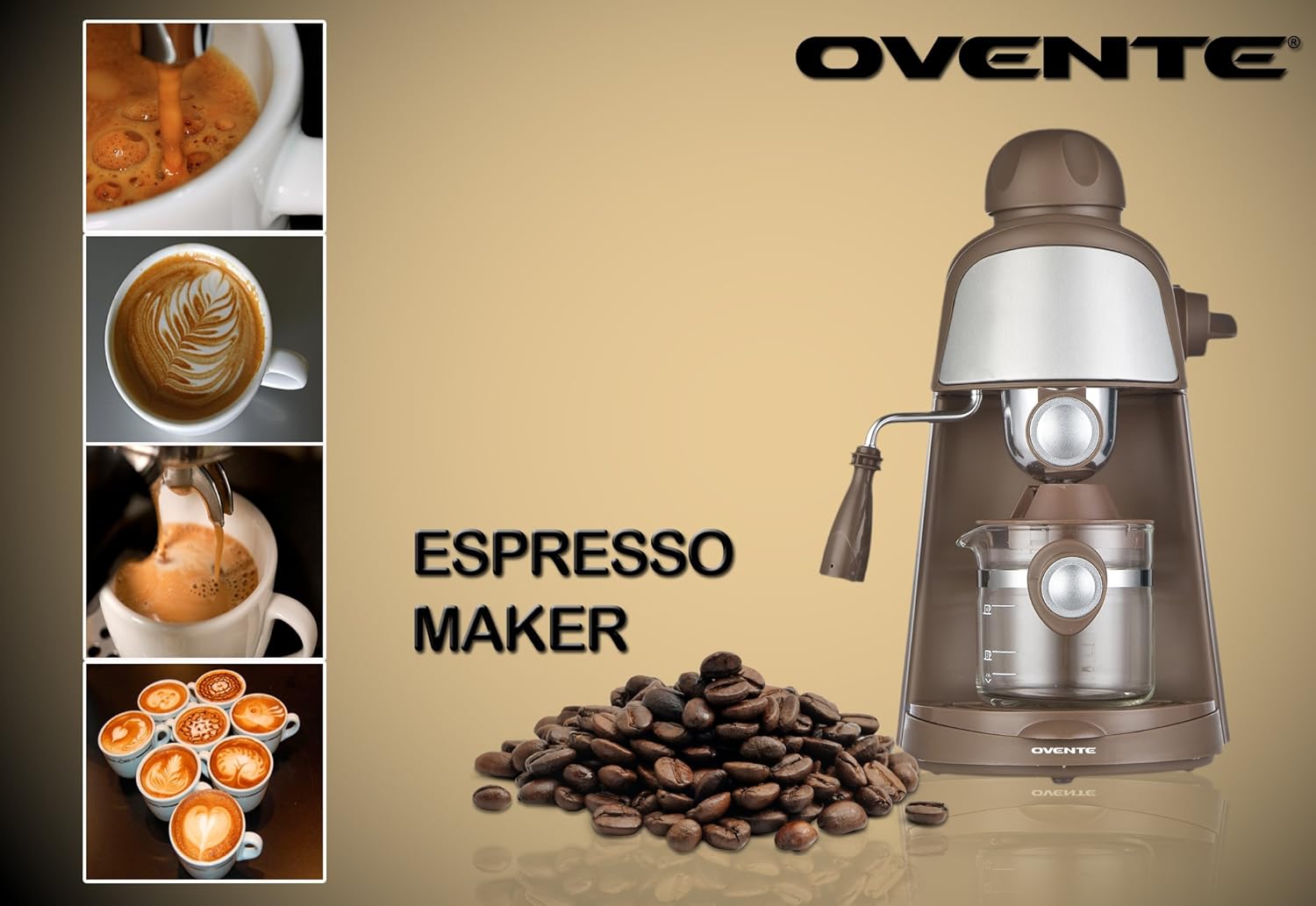

Image: The OVENTE Espresso Maker displayed alongside coffee beans and various espresso and latte cups, illustrating its purpose.

Setup and First Use

1. Unpacking: Carefully remove all packaging materials.
2. Initial Cleaning: Wash the glass carafe, filter holder, and filter basket in warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the machine with a damp cloth.
3. Placement: Place the machine on a stable, flat, heat-resistant surface, away from water sources and heat.
4. Priming the Machine (First Use):
   • Fill the glass carafe with water up to the 4-cup mark.
   • Unscrew the pressure cap and pour the water into the water reservoir. Replace the pressure cap securely.
   • Place the empty filter basket into the filter holder and attach it to the machine, twisting to lock.
   • Place the empty carafe on the drip tray.
   • Plug the machine into a standard 120V AC outlet.
   • Turn the control knob to the “Brew” position. The indicator light will illuminate.
   • Allow all the water to brew through into the carafe.
   • Turn the control knob to the “Off” position and unplug the machine. Discard the water.
   • Allow the machine to cool completely before proceeding. This process cleans the internal components and prepares the machine for use.

Operating Instructions

Making Espresso

1. Prepare Water: Fill the glass carafe with fresh, cold water to your desired number of cups (e.g., 2-cup or 4-cup mark).
2. Fill Water Reservoir: Unscrew the pressure cap and carefully pour the water from the carafe into the water reservoir. Securely replace the pressure cap.
3. Add Coffee Grounds: Using the measuring spoon, add finely ground espresso coffee to the filter basket. For 2 cups, use 2 level spoons; for 4 cups, use 4 level spoons. Do not overfill.
4. Tamp Coffee: Use the tamper end of the spoon to gently but firmly tamp down the coffee grounds. Ensure the surface is level.
5. Attach Filter Holder: Insert the filter basket into the filter holder. Attach the filter holder to the machine by aligning it with the slot and twisting it firmly to the right until it locks into place.
6. Position Carafe: Place the glass carafe on the drip tray directly beneath the filter holder.
7. Brew Espresso: Plug in the machine. Turn the control knob to the “Brew” position. The indicator light will illuminate. Espresso will begin to drip into the carafe after a few moments.
8. Monitor Brewing: Once the desired amount of espresso has been brewed (or when the water reservoir is empty), turn the control knob to the “Off” position.
9. Release Pressure: Wait for the machine to cool down slightly before carefully unscrewing the pressure cap to release any remaining steam pressure.
10. Serve: Pour the fresh espresso into cups and enjoy.

Frothing Milk (for Cappuccinos and Lattes)

1. Prepare Milk: Fill a small pitcher with cold milk (dairy or non-dairy) to about one-third full.
2. Heat Machine: After brewing espresso, or if starting fresh, ensure there is water in the reservoir. Turn the control knob to the “Steam” position. The indicator light will illuminate. Wait for approximately 1-2 minutes for the machine to heat up and produce steam.
3. Position Steam Wand: Submerge the tip of the steam wand just below the surface of the milk in the pitcher.
4. Froth Milk: Slowly turn the control knob towards the “Steam” icon. Steam will begin to release from the wand. Move the pitcher up and down gently, keeping the wand tip just below the surface to create foam. For hotter milk, submerge the wand deeper.
5. Stop Steaming: Once the milk has reached the desired temperature and froth, turn the control knob back to the “Off” position.
6. Clean Steam Wand: Immediately wipe the steam wand with a damp cloth to remove any milk residue. Briefly turn the control knob to “Steam” again to clear any milk from inside the wand, then turn off.
7. Combine: Pour the frothed milk over your freshly brewed espresso.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your espresso machine.

Daily Cleaning

• After Each Use: Unplug the machine and allow it to cool. Remove the filter holder and discard used coffee grounds. Wash the filter holder, filter basket, and glass carafe in warm, soapy water. Rinse thoroughly and dry.
• Drip Tray: Empty and clean the drip tray regularly.
• Exterior: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
• Steam Wand: As mentioned in the operating instructions, wipe the steam wand immediately after frothing milk and briefly purge steam to prevent clogging.

Descaling (Monthly or as Needed)

Mineral deposits from water can build up over time, affecting performance. Descale your machine regularly, especially if you have hard water.

1. Prepare a descaling solution by mixing white vinegar and water (1:1 ratio) or using a commercial descaling agent according to its instructions.
2. Fill the water reservoir with the descaling solution.
3. Place the empty carafe on the drip tray.
4. Plug in the machine and turn the control knob to the “Brew” position. Allow half of the solution to brew through.
5. Turn the control knob to “Off” and let the machine sit for 15-20 minutes to allow the solution to work.
6. Turn the control knob back to “Brew” and allow the remaining solution to brew through.
7. Discard the solution.
8. Rinse the machine by repeating the brewing process with fresh, clean water at least twice to remove any residual descaling solution.

Troubleshooting

Specifications

• Model: CM44
• Capacity: 4 Cups
• Pressure: 3.5 Bar
• Voltage: 120 Volts
• Operation Mode: Semi-Automatic
• Dimensions: Approximately 13 x 6.6 x 12.8 inches
• Included Components: Filter, Carafe, Tamper/Spoon
• Material: Stainless steel and plastic components

Warranty and Support

For warranty information, product registration, or technical support, please visit the official OVENTE website or contact their customer service department. Keep your purchase receipt as proof of purchase.

Manufacturer: Ovente

Website: OVENTE Official Store on Amazon
