1. Important Safety Information

Read and understand all safety warnings and instructions before using this heater. Failure to follow these instructions may result in electric shock, fire, property damage, or serious injury.

• Electrical Requirements: This heater requires a 240V, 30 Amp electrical supply with a NEMA #6-30P plug. Do not attempt to use with a 120V outlet or adapter, as this will not provide proper operation and can be a fire hazard.
• Placement: Position the heater on a stable, level surface or securely mount it to a wall or ceiling using the provided kit. Maintain adequate clearance from combustible materials (e.g., furniture, curtains, paper).
• Overheat Protection: The heater is equipped with an automatic overheat shut-off feature. If the heater overheats, it will turn off automatically. Allow it to cool down before attempting to restart. Investigate and resolve the cause of overheating.
• Ventilation: Ensure proper ventilation around the heater. Do not block air intake or exhaust openings.
• Moisture: Do not use this heater in wet or damp locations. Keep away from water sources.
• Children and Pets: Keep children and pets away from the heater. The surface of the heater can become hot during operation.
• Maintenance: Disconnect power before performing any maintenance or cleaning.

Image: This image illustrates the required 30 Amp 240V NEMA 6-30P plug and the compatible NEMA 6-30R outlet. It also shows a standard household 120V outlet with a red 'X', indicating it is not compatible.

Image: This image displays a warning against using a 120V adapter plug with the heater. It shows a 120V adapter plug and a standard 120V outlet with red 'X' marks, emphasizing that such adapters will not allow the heater to operate properly and will reduce heat output.

2. Product Overview

The Dura Heat EUH5000 is an electric forced air heater designed for indoor use, providing 16,400 BTU output. It features a durable tubular cabinet, a built-in turbo fan, and a stainless steel heating element. The heater includes an automatic thermostat and overheat shut-off for safety and convenience.

Image: This diagram shows the Dura Heat EUH5000 electric forced air heater with its key components labeled, including the wall/ceiling bracket, carrying handle, tubular steel cabinet, stainless steel heating element, fan-only setting, control panel, and NEMA 6-30P plug.

Image: A front view of the Dura Heat EUH5000 electric forced air heater, showing red lines emanating from the front grille to visually represent heat output. The heater is yellow and black with a control panel at the base.

Key Features:

• Electric 240 Volts, 30 Amps
• 5000 Watts model
• Heats up to 700 sq. ft.
• Built-in turbo fan
• Tubular cabinet design
• Automatic thermostat
• Overheat shut-off protection
• Fan-only setting
• Adjustable stand for directional adjustment
• Ceiling/Wall mounting kit included

3. Setup and Installation

Unpacking:

Carefully remove the heater from its packaging. Inspect for any damage that may have occurred during shipping. Retain packaging for future storage or transport.

Electrical Connection:

1. Ensure the electrical supply matches the heater's requirements: 240 Volts, 30 Amps.
2. The heater is equipped with a NEMA #6-30P plug. Connect it only to a compatible NEMA #6-30R outlet.
3. Do not use extension cords unless they are rated for 240V, 30 Amps, and are in good condition.
4. Never use a 120V adapter plug. This will not provide sufficient power and can damage the unit or create a fire hazard.

Mounting Options:

The Dura Heat EUH5000 can be used as a portable unit or permanently mounted to a wall or ceiling using the included bracket.

• Portable Use: Place the heater on a firm, level surface, ensuring adequate clearance from walls and combustible materials. The adjustable stand allows for directional heat flow.
• Wall/Ceiling Mount:
  1. Select a suitable mounting location that can support the heater's weight and provides proper clearance.
  2. Use the provided mounting bracket and hardware. Ensure the bracket is securely fastened to structural elements (e.g., wall studs, ceiling joists).
  3. Attach the heater to the mounted bracket, following the instructions provided with the mounting kit.
  4. Once mounted, the heater can be adjusted to direct airflow as needed.

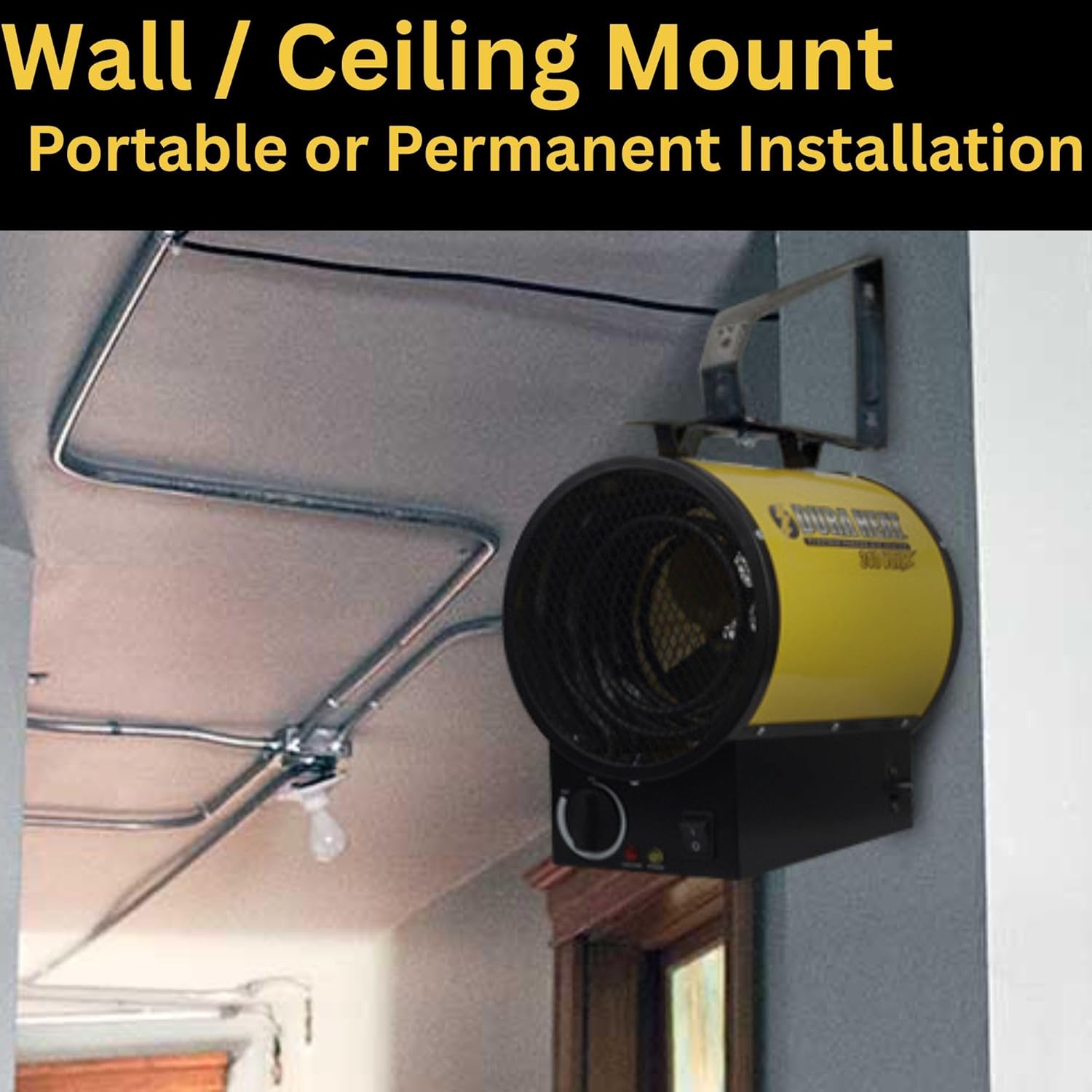

Image: The Dura Heat EUH5000 heater is shown mounted on a wall, demonstrating its wall/ceiling mount capability for permanent installation. The heater is positioned high on the wall, directing heat into the room.

Image: This image shows the Dura Heat EUH5000 heater mounted on a wall in a garage setting, illustrating its ability to heat an area up to 700 sq ft. Various tools and equipment are visible in the garage.

4. Operating Instructions

Familiarize yourself with the control panel before operation.

Image: A close-up view of the heater's control panel, showing the thermostat dial (Min to Max), the power switch (On/Off), and indicator lights for 'Caution' (red) and 'Power' (yellow).

1. Power On: Ensure the heater is properly connected to a 240V, 30 Amp outlet. Flip the main power switch to the 'ON' position. The yellow 'Power' indicator light should illuminate.
2. Set Thermostat: Rotate the thermostat dial to your desired heat setting. Turning the dial clockwise increases the heat output. The heater will cycle on and off to maintain the set temperature.
3. Fan-Only Setting: This model includes a fan-only setting. Consult your specific model's controls for activating this feature, typically by setting the thermostat to its lowest heat setting or a dedicated fan switch if present.
4. Overheat Protection: If the red 'Caution' light illuminates and the heater stops operating, it indicates that the overheat protection has been activated. Turn off the heater, unplug it, and allow it to cool for at least 30 minutes. Check for any obstructions to airflow before restarting.
5. Power Off: To turn off the heater, rotate the thermostat dial to the minimum setting and then flip the main power switch to the 'OFF' position.

5. Maintenance

Regular maintenance ensures efficient and safe operation of your heater. Always disconnect the power supply before performing any maintenance.

• Cleaning:
  • Use a soft, damp cloth to wipe the exterior surfaces of the heater.
  • Use a vacuum cleaner with a brush attachment to remove dust and debris from the air intake and exhaust grilles.
  • Do not use abrasive cleaners, solvents, or spray directly onto the heater.
• Inspection:
  • Periodically check the power cord and plug for any signs of damage (fraying, cuts, loose connections). If damaged, do not use the heater and contact a qualified electrician for repair.
  • Ensure all mounting hardware (if applicable) remains secure.
• Storage: If storing the heater for an extended period, clean it thoroughly and store it in a dry, dust-free location.

6. Troubleshooting

7. Specifications

Image: The Dura Heat EUH5000 heater is shown with text overlays highlighting its specifications: 240 Volt, 30 Amps, 4800 Watts, and 16400 BTUs.

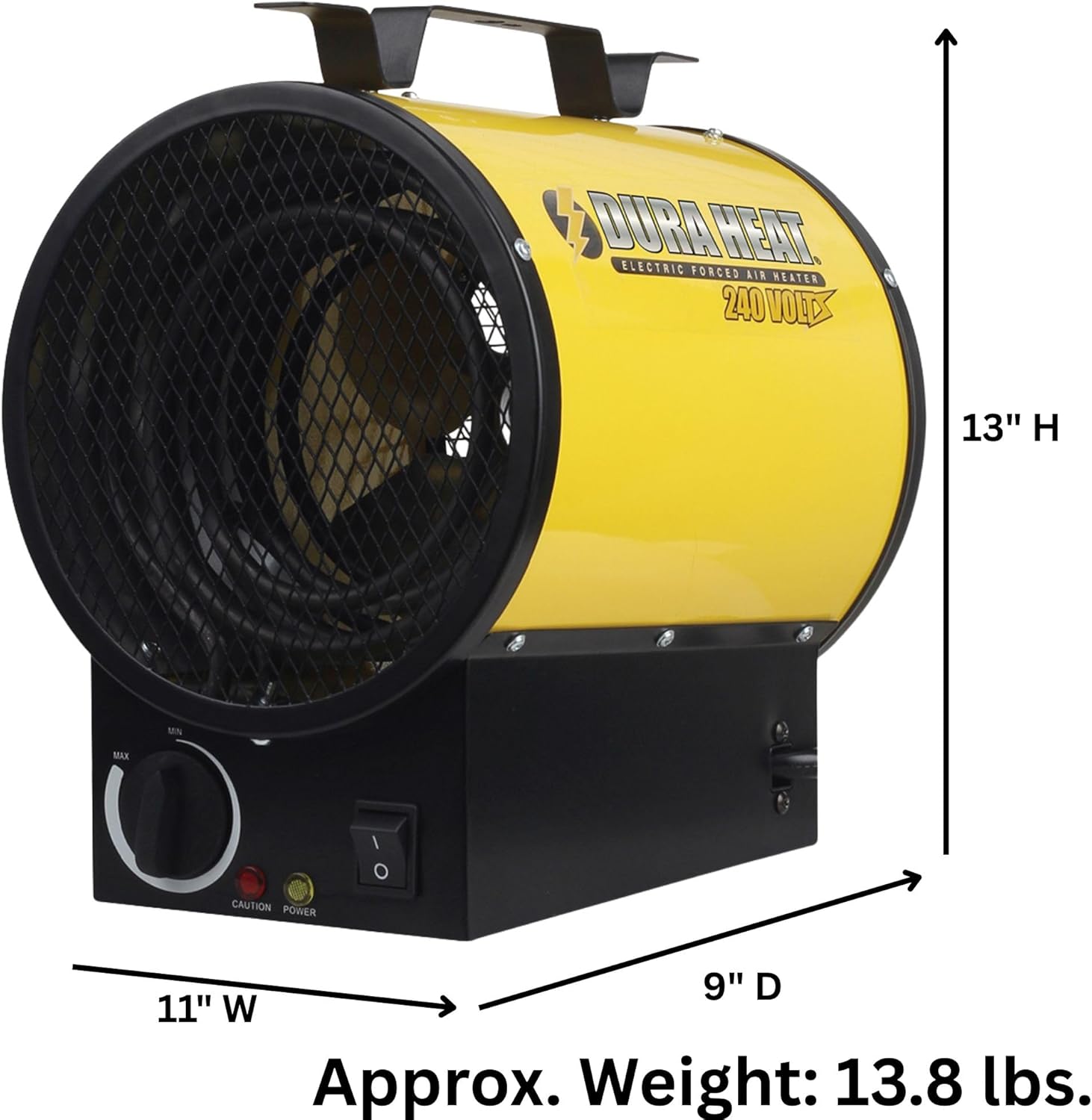

Image: The Dura Heat EUH5000 heater is displayed with its approximate dimensions labeled: 13" H, 11" W, and 9" D. The approximate weight is also noted as 13.8 lbs.

8. Warranty Information

This Dura Heat EUH5000 Electric Forced Air Heater comes with a 1-year warranty covering manufacturer defects only. This warranty does not cover damage resulting from misuse, abuse, accident, alteration, or improper installation. Please retain your proof of purchase for warranty claims.

9. Customer Support

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Dura Heat customer support. Refer to the product packaging or the manufacturer's official website for the most current contact information.

When contacting support, please have your model number (EUH5000) and proof of purchase readily available.
