Product Overview
The HY-C Liberty Foundry G200-18-BX Fire Grate is a heavy-duty, one-piece steel bar grate designed for use in fireplaces. It features 5-inch high legs and a 12-inch depth, with an approximate front width of 18 inches and a back width of 12 inches. Constructed from robust 5/8-inch solid steel bars, this grate includes an integrated ember retainer to keep burning logs and coals in place, promoting efficient combustion and improved air circulation.
- Dimensions: Measures 18 inches (front width) x 15 inches (back width) x 12 inches (depth) with a 4.5-inch leg clearance.
- Construction: Crafted from 5/8-inch solid, heavy-duty steel bar stock for durability.
- Ember Retainer: Custom-designed to hold embers directly under the logs, allowing only ashes to fall below.
- Airflow Optimization: Lifts wood off the firebox floor, securely holding it above ash build-up to ensure free air circulation and efficient burning.

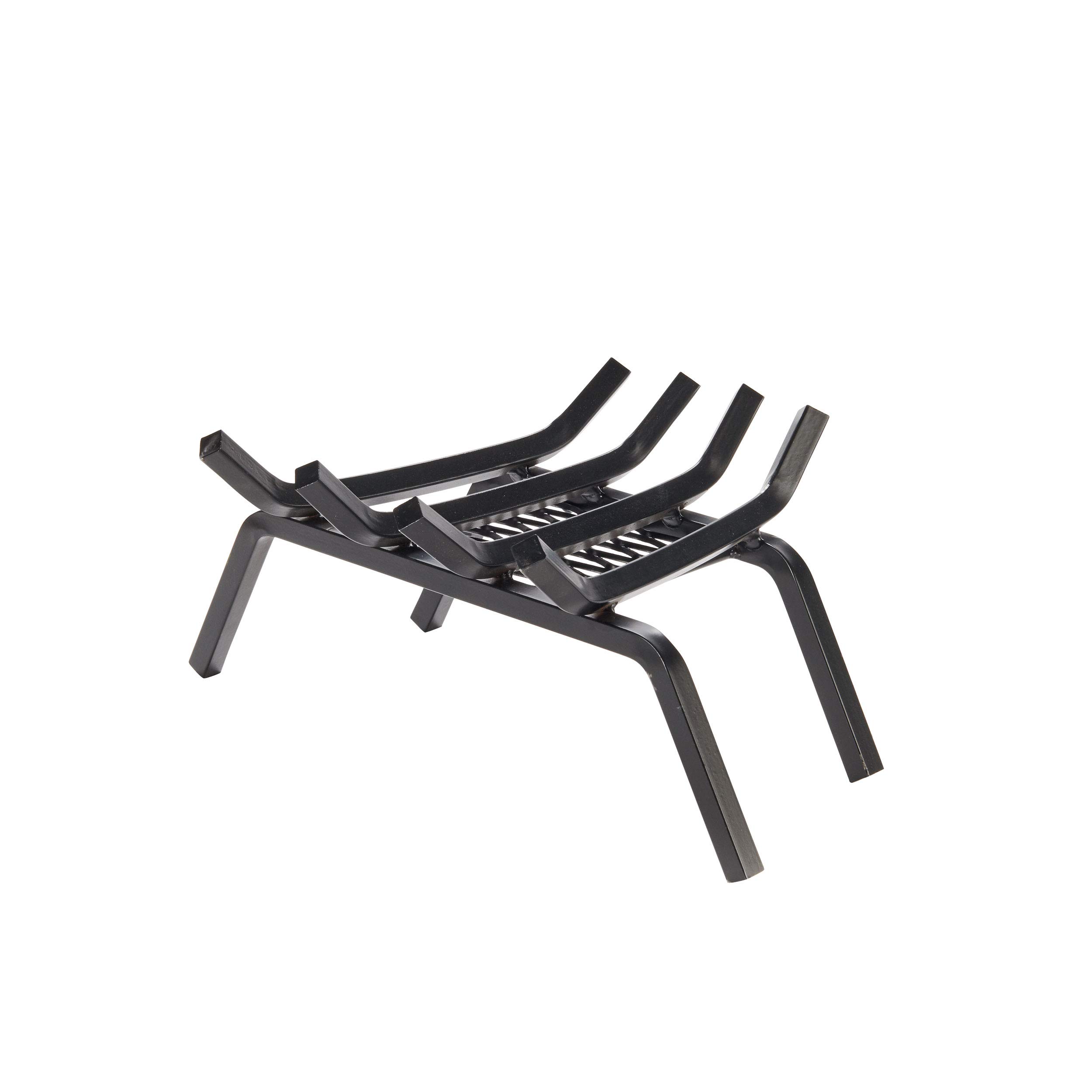

Figure 1: Front view of the HY-C Liberty Foundry G200-18-BX Fire Grate. This black, heavy-duty steel fire grate is designed to elevate logs for improved airflow and features an integrated ember retainer.
Setup
- Unpack: Carefully remove the fire grate from its packaging. Inspect for any damage during transit.
- Placement: Position the fire grate inside your fireplace firebox. Ensure there is at least 3 inches of clearance between all sides of the grate and the firebox walls. This clearance is crucial for proper airflow, which is essential for a well-burning fire.
- Stability: Verify that the grate is stable and level on the firebox floor.
Figure 2: Dimensional diagram of the fire grate. Key measurements include 18 inches front width, 15 inches back width, 12 inches depth, 7.5 inches overall height, and 4.5 inches leg clearance.
Operating Instructions
- Prepare Firebox: Ensure the fireplace is clean of excessive ash from previous fires. A thin layer of ash can help insulate, but too much will restrict airflow.
- Load Wood: Place kindling (small pieces of wood, paper, or fire starters) on the ember retainer mesh at the bottom of the grate. Arrange larger logs on top of the kindling and the grate bars. Stack logs in a manner that allows air to circulate freely around them.
- Ignite Fire: Light the kindling. The grate's design promotes airflow from underneath, aiding in quick ignition and sustained burning.
- Maintain Fire: As logs burn down, the ember retainer will collect hot coals, keeping them close to the new logs for continuous heat and efficient burning. Add new logs as needed, placing them on top of the existing embers and grate bars.
Figure 3: Logs positioned on the fire grate. This demonstrates the proper placement of wood to utilize the grate's design for optimal burning and air circulation.
Figure 4: Top-down view of the fire grate. This image highlights the robust steel bars and the integrated mesh at the base, which functions as an ember retainer to keep coals concentrated for better heat.
Maintenance
- Ash Removal: Regularly remove ash from beneath the grate to prevent accumulation that can impede airflow. Allow the grate to cool completely before handling.
- Inspection: Periodically inspect the grate for any signs of wear, warping, or damage. While constructed for heavy-duty use, extreme heat can affect any metal over time.
- Cleaning: For general cleaning, use a stiff wire brush to remove any stubborn residue. Avoid using harsh chemicals, as they are unnecessary and can potentially damage the finish.
- Storage: If storing the grate for an extended period, ensure it is clean and dry to prevent rust.
Troubleshooting
- Poor Fire Combustion: If your fire is not burning efficiently or struggles to stay lit, check for sufficient airflow. Ensure there is adequate space (at least 3 inches) around the grate within the firebox and that excessive ash is not blocking the ember retainer mesh.
- Smoke Backdraft: Ensure your chimney flue is open and clear. A properly functioning chimney is essential for drawing smoke upwards.
- Logs Rolling Off: Ensure logs are stacked securely on the grate. The design is intended to hold logs, but improper stacking can lead to instability.
Specifications
| Feature | Detail |
|---|---|
| Brand | HY-C |
| Model Name | G200-18-BX |
| Product Dimensions (D x W x H) | 12"D x 18"W x 7.5"H |
| Material | Alloy Steel |
| Finish Type | Wood (referring to application, not material) |
| Installation Type | Freestanding |
| Color | Black |
| Ventilation Type | Vent Free (for the grate's design, not the fireplace) |
| Specific Uses For Product | Indoor |
| Item Weight | 15.5 Pounds |
Warranty Information
This HY-C Liberty Foundry G200-18-BX Fire Grate comes with a 1-year limited manufacturer's warranty. Please retain your proof of purchase for any warranty claims. The warranty covers defects in materials and workmanship under normal use and service.
Support
For further assistance, technical support, or to inquire about replacement parts, please contact HY-C customer service. Refer to the contact information provided on the product packaging or the official HY-C website.
