Bosch Headlight Bulb Plus 120 Gigalight H4 Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of your Bosch Headlight Bulb Plus 120 Gigalight H4. This high-performance halogen bulb is designed to provide enhanced visibility and a brighter driving experience. Please read this manual thoroughly before installation and operation.

Figure 1: Bosch Headlight Bulb Plus 120 Gigalight H4 product packaging.

2. Product Features

The Bosch Headlight Bulb Plus 120 Gigalight H4 offers several advanced features for superior performance:

• Enhanced Brightness: Up to 120% more brightness compared to standard halogen bulbs, improving road illumination.
• Extended Light Beam: Optimized filament size results in a longer light beam, allowing earlier detection of obstacles.
• Intensely White Light: Features a special blue coating and a unique gas mixture, including xenon, to produce a whiter light without dazzling other road users.
• Improved Safety: Earlier detection of hazards provides the driver with more reaction time.
• Comfortable Night Driving: Better performance and visibility contribute to a more comfortable driving experience at night.
• ECE Approved: Complies with ECE regulations for automotive lighting.
• H4 Type: Designed for vehicles requiring H4 type headlight bulbs.

Figure 2: Key features of the Bosch Gigalight bulb, including enhanced brightness, extended beam, and white light output.

Figure 3: Visual comparison illustrating the increased luminosity and longer light beam of the Plus 120 Gigalight bulb compared to a standard bulb.

3. Safety Information

Always prioritize safety when handling and installing automotive bulbs.

• Electrical Hazard: Disconnect the vehicle's battery before attempting any electrical work to prevent electric shock.
• Burn Hazard: Headlight bulbs can become extremely hot during operation. Allow the bulb to cool completely before handling.
• Fragile Component: Halogen bulbs are made of glass and can break if dropped or mishandled.
• Do Not Touch Glass: Oils from your skin can create hot spots on the bulb's glass, leading to premature failure. Always handle the bulb by its base or wear clean gloves.
• Eye Protection: Wear safety glasses to protect your eyes from potential glass shards if a bulb breaks.
• Proper Disposal: Dispose of old bulbs according to local regulations.

4. Setup and Installation

Installing the Bosch Headlight Bulb Plus 120 Gigalight H4 requires careful attention. Refer to your vehicle's owner's manual for specific instructions on accessing the headlight assembly.

1. Preparation: Ensure the vehicle's engine is off and the ignition is switched off. Disconnect the negative terminal of the car battery for safety.
2. Access Headlight Assembly: Locate the headlight assembly. This may involve opening the hood and removing covers or other components to gain access to the bulb housing.
3. Remove Old Bulb:
   • Carefully disconnect the electrical connector from the back of the old bulb.
   • Unclip or unscrew any retaining springs or clips holding the bulb in place.
   • Gently pull the old bulb straight out from its socket. Avoid twisting.
4. Install New Bulb:
   • Important: Wear clean gloves or handle the new bulb only by its metal base. Do not touch the glass part of the bulb.
   • Align the tabs on the base of the new Bosch H4 bulb with the corresponding slots in the headlight socket.
   • Push the bulb firmly but gently into place until it is seated securely.
   • Re-secure any retaining springs or clips that were removed.
   • Reconnect the electrical connector to the new bulb.
5. Test and Reassemble:
   • Reconnect the vehicle's battery.
   • Turn on the headlights to ensure the new bulb is functioning correctly.
   • Reassemble any covers or components that were removed during the process.
   • It is recommended to check headlight alignment after bulb replacement.

Figure 4: Proper handling during installation, emphasizing the use of gloves to avoid touching the bulb's glass surface.

5. Operation

Once installed, the Bosch Headlight Bulb Plus 120 Gigalight H4 operates as a direct replacement for your vehicle's original H4 headlight bulb. It will illuminate when your vehicle's headlight system is activated, providing both low beam and high beam functions as designed by your vehicle manufacturer. The enhanced brightness and longer beam pattern will improve your visibility and safety during night driving.

6. Maintenance

Halogen headlight bulbs generally require minimal maintenance.

• Cleaning: If the headlight lens becomes dirty, clean it with a soft cloth and appropriate automotive cleaner to ensure maximum light output. Do not use abrasive cleaners.
• Bulb Life: The lifespan of a halogen bulb can vary depending on usage and driving conditions. If one bulb fails, it is often recommended to replace both headlights simultaneously to ensure balanced illumination and consistent light output.
• Inspection: Periodically check your headlights for proper function and brightness.

7. Troubleshooting

If you encounter issues with your Bosch Headlight Bulb, consider the following troubleshooting steps:

8. Specifications

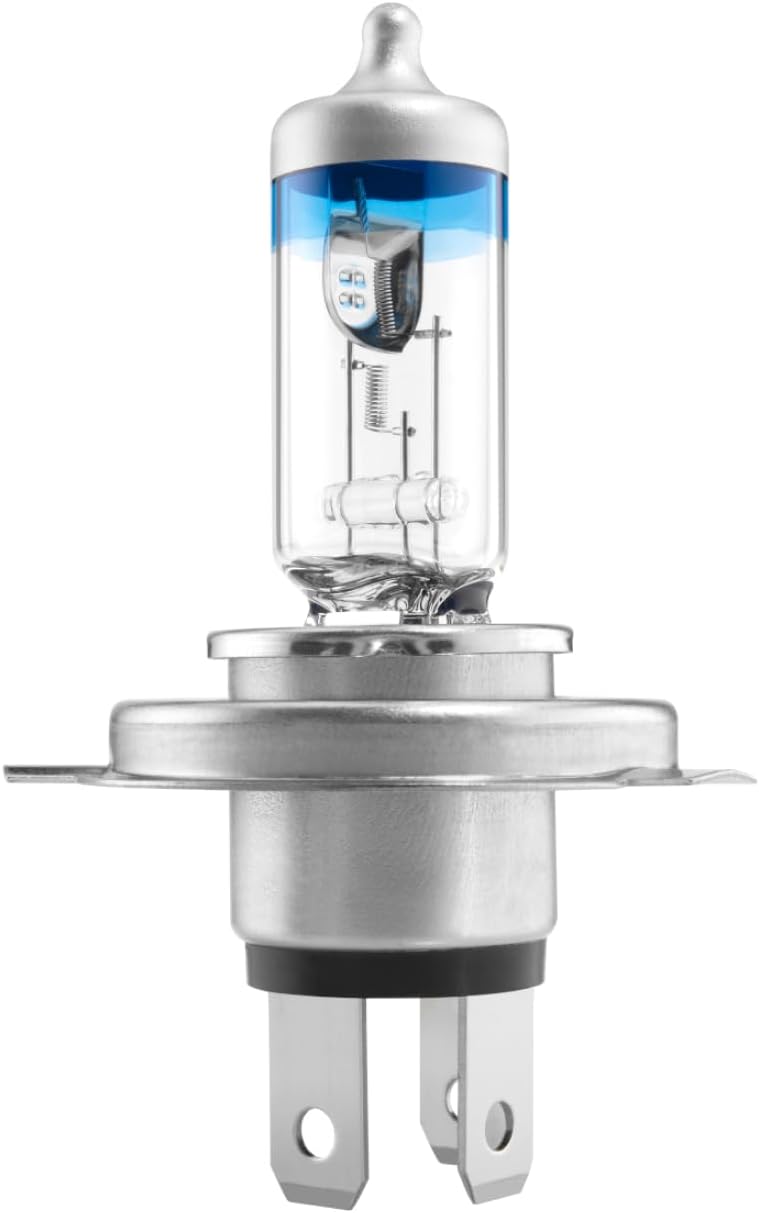

Figure 5: Detailed view of the Bosch H4 headlight bulb, showing its base and glass envelope.

Figure 6: Diagram illustrating the internal components of the Bosch H4 bulb, including optimized filaments, exclusive gas mixture, silver coating, and special blue coating for intense white light.

9. Warranty and Support

For warranty information and customer support, please refer to the official Bosch website or contact your local Bosch automotive parts dealer. Keep your proof of purchase for any warranty claims.

Online Resources:

• Visit the official Bosch Automotive website for product information and FAQs.
• Consult your vehicle's owner's manual for specific headlight system details.
