1. Introduction
The HYPRO BOOM X TENDER XT024 Boomless Spray Nozzle is engineered for precision crop spraying in areas where conventional booms cannot reach. This nozzle enables effective spraying around obstacles such as power poles, guardrails, fences, and trees, ensuring uniform coverage and optimal crop growth.
Its large droplet design reduces spray drift while improving canopy penetration, enhancing the efficiency of fertilizers and liquid nutrient application. The XT024 delivers precision spraying that helps maximize yield, reduce chemical waste, and protect crops from missed areas.
Constructed from durable, chemical-resistant materials, the BOOM X TENDER ensures long-lasting performance for repeated farm spraying operations. Easy to install on standard boomless sprayer systems, it is an essential tool for growers seeking efficient, uniform, and high-precision crop spraying across all types of agricultural applications.

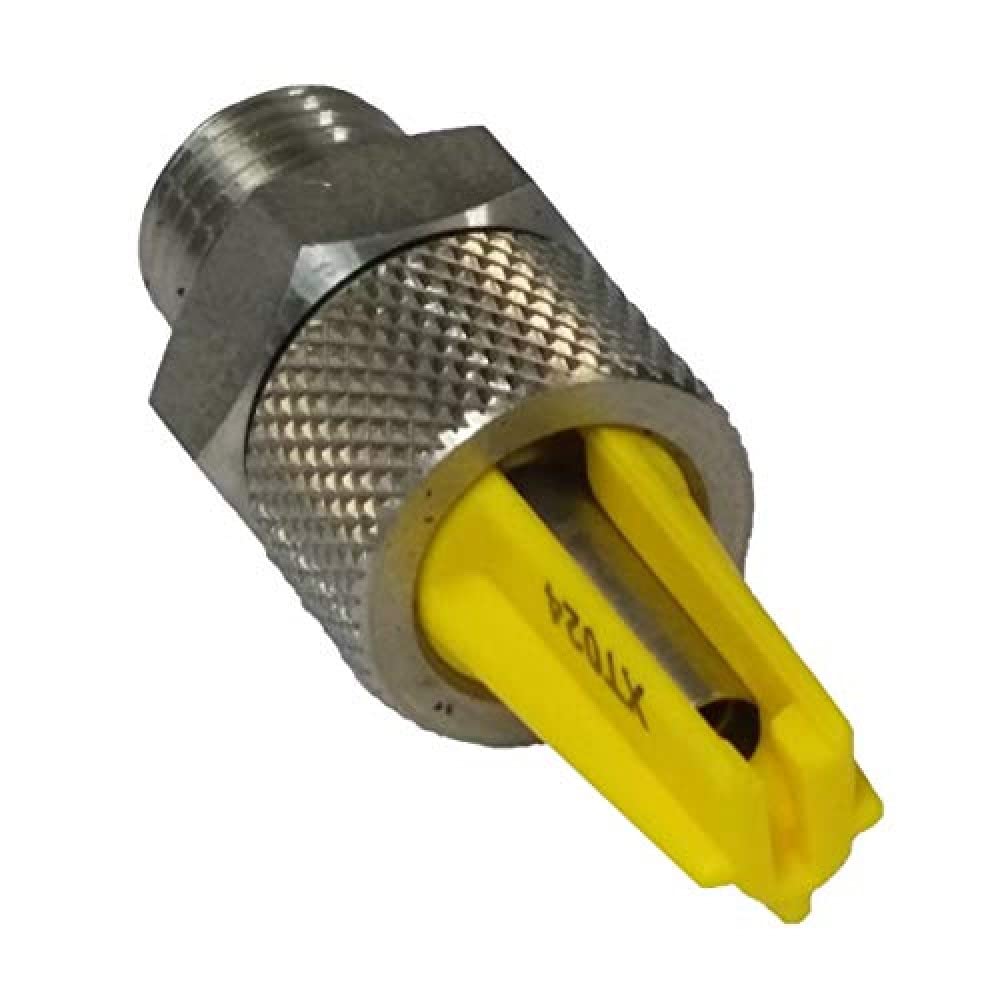

Figure 1: The HYPRO BOOM X TENDER XT024 Boomless Spray Nozzle.
2. Features and Benefits
The HYPRO BOOM X TENDER XT024 nozzle offers several key features designed to enhance spraying efficiency and effectiveness:
- Obstacle-Friendly Application: Spray effectively around power poles, guardrails, fences, trees, and other hard-to-reach areas.
- Reduced Drift and Enhanced Coverage: Large droplet design minimizes spray drift and improves canopy penetration for fertilizers and liquid nutrients.
- Uniform Crop Protection: Ensures consistent spray distribution for efficient and precise crop spraying.
- Versatile Agricultural Use: Ideal for precision farming, crop protection, and a wide range of liquid nutrient applications.
- Durable Chemical-Resistant Design: Built to withstand harsh chemicals and repeated farm spraying operations for long-lasting performance.
Figure 2: A selection of HYPRO Boom X Tender nozzles, highlighting their robust construction and varied designs for different applications.
3. Setup and Installation
The XT024 nozzle is designed for straightforward installation on standard boomless sprayer systems. Follow these general steps for proper setup:
- Preparation: Ensure your sprayer system is clean and free of debris. Verify that the system is depressurized before beginning installation.
- Connection: The XT024 features a 1/4" MNPT thread. Apply thread sealant tape or liquid sealant to the nozzle threads.
- Mounting: Thread the nozzle securely into the designated port on your boomless sprayer manifold or plumbing. Hand-tighten, then use a wrench for a final snug fit, being careful not to overtighten.
- Orientation: Position the nozzle to achieve the desired spray pattern and swath width. The nozzle can be adjusted to direct the spray.
- System Check: After installation, slowly pressurize the system and check for any leaks around the nozzle connection. Address any leaks before full operation.
Figure 3: Close-up view of the HYPRO XT024 nozzle, showing the threaded connection and internal components.
Figure 4: The Hypro Ball Swivel Nozzle Body, an optional component for adjusting swath width.
4. Operating Instructions
Proper operation of the XT024 nozzle ensures optimal spray coverage and efficiency. The nozzle is designed to provide an adjustable swath up to 16 feet.
- Pressure Range: Operate the nozzle within the recommended pressure range of 30-60 PSI (2-5 bar) for consistent spray distribution.
- Swath Adjustment: The swath width can be increased or decreased by adjusting the angle of the nozzle tip, typically +/- 18 degrees. Experiment with angles to achieve the desired coverage for your application.
- Application Speed: Maintain a consistent ground speed during spraying to ensure uniform application rates.
- Targeted Spraying: Utilize the boomless design to navigate around obstacles, ensuring that fertilizers and liquid nutrients are applied precisely where needed.
- Monitoring: Regularly observe the spray pattern during operation to confirm it remains consistent and free of clogs or distortions.
Figure 5: Diagram illustrating the adjustable swath width and typical spray pattern produced by XT Series nozzles.
Figure 6: A Boom X Tender nozzle in action, demonstrating its effective coverage in an agricultural setting.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your HYPRO BOOM X TENDER XT024 nozzle. The nozzle is constructed from durable, chemical-resistant materials, but proper care is still essential.
- Cleaning: After each use, flush the sprayer system and nozzles with clean water to remove any chemical residues. For stubborn clogs, remove the nozzle and clean it with a soft brush and appropriate cleaning solution. Do not use metal objects that could damage the orifice.
- Inspection: Periodically inspect the nozzle for signs of wear, damage, or corrosion. Check the orifice for enlargement or distortion, which can affect spray pattern and flow rate. Replace worn or damaged nozzles promptly.
- Storage: When not in use, store the nozzle in a clean, dry place, protected from extreme temperatures and direct sunlight. If storing the sprayer for an extended period, ensure the nozzles are thoroughly cleaned and dried.
- Filter Maintenance: Ensure that any inline filters in your sprayer system are regularly cleaned or replaced to prevent debris from reaching and clogging the nozzle.
6. Troubleshooting
If you encounter issues with your XT024 nozzle, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Inconsistent Spray Pattern | Clogged nozzle orifice, worn orifice, incorrect pressure. | Clean the nozzle, replace if worn, adjust system pressure to recommended range. |
| Reduced Flow Rate | Partially clogged nozzle, low system pressure, clogged filter. | Clean nozzle, check pump and pressure regulator, clean or replace system filter. |
| Leaks at Nozzle Connection | Loose connection, damaged threads, insufficient thread sealant. | Tighten connection, reapply thread sealant, inspect threads for damage. |
| No Spray | Completely clogged nozzle, no pressure from pump, shut-off valve closed. | Clear nozzle, check pump operation, open all valves. |
If problems persist after attempting these solutions, contact HYPRO customer support or a qualified service technician.
7. Specifications
Detailed specifications for the HYPRO BOOM X TENDER XT024 Boomless Spray Nozzle:
| Specification | Detail |
|---|---|
| Model Number | XT024 |
| Brand | HYPRO |
| Material | Stainless Steel |
| Exterior Finish | Stainless Steel |
| Inlet Connection Size | 0.25 Inches |
| Inlet Connection Type | National Pipe Tapered (NPT) |
| Outlet Connection Type | MNPT |
| Maximum Operating Pressure | 60 Pound per Square Inch (PSI) |
| Number of Ports | 2 |
| Outlet Connection Size | 0.25 Inches |
| Item Weight | 1.44 ounces |
| Package Dimensions | 3.23 x 1.73 x 0.94 inches |
| UPC | 634332106996 |
Figure 7: An overview of HYPRO Boom X Tender nozzles, including general specifications and applications.
8. Warranty Information
For specific warranty details regarding the HYPRO BOOM X TENDER XT024 Boomless Spray Nozzle, please refer to the documentation included with your purchase or visit the official HYPRO website. Warranty terms typically cover manufacturing defects under normal use conditions.
9. Support
If you require further assistance, have questions about installation, operation, maintenance, or need to report an issue, please contact HYPRO customer support. You can typically find contact information on the product packaging, the official HYPRO website, or through your authorized dealer.
For additional resources and product information, visit the HYPRO Store on Amazon.
