Hyde 02950 2-IN-1 Glazing Tool Instruction Manual

Introduction

This manual provides comprehensive instructions for the safe and effective use, maintenance, and care of your Hyde 02950 2-IN-1 Glazing Tool. Designed for both professional and DIY applications, this versatile tool simplifies the process of applying and removing window glazing putty. Please read this manual thoroughly before using the tool to ensure proper operation and to maximize its lifespan.

Product Overview

The Hyde 02950 2-IN-1 Glazing Tool features a satin finish, high carbon steel blade, and a durable nylon handle. It is specifically designed for glazing tasks, offering two distinct functions in one compact tool:

• One end features a slotted V-blade, engineered to apply smooth, consistent strips of glazing putty.
• The other end provides a heavy-duty 1-1/4 inch chisel-edge, ideal for efficiently removing old, hardened putty and for driving push-style glazing points.

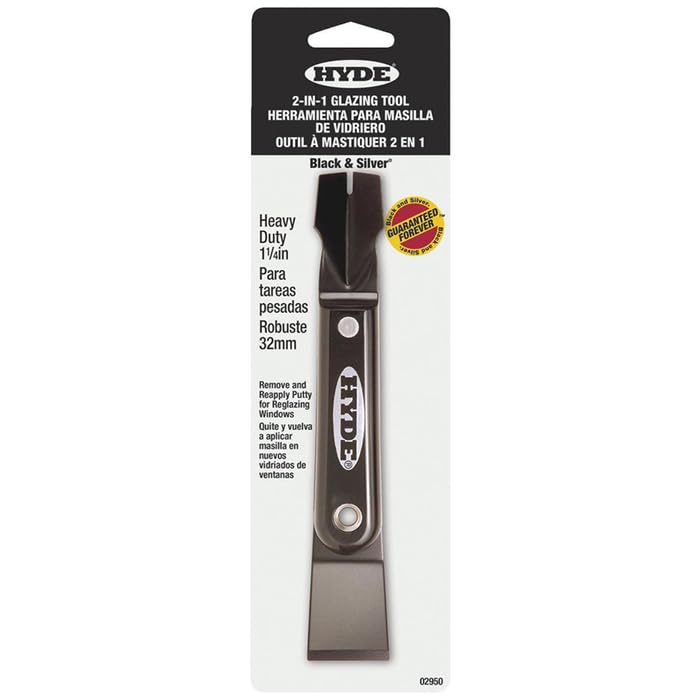

Figure 1: Hyde 02950 2-IN-1 Glazing Tool. This image displays the Hyde 02950 2-IN-1 Glazing Tool in its retail packaging. The tool features a black and silver design with a nylon handle. One end is a slotted V-blade for applying putty, and the other end is a heavy-duty 1-1/4 inch chisel-edge for removing old putty and driving glazing points. The packaging highlights its 'Heavy Duty 1 1/4in' capability and its dual function for 'Remove and Reapply Putty for Reglazing Windows'.

Setup and Preparation

The Hyde 02950 Glazing Tool requires minimal setup. Before use, ensure the work area is clean and well-lit. Always wear appropriate personal protective equipment (PPE), such as safety glasses, to protect against flying debris when removing old putty.

Initial Inspection:

• Inspect the tool for any signs of damage or manufacturing defects.
• Ensure the blade edges are clean and free of any residue from previous use or packaging.

Operating Instructions

Using the Slotted V-Blade for Putty Application:

1. Prepare the surface: Ensure the window frame and glass are clean and dry before applying new putty.
2. Load the V-blade: Take a small amount of glazing putty and press it into the V-shaped slot of the tool. Ensure the putty is pliable.
3. Apply putty: Position the V-blade against the joint where the glass meets the frame. Apply steady, even pressure while drawing the tool along the joint. The V-blade will extrude a smooth, consistent bead of putty.
4. Smooth and finish: For a perfectly smooth finish, you may need to go over the applied putty with a clean, damp finger or a traditional putty knife.

Using the 1-1/4" Chisel-Edge for Putty Removal and Glazing Points:

1. Removing old putty: Position the chisel-edge against the hardened old putty. Apply firm pressure and use a scraping motion to chip away and remove the old material. For very hard putty, gentle tapping with a hammer on the tool's handle (if designed for it, or use a separate hammer) may be necessary, but exercise caution to avoid damaging the glass or frame.
2. Driving glazing points: If using push-style glazing points, place the point into the frame. Use the flat, broad surface of the chisel-edge to gently push or tap the glazing point into the wood frame, securing the glass. Ensure the point is flush with the frame to allow for putty application over it.

Safety Note: Always direct the tool away from your body and hands when applying force. Be mindful of sharp edges and potential flying debris when removing old putty.

Maintenance and Care

Proper maintenance will extend the life of your Hyde 02950 Glazing Tool and ensure optimal performance.

Cleaning:

• Immediately after each use, clean any remaining putty or debris from the blade and handle.
• For fresh putty, a damp cloth or paper towel is usually sufficient.
• For hardened putty, use a stiff brush or a solvent appropriate for the putty type (e.g., mineral spirits) to remove residue. Always test solvents in an inconspicuous area first.
• Ensure the tool is completely dry before storage to prevent rust on the steel blade.

Storage:

• Store the tool in a dry place, away from excessive moisture and corrosive materials.
• Keep the tool out of reach of children.

Troubleshooting

Specifications

Warranty and Support

Hyde Tools stands behind the quality of its products. For specific warranty information regarding your Hyde 02950 2-IN-1 Glazing Tool, please refer to the warranty statement included with your purchase or visit the official Hyde Tools website. The product is noted to have a "Guaranteed Forever" badge on its packaging, indicating a strong commitment to durability and customer satisfaction.

Customer Support:

If you have any questions, require technical assistance, or need to report an issue with your tool, please contact Hyde Tools customer support. Contact information can typically be found on the product packaging or on the official Hyde Tools website:
