Instruction Manual

1. Product Overview

This manual provides detailed instructions for the installation and care of your new 4into1 reproduction plastic side cover set, designed specifically for Honda CB750F2 Super Sport motorcycles from 1977 to 1978. These high-quality covers are manufactured to replicate the original factory parts, ensuring a proper fit and aesthetic.

The set includes both the right and left side covers, essential components for protecting internal motorcycle parts and maintaining the vehicle's original appearance.

2. Safety Information

Always prioritize safety when working on your motorcycle. Ensure the motorcycle is stable and on a level surface before beginning any work. Use appropriate tools and wear personal protective equipment, such as gloves and eye protection, if necessary. If you are unsure about any step, consult a qualified mechanic.

3. Package Contents

Verify that all components are present and undamaged upon opening the package:

• 1 x Right Side Cover (Reproduction)
• 1 x Left Side Cover (Reproduction)

4. Compatibility

This side cover set is compatible with the following Honda motorcycle models:

• Honda CB750F Super Sport (1977)
• Honda CB750F Super Sport (1978)

Equivalent to Honda OEM part numbers: 83600-392-000 (Right), 83700-410-000 (Left).

5. Installation (Setup)

Follow these steps for proper installation of your new side covers. It is recommended to replace both covers simultaneously for a consistent appearance.

5.1. Preparation

1. Clean the Covers: Before installation or painting, thoroughly clean the new side covers to remove any oil coating from the molding process. Use a mild detergent and water, then dry completely. This is crucial for paint adhesion if you plan to paint them.
2. Remove Old Covers: Carefully remove the existing side covers from your motorcycle. Note how they are attached (typically with rubber grommets or clips) to ensure correct installation of the new covers.
3. Inspect Mounting Points: Check the motorcycle's frame mounting points for any damage or debris. Clean them if necessary.

5.2. Installing the New Side Covers

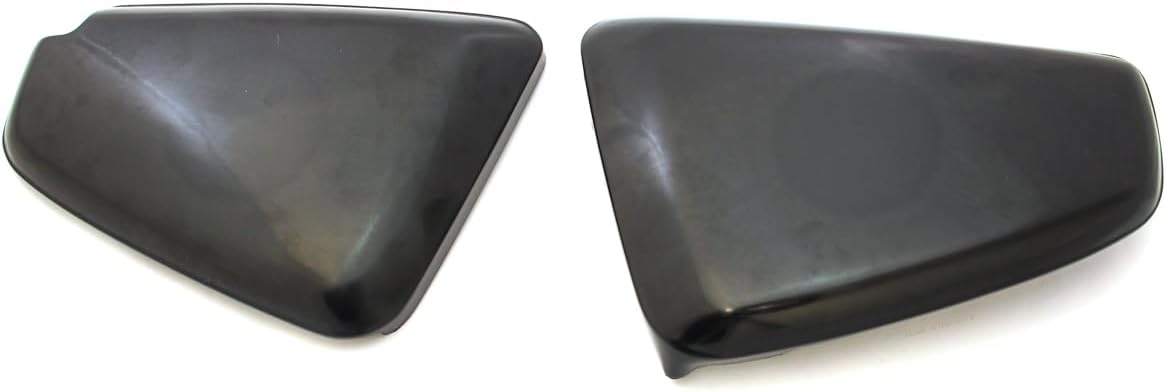

Figure 1: Front view of the 4into1 Side Cover Set, showing both the right and left covers.

Figure 2: Rear view of the 4into1 Side Cover Set, highlighting the internal mounting tabs and clips.

1. Identify Covers: Distinguish between the right and left side covers. They are designed to fit specific sides of the motorcycle. Refer to Figure 1 and Figure 2 for visual identification of the front and rear of the covers, noting the orientation of the mounting tabs.
2. Align Mounting Tabs: Carefully align the mounting tabs or clips on the back of the new side cover with the corresponding grommets or slots on the motorcycle frame.
3. Secure the Cover: Gently but firmly press the side cover into place until all mounting tabs are securely seated. You may hear a click as they engage. Do not force the cover, as this could damage the tabs or the motorcycle's mounting points.
4. Verify Fitment: Once installed, gently tug on the cover to ensure it is firmly attached and does not wobble. Repeat the process for the other side cover.

6. Maintenance

These plastic side covers require minimal maintenance. Regularly clean them with a soft cloth and mild soap and water to remove dirt and grime. Avoid using abrasive cleaners or solvents, as these can damage the plastic finish. If painted, follow the care instructions for your specific paint type.

7. Troubleshooting

• Cover Does Not Fit:
  • Ensure you have the correct side cover for the correct side (right vs. left).
  • Verify your motorcycle model and year match the compatibility list (Honda CB750F Super Sport, 1977-1978).
  • Check for any obstructions or debris on the motorcycle's mounting points.
  • Inspect the new cover's mounting tabs for any manufacturing defects.
• Paint Not Adhering:
  • Ensure the covers were thoroughly cleaned to remove all molding oil before painting. This is a critical step.
  • Use a plastic-specific primer before applying paint.
  • Follow the paint manufacturer's instructions for application and curing.

8. Specifications

9. Warranty and Support

For information regarding warranty coverage or technical support, please refer to the retailer's return policy or contact the manufacturer directly. Keep your proof of purchase for any warranty claims.

Manufacturer: 4into1

For further assistance, visit the 4into1 Store on Amazon.
