1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Canadian Spa Company CSCHTSC29 Swift Current Foam Spa. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your spa. Keep this manual for future reference.

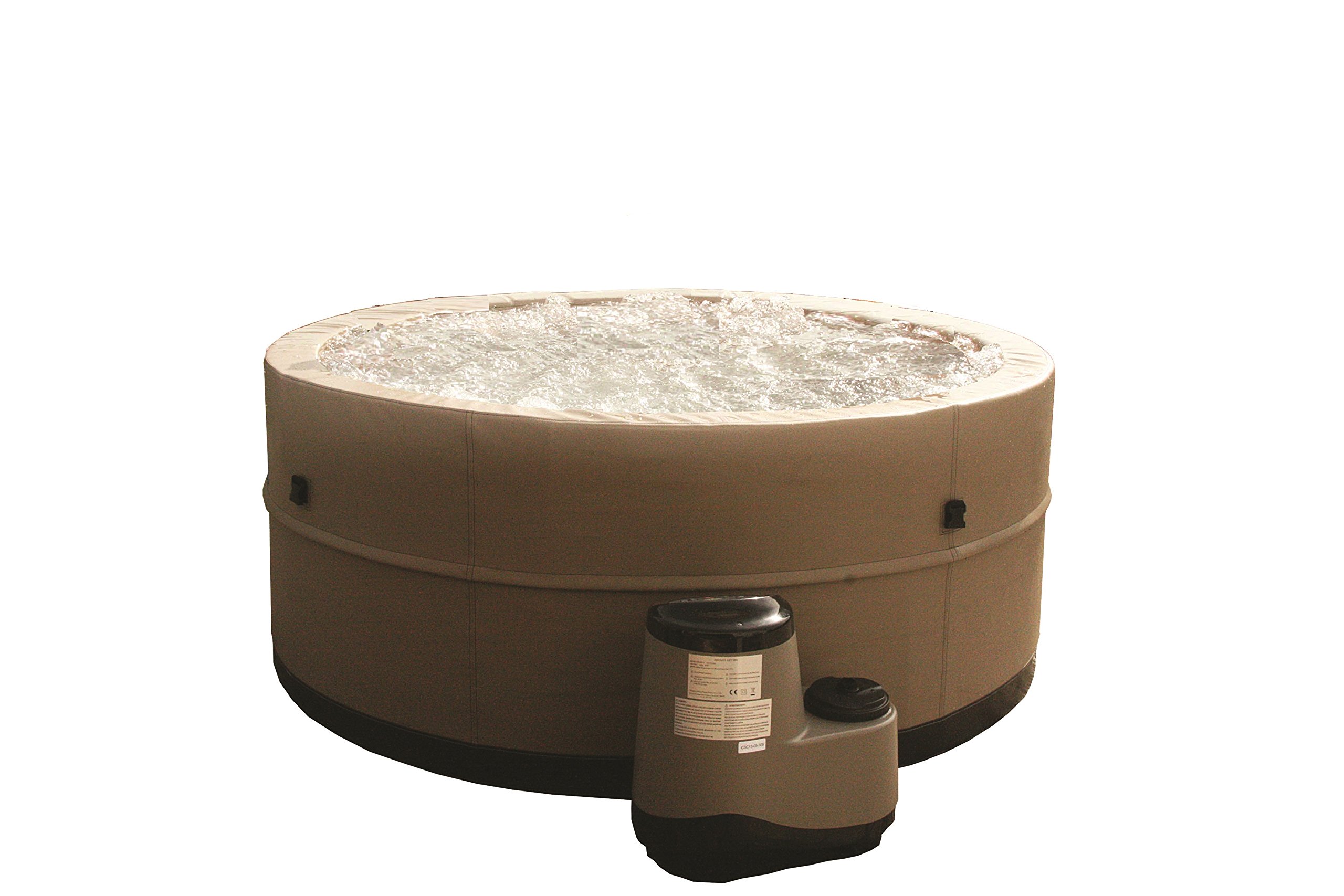

The CSCHTSC29 Swift Current Foam Spa features a portable design with foam-lined walls for insulation, a thermal blanket for heat retention, and a deep 29-inch depth. It includes a 500W massage blower and 88 jets for a complete spa experience.
2. Important Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury, property damage, or death.
- Always supervise children around the spa.
- Do not use the spa if the water temperature exceeds 104°F (40°C).
- Consult a physician before use if you are pregnant, have a heart condition, diabetes, high or low blood pressure, or any other medical condition.
- Avoid using the spa immediately after strenuous exercise.
- Do not consume alcohol or drugs before or during spa use.
- Ensure the spa is placed on a level, stable surface capable of supporting its full weight when filled with water and occupants.
- Always use the provided locking inflatable cover when the spa is not in use to prevent accidental drowning and heat loss.
- Electrical connections must be made by a qualified electrician and conform to all local codes.
- Keep all electrical appliances away from the spa.
3. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact Canadian Spa Company customer support.
- Swift Current Foam Spa Liner with integrated foam walls
- Control Unit / Heater Pump
- Locking Inflatable Cover
- Thermal Blanket
- Filter Cartridges (2)
- Hoses and Connectors
- Repair Kit
- Instruction Manual (this document)
4. Setup and Assembly
The Swift Current Foam Spa is designed for easy assembly. Follow these steps carefully.
- Site Selection: Choose a flat, level, and stable surface for your spa. Ensure the location can support the weight of the spa when filled (approximately 250 gallons of water plus occupants). Consider proximity to a suitable electrical outlet and drainage.
- Unpacking: Carefully remove all components from the packaging. Lay out the spa liner in the chosen location.
- Connect Control Unit: Attach the control unit/heater pump to the spa liner using the provided hoses and connectors. Ensure all connections are tight to prevent leaks. Refer to the markings on the spa liner and control unit for correct hose placement (inlet/outlet).
- Install Filter Cartridges: Insert the filter cartridges into their designated housing within the spa liner. Ensure they are securely seated.
- Fill with Water: Using a garden hose, fill the spa with fresh water to the recommended fill line. Do not overfill or underfill.
- Power Connection: Plug the control unit into a grounded electrical outlet. Ensure the outlet meets the electrical requirements specified in the specifications section.
- Initial Water Treatment: Before first use, treat the water with appropriate spa chemicals to balance pH and sanitize. Consult a spa chemical guide for proper dosages and procedures.
Note: This item is delivered curbside. For delivery to a specific location on your property, arrange with a third-party provider prior to delivery.
5. Operating Instructions
Once assembled and filled, your Swift Current Foam Spa is ready for operation.
5.1 Control Panel Overview
The control unit features a digital display and buttons for various functions. Familiarize yourself with the layout:
- Power Button: Turns the spa on/off.
- Temperature Up/Down: Adjusts the desired water temperature.
- Jet/Bubble Button: Activates the 88 massage jets and 500W massage blower. Press once for jets, again to turn off.
- Filter Button: Manually activates or deactivates the filtration cycle.
- Heater Indicator: Illuminates when the heater is active.
5.2 Heating the Spa
After filling, set your desired temperature using the Up/Down buttons. The heater will activate automatically to reach the set temperature. Heating time will vary based on ambient temperature and initial water temperature. Using the thermal blanket and locking cover will significantly reduce heating time and energy consumption.
5.3 Using the Jets
Press the Jet/Bubble button on the control panel to activate the massage blower and jets. The 500W blower provides warm bubbles for relaxation. Press the button again to turn off the jets.
6. Maintenance
Regular maintenance is crucial for the performance and longevity of your spa.
6.1 Water Chemistry
Maintain proper water chemistry by regularly testing and adjusting pH, alkalinity, and sanitizer levels. Refer to a reputable spa chemical guide for specific ranges and treatment instructions. Imbalanced water can damage spa components and cause skin irritation.
6.2 Filter Cartridge Cleaning and Replacement
Clean filter cartridges weekly by rinsing them with a garden hose. Replace cartridges every 1-3 months, depending on usage and water quality. Dirty filters reduce water flow and can strain the pump.
6.3 Spa Cleaning
Drain and clean the spa liner periodically (e.g., every 1-3 months). Use a soft cloth and a non-abrasive, spa-safe cleaner. Rinse thoroughly before refilling.
6.4 Cover Care
Clean the locking inflatable cover regularly with mild soap and water. Ensure it is properly secured when the spa is not in use to maintain heat and prevent debris entry.
7. Troubleshooting
This section addresses common issues you might encounter with your spa.
| Problem | Possible Cause | Solution |
|---|---|---|
| Spa not heating | Power supply issue, low water level, dirty filter, heater malfunction. | Check power connection. Ensure water level is above minimum. Clean or replace filter. Contact customer support if heater indicator is off and other solutions fail. |
| Jets not working | Air blower issue, clogged jets, control unit malfunction. | Ensure power is on. Check for obstructions in jets. Contact customer support. |
| Water leaking | Loose connections, damaged liner. | Inspect all hose connections and tighten. Check spa liner for punctures and use repair kit if necessary. |
| Water cloudy/unclean | Improper water chemistry, dirty filter, insufficient filtration. | Test and adjust water chemistry. Clean or replace filter. Ensure filtration cycle is running adequately. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | CANADIAN SPA CO. |
| Model Number | CSCHTSC29 |
| Seating Capacity | 5 Persons |
| Item Weight | 65 Pounds (empty) |
| Product Dimensions (L x W x H) | 29" x 29" x 29" |
| Depth | 29 Inches |
| Number of Jets | 88 |
| Massage Blower Power | 500W |
| Insulation | Vinyl liner with foam walls |
| Included Accessories | Locking inflatable cover, thermal blanket, 2 filters |
| Required Assembly | Yes |
| UPC | 700697210286 |
9. Warranty and Customer Support
For warranty information, technical assistance, or to order replacement parts, please contact Canadian Spa Company customer support. Refer to your purchase documentation for specific warranty terms and conditions.
Manufacturer: Canadian Spa Company
Note: Specific contact details are typically provided on the product packaging or a separate warranty card.
