ECO-WORTHY 5W Solar Panel (Model AM-P5-N-1) Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the safe and efficient use of your ECO-WORTHY 5W Solar Panel. This panel is designed for trickle charging 12V batteries and powering small off-grid applications. Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of your solar panel.

2. Safety Information

• Always handle the solar panel with care. Avoid dropping or subjecting it to strong impacts.
• Do not attempt to disassemble or modify the solar panel. This will void the warranty and may cause damage or injury.
• Ensure all wiring connections are secure and properly insulated to prevent electrical hazards.
• Always use a suitable solar charge controller when connecting the panel to a battery to prevent overcharging and damage to the battery.
• Keep the panel away from flammable materials and sources of heat.
• Avoid touching the electrical contacts with bare hands when the panel is exposed to sunlight.
• Install the panel in a location with good ventilation and away from potential obstructions.

3. Product Features

The ECO-WORTHY 5W Solar Panel is engineered for reliability and performance in various off-grid scenarios.

• High Efficiency: Utilizes high-efficiency photovoltaic cells for optimal power conversion.
• Durable Construction: Features a robust aluminum frame designed for outdoor use.
• Waterproof Junction Box: Equipped with an IP65 rated waterproof junction box for protection against environmental elements.
• Easy Mounting: Includes pre-drilled holes for straightforward installation.
• Integrated Wiring: Comes with a 3.28ft (1 meter) wire for convenient connection.
• Versatile Application: Ideal for trickle charging 12V batteries in small systems (5-10Ah capacity).

Figure 1: Front and back view of the ECO-WORTHY 5W Solar Panel.

4. Specifications

5. Setup and Installation

Proper installation is crucial for the performance and safety of your solar panel. Follow these steps carefully:

1. Choose a Location: Select a location that receives maximum direct sunlight throughout the day, free from shading by trees, buildings, or other obstructions.
2. Mounting: Use the pre-drilled holes on the aluminum frame to securely mount the solar panel. Ensure the mounting surface is stable and can support the panel's weight. Consider the angle of the panel for optimal sun exposure, typically facing south in the Northern Hemisphere.
3. Wiring: The panel comes with a 3.28ft (1 meter) wire. Connect this wire to a solar charge controller. The charge controller will then connect to your 12V battery. It is essential to use a solar charge controller to prevent overcharging and damage to your battery.
4. Secure Connections: Double-check all electrical connections to ensure they are tight and properly insulated.

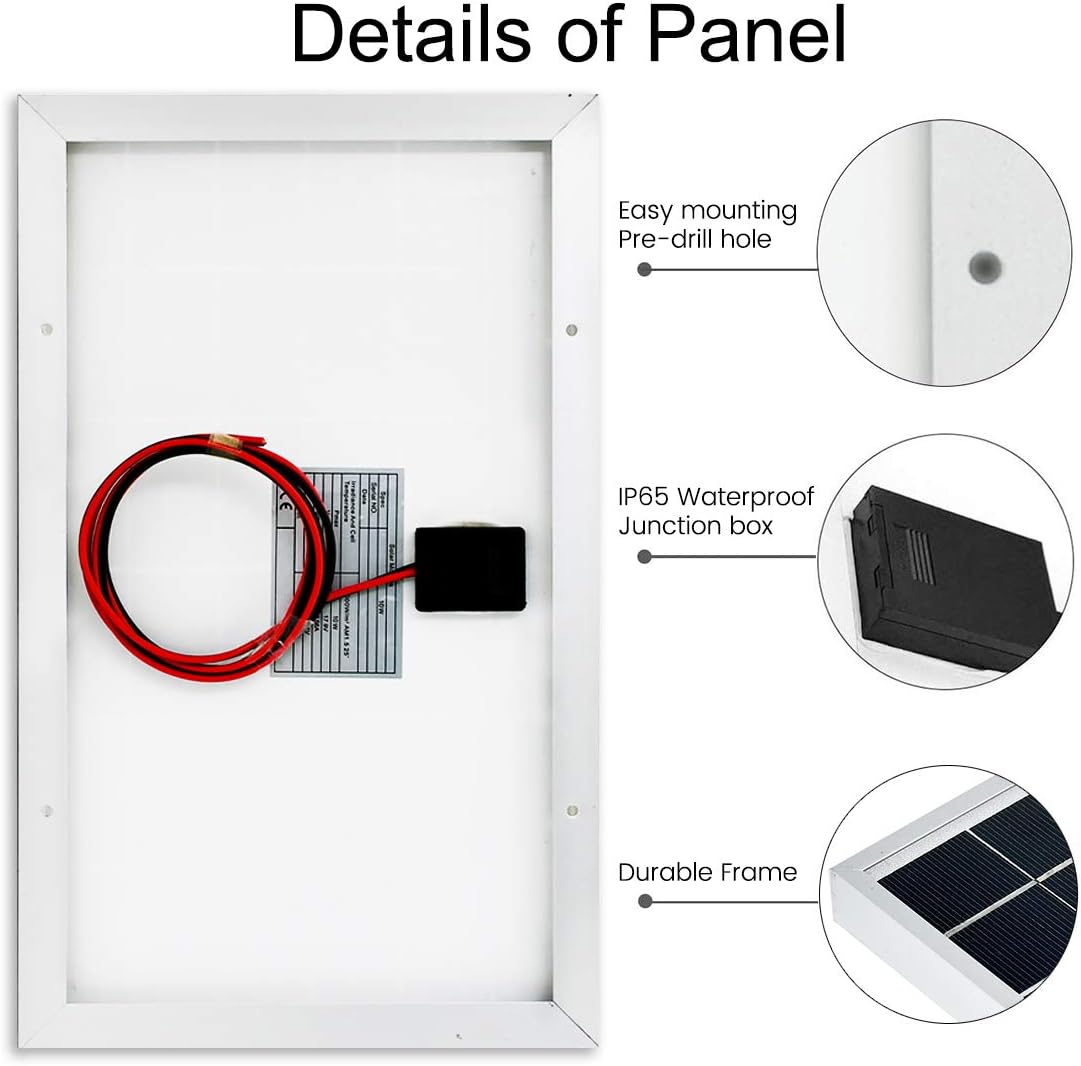

Figure 2: Details of the panel, highlighting mounting holes and junction box.

Figure 3: Example of easy installation on a vehicle.

6. Operating Instructions

Once installed, the ECO-WORTHY 5W Solar Panel operates automatically by converting sunlight into electrical energy.

• Sunlight Exposure: Ensure the panel is exposed to direct sunlight for optimal power generation. Any shading, even partial, can significantly reduce output.
• Battery Charging: The panel will provide a trickle charge to your 12V battery through the solar charge controller. The charge controller manages the charging process to protect the battery.
• Monitoring: Periodically check your battery's charge level, especially if using it for critical applications.
• Typical Applications: This 5W panel is suitable for maintaining charge in 5-10Ah 12V batteries for applications such as:
  • Gate openers (running all day and night)
  • Small LED lights (e.g., a 5W LED light for 8 hours)
  • Chicken coops
  • Boats and RVs for battery maintenance
  • Tractors and other agricultural equipment
  • Small fountains

Figure 4: Common applications for the 5W solar panel.

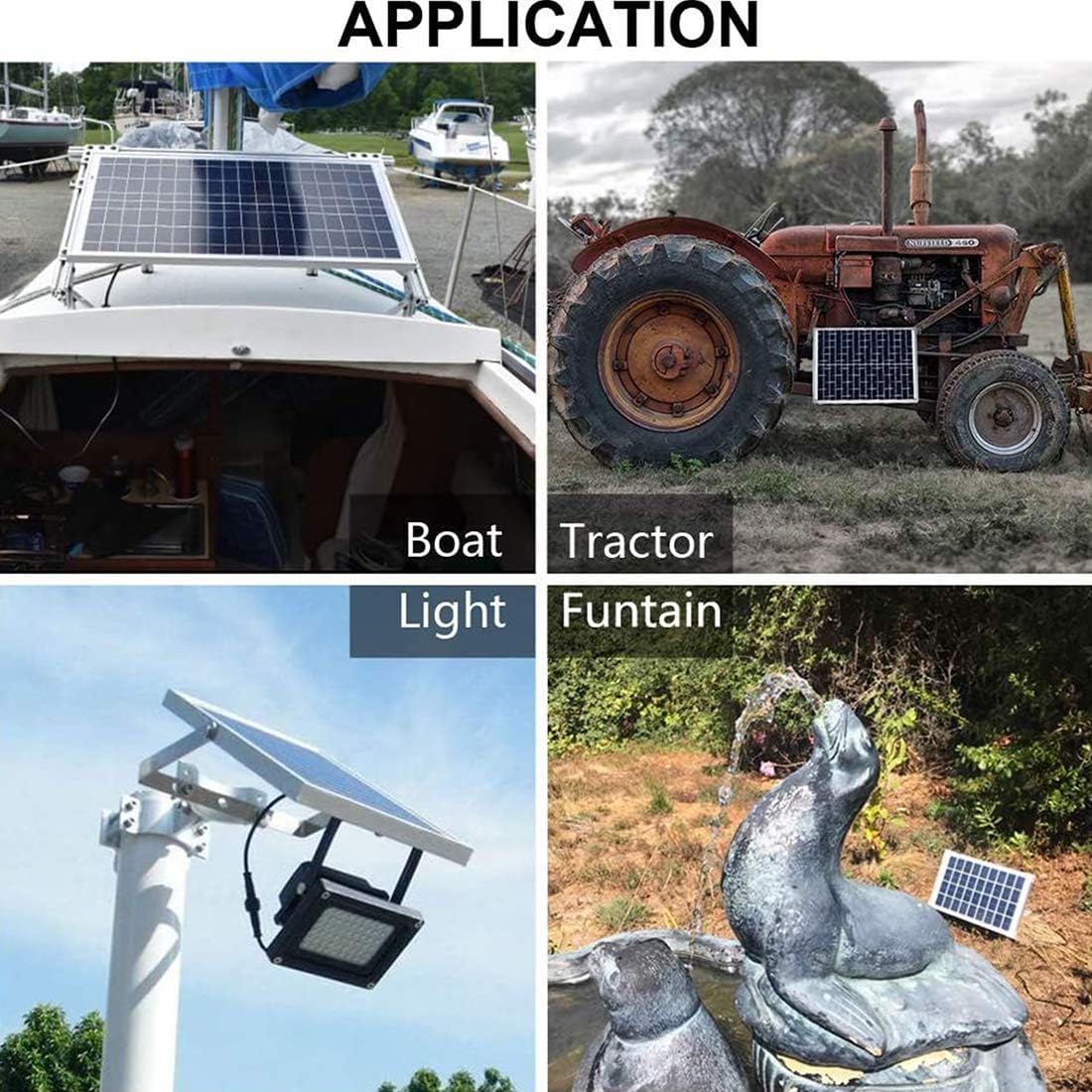

Figure 5: Diverse application scenarios for the solar panel.

7. Maintenance

Regular maintenance ensures the longevity and efficiency of your solar panel.

• Cleaning: Periodically clean the surface of the solar panel with a soft, damp cloth to remove dust, dirt, leaves, or other debris that may accumulate and reduce efficiency. Do not use abrasive cleaners or harsh chemicals.
• Inspect Wiring: Regularly check all wiring and connections for signs of wear, corrosion, or damage. Ensure connections remain tight and secure.
• Physical Inspection: Inspect the panel for any physical damage, such as cracks in the glass or frame, especially after severe weather conditions.
• Shading: Ensure no new obstructions are casting shadows on the panel. Trim any growing vegetation if necessary.

8. Troubleshooting

If your solar panel is not performing as expected, consider the following:

• Low or No Power Output:
  • Shading: Check if the panel is shaded by any objects. Even partial shading can significantly reduce output.
  • Dirt/Debris: Clean the panel surface as described in the Maintenance section.
  • Connections: Verify all wiring connections are secure and free from corrosion.
  • Charge Controller: Ensure the solar charge controller is functioning correctly and is compatible with a 12V system. A faulty controller can prevent proper charging.
  • Sunlight Intensity: Solar panel output varies with sunlight intensity. Performance will be lower on cloudy days or during early morning/late afternoon.
• Battery Not Charging:
  • Confirm the panel is producing power (can be checked with a multimeter if you have one).
  • Check the charge controller's indicators (if available) for charging status or error codes.
  • Inspect the battery itself. A deeply discharged or faulty battery may not accept a charge.
• Overcharging: If your battery is getting hot or showing signs of overcharging, immediately disconnect the solar panel. This indicates a problem with your solar charge controller, which is crucial for regulating voltage and current. Replace or inspect the charge controller.

9. Warranty and Support

For technical assistance, warranty claims, or any other inquiries regarding your ECO-WORTHY 5W Solar Panel, please contact ECO-WORTHY customer service. Refer to your purchase documentation for specific warranty terms and contact information.

You can typically find support contact details on the ECO-WORTHY official website or through the retailer where you purchased the product.
