1. Introduction
The Hilti TE 2-A22 is a versatile cordless rotary hammer designed for efficient drilling and hammer drilling in concrete, masonry, and stone. Its compact and lightweight design makes it suitable for various applications, including fastening metal items, installing partition walls, and electrical installations. This manual provides essential information for safe and effective use of your tool.

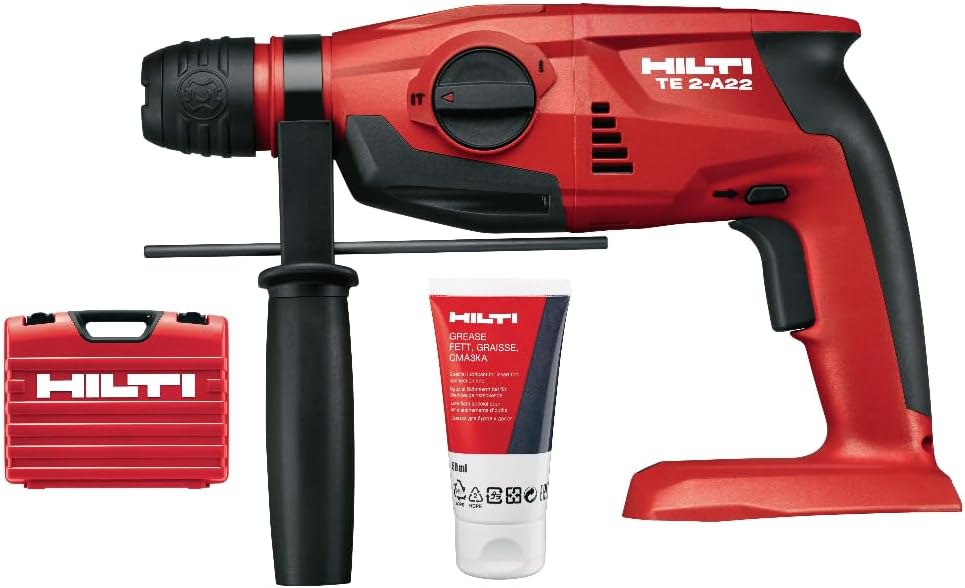

Image 1.1: The Hilti TE 2-A22 Cordless Rotary Hammer, shown with the included tube of Hilti grease and the red tool case.
2. Safety Information
Always adhere to general power tool safety warnings and instructions to prevent serious injury. Keep this manual for future reference.
General Safety Guidelines:
- Work Area Safety: Keep the work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Electrical Safety: Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions.
- Personal Safety: Always wear eye protection, hearing protection, and a dust mask when operating the tool. Dress properly; avoid loose clothing or jewelry.
- Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
- Battery Tool Use and Care: Recharge only with the charger specified by the manufacturer. Use power tools only with specifically designated battery packs.
3. Product Overview
Components:
- SDS Plus Chuck: For quick and secure bit changes.
- Side Handle: Provides additional grip and control.
- Depth Gauge: For precise drilling depth control.
- LED Work Light: Illuminates the work surface.
- Battery Interface: For connecting Hilti 22V Li-ion battery packs.
Image 3.1: The Hilti TE 2-A22 Cordless Rotary Hammer, showing its main body without accessories.
Controls:
- Mode Selector Dial: Located on the side of the tool, this dial allows selection between rotary drilling (for wood, metal) and hammer drilling (for concrete, masonry).
- Trigger Switch: Controls the motor speed continuously based on pressure applied.
- Forward/Reverse Switch: A sliding bar near the trigger that changes the direction of rotation. In its central position, it locks the trigger for safety.
Image 3.2: Close-up of the mode selector dial, allowing users to switch between drilling and hammer drilling functions.
Image 3.3: Close-up of the trigger and the forward/reverse switch, which also serves as a trigger lock.
4. Setup
Battery Installation:
- Ensure the battery is charged using a compatible Hilti charger.
- Align the battery pack with the slot at the base of the tool's handle.
- Slide the battery into place until it clicks securely. To remove, press the release buttons on the sides of the battery and pull it out.
Image 4.1: A Hilti B22 4.0Ah Li-ion battery pack, compatible with the TE 2-A22.
Accessory Installation (SDS Plus Bits, Side Handle, Depth Gauge):
- Installing SDS Plus Bits: Pull back the chuck collar, insert the SDS Plus drill bit into the chuck, and release the collar. Push the bit in until it locks. A slight axial play is normal for SDS systems to allow the hammer action.
- Attaching Side Handle: Slide the side handle onto the collar behind the chuck. Rotate the handle to the desired position and tighten the grip to secure it.
- Inserting Depth Gauge: Insert the plain round rod of the depth gauge into the designated hole on the side handle. Adjust to the required depth and tighten the side handle grip to lock it in place.
Image 4.2: The Hilti TE 2-A22 with a battery attached and an SDS Plus drill bit inserted into the chuck.
5. Operating Instructions
Drilling Modes:
- Hammer Drilling Mode (Hammer Icon): Select this mode for drilling into concrete, masonry, and stone. The tool provides both rotation and hammering action for efficient material removal.
- Rotary Drilling Mode (Drill Bit Icon): Use this mode for drilling into wood, metal, and plastic. Only rotation is provided, without hammering action.
Drilling Techniques:
- Starting a Hole: Begin drilling at a low speed to prevent the bit from wandering. Once the hole is started, increase speed as needed.
- Applying Pressure: Apply steady, firm pressure in line with the drill bit. Avoid excessive force, which can overheat the tool or bit.
- Clearing Debris: Periodically withdraw the drill bit from the hole to clear dust and debris, especially when drilling deep holes.
Image 5.1: A user demonstrating the Hilti TE 2-A22 in action, drilling into a concrete surface.
Image 5.2: The Hilti TE 2-A22 being used to drill into a brick wall, showcasing its application in masonry.
Image 5.3: An operator using the Hilti TE 2-A22 for overhead drilling into a ceiling, highlighting its ergonomic design for various angles.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Hilti TE 2-A22.
- Cleaning: Keep the tool's ventilation openings clear and clean. Use a dry cloth to wipe down the tool after each use. Do not use water or liquid cleaners.
- Chuck Lubrication: Apply a small amount of the supplied Hilti grease to the shank of SDS Plus drill bits before insertion into the chuck. This reduces wear and ensures smooth operation.
- Battery Care: Store batteries in a cool, dry place away from direct sunlight. Do not expose batteries to extreme temperatures.
- Storage: Store the tool and accessories in the provided tool case in a dry, secure location, out of reach of children.
7. Troubleshooting
This section addresses common issues you might encounter with your Hilti TE 2-A22.
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not start | Battery not charged or not properly inserted; Trigger lock engaged. | Ensure battery is fully charged and securely inserted. Check if the forward/reverse switch is in the central (locked) position. |
| Reduced drilling performance | Worn drill bit; Incorrect mode selected; Overheating. | Replace worn drill bits. Ensure correct mode (hammer drilling for masonry) is selected. Allow tool to cool down if overheated. |
| Bit stuck in chuck | Excessive dust/debris; Lack of lubrication. | Pull back the chuck collar firmly. Clean the chuck and bit shank. Apply Hilti grease to bit shank before insertion. |
8. Specifications
Key technical specifications for the Hilti TE 2-A22 Cordless Rotary Hammer.
| Specification | Value |
|---|---|
| Model Number | 2034358 |
| Voltage | 22 Volts |
| Item Weight | 2.7 kg |
| Maximum Power | 132 Watts |
| Speed (RPM) | 980 RPM |
| Optimum Hammer Drilling Range | 4-12 mm |
| Chuck Type | SDS Plus |
| Battery Cell Type | Lithium Ion |
| Dimensions (L x W x H) | 33.2 x 9.4 x 23.8 cm |
| Included Components | 1x TE 2-A22 Cordless rotary hammer, 1x Hilti Grease 50 ml (2262683), 1x Tool case TE 2-A22 (2207527) |
9. Warranty and Support
Hilti stands behind the quality of its products. The TE 2-A22 Cordless Rotary Hammer comes with a comprehensive service package.
- 2 Years Service Included: This product benefits from 2 years of repair at no cost, covering material and manufacturing defects, as well as wear and tear.
- Rapid Repair Turnaround: Hilti aims for efficient and quick repair services to minimize downtime.
Image 9.1: An illustration of Hilti's commitment to service, including 2 years of repair at no cost and rapid repair turnaround.
For detailed terms and conditions, or to arrange service, please refer to the official Hilti documentation or visit the Hilti website. Contact Hilti customer support for any further assistance or inquiries regarding your tool.
