Product Overview
The Aqua Flow Jardibric Quick-Connect Bi-Material Hose Fitting 15 mm, model 6790261J, is designed to provide a secure and ergonomic connection for your garden watering system. This universal fitting is compatible with various hose diameters and features durable construction for reliable performance.
Key features include:
- Bi-material construction for enhanced grip and comfort.
- Integrated stainless steel return spring for durability.
- Universal compatibility with hose diameters 12 mm, 15 mm, and 19 mm (1/2", 5/8", 3/4").
- Quick-connect design for easy attachment and detachment of watering accessories.
Safety Information
Please read all instructions carefully before use.
- This product is not a toy. Keep out of reach of children.
- Ensure all connections are secure to prevent leaks and water wastage.
- Do not use with hot water or high-pressure systems exceeding recommended limits.
- Store in a cool, dry place when not in use to prolong product life.
Package Contents
The package contains:
- 1 x Aqua Flow Jardibric Quick-Connect Bi-Material Hose Fitting 15 mm (Model 6790261J)
Image: Packaging of the Aqua Flow Jardibric Quick-Connect Bi-Material Hose Fitting 15 mm, showing the product and brand logo.
Setup and Installation
- Prepare the Hose: Ensure the end of your garden hose is clean and free from debris.
- Attach to Hose: Push the open end of the quick-connect fitting firmly onto the hose. The bi-material grip should help secure it. Ensure the hose is fully inserted until it clicks or feels securely seated.
- Connect to Water Source/Accessory:
- To a Tap Connector: If connecting to a tap, ensure a compatible tap connector (not included) is already attached to your tap. Push the quick-connect fitting onto the tap connector until it clicks into place.
- To a Watering Accessory: If connecting to a watering lance or spray gun, push the quick-connect fitting onto the accessory's male connector until it clicks.
- Verify Connection: Gently pull on the hose and the connected component to ensure the fitting is securely attached and does not easily detach.

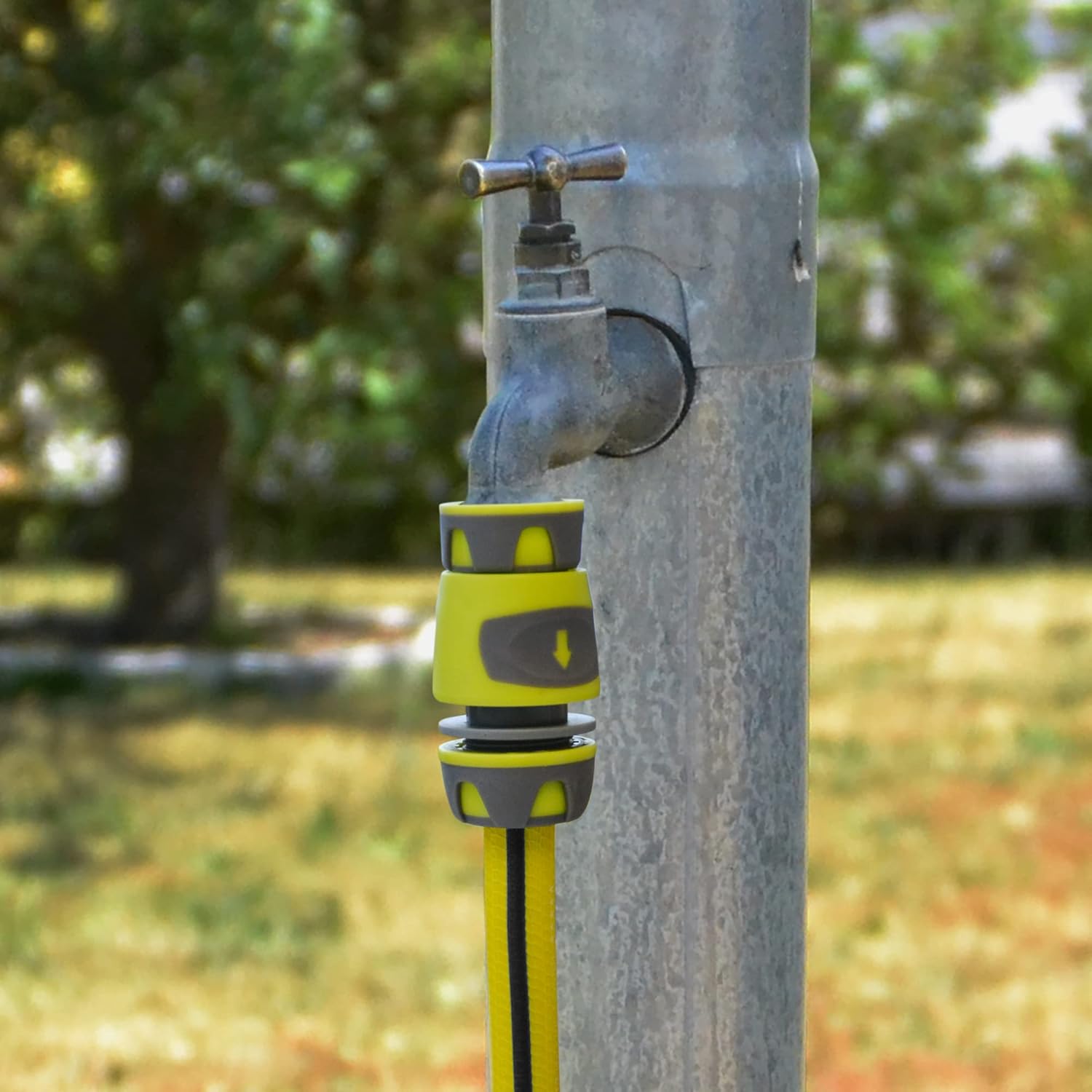

Image: The Aqua Flow Jardibric Quick-Connect Bi-Material Hose Fitting 15 mm connected to a garden tap, demonstrating a typical setup.

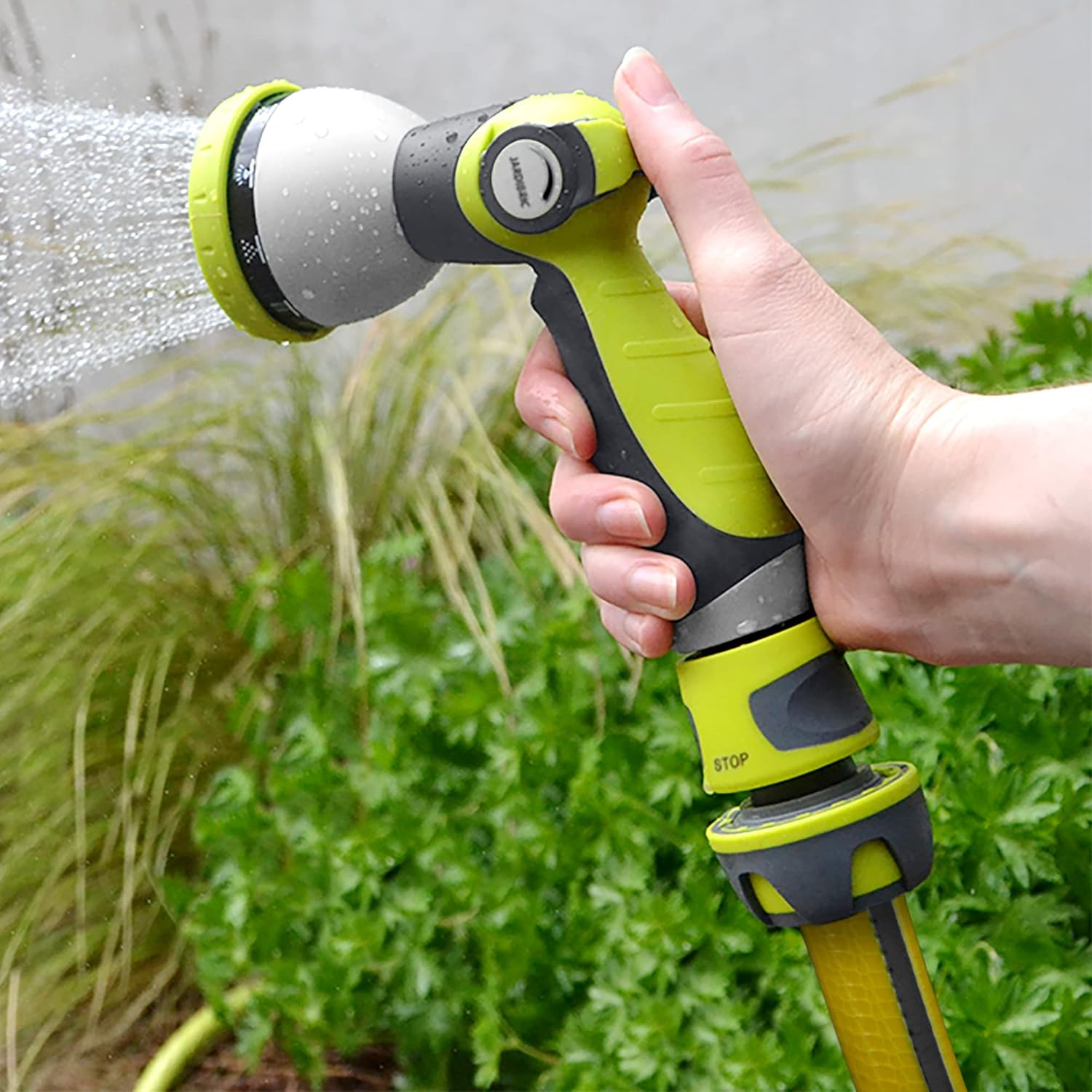

Image: A hand holding a watering lance connected to a garden hose via the Aqua Flow Jardibric Quick-Connect Bi-Material Hose Fitting 15 mm, showing the product in use.
Operating Instructions
Once the quick-connect fitting is securely installed:
- Water Flow: Turn on the water supply from your tap.
- Using Accessories: Operate your watering lance or spray gun as per its own instructions. The quick-connect fitting allows for easy manipulation of the accessory.
- Detaching: To detach the hose or accessory, simply pull back on the collar of the quick-connect fitting and pull the connected component away.
Maintenance
Regular maintenance ensures optimal performance and longevity of your quick-connect fitting:
- Cleaning: Periodically clean the fitting to remove dirt, debris, or mineral deposits that may affect its function. Use mild soap and water.
- Inspection: Inspect the fitting for any signs of wear, cracks, or damage, especially the rubber seals and the stainless steel spring.
- Storage: During winter months or extended periods of non-use, disconnect the fitting from the hose and store it indoors in a dry, frost-free environment.
- Lubrication: A small amount of silicone grease can be applied to the internal O-rings (if accessible) to maintain smooth operation and prevent sticking.
Troubleshooting
- Leakage at Connection Point
Possible Cause: Fitting not fully engaged or damaged O-ring/seal.
Solution: Ensure the fitting is pushed firmly onto the hose or accessory until it clicks. Check the internal rubber seals for wear or damage and replace if necessary.
- Difficulty Connecting/Disconnecting
Possible Cause: Dirt or debris in the mechanism, or lack of lubrication.
Solution: Clean the fitting thoroughly. Apply a small amount of silicone grease to the moving parts and internal seals.
- Hose Detaches Unexpectedly
Possible Cause: Improper installation or worn internal gripping mechanism.
Solution: Re-install the fitting, ensuring the hose is fully inserted and secured. If the problem persists, the fitting may need replacement.
Specifications
| Feature | Detail |
|---|---|
| Model Number | 6790261J |
| Brand | Aqua Flow |
| Material | Plastic, Stainless Steel |
| Dimensions (L x W x H) | 6.5 x 3.5 x 2.5 cm |
| Weight | 30 grams |
| Compatible Hose Diameters | 12 mm, 15 mm, 19 mm (1/2", 5/8", 3/4") |
| Input Connection Type | Push-Fit |
| Output Connection Type | Quick Connection |
| Number of Ports | 2 |
Warranty and Support
For warranty information or technical support, please contact the manufacturer, Aqua Flow, or your retailer. Keep your purchase receipt as proof of purchase.
Manufacturer: AQUA FLOW
For more information, you may visit the Jardibric website: www.jardibric.com
