Teac MC-D800 All-In-One Turntable Bluetooth Speaker System User Manual

1. Introduction

The Teac MC-D800 is an integrated audio system designed to play various media formats, including vinyl records, CDs, and digital audio via Bluetooth and USB. It features an auto-return 3-speed turntable, a tray-loading CD player, a USB port for MP3/WMA playback, and a PLL synthesized AM/FM tuner. This manual provides essential information for the safe and efficient operation of your MC-D800 system.

2. Safety Instructions

• Power Source: Connect the unit only to an AC outlet of the voltage specified on the unit.
• Ventilation: Ensure adequate ventilation. Do not block ventilation openings.
• Water and Moisture: Do not expose the unit to rain, moisture, or dripping/splashing liquids.
• Heat: Keep the unit away from heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Cleaning: Unplug the unit from the wall outlet before cleaning. Use a dry cloth only.
• Servicing: Do not attempt to service this product yourself. Refer all servicing to qualified service personnel.
• Placement: Place the unit on a stable, flat surface to prevent it from falling.

3. Package Contents

Verify that all items are present in the package:

• MC-D800 Turntable Audio System (Main Unit)
• Two (2) External Speakers
• Dust Cover
• Remote Control
• Power Cord
• Speaker Cables
• User Manual (this document)

4. Component Identification

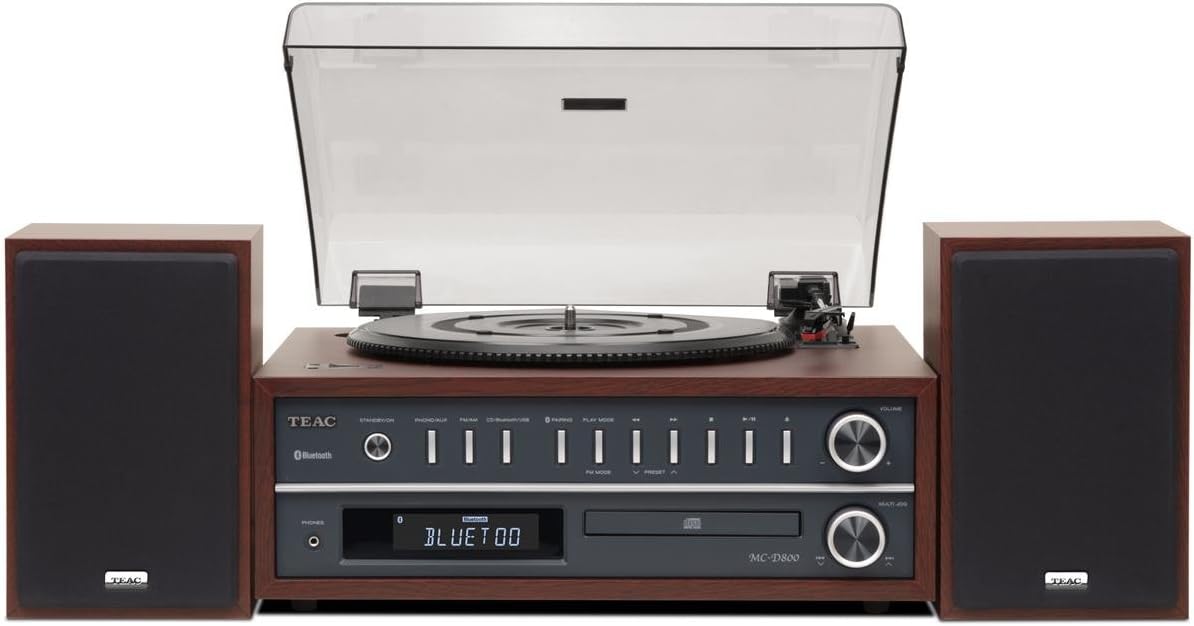

Figure 1: Front view of the Teac MC-D800 All-In-One Turntable Bluetooth Speaker System with its two external speakers and dust cover open, showcasing the turntable, control panel, and CD tray.

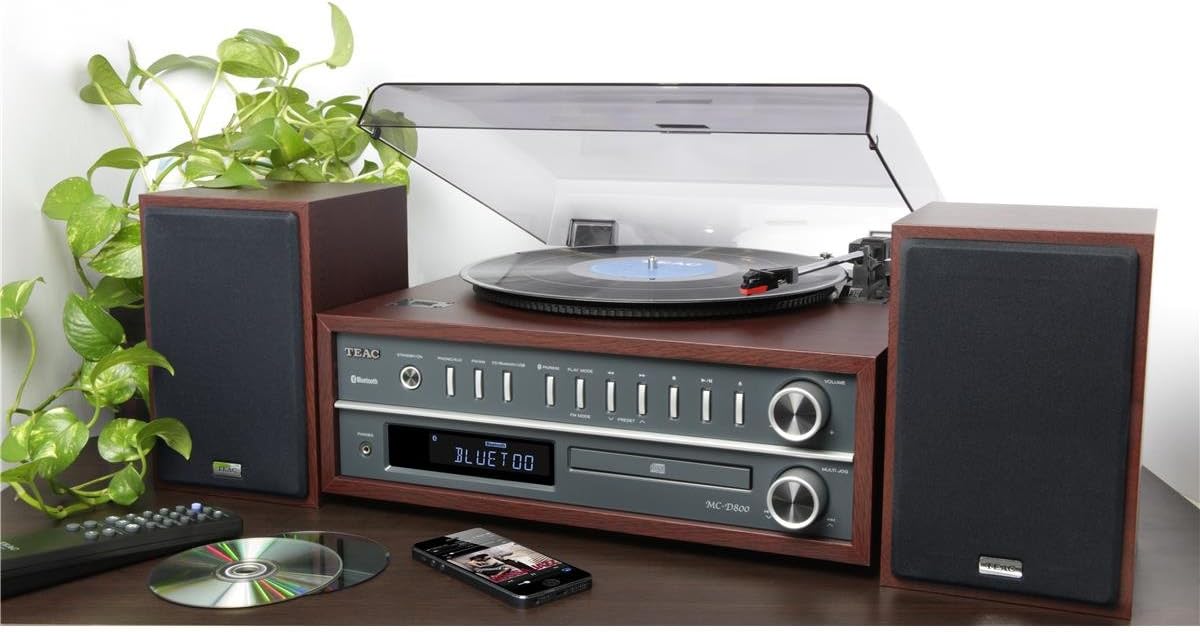

Figure 2: The Teac MC-D800 All-In-One Turntable Bluetooth Speaker System placed on a wooden surface, with a plant in the background, demonstrating its aesthetic integration into a living space. The dust cover is open, and a smartphone and CDs are visible nearby.

Figure 3: Close-up view of the Teac MC-D800 turntable platter with a vinyl record, highlighting the tonearm, stylus, and speed selector switch (33, 45, 78 RPM).

Front Panel Controls:

• Power Button: Turns the unit on or off.
• Source Selector: Switches between Turntable, CD, Bluetooth, USB, and AM/FM Radio modes.
• Volume Knob: Adjusts the master volume level.
• Playback Controls: Play/Pause, Stop, Skip Forward/Backward for CD and USB.
• CD Tray: For inserting and ejecting CDs.
• Display: Shows current mode, track information, and radio frequency.
• Headphone Jack: For private listening.

Turntable Components:

• Platter: Where the vinyl record rests.
• Tonearm: Holds the stylus and tracks the record grooves.
• Stylus (Needle): Reads the audio information from the record.
• Speed Selector: Switch for 33, 45, and 78 RPM records.
• Auto-Return Mechanism: Automatically returns the tonearm to its rest position after playback.

Rear Panel Connections:

• Speaker Terminals: Connect the included external speakers.
• AC Power Input: Connect the power cord.
• FM Antenna Terminal: Connect the included FM antenna.
• AM Antenna Terminal: Connect the included AM loop antenna.
• Auxiliary Output (RCA): For connecting to an external amplifier or powered speakers.

5. Setup

5.1 Unpacking and Placement

1. Carefully remove all components from the packaging.
2. Place the main unit and speakers on a stable, level surface, ensuring adequate space for ventilation.
3. Install the dust cover by aligning its hinges with the slots on the main unit and gently pressing down until it clicks into place.

5.2 Speaker Connection

1. Connect the included speaker cables to the speaker terminals on the rear of the main unit and the corresponding terminals on each speaker. Ensure correct polarity (red to red, black to black).

5.3 Antenna Connection

1. Connect the supplied FM wire antenna to the FM antenna terminal on the rear panel. Extend the wire for optimal reception.
2. Connect the supplied AM loop antenna to the AM antenna terminals. Position the loop for best reception.

5.4 Power Connection

1. Ensure the unit's power switch is in the OFF position.
2. Connect the power cord to the AC power input on the rear of the main unit.
3. Plug the other end of the power cord into a suitable wall outlet.

6. Operating Instructions

6.1 General Operation

1. Press the Power button to turn the unit ON.
2. Use the Source Selector button to choose your desired input mode (PHONO, CD, BLUETOOTH, USB, AM/FM).
3. Adjust the Volume Knob to your preferred listening level.

6.2 Turntable Operation (PHONO)

1. Lift the dust cover.
2. Place a vinyl record on the platter.
3. Select the appropriate speed (33, 45, or 78 RPM) using the Speed Selector switch. For 45 RPM records, place the included adapter on the spindle.
4. Gently lift the tonearm from its rest and position it over the desired track on the record.
5. Lower the tonearm slowly onto the record. Playback will begin.
6. At the end of the record, the tonearm will automatically return to its rest position.

6.3 CD Player Operation

1. Press the Source Selector to choose CD mode.
2. Press the Eject button to open the CD tray.
3. Place a CD (audio CD or MP3/WMA CD) with the label side up into the tray.
4. Press the Eject button again to close the tray. The unit will read the disc.
5. Press the Play/Pause button to start playback.
6. Use the Skip Forward/Backward buttons to navigate tracks.
7. Press the Stop button to end playback.

6.4 Bluetooth Operation

1. Press the Source Selector to choose BLUETOOTH mode. The display will show "BLUETOOTH" and begin flashing, indicating pairing mode.
2. On your Bluetooth-enabled device (smartphone, tablet, etc.), enable Bluetooth and search for available devices.
3. Select "TEAC MC-D800" from the list of devices.
4. Once paired, the display will stop flashing and show "BLUETOOTH" steadily.
5. Start playing audio on your connected device. The sound will be streamed to the MC-D800.

6.5 USB Playback

1. Insert a USB flash drive containing MP3 or WMA audio files into the USB port.
2. Press the Source Selector to choose USB mode.
3. The unit will automatically scan and begin playing the audio files.
4. Use the Playback Controls (Play/Pause, Stop, Skip Forward/Backward) to manage your music.

6.6 AM/FM Radio Operation

1. Press the Source Selector to choose AM or FM mode.
2. Use the Tuning buttons (usually Skip Forward/Backward) to manually tune to a station.
3. To auto-scan and save presets, refer to the detailed instructions in the full manual for your specific model.

7. Maintenance

7.1 Cleaning the Unit

• Always unplug the unit before cleaning.
• Use a soft, dry cloth to wipe the exterior surfaces.
• Do not use abrasive cleaners, waxes, or solvents as they may damage the finish.
• For the dust cover, use a soft, damp cloth and then dry thoroughly.

7.2 Stylus Care

• A dirty stylus can affect sound quality and damage records. Clean the stylus periodically using a soft brush, brushing gently from back to front.
• The stylus has a limited lifespan. If sound quality deteriorates significantly, the stylus may need replacement. Contact Teac support for replacement stylus information.

8. Troubleshooting

9. Specifications

• Brand: Teac
• Model Number: MCD800CH
• Speaker Type: Stereo
• Number of Speakers: 2
• Output Wattage: 10 watts (per channel)
• Item Dimensions (L x W x H): 15.2 x 15.7 x 8.1 inches
• Item Weight: 14.6 Pounds
• Supported Audio Formats: CD, MP3, WMA (via CD/USB)
• Turntable Speeds: 33 1/3, 45, 78 RPM
• Bluetooth Support: Yes
• Tuner: PLL Synthesized AM/FM with Preset Memory

10. Warranty and Support

This Teac MC-D800 system comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use.

For warranty claims, technical support, or service inquiries, please contact Teac customer service. Keep your proof of purchase for warranty validation.

You can find contact information and additional resources on the official Teac website.
