Introduction
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your Hansgrohe Raindance E Showerpipe 360 with ShowerTablet Select 300. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Figure 1: Hansgrohe Raindance E Showerpipe 360 with ShowerTablet Select 300. This image displays the complete shower system, including the overhead shower, hand shower, and the ShowerTablet Select 300 thermostatic mixer.
Setup and Installation
The Hansgrohe Raindance E Showerpipe 360 is designed for quick and easy installation via standard wall water connections, making it suitable for renovations.
Components Included:
- Overhead shower (360 x 190 mm)
- Hand shower (120 mm diameter)
- Thermostatic mixer control (ShowerTablet Select 300)
- Shower rail
- Shower arm (38 cm)
- Shower holder
- Anti-kink shower hose (1.60 m)
- Tile compensation disk
Installation Requirements:
- Suitable for high-pressure water systems only.
- If using a pump, it must be a universal negative head pump.
- The Shower Tablet Select 300 thermostatic tap is for exposed installation.

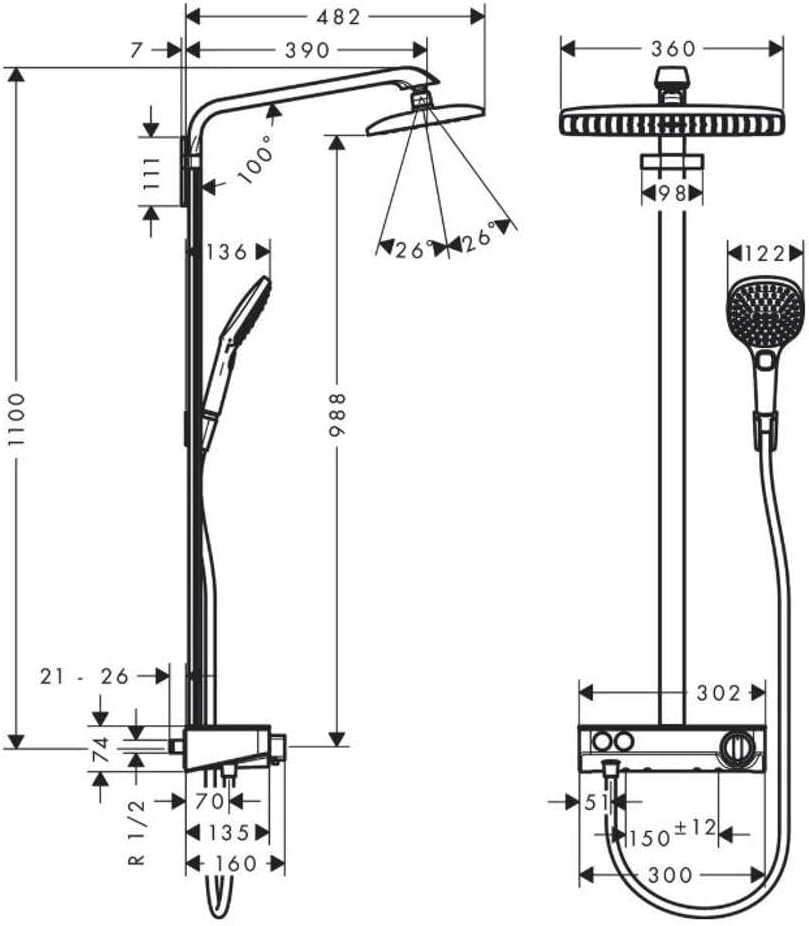

Figure 2: Technical drawing illustrating the dimensions and installation points of the Hansgrohe Raindance E Showerpipe 360. This diagram provides critical measurements for proper mounting and connection.
Note: Professional installation is recommended to ensure correct setup and adherence to local plumbing codes.
Operating Instructions
The ShowerTablet Select 300 provides intuitive control over your showering experience.
Thermostatic Control:
- The thermostatic tap maintains a consistent water temperature.
- A safety lock at 40 °C (104 °F) prevents accidental scalding, making it safe for children and the elderly.
- Insulated water conduction prevents the surface of the thermostatic tap from heating up.
Hand Shower Spray Modes:
The hand shower features the Hansgrohe Select button for easy switching between spray modes.
Figure 3: Close-up view of the Hansgrohe Raindance Select E 120 3jet hand shower, highlighting the "Select" button for changing spray modes. The hand shower offers RainAir, Rain, and WhirlAir spray options.
- RainAir: Air-enriched, soft droplets for a gentle shower.
- Rain: Powerful rain spray.
- WhirlAir: Concentrated massage spray.
Overhead Shower:
The large overhead shower provides a wide, enveloping spray pattern, utilizing Hansgrohe Airpower technology for a pleasant sensation.
Maintenance and Cleaning
Regular cleaning ensures the longevity and optimal performance of your Hansgrohe shower system.
QuickClean Technology:
The shower nozzles are equipped with Hansgrohe QuickClean elastic silicone naps. To remove limescale and residues:
- Simply rub the silicone naps on the shower head and hand shower with your finger.
- This action dislodges limescale deposits, maintaining a perfect spray pattern.
General Cleaning:
- Use a soft cloth and a mild, non-abrasive cleaning agent.
- Avoid cleaners containing hydrochloric acid, formic acid, chlorine bleach, or acetic acid, as these can damage surfaces.
- Rinse thoroughly with clean water after cleaning and dry with a soft cloth to prevent water spots.
Troubleshooting
If you encounter issues with your showerpipe, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced water flow | Limescale buildup in nozzles or filters. | Clean shower nozzles using QuickClean. Check and clean any inline filters. |
| Inconsistent water temperature | Thermostat calibration issue or insufficient water pressure. | Consult a qualified plumber to check thermostat calibration and water pressure. Ensure hot and cold water supplies are balanced. |
| Leaking from connections | Loose connections or damaged seals. | Tighten connections carefully. If leaks persist, replace seals or contact a plumber. |
| Hand shower not switching spray modes | Debris or limescale affecting the Select button mechanism. | Rinse the hand shower thoroughly. If necessary, gently clean around the button. |
If problems persist after attempting these solutions, please contact Hansgrohe customer support or a certified plumber.
Specifications
| Feature | Detail |
|---|---|
| Model Number | 27288400 |
| Brand | Hansgrohe |
| Color | White/Chrome |
| Material | Brass, Silicone |
| Finish Type | Chrome |
| Number of Handles | 1 |
| Mounting Type | Wall Mount |
| Item Weight | 9.36 Kilograms (20.6 pounds) |
| Product Dimensions | 19.25 x 15.43 x 47.52 inches |
| Maximum Pressure | 10 Bars |
| Flow Rate (Rain Air jet at 3 bar) | 15 l/min |
Figure 4: Flow rate diagram illustrating the relationship between pressure (MPa/bar) and flow rate (l/min or l/sec) for the hand shower (1) and overhead shower (2). This chart helps understand water consumption at different pressures.
Warranty Information
Hansgrohe provides a 5-year warranty on this product, covering manufacturing defects and material faults under normal use and service. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, misuse, abuse, or normal wear and tear.
Support and Contact
For further assistance, technical support, or warranty claims, please contact Hansgrohe customer service.
Visit the official Hansgrohe website for contact details and additional resources: Hansgrohe Contact Page
You can also refer to the Hansgrohe store on Amazon for product information: Hansgrohe Amazon Store
