Bosch BE331 Blue Disc Brake Pad Set Instruction Manual

1. Product Overview

The Bosch BE331 Blue Disc Brake Pad Set is engineered for everyday driving conditions, incorporating advanced friction formulations for reliable and quiet performance. These brake pads undergo rigorous testing to ensure consistent quality and effectiveness.

Key features include:

• Advanced platform-specific friction material formulations (NAO-Ceramic and semi-metallic) for optimal performance.
• Superior noise dampening provided by OE-style multi-layer shims.
• Rust inhibitive coating to prevent corrosion.
• Synthetic lubricant included for all applications, reducing resistance on sliding contact points.
• Slots and chamfers designed to match Original Equipment (OE) specifications for quick and easy installation.

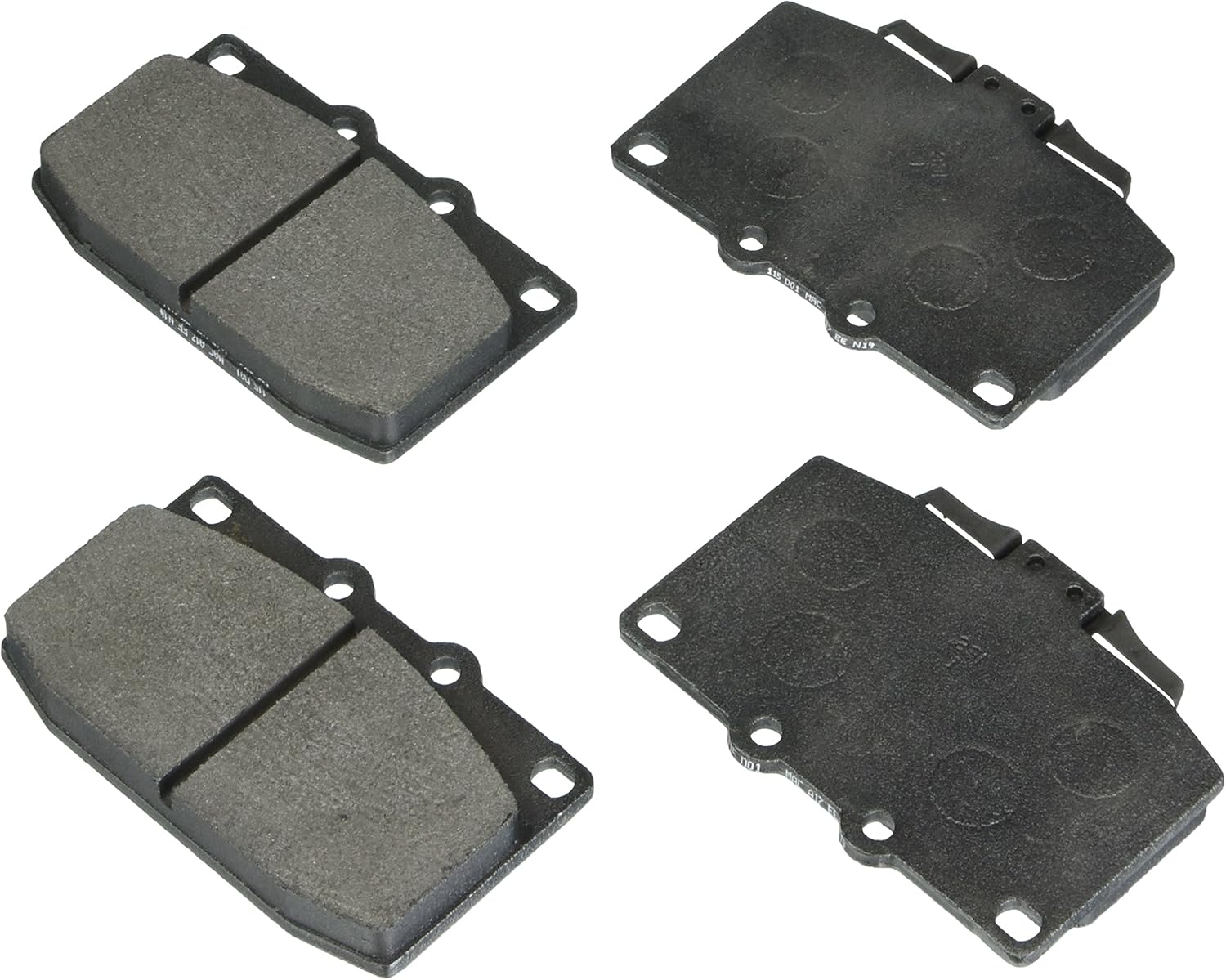

This image displays four Bosch BE331 Blue Disc Brake Pads. Two pads show the friction material side, which is a dark grey, textured surface. The other two pads show the backing plate side, which is black with circular indentations and metal clips for installation. All pads feature mounting holes.

2. Installation (Setup)

Important Safety Notice: Brake system components are critical for vehicle safety. Improper installation can lead to serious injury or death. It is highly recommended that brake pad replacement be performed by a qualified automotive technician. This guide provides general information and is not a substitute for professional training or service manuals.

1. Preparation: Ensure the vehicle is safely lifted and supported on jack stands. Remove the wheel.
2. Caliper Removal: Loosen and remove the caliper mounting bolts. Carefully remove the brake caliper from the rotor, ensuring not to stretch or damage the brake hose.
3. Old Pad Removal: Remove the old brake pads from the caliper bracket. Note their orientation.
4. Caliper Piston Retraction: Use a suitable tool to retract the caliper piston(s) slowly and evenly. This creates space for the new, thicker pads.
5. Bracket Cleaning and Lubrication: Clean the caliper bracket and apply the provided synthetic lubricant to the sliding contact points where the brake pads rest.
6. New Pad Installation: Install the new Bosch BE331 brake pads into the caliper bracket, ensuring they are correctly seated and oriented. Apply a thin layer of the provided lubricant to the back of the pads where they contact the caliper piston and caliper body (if applicable).
7. Caliper Reinstallation: Carefully reinstall the brake caliper over the new pads and rotor. Tighten the caliper mounting bolts to the manufacturer's specified torque.
8. Wheel Reinstallation: Reinstall the wheel and lower the vehicle.
9. Brake Pedal Pumping: Before driving, pump the brake pedal several times until a firm pedal feel is achieved. This seats the pads against the rotor and restores proper brake pressure.

3. Operation (Brake Pad Break-In)

Proper break-in (also known as bedding-in) of new brake pads is essential for optimal performance, longevity, and to prevent noise. Follow these steps:

1. Drive the vehicle at a moderate speed (e.g., 30-40 mph or 50-65 km/h).
2. Apply the brakes with moderate pressure, reducing speed by approximately 10-15 mph (15-25 km/h). Avoid coming to a complete stop.
3. Release the brakes and drive for a short distance (e.g., 30 seconds) to allow the pads and rotors to cool slightly.
4. Repeat this process approximately 8-10 times.
5. After the final moderate stop, drive for several minutes without braking to allow the entire brake system to cool down completely.

During the break-in period, avoid hard braking, emergency stops, or prolonged heavy braking, as this can overheat the pads and rotors, potentially causing glazing or warping.

4. Maintenance

Regular inspection and maintenance of your brake system are crucial for safety and performance. It is recommended to inspect your brake pads and rotors at least once a year or every 12,000 miles (20,000 km), or as specified by your vehicle manufacturer.

• Pad Wear: Check the thickness of the brake pad friction material. Replace pads when they reach their minimum wear limit, typically around 2-3mm, or if the wear indicator (if present) makes contact with the rotor.
• Rotor Condition: Inspect brake rotors for excessive wear, scoring, cracks, or warping. Rotors may need to be resurfaced or replaced if damaged.
• Caliper Operation: Ensure brake calipers are moving freely and not seized. Check for any leaks from the caliper or brake lines.
• Brake Fluid: Check brake fluid level and condition. Consult your vehicle's owner's manual for recommended brake fluid type and replacement intervals.

5. Troubleshooting

This section addresses common issues that may arise with brake pads. If you experience any persistent or severe brake problems, consult a qualified technician immediately.

• Squealing/Grinding Noise:
  • Cause: New pads may make some noise during break-in. Worn pads (grinding indicates metal-on-metal contact), improper installation, lack of lubrication, or contaminated pads/rotors.
  • Solution: Ensure proper break-in. Inspect pads for wear. Re-lubricate contact points. Clean rotors and pads if contaminated.
• Vibration/Pulsation During Braking:
  • Cause: Warped brake rotors, uneven pad wear, or loose caliper components.
  • Solution: Inspect rotors for runout or warping. Check caliper mounting. Professional diagnosis is recommended.
• Reduced Braking Performance (Soft Pedal):
  • Cause: Air in the brake lines, low brake fluid, worn master cylinder, or overheated pads (brake fade).
  • Solution: Check brake fluid level. Bleed brake lines. Allow brakes to cool if fade is suspected. Seek professional inspection.

6. Specifications

7. Warranty Information

For specific warranty terms and conditions regarding the Bosch BE331 Blue Disc Brake Pad Set, please refer to the documentation included with your purchase or visit the official Bosch Automotive website. Warranty coverage typically addresses manufacturing defects and material flaws under normal use.

8. Customer Support

If you have questions, require technical assistance, or need to report an issue with your Bosch BE331 Blue Disc Brake Pad Set, please contact Bosch customer service. Contact information can typically be found on the official Bosch website or on the product packaging.

For general inquiries, you may visit the Bosch Automotive website or consult a certified automotive professional.
