Product Overview
The Fender Vintage Speaker Mounting Stud/Nut set (Model 0992094000) is designed for securing speakers within amplifier cabinets. These components are suitable for use with both vintage and modern amplifiers, including those from the early 1950s and 1960s. The design ensures a secure, anti-loosening fit for speaker installations.

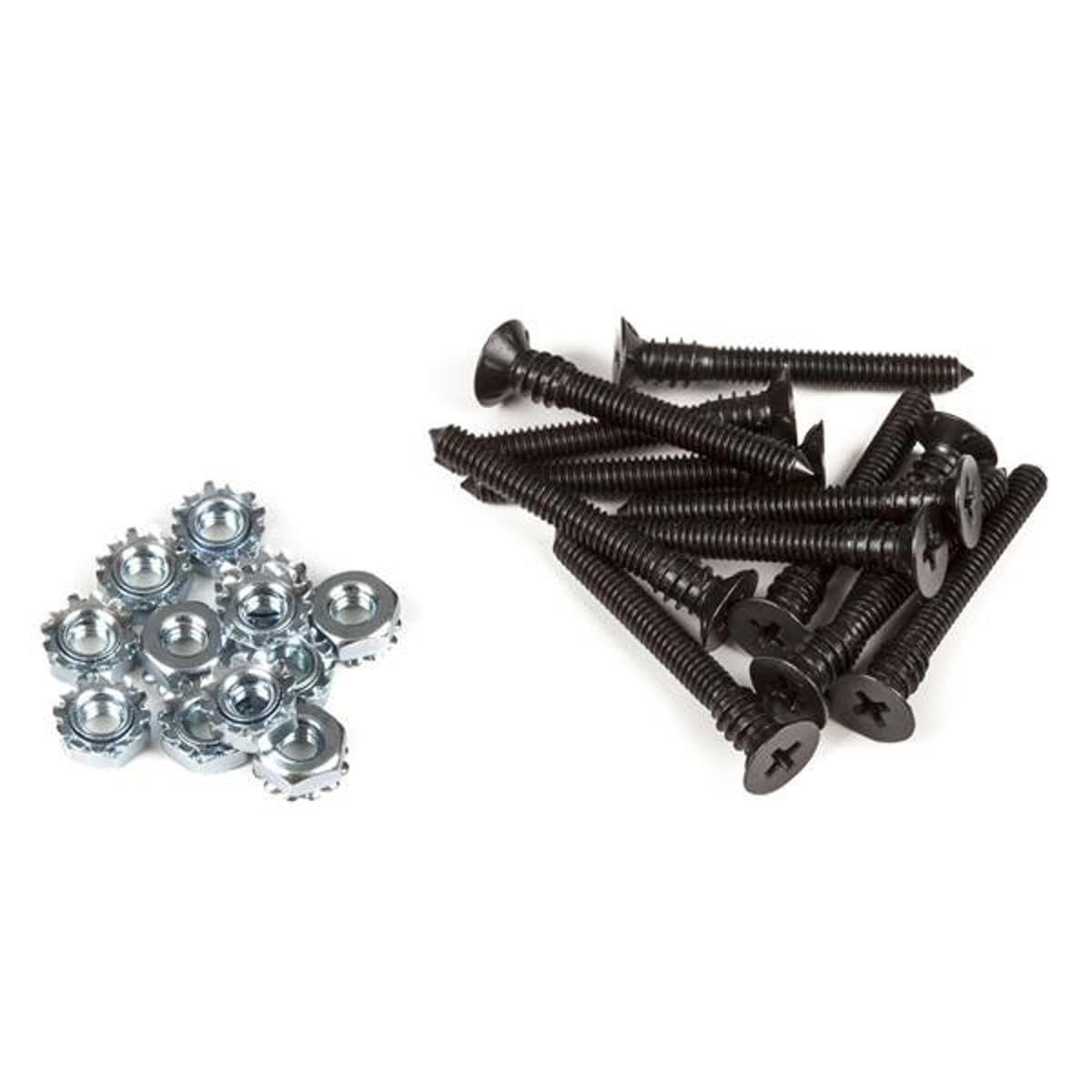

An image showing multiple metal speaker mounting studs and nuts, typically used for securing speakers in amplifier cabinets. The studs feature a pointed end and threaded sections, accompanied by hexagonal nuts.
Package Contents
- 12 x Speaker Mounting Studs
- 12 x Speaker Mounting Nuts
Setup and Installation
Proper installation of the speaker mounting studs is crucial for speaker security and longevity. Follow these steps carefully:
- Prepare the Baffle: Ensure the speaker baffle material is at least 5/16 inch (approximately 8mm) thick for optimal stud engagement.
- Drill Pilot Holes: Drill pilot holes for the studs. A 3/16 inch (approximately 4.76mm) drill bit is recommended.
- Countersink (Optional but Recommended): For a flush finish and to prevent splitting, countersink the mounting holes on the side where the stud will be inserted.
- Install the Studs: The studs feature a unique reverse-threaded design at their base.
- The initial thread section, designed to penetrate the wood baffle, typically turns clockwise.
- The main body of the stud, which secures into the baffle, has a coarser, reverse thread. To install the stud into the pilot hole, turn it counter-clockwise (lefty tighty). This reverse threading prevents the stud from spinning out when the speaker nut is tightened.
- Mount the Speaker: Position the speaker over the installed studs.
- Secure with Nuts: Place the provided nuts onto the exposed stud threads and tighten them clockwise to secure the speaker. The reverse-threaded stud design ensures that tightening the nut will not loosen the stud from the baffle.
Safety Warning: The pointed ends of the studs can be very sharp. Exercise caution during handling and installation to avoid injury. Consider dulling the points slightly with a file or bench grinder before installation if preferred, while ensuring not to damage the threads.
Operation
Once properly installed, the Fender Vintage Speaker Mounting Studs and Nuts function as a static fastening system. They securely hold the speaker in place within the amplifier cabinet, preventing movement and ensuring optimal sound reproduction without requiring further operational steps.
Maintenance
These speaker mounting components require minimal maintenance. Periodically inspect the nuts for tightness, especially after transportation or significant vibrations, to ensure the speaker remains securely fastened. No lubrication or special cleaning is typically required for these metal parts.
Troubleshooting
- Studs not threading into baffle: Ensure the pilot hole size is correct (3/16 inch recommended) and that you are turning the stud counter-clockwise for initial insertion into the wood.
- Speaker feels loose after installation: Verify that the nuts are fully tightened. If the issue persists, check the integrity of the baffle material around the studs.
- Damage to baffle during installation: This can occur if pilot holes are too small or if excessive force is used. Ensure proper pilot hole drilling and consider countersinking.
Specifications
| Feature | Detail |
|---|---|
| Model Number | 0992094000 |
| Item Weight | 2.4 ounces (approx. 68 grams) |
| Product Dimensions | 5.5 x 4.5 x 1 inches (approx. 14 x 11.4 x 2.5 cm) |
| Body Material | Metal |
| Material Type | Metal |
| Compatibility | Most vintage and modern amplifiers (early '50s and '60s vintage amplifiers) |
Warranty and Support
Specific warranty information for the Fender Vintage Speaker Mounting Stud/Nut (Model 0992094000) is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please contact Fender customer service directly or visit the official Fender website.
Fender Official Website: www.fender.com
