MANN-FILTER CU 26 009 Cabin Air Filter Instruction Manual

1. Introduction

This instruction manual provides essential information for the proper installation, operation, and maintenance of your MANN-FILTER CU 26 009 Cabin Air Filter. Designed to enhance the air quality within your vehicle's passenger compartment, this particulate filter helps protect occupants from airborne contaminants and ensures optimal performance of your vehicle's heating and air conditioning system.

Please read this manual thoroughly before installation to ensure correct procedure and to maximize the lifespan and effectiveness of the filter.

2. Product Overview

The MANN-FILTER CU 26 009 is a high-quality particulate cabin air filter engineered to provide basic filtration performance. It effectively removes dust, dirt, pollen, allergens, and other small particles from the air entering your vehicle's cabin. This contributes to a cleaner, fresher, and more comfortable interior environment.

Figure 2.1: MANN-FILTER CU 26 009 Cabin Air Filter with its packaging.

Figure 2.2: Detailed view of the filter media and construction of the MANN-FILTER CU 26 009.

3. Key Features

• Effective Particle Filtration: Prevents dust, dirt, soot, and other particles larger than 1µm from entering the cabin with nearly 100% separation efficiency.
• Optimal Airflow: Designed for high air flow capacity, ensuring efficient ventilation and consistent filtration performance throughout its service interval.
• Exact Fit: Engineered for precise fit and perfect tightness, preventing unfiltered air from bypassing the filter.
• Protection for HVAC Systems: Helps protect the vehicle's heating and air conditioning systems from contamination, extending their lifespan.
• Reduces Window Fogging: By filtering out moisture-carrying particles, it contributes to reduced fogging of vehicle windows.

4. Compatibility

The MANN-FILTER CU 26 009 Cabin Air Filter is compatible with select models from Audi and Volkswagen. For specific vehicle fitment, please refer to the manufacturer's vehicle application guide or consult your vehicle's owner's manual.

The OEM Part Number for this filter is 5Q0 819 644.

5. Installation

Replacing your cabin air filter is a straightforward process. Detailed installation instructions are typically included with the product and are also available through the MANN-FILTER app or website. Always refer to these specific instructions for your vehicle model.

General Installation Steps:

1. Locate the Filter Housing: The cabin air filter is commonly located behind the glove compartment, under the dashboard, or sometimes under the hood near the windshield. Consult your vehicle's owner's manual for the exact location.
2. Access the Filter: Depending on the location, you may need to remove the glove compartment, a cover panel, or other components to access the filter housing.
3. Remove the Old Filter: Carefully pull out the old cabin air filter. Note its orientation, especially the direction of the airflow arrow, as the new filter must be installed in the same direction.
4. Clean the Housing (Optional): While the filter is out, you may wish to clean any debris or leaves from the filter housing.
5. Install the New Filter: Insert the new MANN-FILTER CU 26 009, ensuring the airflow arrow on the filter points in the correct direction (usually towards the rear of the vehicle or as indicated by the vehicle manufacturer).
6. Reassemble: Reattach any covers or components removed during the access step.

Important: Always follow the specific installation instructions provided with your filter or in your vehicle's service manual. Incorrect installation can reduce filter effectiveness or damage vehicle components.

Figure 5.1: Comparison of a new filter with a used, dirty filter, emphasizing the importance of timely replacement.

6. Operation

The MANN-FILTER CU 26 009 Cabin Air Filter operates passively as part of your vehicle's ventilation system. Once installed, it continuously filters the air entering the passenger compartment whenever the heating, ventilation, or air conditioning (HVAC) system is active. No user interaction is required for its operation.

7. Maintenance

Regular replacement of your cabin air filter is crucial for maintaining optimal air quality and HVAC system performance. Over time, the filter media accumulates dirt, dust, and other contaminants, which can restrict airflow and reduce filtration efficiency.

• Replacement Interval: It is recommended to replace the MANN-FILTER CU 26 009 Cabin Air Filter every 12 months or every 15,000 kilometers (approximately 9,300 miles), whichever comes first.
• Harsh Environments: In dusty environments, areas with high pollen counts, or heavy traffic conditions, more frequent replacement may be necessary.
• Signs of a Clogged Filter: Indicators that your filter may need replacement include reduced airflow from the vents, persistent unpleasant odors in the cabin, or increased fan noise.

Figure 7.1: Visual guide for recommended cabin air filter replacement intervals.

8. Troubleshooting

Most issues related to cabin air filters are resolved by proper installation and timely replacement. If you experience problems after installing a new filter, consider the following:

• Reduced Airflow:
  • Ensure the filter is installed with the correct airflow direction. An arrow on the filter indicates this.
  • Verify that the filter is fully seated in its housing and that all access panels are securely closed.
  • Check if the new filter is the correct part number for your vehicle, as an incorrect size could impede airflow.
• Unpleasant Odors:
  • If odors persist after replacing a dirty filter, it may indicate a deeper issue within the HVAC system (e.g., mold growth on the evaporator coil) that requires professional inspection.
• Filter Does Not Fit:
  • Double-check the part number against your vehicle's specifications.
  • Ensure the filter is oriented correctly before attempting to force it into the housing.

If problems persist, consult a qualified automotive technician.

9. Specifications

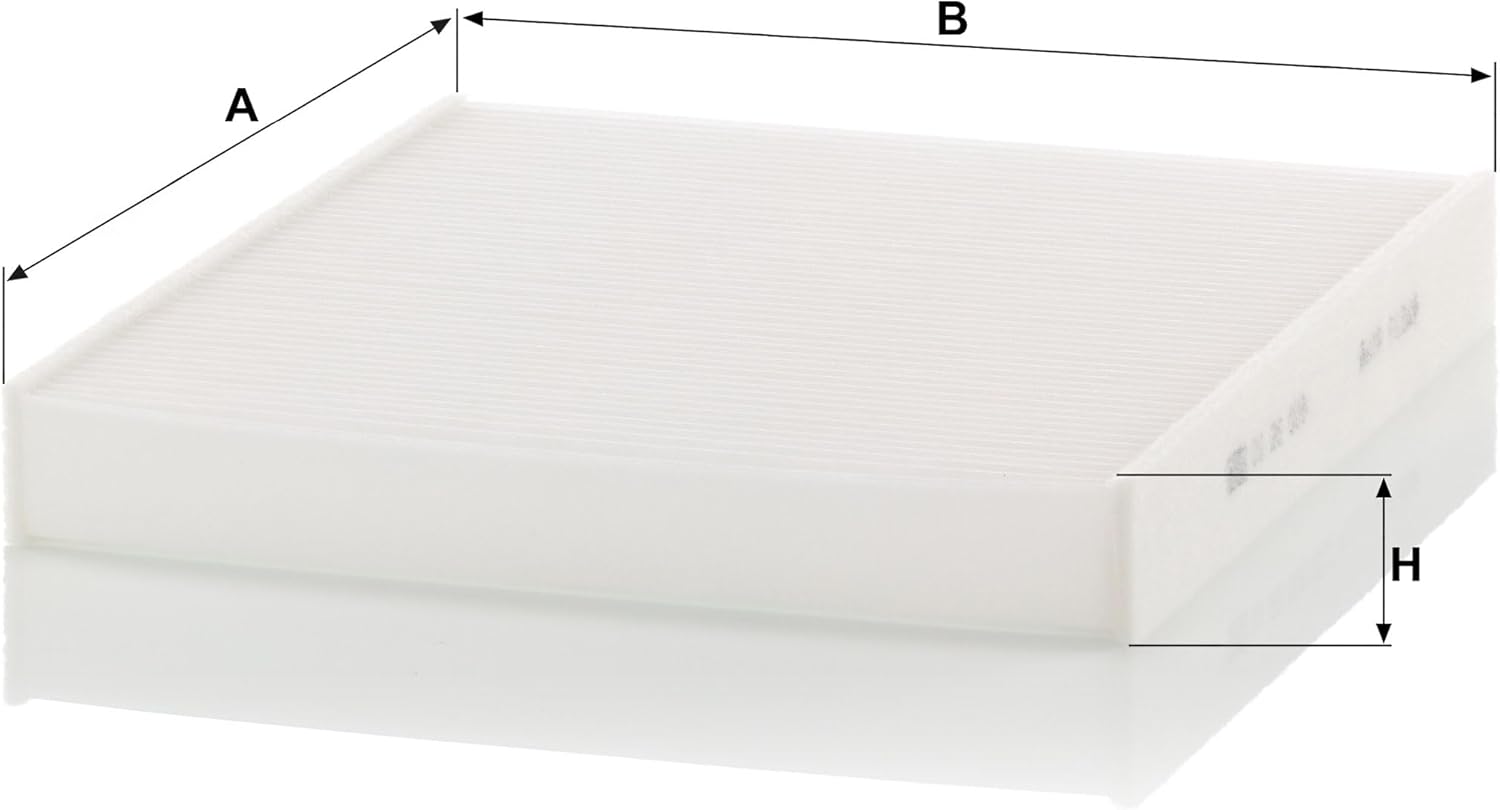

Figure 9.1: Dimensional diagram of the MANN-FILTER CU 26 009 Cabin Air Filter.

10. What's in the Box

The product package for the MANN-FILTER CU 26 009 Cabin Air Filter typically includes:

• 1 x MANN-FILTER CU 26 009 Cabin Air Filter
• Installation Instructions (may be printed on packaging or as a separate leaflet)

11. Warranty and Support

MANN-FILTER products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation included with your product or visit the official Mann Filter website. For technical support or inquiries, please contact Mann Filter customer service.

You can find more information and support resources on the Mann Filter Store on Amazon.
