Introduction
Thank you for purchasing the Beamz S700-LED Fog Machine. This compact and powerful device is designed to create atmospheric fog effects, enhanced by an optional amber LED flame effect. Please read this manual thoroughly before operation to ensure safe and correct use.
Image: The Beamz S700-LED fog machine, a compact black unit with three amber LEDs on the front, a fluid tank on top, and a wired remote control. It features a handle for portability.
Safety Information
WARNING: Risk of electric shock. Do not open. ATTENTION: Hot surface. Risk of burns. Do not expose to rain or moisture.
- Always connect the unit to a grounded power outlet.
- Ensure the voltage matches the unit's requirements (220-240V AC, 50/60Hz).
- Do not operate if the power cord or plug is damaged.
- Keep the unit away from water and high humidity.
- Ensure adequate ventilation around the machine. Do not block ventilation openings.
- Use only Beamz approved fog fluid. Using other fluids may damage the unit and void the warranty.
- Do not touch the nozzle during or immediately after operation, as it becomes very hot.
- Keep out of reach of children.
Package Contents
Verify that all items are present and in good condition:
- 1 x Beamz S700-LED Fog Machine
- 1 x Wired Remote Control (3m cable)
- 1 x 250ml Bottle of Fog Fluid (initial supply)
- 1 x User Manual
Setup
- Unpacking: Carefully remove the fog machine from its packaging.
- Placement: Place the machine on a stable, flat surface. Ensure there is sufficient space around the unit for ventilation and fog dispersion. Do not place it directly on carpet or other flammable materials.
- Fill Fluid Tank: Unscrew the cap of the fluid tank and carefully pour Beamz fog fluid into the tank. Do not overfill. The tank capacity is 250ml.
- Connect Remote Control: Plug the wired remote control into the designated port on the rear of the machine.
- Power Connection: Plug the power cord into a suitable grounded electrical outlet.
Image: Rear view of the S700-LED, highlighting the fluid tank with its level indicator. The "FULL" and "EMPTY" markings are visible, along with the power and LED switches.
Image: The Beamz S700-LED fog machine shown with its wired remote control, emphasizing the 3-meter cable length for flexible placement and operation.
Operating Instructions
- Power On: Flip the "POWER" switch on the rear of the unit to the "ON" position. The machine will begin its warm-up cycle.
- Warm-up Time: The machine requires approximately 3-4 minutes to reach operating temperature. The LED indicator on the remote control will illuminate when the machine is ready to produce fog.
- Activate Fog: Press and hold the button on the wired remote control to produce fog. Release the button to stop fog production.
- Flame Effect (Amber LEDs): To activate the amber LED flame effect, flip the "LED" switch on the rear of the unit to the "ON" position. The 3 amber LEDs will illuminate, creating a fiery glow within the fog. You can turn this effect off at any time by flipping the "LED" switch to "OFF".
- Cool-down: After use, turn off the "POWER" switch and unplug the unit. Allow the machine to cool down completely before storing.

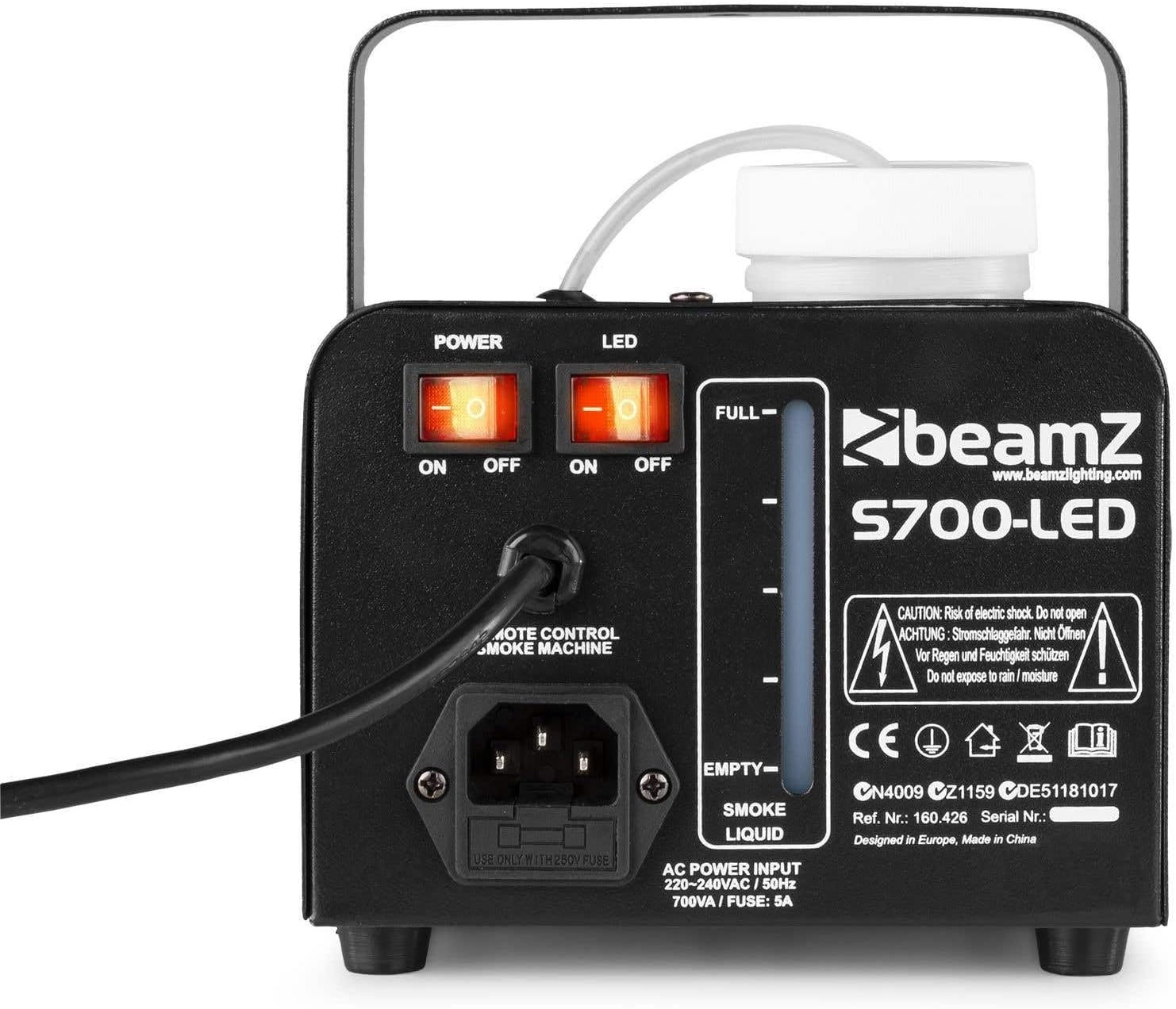

Image: Close-up of the rear panel of the S700-LED, clearly showing the "POWER" and "LED" ON/OFF switches, as well as the remote control input and power socket.
Image: The S700-LED in operation, producing a dense fog. An icon highlights the short heat-up time and the thermostatically controlled heater, ensuring quick readiness.

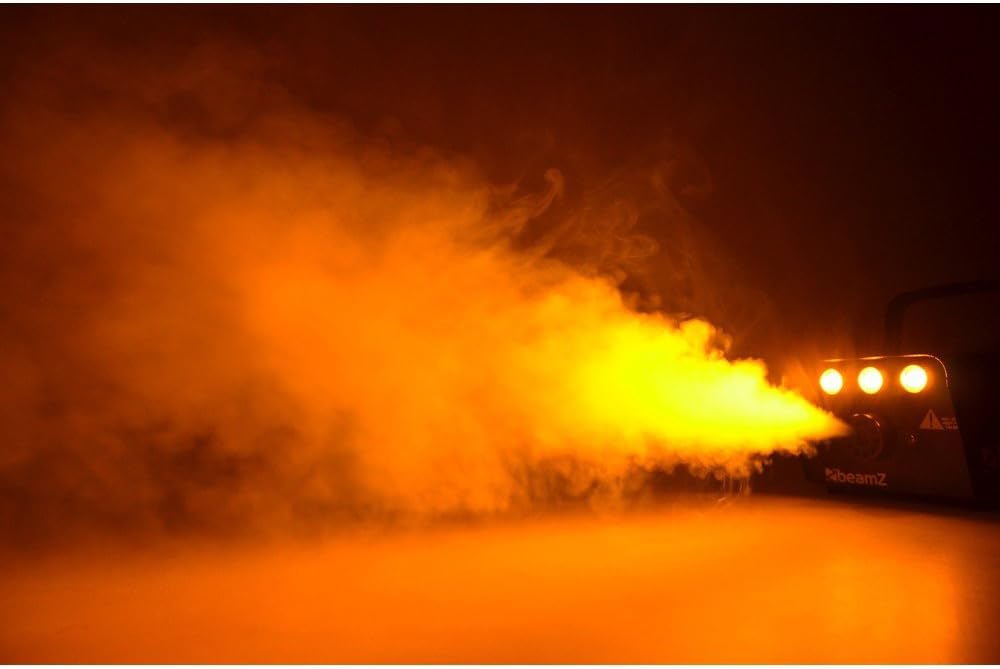

Image: The Beamz S700-LED actively producing a thick, orange-tinted fog, demonstrating its powerful output and atmospheric effect.
Image: Front view of the S700-LED, highlighting the three amber-colored LEDs. An overlay indicates the presence of an ON/OFF switch for these LEDs, allowing users to choose between plain fog and fog with a flame effect.

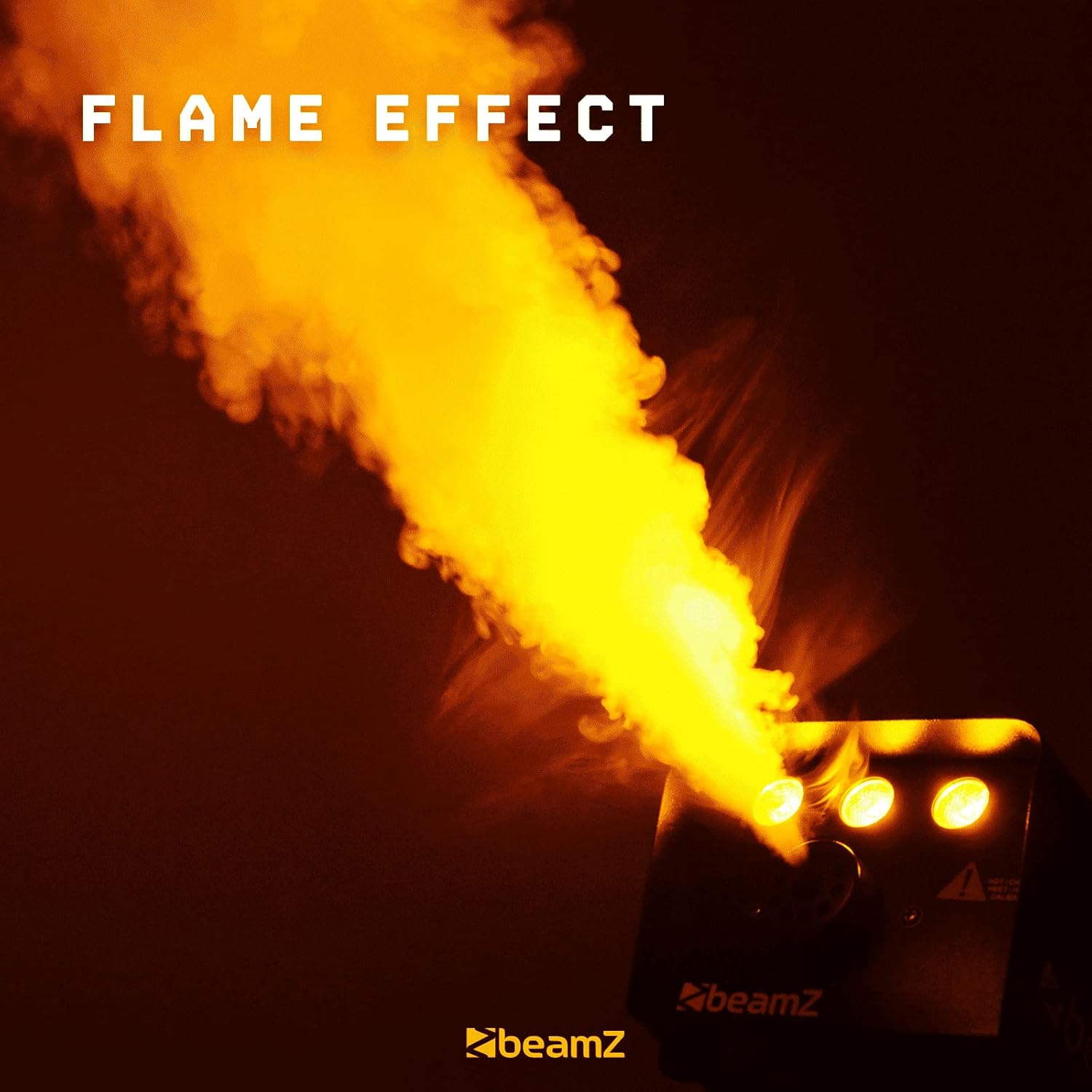

Image: The S700-LED demonstrating its unique flame effect, where the amber LEDs illuminate the fog, creating a visual impression of fire.
Maintenance
- Fluid Level: Regularly check the fluid level and refill as needed. Never operate the machine with an empty tank.
- Cleaning: Periodically clean the exterior of the machine with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Nozzle Cleaning: If the fog output decreases or becomes inconsistent, the nozzle may be partially clogged. Use a small brush or compressed air to gently clear any blockages. Never insert sharp objects into the nozzle.
- Storage: Store the machine in a cool, dry place, away from direct sunlight and extreme temperatures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No fog output | Not powered on; Not warmed up; Empty fluid tank; Clogged nozzle; Faulty remote. | Check power switch and connection; Wait for warm-up (remote LED on); Refill fluid tank; Clean nozzle; Test remote connection. |
| Weak fog output | Low fluid level; Partially clogged nozzle; Insufficient warm-up. | Refill fluid; Clean nozzle; Allow full warm-up. |
| LEDs not working | LED switch off; Power issue. | Flip LED switch to ON; Check power connection. |
| Machine overheats | Poor ventilation; Continuous operation for too long. | Ensure clear ventilation around the unit; Allow machine to cool down between uses. |
Specifications
| Model Number | S700-LED |
| Power Output | 700 Watts |
| Fog Output Volume | 75 m³/minute |
| Fluid Tank Capacity | 250 ml |
| LEDs | 3 x 1W Amber LEDs |
| Heat-up Time | Approx. 3-4 minutes |
| Remote Control | Wired, 3-meter cable |
| Dimensions (L x W x H) | 27 x 15 x 13 cm (10.6 x 5.9 x 5.1 inches) |
| Weight | 2.7 kg (5.95 lbs) |
| Voltage | 220-240V AC, 50/60Hz |
Warranty and Support
Beamz products are designed for reliability and performance. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Beamz website.
For technical support, troubleshooting assistance, or spare parts, please contact your local Beamz dealer or authorized service center. You can also visit the Beamz Lighting website for more information and resources.
