1. Introduction
This manual contains important information regarding the safe assembly, operation, and maintenance of your MTD OPTIMA MiniRider 76 SD ride-on mower. Please read this manual carefully before operating the appliance. Keep this manual for future reference.
The MTD OPTIMA MiniRider 76 SD is designed for mowing lawns in small to medium-sized gardens. Its compact design and maneuverability make it ideal for gardens with flowerbeds, shrubs, or other obstacles.
2. General Safety Information
Read all instructions: Before using the ride-on mower, read and understand all instructions in this manual.
Personal protection: Always wear appropriate personal protective equipment, such as safety glasses, hearing protection, sturdy shoes, and long trousers.
Children and bystanders: Keep children and pets at a safe distance from the ride-on mower during operation.
Fuel safety: Refuel in a well-ventilated area with the engine off and cooled. Do not smoke while refueling.
Slopes: Exercise extreme caution when mowing on slopes. Always mow across the slope, never up and down. Avoid steep slopes.
Check the work area: Remove stones, branches, and other debris from the lawn before starting to mow.
3. Setup and Preparation
3.1 Unpacking and Assembly
Carefully remove the ride-on mower from its packaging. Check for any transport damage. Follow the instructions in the separate assembly manual for attaching components such as the seat, steering wheel, and mowing deck if they are not pre-assembled.
3.2 Fuel and Oil
The engine of the OPTIMA MiniRider 76 SD runs on gasoline. Fill the fuel tank (capacity: 4.9 liters) with unleaded gasoline. Check the engine oil level and top up to the recommended level with the correct engine oil, as specified in the engine manual.
3.3 Tire Pressure
Check the tire pressure of the pneumatic tires (front: 13 x 5, rear: 16 x 6.5). Correct pressure ensures optimal traction and an even mowing pattern. Refer to the tire specifications for recommended pressure.
3.4 Seat Adjustment
The ride-on mower features a sprung driver's seat. Adjust the seat to a comfortable position so that you can easily reach all controls.

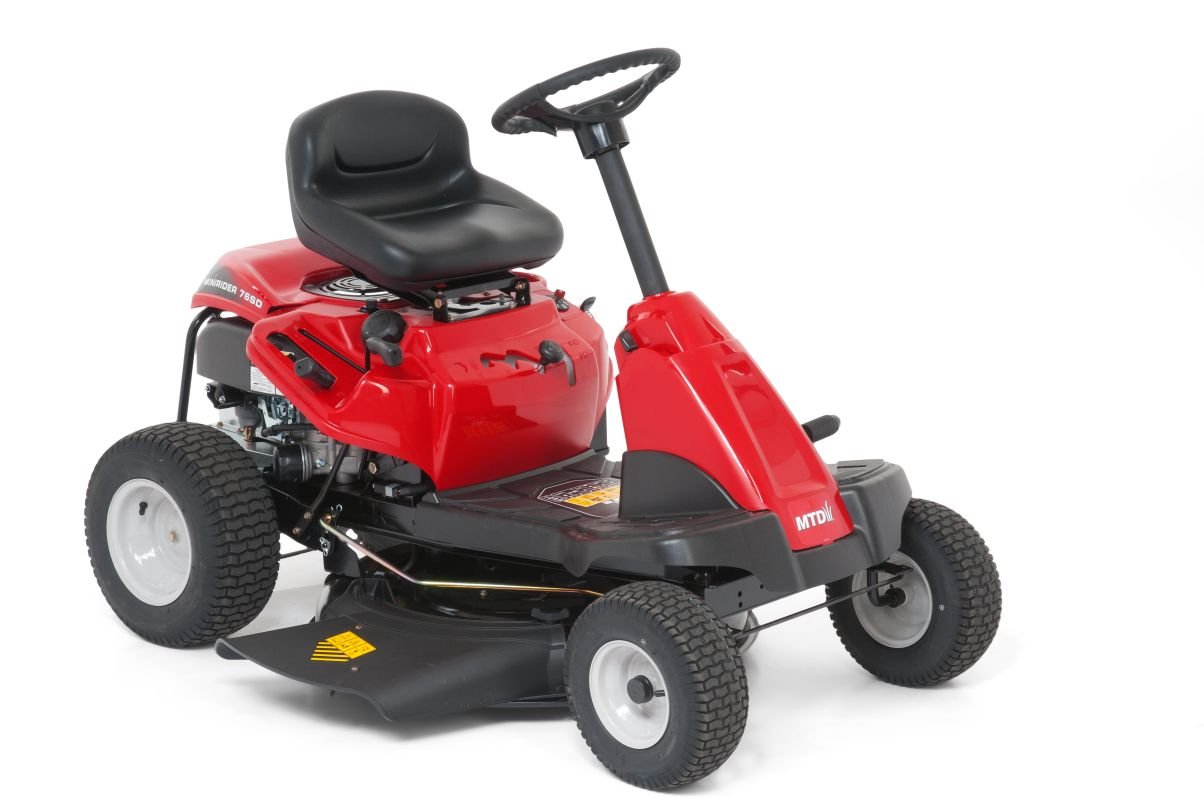

Figure 1: The MTD OPTIMA MiniRider 76 SD ride-on mower. This image shows the compact construction and general appearance of the ride-on mower, including the wheels and mowing deck.
4. Operation
4.1 Starting the Engine
- Ensure the ride-on mower is on a level surface and the parking brake is engaged.
- Place the gear lever in the neutral position.
- Disengage the mowing clutch (mowing deck should not be rotating).
- Turn the ignition key to the start position (E-start). Release the key as soon as the engine starts.
- Allow the engine to warm up for a few minutes before starting to mow.
4.2 Driving
The ride-on mower is equipped with a Transmatic drive with 6 gears. Select the desired gear and release the parking brake. Use the accelerator pedal to control the speed. The "shift without holding" feature makes it easy to change gears without stopping.
4.3 Mowing
The cutting height can be adjusted with one of the two levers. There are 5 cutting height positions, ranging from 38 mm to 95 mm. Choose the appropriate cutting height for your lawn. Engage the mowing clutch with the second lever to activate the blades.
The OPTIMA MiniRider 76 SD features side discharge. The cut grass is ejected from the side of the mowing deck. The turning radius of 46 cm ensures excellent maneuverability, even in gardens with many obstacles.
5. Maintenance
5.1 General Maintenance
- Cleaning: Clean the ride-on mower after each use to prevent accumulation of grass and dirt. Do not use a high-pressure cleaner directly on electrical components.
- Check fasteners: Regularly check all bolts, nuts, and screws for tightness. Tighten any loose fasteners.
- Lubrication: Lubricate moving parts according to the lubrication schedule in the engine manual.
5.2 Engine Maintenance
- Oil change: Change the engine oil after the first 5 operating hours and then annually or every 50 operating hours, whichever comes first.
- Air filter: Clean or replace the air filter regularly to ensure optimal engine performance.
- Spark plug: Inspect and clean the spark plug annually. Replace if necessary.
5.3 Mowing Deck and Blades
- Blade sharpening/replacement: Regularly check the blades for sharpness and damage. Dull or damaged blades reduce cutting quality. Have blades sharpened or replaced by a qualified mechanic.
- Mowing deck cleaning: Remove grass clippings from the underside of the mowing deck to prevent blockages and corrosion.
5.4 Storage
Thanks to its compact design, the MiniRider can be stored in a space-saving manner. Thoroughly clean the ride-on mower, empty the fuel tank (or add fuel stabilizer), and remove the battery for long-term storage. Store in a dry, frost-free place.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine does not start | No fuel; dead battery; faulty spark plug; safety switch activated. | Add fuel; charge/replace battery; check/replace spark plug; ensure parking brake is engaged and mowing deck is disengaged. |
| Engine runs erratically | Dirty air filter; old/contaminated fuel; dirty/faulty spark plug. | Clean/replace air filter; replace fuel; clean/replace spark plug. |
| Poor cutting quality | Blades dull/damaged; cutting height too low; driving speed too high; mowing deck dirty. | Sharpen/replace blades; increase cutting height; reduce driving speed; clean mowing deck. |
For persistent problems, consult an authorized MTD dealer.
7. Technical Specifications
- Model: OPTIMA MiniRider 76 SD
- Engine: 1 cylinder, 8.2 kW - 3000 min-1, 420 cm3
- Starter: E-start
- Drive System: Transmatic 6 gears
- Wheels (front/rear): 13 x 5 / 16 x 6.5
- Wheel Bearings: Plain bearings
- Fuel Tank Capacity: 4.9 liters
- Cutting Heights: 38 - 95 mm (5 positions)
- Turning Radius: 46 cm
- Weight: 127 kg
- Dimensions (L x W x H): 157 x 98 x 112 cm
- Cutting Width: 46 cm
- Operating Mode: Manual
- Color: Red
- Material: Plastic
- Power Source: Gas powered
8. Warranty and Support
For information regarding the warranty conditions of your MTD OPTIMA MiniRider 76 SD, please refer to the included warranty card or visit the official MTD website. For technical questions, parts, or service, please contact your authorized MTD dealer or MTD customer service.
Retain your proof of purchase as proof of warranty.
