POWER ACOUSTIK CPT4-800 CRYPT Series Class AB Amplifier

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Power Acoustik CPT4-800 CRYPT Series Class AB Amplifier. Please read this manual thoroughly before attempting to install or operate the amplifier to ensure proper function and safety. Retain this manual for future reference.

Safety Information

Always observe the following safety precautions:

• Disconnect the vehicle's negative battery terminal before any installation.
• Ensure proper grounding to prevent electrical hazards.
• Do not expose the amplifier to moisture or extreme temperatures.
• Use appropriate wire gauges as specified in the installation section.
• Consult a professional if you are unsure about any installation steps.

Key Features

• 4-Channel Class AB Amplifier
• 800W Max Power Output
• 2Ω Stereo and 4Ω Bridged Stable
• Tri-mode Capable
• Variable 12dB Low Pass Filter (50Hz - 250Hz)
• Selectable 45Hz Bass Boost (6dB/12dB)
• Frequency Response: 10Hz - 20kHz
• Signal-to-Noise Ratio: 90dB
• Total Harmonic Distortion: 0.01%
• 4-Gauge Power & 8-Gauge Speaker Terminals
• 200mV - 8V Low Level Inputs
• Preamp Outputs
• Extruded Aluminum Chassis with Black Texture Finish
• MOSFET PSU Transistors and Regulated PWM Power Supply
• Short, Thermal & Overload Protection Circuitry
• High Pass, Low Pass & Subsonic Filters

Setup and Installation

Mounting the Amplifier

Choose a mounting location that is dry, well-ventilated, and away from direct sunlight or heat sources. Ensure sufficient airflow around the amplifier for proper cooling. Secure the amplifier firmly using appropriate hardware to prevent movement during vehicle operation.

Wiring Connections

Before making any connections, disconnect the vehicle's negative battery terminal.

• Power (B+) Connection: Connect a 4-gauge power cable directly from the positive terminal of the vehicle's battery to the amplifier's B+ terminal. Install an appropriate fuse holder (not included) within 18 inches of the battery.
• Ground (GND) Connection: Connect a 4-gauge ground cable from the amplifier's GND terminal to a clean, unpainted metal surface on the vehicle's chassis. Ensure a solid, low-resistance connection.
• Remote (REM) Connection: Connect a remote turn-on wire from your head unit's remote output to the amplifier's REM terminal. This wire turns the amplifier on and off with your head unit.
• RCA Input Connections: Connect RCA cables from your head unit's pre-amp outputs to the amplifier's low-level inputs.
• Speaker Output Connections: Connect your speakers to the amplifier's speaker terminals using 8-gauge speaker wire. Observe correct polarity (+ to + and - to -) for each speaker. Refer to the amplifier's specifications for minimum impedance loads.

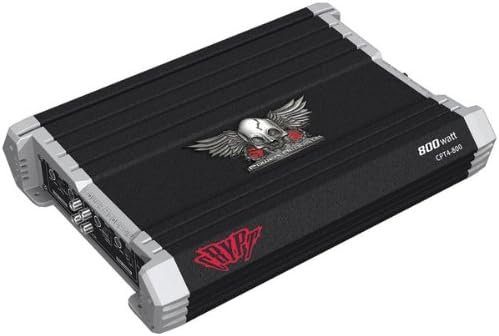

Image: Power Acoustik CPT4-800 CRYPT Series Class AB Amplifier. This image shows the top view of the amplifier, featuring its black textured finish, silver trim, and the CRYPT series skull emblem. The input and output terminals are visible on the sides.

Operating the Amplifier

Gain Control Adjustment

The gain control matches the amplifier's input sensitivity to the output of your head unit. Start with the gain set to minimum. Play a familiar piece of music at a moderate volume on your head unit. Slowly increase the amplifier's gain until you hear distortion, then back off slightly. This ensures maximum clean output.

Crossover Settings

The CPT4-800 features variable low pass filters. Adjust the LPF (Low Pass Filter) to control the frequency range sent to your speakers. For subwoofers, set the LPF to allow only low frequencies to pass (e.g., 80Hz-120Hz). For full-range speakers, you may use the high pass filter (if available on your head unit or a separate crossover) to remove low frequencies that can cause distortion.

Bass Boost

The selectable 45Hz bass boost provides an increase in bass output at 45Hz. Use this feature sparingly and adjust carefully to avoid distortion or damage to your speakers.

Maintenance

The Power Acoustik CPT4-800 amplifier requires minimal maintenance. Keep the amplifier clean and free from dust and debris. Periodically check all wiring connections to ensure they are secure and free from corrosion. Do not use harsh chemicals or abrasive cleaners on the amplifier's surface.

Troubleshooting

Specifications

• Model: CPT4-800
• Channels: 4-Channel
• Amplifier Class: AB
• Max Power: 800W
• RMS Power (4Ω Bridged): 200W x 2
• RMS Power (4Ω Stereo): 80W x 4
• RMS Power (2Ω Stereo): 100W x 4
• Low Pass Filter: Variable 12dB, 50Hz - 250Hz
• Bass Boost: Selectable 45Hz, 6dB/12dB
• Frequency Response: 10Hz - 20kHz
• Signal-to-Noise Ratio: 90dB
• Total Harmonic Distortion (THD): 0.01%
• Input Sensitivity: 200mV - 8V
• Power Terminals: 4-Gauge
• Speaker Terminals: 8-Gauge
• Dimensions (H x W x D): 2.3"H x 9.8"W x 13"D
• Shipping/Packaging Dimensions: 11.6" x 11.6" x 8"

Warranty and Support

For warranty information and technical support, please refer to the warranty card included with your product or visit the official Power Acoustik website. Keep your proof of purchase for warranty claims.
