Introduction
Thank you for choosing the Master Plumber Chrome Bathtub Diverter Spout. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new diverter spout. Please read these instructions thoroughly before installation and keep them for future reference.
Safety Information
- Always turn off the main water supply before beginning any plumbing work.
- Wear appropriate personal protective equipment, such as safety glasses and gloves.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Ensure all connections are secure to prevent leaks.
Package Contents
Verify that all components are present before beginning installation:
- Master Plumber Chrome Bathtub Diverter Spout (Model 682-677)
- Installation hardware (if applicable, typically not included for a spout)
Note: Additional tools and materials for installation (e.g., pipe wrench, thread sealant, cleaning supplies) are not included.
Setup and Installation
This diverter spout is designed for single-hole, deck-mount installation. It features a 3/4" Female Iron Pipe (FIP) inlet and a 1/2" Female Iron Pipe (FIP) outlet for hose connection, suitable for use with a handheld shower.

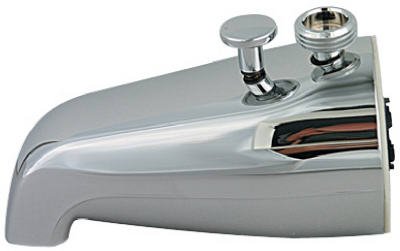

Image: The Master Plumber Chrome Bathtub Diverter Spout, showcasing its polished chrome finish and design. This image illustrates the overall appearance of the product.
- Turn Off Water Supply: Locate the main water shut-off valve for your home or the specific bathroom and turn it off. Open a faucet to relieve any remaining water pressure.
- Remove Old Spout (if applicable): If replacing an existing spout, loosen any set screws or unscrew the old spout from the pipe extending from the wall. Clean the area thoroughly.
- Prepare New Spout: Apply plumber's tape or thread sealant to the threads of the pipe extending from the wall.
- Install Diverter Spout: Thread the new Master Plumber diverter spout onto the pipe. Ensure the spout is oriented correctly and tighten it securely by hand. Use a strap wrench or adjustable wrench with a cloth to avoid scratching the chrome finish, if necessary, for final tightening. Do not overtighten.
- Connect Handheld Shower (Optional): If using a handheld shower, connect its hose to the 1/2" FIP outlet on the bottom of the diverter spout. Ensure a watertight seal using a washer and tightening securely.
- Check for Leaks: Slowly turn the main water supply back on. Inspect all connections for leaks. If leaks are present, turn off the water, tighten the connections, and recheck.
Operating Instructions
The Master Plumber Bathtub Diverter Spout is designed to direct water flow either into the bathtub or to a connected handheld shower.
- For Bathtub Filling: Ensure the diverter knob or lever on the spout is in the down or closed position. Water will flow directly from the spout into the bathtub.
- For Handheld Shower Use: Pull up the diverter knob or lever on the spout. This action will redirect the water flow from the spout to the connected handheld shower.
- Returning to Bathtub Flow: Push down the diverter knob or lever to stop water flow to the handheld shower and resume filling the bathtub.
Maintenance
Regular cleaning and proper care will help maintain the appearance and functionality of your diverter spout.
- Cleaning: Clean the chrome finish regularly with a soft cloth and mild soap and water. Rinse thoroughly and dry to prevent water spots.
- Avoid Harsh Cleaners: Do not use abrasive cleaners, scouring pads, or chemical cleaners containing ammonia, bleach, or alcohol, as these can damage the chrome finish.
- Diverter Mechanism: If the diverter mechanism becomes stiff, a small amount of silicone-based lubricant can be applied to the moving parts, if accessible, after ensuring the water supply is off.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaks from the base of the spout. | Loose connection or insufficient thread sealant. | Turn off water supply. Tighten the spout connection. Reapply plumber's tape or thread sealant if necessary. |
| Diverter does not fully redirect water to handheld shower. | Diverter mechanism is worn or obstructed. | Ensure the diverter knob is fully engaged. Clean any visible debris. If the issue persists, the diverter mechanism may need replacement. |
| Low water flow from spout or handheld shower. | Partial obstruction in the water line or spout. | Check for debris in the spout's opening or the handheld showerhead. Ensure the main water supply is fully open. |
Specifications
- Model Number: 682-677
- Finish: Chrome
- Material: Brass
- Inlet Connection: 3/4" Female Iron Pipe (FIP)
- Outlet Connection: 1/2" Female Iron Pipe (FIP) for hose connection
- Installation Method: Single Hole, Deck Mount
- Product Dimensions: 12.6 x 10.63 x 7.09 inches
- Item Weight: 3.05 pounds
- Manufacturer: Plumb Shop Div Brasscraft
Warranty and Support
For warranty information or technical support regarding your Master Plumber Chrome Bathtub Diverter Spout, please contact the manufacturer, Plumb Shop Div Brasscraft, directly. Refer to the product packaging or their official website for contact details and specific warranty terms.
Note: Keep your purchase receipt as proof of purchase for warranty claims.
