Tissot PRC 200 Automatic Chronograph Watch User Manual

1. Introduction

This manual provides essential instructions for the proper use, setup, and maintenance of your Tissot PRC 200 Automatic Chronograph Watch (Model T0554271101700). Please read this manual carefully to ensure optimal performance and longevity of your timepiece.

2. Product Overview

The Tissot PRC 200 is a Swiss-made automatic chronograph watch featuring a stainless steel case and bracelet, a scratch-resistant sapphire crystal, and a white dial with luminous hands and index hour markers. It includes a date display and a tachymeter scale.

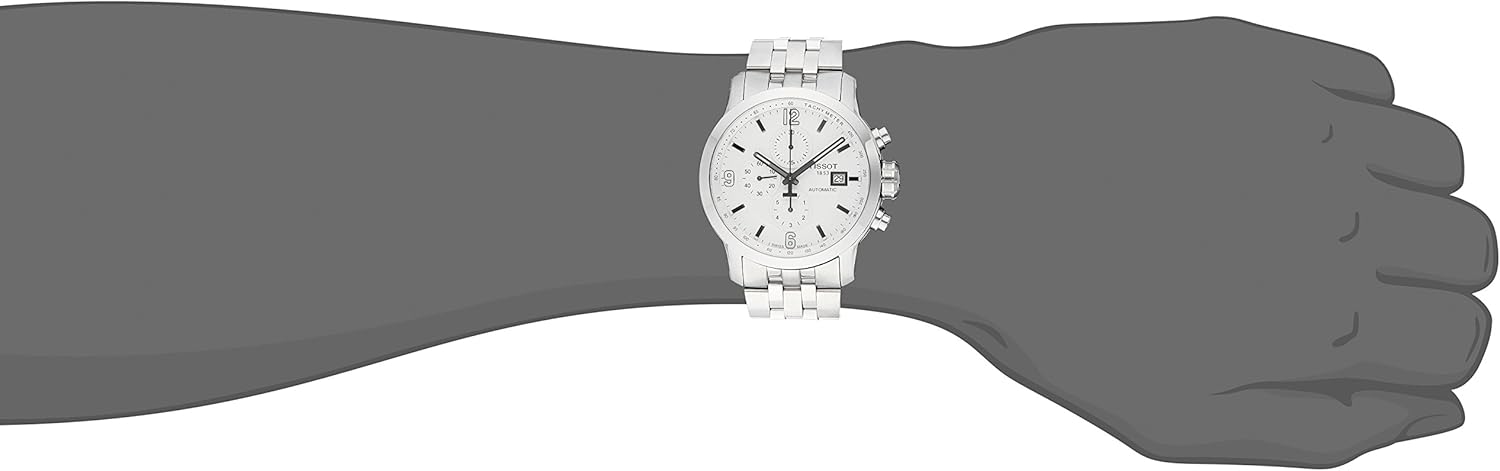

Figure 2.1: Front view of the Tissot PRC 200 watch, showcasing the white dial, chronograph subdials, and stainless steel bracelet.

Figure 2.2: Rear view of the Tissot PRC 200 watch, featuring a transparent case back that reveals the intricate Swiss automatic chronograph movement.

Key Components:

• Crown: Used for winding the movement and setting the time and date.
• Pushers: Used to operate the chronograph functions (start, stop, reset).
• Dial: Displays time, date, and chronograph measurements.
• Bezel: Fixed stainless steel bezel with a tachymeter scale.
• Bracelet: Stainless steel bracelet with a push-button foldover clasp with safety.

3. Setup and Initial Operation

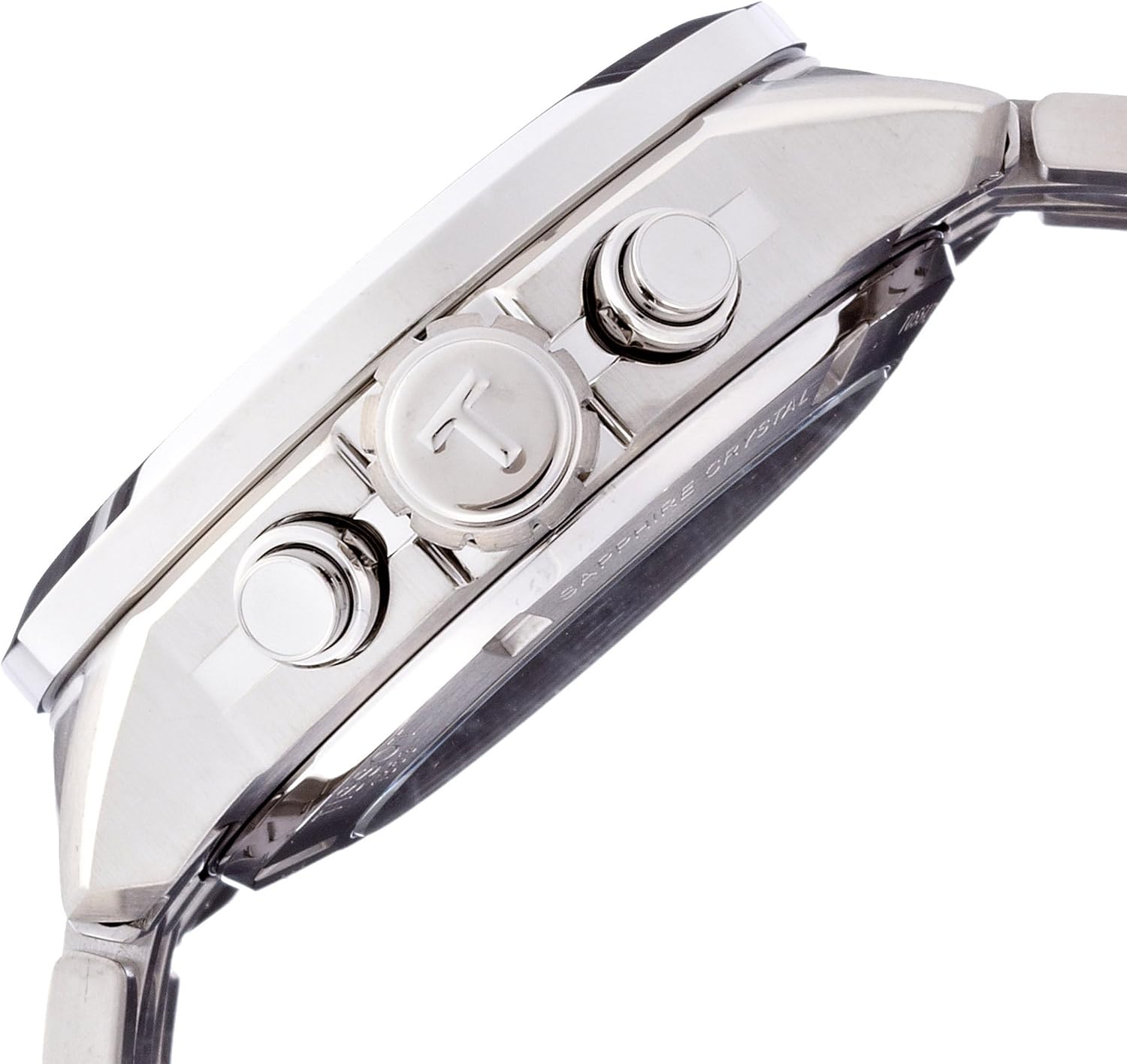

Figure 3.1: Side view of the watch, highlighting the crown and chronograph pushers for time and function adjustments.

3.1 Winding the Watch

Your Tissot PRC 200 is an automatic watch, meaning it is powered by the motion of your wrist. However, if the watch has stopped or has not been worn for an extended period, it may require manual winding:

1. Ensure the crown is in position 1 (fully pushed in).
2. Turn the crown clockwise approximately 20-30 times. This will provide enough power reserve to start the watch.
3. The watch will continue to wind itself as you wear it.

3.2 Setting the Time

1. Pull the crown out to position 3 (farthest out). The second hand will stop.
2. Turn the crown clockwise or counter-clockwise to set the hour and minute hands to the desired time.
3. Push the crown back into position 1 to restart the watch.

3.3 Setting the Date

Avoid setting the date between 9 PM and 3 AM, as this can damage the movement. If the time falls within this period, first set the time outside this range.

1. Pull the crown out to position 2 (middle position).
2. Turn the crown clockwise to adjust the date.
3. Once the correct date is displayed, push the crown back into position 1.

4. Operating the Chronograph

The chronograph function allows you to measure elapsed time independently of the main time display.

4.1 Basic Chronograph Operation

1. Start: Press the upper pusher (A) to start the chronograph. The central chronograph second hand will begin to move.
2. Stop: Press the upper pusher (A) again to stop the chronograph. The elapsed time can be read from the chronograph subdials and the central second hand.
3. Reset: After stopping, press the lower pusher (B) to reset all chronograph hands to their zero positions.

4.2 Using the Tachymeter Scale

The tachymeter scale on the bezel can be used to measure speed over a known distance (e.g., 1 kilometer or 1 mile) or to measure production rates.

1. Start the chronograph at the beginning of the measured distance (e.g., a mile marker).
2. Stop the chronograph when you reach the end of the measured distance.
3. The number indicated by the central chronograph second hand on the tachymeter scale corresponds to the speed in units per hour (e.g., miles per hour or kilometers per hour).

5. Maintenance and Care

5.1 Cleaning

To maintain the appearance of your watch:

• Wipe the case and sapphire crystal with a soft, dry cloth.
• For the stainless steel bracelet, use a soft brush and soapy water, then rinse thoroughly with clean water and dry. Ensure the crown is fully pushed in before cleaning with water.
• Avoid using harsh chemicals or abrasive materials.

5.2 Water Resistance

This watch is water resistant to 660 feet (200 meters / 20 ATM). This rating makes it suitable for swimming, snorkeling, and recreational diving. However, it is crucial to:

• Ensure the crown and pushers are fully pushed in before any contact with water.
• Do not operate the crown or pushers while the watch is wet or submerged.
• Avoid exposing the watch to sudden temperature changes (e.g., hot shower immediately after cold water).
• Have the water resistance seals checked periodically by an authorized service center, especially after impacts or if the watch has been opened.

5.3 Service

An automatic mechanical movement requires periodic servicing to ensure accuracy and longevity. It is recommended to have your Tissot watch serviced by an authorized Tissot service center every 3-5 years.

6. Troubleshooting

Watch Not Running or Losing Time:

• Insufficient Power Reserve: Manually wind the watch by turning the crown clockwise 20-30 times. Wear the watch regularly for at least 8 hours a day to keep it fully wound.
• Impact: If the watch has suffered a significant impact, internal components may be damaged. Seek professional service.

Date Not Changing Correctly:

• Ensure the time is set correctly, especially the AM/PM cycle. The date changes around midnight.
• Avoid setting the date between 9 PM and 3 AM.

For issues not covered here, please contact an authorized Tissot service center.

7. Specifications

8. Warranty and Support

Tissot watches are manufactured to high standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Tissot website.

For technical support, repairs, or to locate an authorized service center, please contact Tissot customer service or visit their official website. Always ensure that any service or repair is performed by an authorized Tissot technician to maintain the warranty and integrity of your watch.

Official Tissot Website: www.tissotwatches.com
