1. Introduction
This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of your Chappee Baxi 3-Way Valve, model SX5663040. Please read this manual thoroughly before attempting any procedures to ensure proper function and longevity of the product. This valve is designed for use in central heating systems, specifically compatible with various Chappee and Baxi boiler models.
2. Safety Information
- Qualified Personnel: Installation and maintenance must only be performed by qualified and certified technicians.
- Power Disconnection: Always disconnect power to the boiler and heating system before installing, servicing, or performing any maintenance on the valve.
- System Pressure: Ensure the heating system is depressurized and cooled down before working on the valve to prevent scalding or injury.
- Leak Checks: After installation, thoroughly check for leaks before repressurizing and restarting the system.
- Original Parts: Use only original replacement parts to ensure proper function and safety.
3. Product Overview
The Chappee Baxi 3-Way Valve (model SX5663040) is a critical component in central heating systems, designed to regulate the flow of water between different circuits, typically for heating and domestic hot water. It ensures efficient distribution of heat within the system.

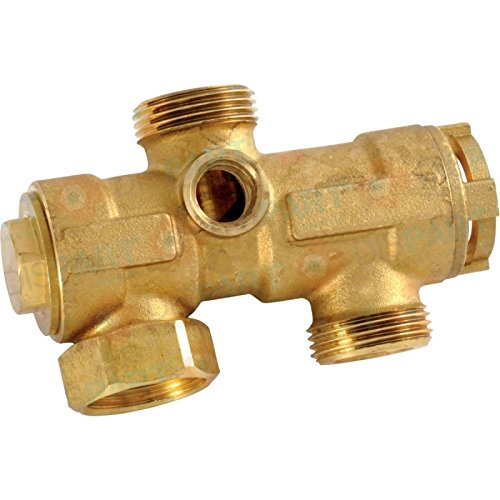

Figure 1: Front view of the Chappee Baxi 3-Way Valve SX5663040. This image shows the main body of the valve with its three connection points, indicating its function in directing fluid flow.
Figure 2: Detailed view of the Chappee Baxi 3-Way Valve SX5663040, highlighting its construction and connection points. This perspective provides a clearer look at the valve's robust metallic build.
4. Setup and Installation
4.1 Compatibility
This 3-way valve (SX5663040) is compatible with the following boiler models:
- CHAPPEE ZENIS DUO 3.24 CF
- CAPPEE ZENIS ST DUO 3.33 HTE
- CAPPEE ZENIS ST DUO 3.28 FF
- CAPPEE ZENIS ST DUO 3.24 VMC
- CAPPEE ZENIS ST DUO 3.24 CF
- CAPPEE ZENIS PLATINUM DUO 3.33
- CAPPEE ZENIS PLATINUM DUO 3.24
- CAPPEE ZENIS 3 DUO 3.33 HTE
- CAPPEE ZENIS 3 DUO 3.24 HTE
- CAPPEE ZENIS DUO 3.33 HTE
- CAPPEE ZENIS 3 DUO 3.28 FF
- CAPPEE ZENIS 3 DUO 3.24 CF
- CAPPEE LUNA ST DUO 3.33 HTE
- CAPPEE LUNA ST DUO 3.28 FF
- CAPPEE LUNA ST DUO 3.24 VMC
- CAPPEE LUNA ST DUO 3.24 CF
- CAPPEE LUNA ST + DUO 3.24 CF
- CAPPEE LUNA PLATINUM DUO 3.33 HTE
- CAPPEE LUNA PLATINUM + DUO 3.33 HTE
- CAPPEE LUNA PLATINUM + DUO 3.24 HTE
- CAPPEE LUNA DUO 3.33 HTE
- CAPPEE LUNA 3 DUO 3.33 HTE
- CAPPEE LUNA 3 DUO 3.24 HTE
- CAPPEE LUNA 3 DUO 3.28 FF
- CAPPEE LUNA DUO 3.28 FF
- CAPPEE INITIA PLUS DUO 3.33 HTE
- CAPPEE INITIA PLUS DUO 3.24 HTE
- CAPPEE INITIA DUO 3.33 HTE
- CAPPEE INITIA DUO 3.24 VMC
- CAPPEE INITIA DUO 3.24 FF
- CAPPEE INITIA 3 DUO 3.24 FF
- CAPPEE INITIA 3 DUO 3.24 VMC
- CAPPEE ZENIS DUO 3.28 FF
4.2 Installation Steps (General)
- Preparation: Ensure the boiler and heating system are completely shut down, depressurized, and cooled. Drain the system as necessary.
- Locate: Identify the existing 3-way valve or the designated installation point within the boiler system.
- Removal (if replacing): Carefully disconnect and remove the old valve, ensuring all connections are clean and free of debris.
- Installation: Position the new SX5663040 valve, ensuring correct orientation according to the system's flow direction. Connect the three pipes securely, using appropriate seals and tools to prevent leaks.
- Electrical Connections (if applicable): If the valve has electrical connections for actuation, connect them according to the boiler's wiring diagram.
- Refill and Bleed: Refill the heating system, carefully bleeding air from all radiators and the boiler.
- Leak Check: Inspect all connections for leaks. Rectify any leaks before proceeding.
- Test: Restore power to the boiler and test the system to ensure the valve operates correctly, switching between heating and hot water modes as required.
5. Operating Instructions
The Chappee Baxi 3-Way Valve SX5663040 is an automatic component controlled by the boiler's internal system. Its operation is typically managed by the boiler's control panel based on demand for heating or domestic hot water. There are no direct user controls on the valve itself.
- Automatic Operation: The valve automatically switches position to direct hot water to either the central heating circuit or the domestic hot water heat exchanger, depending on the boiler's programming and user demand.
- Boiler Controls: Refer to your specific boiler's instruction manual for details on how to set heating schedules, hot water priorities, and other system parameters that influence the valve's operation.
6. Maintenance
Regular maintenance of your heating system, including the 3-way valve, is crucial for optimal performance and longevity. All maintenance should be performed by a qualified technician.
- Annual Service: It is recommended to have your entire heating system, including the 3-way valve, serviced annually by a qualified professional.
- Inspection: During service, the technician should inspect the valve for any signs of wear, corrosion, or leaks.
- Cleaning: Internal components may require cleaning to prevent blockages or sluggish operation, especially in systems with hard water or debris.
- Replacement: If the valve shows signs of significant wear, malfunction, or leakage, it should be replaced with an original Chappee Baxi SX5663040 part.
7. Troubleshooting
If you experience issues with your heating system that you suspect are related to the 3-way valve, consult this section. For complex problems, always contact a qualified heating engineer.
| Problem | Possible Cause | Solution |
|---|---|---|
| No hot water or no heating | Valve stuck in one position; electrical fault; debris blockage. | Check boiler error codes. Inspect valve for physical obstruction. Consult a technician for electrical diagnosis or valve replacement. |
| Intermittent heating/hot water | Valve motor failing; control board issue; partial blockage. | Have a technician inspect the valve motor and boiler controls. Consider valve replacement if motor is faulty. |
| Water leak around the valve | Loose connections; worn seals; cracked valve body. | Tighten connections (ensure system is depressurized). Replace seals. If valve body is cracked, replace the entire valve. |
| Unusual noises from the valve | Air in the system; worn internal components; cavitation. | Bleed the heating system. If noises persist, a technician should inspect the valve for internal wear or damage. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Chappee |
| Manufacturer | Baxi |
| Model Number (Article Code) | SX5663040 |
| Number of Ports | 3 |
| Material | Metal |
| Item Weight | 530 grams |
| ASIN | B00IE135UE |
| First Available Date | February 12, 2014 |
9. Warranty and Support
For warranty information, please refer to the documentation provided with your boiler or contact your original point of purchase. Chappee and Baxi products are designed for durability and performance. For technical support or service, please contact a certified heating engineer or the official Chappee/Baxi customer service in your region.
Always ensure that any service or repair is carried out by qualified personnel using genuine replacement parts.
