JK FITNESS JK6097 Multifusion Gym Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of your JK FITNESS JK6097 Multifusion Gym. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper function and user safety. Retain this manual for future reference.

2. Safety Information

Your safety is paramount. Adhere to all warnings and instructions provided. Failure to do so may result in injury or damage to the equipment.

• Consult a physician before starting any exercise program.
• Read and understand all instructions in this manual before using the equipment.
• Keep children and pets away from the equipment during use.
• Place the equipment on a flat, stable surface with adequate clearance around it.
• Inspect the equipment for worn or loose parts before each use. Do not use if any components are damaged.
• Ensure all bolts and nuts are securely tightened before and during use.
• Do not exceed the maximum user weight of 150 kg.
• Use the equipment only for its intended purpose as described in this manual.

3. Product Overview

The JK FITNESS JK6097 is a multifusion gym designed for comprehensive home workouts. It features a 68kg weight stack and robust construction to support various strength training exercises.

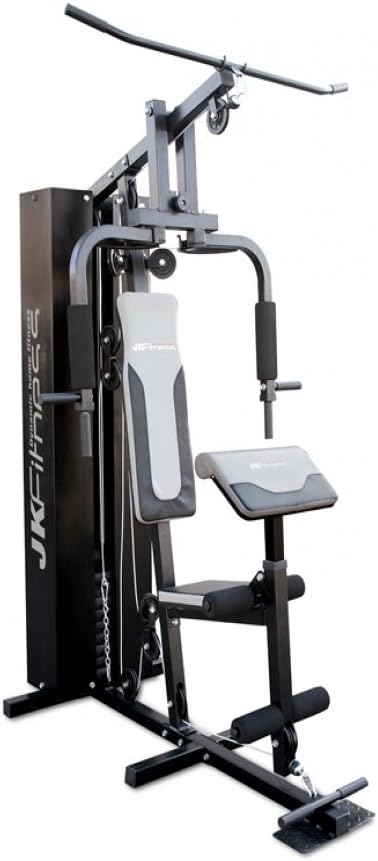

Image 1: Front view of the JK FITNESS JK6097 Multifusion Gym, showcasing the main frame, seat, backrest, weight stack, and various exercise stations.

Key Features:

• 68kg weight pack with 7kg selection increments.
• Durable tubes with dimensions 50 x 50 x 1.5 mm.
• Comfortable 50 mm thick fillings for seat and backrest.
• Pulley transfer system over bearings for smooth operation.
• 5 mm diameter steel cable for strength and longevity.
• Supports a maximum user weight of 150 kg.

4. Setup and Assembly

Assembly of the JK FITNESS JK6097 requires careful attention to detail. It is recommended that two people assemble the unit.

General Assembly Steps:

1. Unpack Components: Carefully remove all parts from the packaging and lay them out in an organized manner. Verify all components are present against the parts list (not provided in this manual, refer to manufacturer's packaging).
2. Prepare Workspace: Ensure you have a clear, level area large enough for assembly and subsequent use of the gym.
3. Follow Manufacturer's Instructions: Refer to the detailed assembly manual provided with your product for step-by-step instructions, diagrams, and specific hardware usage.
4. Secure All Connections: Ensure all bolts, nuts, and pins are securely fastened. Do not overtighten, but ensure there is no wobble.
5. Final Inspection: Before first use, thoroughly inspect the assembled gym to confirm all parts are correctly installed and secure.

5. Operating Instructions

The JK FITNESS JK6097 allows for a variety of exercises targeting different muscle groups. Always warm up before exercising and cool down afterwards.

Available Exercises:

• Chest Press: Targets chest muscles.
• Butterfly: Isolates chest muscles.
• Leg Extension: Works quadriceps.
• High Pulley (Lat Pulldown): Engages back muscles.
• Low Pulley (Seated Row): Strengthens back and biceps.
• Leg Curl: Targets hamstrings.
• Curl on Scott Bench: Isolates biceps.

For each exercise, select an appropriate weight by adjusting the pin in the weight stack. Ensure the pin is fully inserted. Maintain proper form throughout each movement. If you are unsure about correct form, consult a qualified fitness professional.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your JK FITNESS JK6097 Multifusion Gym.

• Cleaning: Wipe down the equipment with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
• Cable and Pulley Inspection: Periodically check all cables for fraying or wear. Inspect pulleys for smooth rotation and any signs of damage. Replace worn parts immediately.
• Lubrication: Apply a silicone-based lubricant to guide rods and moving parts as needed to ensure smooth operation and prevent squeaking.
• Hardware Check: Regularly inspect all nuts, bolts, and fasteners. Tighten any that have become loose.
• Upholstery: Check the seat and backrest upholstery for tears or excessive wear.

7. Troubleshooting

This section addresses common issues you might encounter with your gym equipment.

• Squeaking Noises: Check for loose bolts and lubricate moving parts, especially guide rods and pulleys.
• Rough Cable Movement: Inspect cables for damage or misalignment. Ensure pulleys are clean and lubricated.
• Loose Components: Re-tighten all nuts and bolts. If a part repeatedly loosens, contact customer support.
• Weight Stack Sticking: Ensure guide rods are clean and well-lubricated. Check for any obstructions in the weight stack path.

If you encounter an issue not listed here or if the suggested solutions do not resolve the problem, please contact JK FITNESS customer support.

8. Technical Specifications

9. Warranty and Support

For information regarding warranty coverage, parts replacement, or technical assistance, please refer to the warranty card included with your product or visit the official JK FITNESS website. Ensure you have your model number (JK6097) and proof of purchase available when contacting support.
