A-iPower SUA12000E Portable Generator Instruction Manual

Product Overview

The A-iPower SUA12000E is a heavy-duty gas-powered portable generator designed to provide reliable power for various applications, including construction sites, recreational vehicles, and as a whole-house backup during emergencies. It delivers 12,000 starting watts and 9,000 running watts, capable of powering major appliances and tools.

Image: The A-iPower SUA12000E portable generator, showcasing its robust frame and control panel.

Key Features:

• High Power Output: 12,000 starting watts and 9,000 running watts for demanding power needs.
• Powerful Engine: Equipped with a 459 cc OHV 4-stroke engine for consistent performance.
• Electric Start: Provides quick, easy, and convenient startup.
• Large Fuel Tank: A 7-gallon gasoline fuel tank offers an average run time of 7 hours at 100% load and 9 hours at 50% load.
• Versatile Outlets: Includes 2x 5-20R Duplex GFCI (20A, 120V), 1x L14-30R (30A, 120/240V), 1x 14-50R (50A, 120/240V), and 1x Multifunction Port USB Ready Automotive Style Outlet (8.3A, 12V). All outlets feature rubber covers for added safety.
• Low Oil Alert & Shutdown: Automatic low oil shutdown protects the engine from damage.

Image: The A-iPower SUA12000E generator depicted in various use cases, including emergency backup, power outage, home backup, jobsite, camping, and party settings.

Safety Information

Always read and understand the entire instruction manual before operating the generator. Failure to follow safety instructions can result in serious injury or death.

• Carbon Monoxide Hazard: Generators produce carbon monoxide, a colorless, odorless, poisonous gas. Operate the generator outdoors in a well-ventilated area, far away from windows, doors, and vents. Never operate indoors or in partially enclosed spaces.
• Electrical Safety: Do not operate the generator in wet conditions. Ensure all electrical connections are secure and properly grounded. Use only approved extension cords rated for outdoor use and the generator's power output.
• Fuel Safety: Gasoline is highly flammable. Always refuel in a well-ventilated area with the engine off and cool. Do not smoke or allow open flames near the generator. Store gasoline in approved containers away from living areas.
• Hot Surfaces: The generator's engine and muffler become very hot during operation. Avoid touching hot surfaces to prevent burns. Allow the generator to cool for at least 2 minutes before handling or storing.
• Proper Grounding: Ensure the generator is properly grounded to prevent electrical shock. Consult a qualified electrician for permanent connections to a residence's electrical system.

Refer to the warning labels on the generator for additional safety information.

Setup

Before first use, the generator requires some assembly and fluid additions.

Unboxing and Initial Assembly:

Image: Contents of the A-iPower SUA12000E generator box, including the generator, oil, tool kit, 12V DC charging battery cable, battery, manual, and quick start guide.

1. Wheel Assembly: Attach the large 9-inch wheels to the generator frame. Simply remove the cotter pin and spacer, slide the axle through the frame, and reinsert the spacer and cotter pin to secure the wheel. Repeat for the other wheel.
2. Base Stand Attachment: Securely attach the base stand to the opposite side of the frame from the wheels using the provided hardware.
3. Add Engine Oil: Locate the oil fill cap/dipstick. Using the provided funnel, carefully pour the supplied engine oil into the engine. Check the oil level with the dipstick to ensure it is at the proper level.
4. Connect Battery: Connect the battery terminal posts. Ensure the connections are tight and secure.
5. Add Fuel: Open the fuel cap and carefully pour fresh, unleaded gasoline into the 7-gallon fuel tank. Do not overfill. Check the fuel gauge on top of the generator to confirm the fuel level.

Setup Demonstration Video:

Operating Instructions

Follow these steps to safely start and operate your A-iPower SUA12000E generator.

Starting the Generator:

1. Position the Generator: Place the generator on a flat, level surface outdoors, away from any buildings, windows, or vents.
2. Open Fuel Valve: Turn the fuel valve to the "ON" position.
3. Apply Choke: Slide the choke lever to the "ON" position (full choke).
4. Electric Start: Press the electric start button. Once the engine starts, slowly slide the choke lever to the "RUN" position (off choke).
5. Recoil Start (Alternative): If the electric start is unavailable, use the recoil pull cord. Pull the cord firmly until the engine starts. Once running, slowly slide the choke lever to the "RUN" position.
6. Connect Appliances: Once the generator is running smoothly, you can connect your appliances or transfer switch to the appropriate outlets.

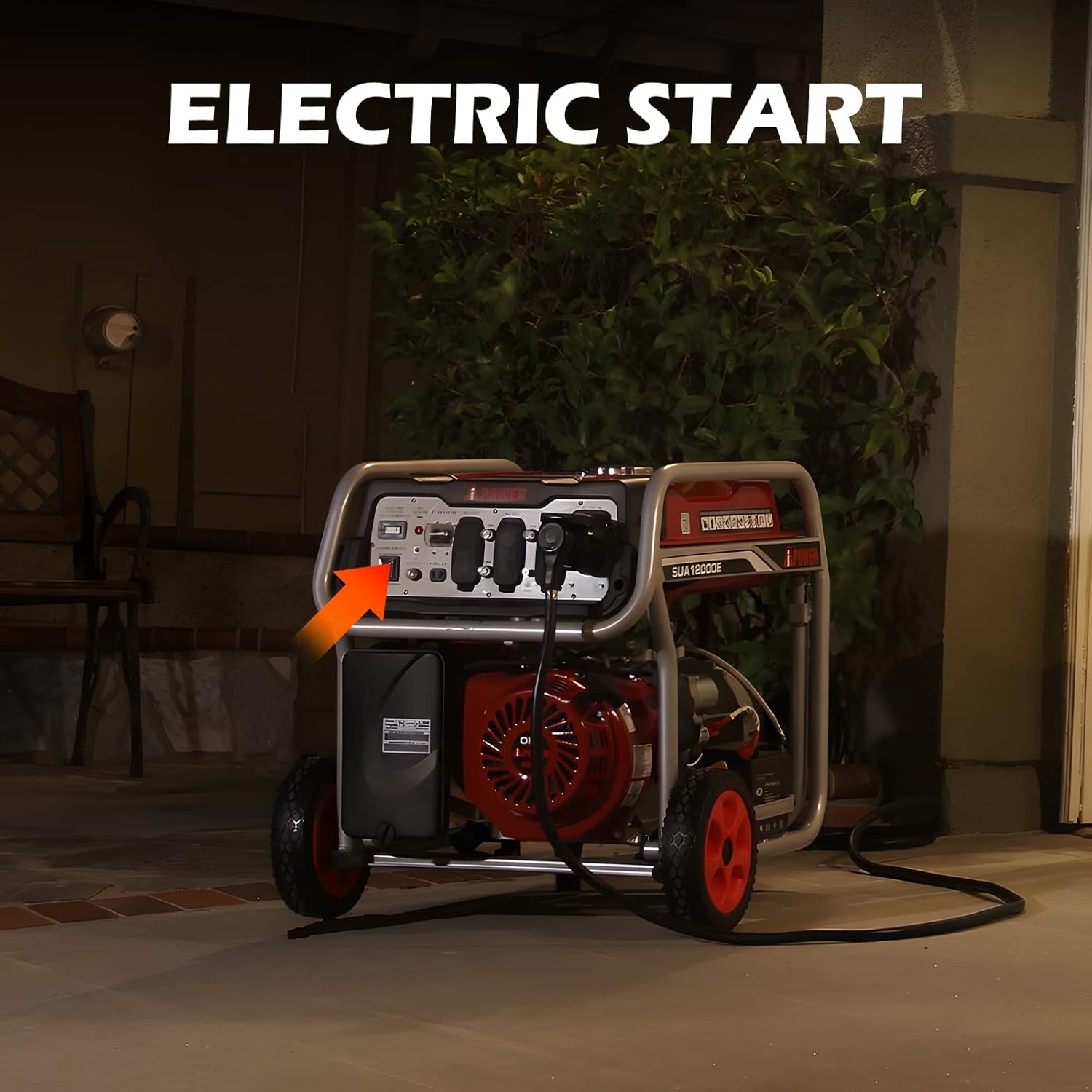

Image: The A-iPower SUA12000E generator with an arrow pointing to the electric start button, emphasizing its ease of use.

Stopping the Generator:

1. Disconnect Load: Disconnect all electrical loads from the generator.
2. Turn Off Engine: Turn the engine switch to the "OFF" position.
3. Close Fuel Valve: Turn the fuel valve to the "OFF" position.

Control Panel and Outlets:

The generator features a comprehensive control panel with various outlets to suit different power requirements.

Image: A detailed view of the A-iPower SUA12000E generator's versatile control panel, showing various outlets including 120V AC, 120/240V AC, 12V DC, and the engine switch.

• 2x 5-20R Duplex GFCI (20A, 120V): Standard household outlets with Ground Fault Circuit Interrupter for enhanced safety.
• 1x L14-30R (30A, 120/240V): Twist-lock outlet for higher power demands, commonly used for transfer switches or RVs.
• 1x 14-50R (50A, 120/240V): Heavy-duty outlet for powering large appliances or a whole house via a transfer switch.
• 1x Multifunction Port USB Ready Automotive Style Outlet (8.3A, 12V): For charging 12V devices or using a USB adapter.
• Hour Meter: Displays the total operating hours, useful for tracking maintenance intervals.
• Low Oil Indicator: Illuminates when the oil level is low, prompting the user to add oil.
• Main Breaker: Protects the generator from overload.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your generator.

• Check Oil Level: Before each use, check the engine oil level and top up if necessary. Change the oil after the first 20 hours of operation, and then every 100 hours or annually.
• Air Filter: Inspect the air filter regularly and clean or replace it as needed, especially in dusty conditions.
• Spark Plug: Inspect and clean the spark plug annually or every 100 hours. Replace if worn.
• Fuel System: Use fresh, stabilized gasoline. If storing the generator for an extended period, drain the fuel tank and carburetor to prevent fuel degradation.
• General Cleaning: Keep the generator clean and free of debris. Regularly check for loose fasteners or damaged components.

Troubleshooting

This section provides solutions to common operational issues. For more complex problems, consult a qualified technician.

Specifications

Warranty and Support

A-iPower stands behind the quality of its products. For specific warranty details, please refer to the warranty information included with your generator or visit the official A-iPower website.

For technical assistance, parts, or customer service, please contact A-iPower customer support. They are known for their responsive and helpful service.

You can also download the full user manual for detailed information:

Download User Manual (PDF)
