FEBEST CHSB-002 Front Stabilizer Bushing 18mm Instruction Manual

1. Product Overview

The FEBEST CHSB-002 is a high-quality rubber stabilizer bushing designed for the front axle of compatible vehicles. This component plays a crucial role in the vehicle's suspension system, helping to reduce body roll during turns and maintain tire contact with the road for improved handling and stability. The bushing has an 18mm inner diameter and is manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability.

Equivalent OEM part numbers include General Motors 96839849, 2K0511413A, 96434541, 96474041, 2K0511413B, 2K0511413C, and 2K0511413D.

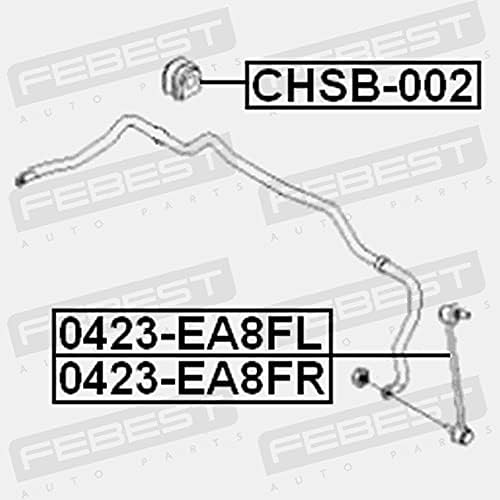

Figure 1: Diagram illustrating the FEBEST CHSB-002 stabilizer bushing (labeled CHSB-002) and its position within the suspension system.

2. Installation Instructions

Installation of the FEBEST CHSB-002 stabilizer bushing requires specialized tools and automotive knowledge. It is highly recommended that this procedure be performed by a qualified professional mechanic. Improper installation can lead to vehicle damage, compromised handling, and safety risks.

Safety Precautions:

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Ensure the vehicle is securely supported on jack stands or a lift before beginning any work. Never rely solely on a jack.
• Disconnect the vehicle's battery if working near electrical components.
• Refer to the vehicle manufacturer's service manual for specific torque specifications and procedures.

General Installation Steps (Consult Vehicle Service Manual for Details):

1. Prepare the Vehicle: Park the vehicle on a level surface, engage the parking brake, and lift the front end using a jack and secure it with jack stands. Remove the front wheels.
2. Locate Stabilizer Bar: Identify the front stabilizer bar and the existing bushings.
3. Remove Old Bushings: Loosen and remove the bolts securing the stabilizer bar brackets. Carefully remove the old, worn bushings. Note their orientation.
4. Clean Mounting Area: Clean any rust, dirt, or debris from the stabilizer bar and the mounting surfaces.
5. Install New Bushings: Apply a small amount of silicone-based grease (if recommended by vehicle manufacturer or bushing instructions) to the inner surface of the new FEBEST CHSB-002 bushings. Position the new bushings onto the stabilizer bar in the correct orientation.
6. Reinstall Brackets: Place the stabilizer bar brackets over the new bushings and secure them with the original bolts. Tighten bolts to the vehicle manufacturer's specified torque settings.
7. Reassemble: Reinstall the front wheels and lower the vehicle.
8. Test Drive: Perform a short test drive to ensure proper function and check for any unusual noises or handling characteristics.

Figure 2: The FEBEST CHSB-002 stabilizer bushing, a durable rubber component, as supplied in its packaging.

3. Operation

The FEBEST CHSB-002 stabilizer bushing functions as a critical interface between the vehicle's stabilizer bar (also known as an anti-roll bar or sway bar) and the chassis. Its primary role is to allow the stabilizer bar to rotate smoothly while minimizing unwanted movement and noise. By providing a firm yet flexible connection, the bushing helps to transfer forces from one side of the suspension to the other, effectively reducing body roll during cornering and improving the vehicle's overall stability and handling characteristics.

4. Maintenance

Stabilizer bushings are wear-and-tear components and do not typically require routine maintenance beyond periodic inspection. It is recommended to inspect the bushings during regular vehicle service intervals or whenever suspension components are being checked.

Inspection Points:

• Visual Check: Look for cracks, tears, hardening, or excessive wear on the rubber material.
• Movement: Check for excessive play or looseness between the stabilizer bar and the bushing.
• Noise: Listen for squeaking, clunking, or rattling noises coming from the front suspension, especially over bumps or during turns, which can indicate worn bushings.

If any signs of wear or damage are observed, the bushing should be replaced promptly to maintain optimal vehicle handling and safety.

5. Troubleshooting

Common issues related to worn or failing stabilizer bushings typically manifest as noticeable changes in vehicle handling or audible noises from the suspension.

Symptoms of Worn Stabilizer Bushings:

• Squeaking Noises: Often heard when going over speed bumps or uneven surfaces, especially in cold weather.
• Clunking or Rattling: May occur when driving over bumps or potholes, indicating excessive play.
• Increased Body Roll: The vehicle may lean more noticeably during turns.
• Loose Steering Feel: A less precise or "sloppy" feeling in the steering.

If you experience any of these symptoms, it is advisable to have your vehicle's suspension system inspected by a qualified mechanic. Worn bushings can compromise vehicle stability and should be replaced to restore proper handling and safety.

6. Technical Specifications

7. Vehicle Compatibility

The FEBEST CHSB-002 stabilizer bushing is compatible with a range of vehicles. Please verify compatibility with your specific vehicle model and year using the provided OEM part numbers or by consulting your vehicle's service manual.

Known Compatible Models:

• VW Caddy III Break (2KB, 2KJ, 2CB, 2CJ)
• VW Caddy III (2KA, 2KH, 2CA, 2CH)
• VW CADDY IV Break (SAB, SAJ)
• VW CADDY IV Kasten (SAA, SAH)
• VW CADDY ALLTRACK Break (SAB)
• VW CADDY ALLTRACK Kasten (SAA)
• Chevrolet Optra Kombi
• Chevrolet Optra Sedan (1J, J200)

Note: Always cross-reference with your vehicle's existing part numbers or consult a professional to ensure correct fitment.

8. Warranty and Support

For information regarding the warranty period and terms for the FEBEST CHSB-002 stabilizer bushing, please refer to the documentation provided with your purchase or contact the retailer from whom the product was acquired. FEBEST products are manufactured to high standards, and specific warranty details may vary by region and distributor.

For technical support, installation queries, or any other product-related assistance, please contact your authorized FEBEST dealer or the customer service department of your point of purchase. When contacting support, please have your product model number (CHSB-002) and purchase details readily available.
