FEBEST 0115-KLH18 Inner CV Joint Boot Kit Instruction Manual

1. Introduction

This manual provides essential information for the FEBEST 0115-KLH18 Inner CV Joint Boot Kit. This kit is designed to replace a damaged or worn inner constant velocity (CV) joint boot, protecting the CV joint from contaminants and ensuring its proper lubrication and function. This specific kit is compatible with TOYOTA GRANVIA/GRAND HIACE models KCH1/RCH11/VCH1/VCH2 from 1995-2005, corresponding to OEM part number 04438-25010.

A properly functioning CV joint boot is crucial for the longevity of your vehicle's drive train components. Regular inspection and timely replacement of a damaged boot can prevent costly repairs to the entire CV joint assembly.

Image 1.1: The FEBEST 0115-KLH18 Inner CV Joint Boot Kit, including the boot, clamps, and grease. This kit provides the necessary components for replacing a damaged inner CV joint boot.

2. Installation Guidelines

The installation of a CV joint boot requires specialized tools and automotive knowledge. It is highly recommended that this procedure be performed by a qualified professional mechanic. Improper installation can lead to premature failure of the CV joint or other drive train components.

2.1. General Steps (Professional Installation Recommended)

1. Vehicle Preparation: Safely lift and support the vehicle. Remove the wheel and tire assembly.
2. Axle Removal: Disconnect necessary suspension components to allow for removal of the drive axle from the transmission/transaxle.
3. Old Boot Removal: Carefully remove the old, damaged CV joint boot and clamps. Clean any old grease and debris from the CV joint.
4. CV Joint Inspection: Inspect the CV joint for any signs of wear, pitting, or damage. If the joint itself is damaged, replacing only the boot will not resolve the issue.
5. Grease Application: Apply the new, specified CV joint grease (included in the kit) thoroughly into the CV joint, ensuring all bearing surfaces are lubricated.
6. New Boot Installation: Slide the new FEBEST boot onto the axle shaft and over the CV joint. Ensure it is seated correctly in its grooves.
7. Clamping: Secure the boot with the new clamps provided in the kit, ensuring a tight seal to prevent contamination.
8. Reassembly: Reinstall the drive axle and all disconnected suspension components. Torque all fasteners to manufacturer specifications.
9. Final Check: Lower the vehicle and perform a test drive to ensure proper function and no abnormal noises.

Warning: Always refer to the vehicle manufacturer's service manual for specific torque specifications and procedures for your vehicle model.

3. Function and Operation

The inner CV joint boot serves as a protective cover for the inner constant velocity joint. This joint is a critical component of your vehicle's drive axle, allowing for power transmission to the wheels while accommodating changes in suspension travel and steering angles. The boot's primary function is to:

• Contain Lubricant: Keep the specialized grease within the CV joint, ensuring continuous lubrication of its internal components.
• Prevent Contamination: Act as a barrier against dirt, water, road debris, and other contaminants that can cause abrasive wear and corrosion to the precision-machined surfaces of the CV joint.

A properly installed and intact boot ensures the CV joint operates smoothly and quietly, contributing to the overall performance and safety of your vehicle.

4. Maintenance

Regular inspection of your vehicle's CV joint boots is essential for preventative maintenance. While the FEBEST 0115-KLH18 boot is designed for durability, external factors can cause damage.

4.1. Inspection Schedule

• Inspect CV joint boots during every oil change or routine vehicle service.
• Visually check for cracks, tears, punctures, or signs of grease leakage around the boot and clamps.
• Ensure the clamps are secure and the boot is not twisted or dislodged.

If any damage or grease leakage is observed, prompt replacement of the boot is recommended to prevent damage to the CV joint itself.

5. Troubleshooting

This section addresses common issues related to CV joint boots. Note that these symptoms typically indicate a damaged boot or a failing CV joint, which the boot is designed to protect.

5.1. Common Symptoms of a Failing CV Joint Boot or Joint

• Grease on Wheel or Undercarriage: A visible spray of grease on the inside of the wheel, tire, or undercarriage is a strong indicator of a torn or leaking CV boot.
• Clicking or Popping Noise (especially when turning): This is a classic symptom of a failing outer CV joint, often caused by prolonged exposure to contaminants due to a torn boot. While this kit is for the inner joint, a damaged inner boot can also lead to joint failure and similar noises, though typically less pronounced during turns.
• Vibration During Acceleration: A worn or damaged inner CV joint can cause vibrations that are felt through the vehicle, particularly during acceleration.
• Clunking Noise: A clunking sound when shifting from drive to reverse or vice versa, or when accelerating, can indicate excessive play in a worn CV joint.

If you experience any of these symptoms, have your vehicle inspected by a qualified mechanic immediately. Early detection and repair can prevent more extensive and costly damage.

6. Product Specifications

Detailed specifications for the FEBEST 0115-KLH18 Inner CV Joint Boot Kit:

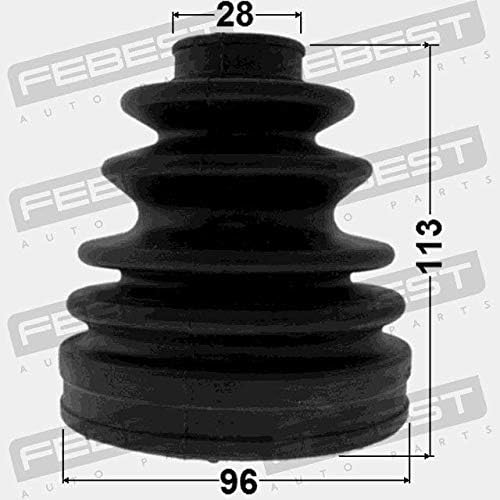

Image 6.1: Dimensional drawing illustrating the key measurements of the CV joint boot: 96mm, 113mm, and 28mm. These dimensions are critical for ensuring proper fitment.

7. Warranty Information

Specific warranty terms and conditions for FEBEST products, including the 0115-KLH18 Inner CV Joint Boot Kit, are provided by the manufacturer or authorized seller at the time of purchase. It is recommended to retain your proof of purchase and consult the seller or FEBEST's official website for detailed warranty coverage, duration, and claim procedures.

Generally, warranties cover defects in materials and workmanship under normal use and service. Damage resulting from improper installation, accident, misuse, or unauthorized modification is typically not covered.

8. Customer Support

For technical assistance, product inquiries, or support regarding the FEBEST 0115-KLH18 Inner CV Joint Boot Kit, please contact your authorized FEBEST dealer or the point of purchase. You may also visit the official FEBEST brand store for additional product information and resources:

Visit the FEBEST Store on Amazon

When contacting support, please have your product model number (0115-KLH18) and purchase details readily available.
