Kuriyama KAS-E601 Threaded Swivel Aluminum Male Adaptor User Manual

Product Overview

The Kuriyama KAS-E601 is a specially-designed Quick-Acting Swivel Coupler engineered to minimize torque and twisting that can occur when a hose is in service. This adaptor features a robust aluminum construction with a SS304 threaded NPT insert, ensuring durability and reliable performance in industrial applications.

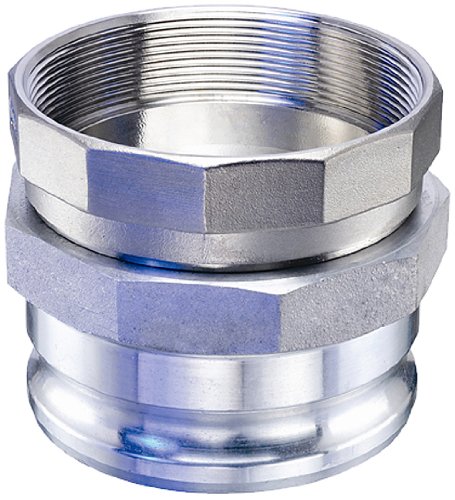

Image: Kuriyama KAS-E601 Threaded Swivel Aluminum Male Adaptor. This image displays the two main components of the adaptor: the threaded male end and the swivel quick-acting coupler end, both made of metallic material.

Key features include:

• New hex design provides easier assembly and improved product flow.
• Quick-Acting Swivel Coupling for reduced hose stress.
• Constructed from durable aluminum with a SS304 threaded NPT insert.

Setup and Installation

Proper installation is crucial for the safe and effective operation of the KAS-E601 adaptor. Follow these steps carefully:

1. Inspect Components: Before installation, visually inspect the adaptor for any signs of damage, manufacturing defects, or foreign debris. Ensure all threads are clean and free of burrs.
2. Prepare Connections: Ensure the mating hose or pipe connections are clean, properly threaded, and free from damage. For NPT threads, consider using an appropriate thread sealant (e.g., PTFE tape or pipe dope) to ensure a leak-free connection.
3. Thread Engagement: Carefully align the male NPT threaded insert of the KAS-E601 adaptor with the female NPT connection. Hand-tighten the connection to ensure proper thread engagement and prevent cross-threading.
4. Tighten Connection: Using an appropriate wrench on the hex portion of the adaptor, tighten the connection to the recommended torque specifications for NPT fittings of this size. Avoid over-tightening, which can damage threads or the fitting itself.
5. Connect Swivel End: Once the threaded end is securely installed, connect the quick-acting swivel end to the corresponding female quick-acting coupler on your hose or equipment. Ensure the connection is fully engaged and locked into place.
6. Pressure Test: After installation, slowly introduce pressure to the system and carefully check for any leaks at the connection points. Address any leaks immediately by re-tightening or re-sealing the connection as necessary.

Note: Always refer to the specific torque recommendations for your system and the NPT thread size being used. Consult a qualified professional if you are unsure about any installation steps.

Operating Instructions

The Kuriyama KAS-E601 adaptor is designed for straightforward operation within compatible quick-acting coupling systems. Its primary function is to provide a secure, swivel connection that reduces hose twisting and torque.

• Connection: To connect, align the quick-acting swivel end of the KAS-E601 with the mating female coupler. Push the two halves together firmly until the locking mechanism engages. A distinct "click" or visual confirmation of the locking arms being fully seated indicates a secure connection.
• Disconnection: To disconnect, ensure the system pressure is relieved before attempting to separate the couplers. Operate the locking mechanism (e.g., pull back a collar, lift levers) on the female coupler to release the KAS-E601 adaptor. Once released, pull the two halves apart.
• Swivel Function: The swivel feature allows the connected hose to rotate freely, preventing kinks, twists, and stress on the hose and connections during operation. This reduces wear and tear and extends the life of the hose.

Important: Never attempt to connect or disconnect the adaptor under pressure. Always ensure the system is depressurized before handling connections.

Maintenance

Regular maintenance ensures the longevity and reliable performance of your KAS-E601 adaptor.

• Routine Inspection: Periodically inspect the adaptor for signs of wear, corrosion, cracks, or deformation. Pay close attention to the threads, the swivel mechanism, and the quick-acting coupler interface.
• Cleaning: Keep the adaptor clean and free of dirt, debris, and corrosive substances. Use a mild detergent and water if necessary, and ensure it is thoroughly dried before re-use or storage.
• Lubrication: The swivel mechanism may benefit from occasional lubrication with a compatible lubricant, especially if it becomes stiff or difficult to rotate. Ensure the lubricant is suitable for the application and will not degrade the aluminum or SS304 components.
• Seal Replacement: If the adaptor uses internal O-rings or seals for the swivel function or quick-acting connection, inspect them for wear or damage. Replace worn seals promptly to prevent leaks and maintain optimal performance.
• Storage: When not in use, store the adaptor in a clean, dry environment, protected from extreme temperatures and corrosive atmospheres.

Caution: Do not use harsh chemicals or abrasive materials for cleaning, as these can damage the adaptor's finish or material integrity.

Troubleshooting

This section addresses common issues that may arise with the KAS-E601 adaptor.

If you encounter issues not listed here or if solutions do not resolve the problem, contact Kuriyama customer support or a qualified technician.

Specifications

Warranty and Support

For information regarding product warranty, technical support, or service, please contact Kuriyama of America, Inc. directly. Details can typically be found on the manufacturer's official website or through your authorized distributor.

It is recommended to retain your purchase receipt as proof of purchase for any warranty claims.

Manufacturer: Kuriyama of America, Inc.

For further assistance, visit the Kuriyama website or contact their customer service department.
