Empi Tens/NMES Safety Connection Lead Wires Instruction Manual

Introduction

This manual provides essential instructions for the safe and effective use of the Empi Tens/NMES Safety Connection Lead Wires, Model 193068-100. These lead wires are designed for connecting electrodes to compatible Transcutaneous Electrical Nerve Stimulation (TENS) and Neuromuscular Electrical Stimulation (NMES) devices.

Safety Information

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

• Always inspect lead wires for damage before each use. Do not use if wires are frayed, broken, or have exposed conductors.
• Ensure connections are secure to prevent intermittent contact, which can cause discomfort or reduce effectiveness.
• Keep lead wires away from water and excessive moisture.
• Store lead wires properly to prevent kinking or damage.
• Use only with compatible TENS/NMES devices and electrodes as specified by your healthcare professional or device manufacturer.

Product Overview

The Empi Tens/NMES Safety Connection Lead Wire (Part No. 193068-100) is a single lead wire, approximately 100cm (40 inches) in length. It features one female insert connection designed to plug into a compatible TENS/NMES device, and two electrode pin connections for attaching to self-adhesive electrodes.

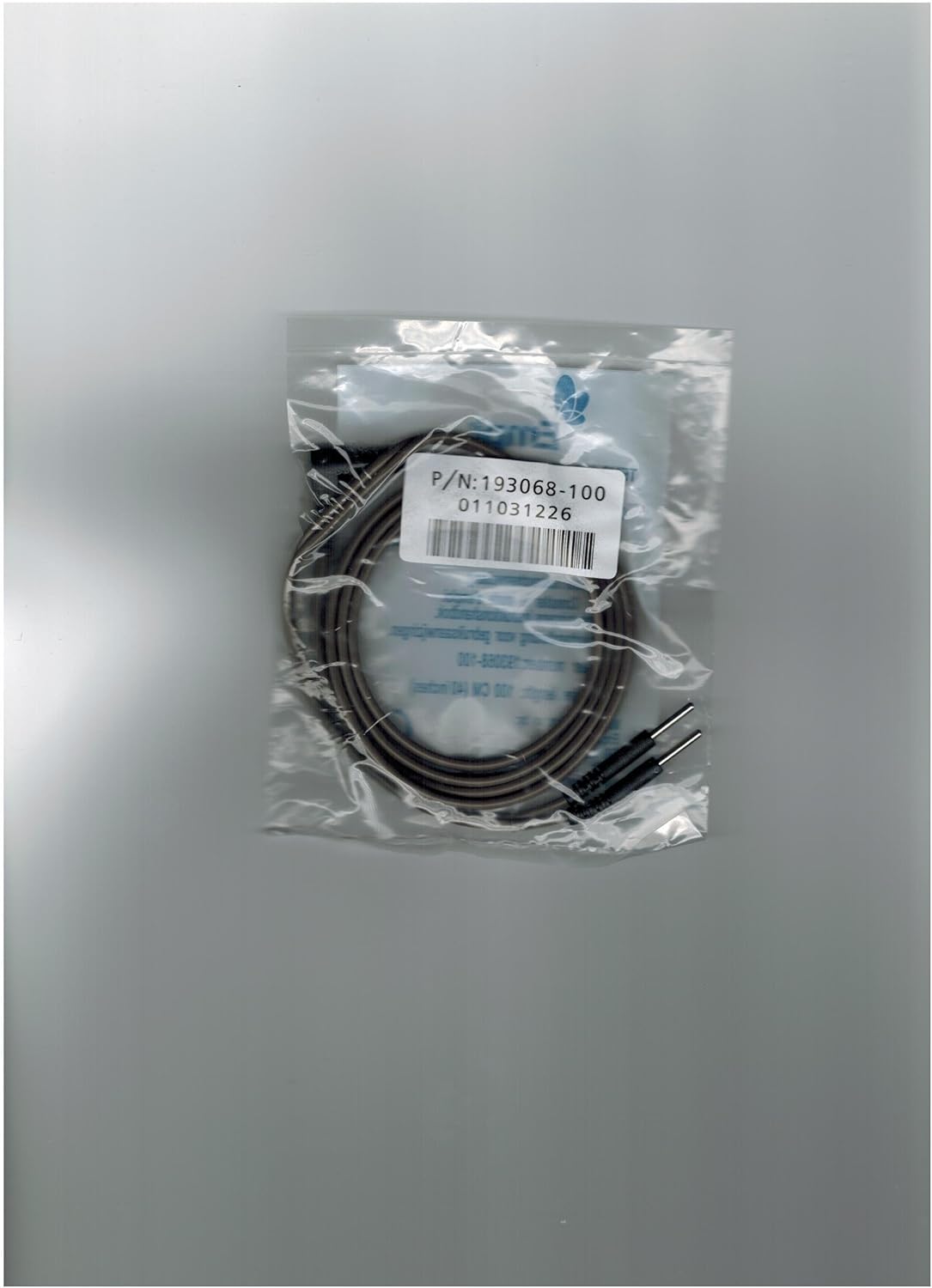

Image: Empi Tens/NMES Safety Connection Lead Wire (Model 193068-100) shown in its sealed packaging. The packaging label displays "P/N: 193068-100". The lead wire is coiled inside, with the two electrode pin connections visible at one end.

• Female Insert Connection: Connects to the TENS/NMES unit.
• Electrode Pin Connections: Two standard 2mm pins for attaching to electrodes.
• Length: 100cm (approximately 40 inches).

Setup

1. Inspect Wires: Before each use, carefully examine the lead wire for any signs of damage, such as cuts, fraying, or exposed metal. Do not use damaged wires.
2. Connect to Electrodes: Insert the two pin connectors of the lead wire firmly into the corresponding receptacles on your self-adhesive electrodes. Ensure a snug fit.
3. Connect to TENS/NMES Unit: Plug the female insert connection end of the lead wire into the appropriate output port on your TENS or NMES device. Ensure it is fully inserted and secure.
4. Placement: Apply the electrodes to the skin according to the instructions provided with your TENS/NMES device and as advised by your healthcare professional.

Operating Instructions

Once the lead wires are securely connected to both the electrodes and the TENS/NMES unit, you can proceed with operating your stimulation device. Always refer to your specific TENS/NMES device's instruction manual for detailed operating procedures, intensity settings, and treatment durations.

• Ensure the TENS/NMES unit is turned off before connecting or disconnecting lead wires or electrodes.
• Gradually increase stimulation intensity to a comfortable level as per your device's instructions.
• Monitor electrode adhesion and lead wire connections throughout the treatment session.
• If you experience any discomfort or unusual sensations, reduce the intensity or stop the treatment immediately.

Maintenance

• Cleaning: After each use, gently wipe the lead wires with a soft, damp cloth. Do not use abrasive cleaners or immerse the wires in water. Ensure they are completely dry before storage.
• Storage: Coil the lead wires loosely and store them in a clean, dry place, away from direct sunlight and extreme temperatures. Avoid sharp bends or kinks that could damage the internal wiring.
• Inspection: Regularly inspect the lead wires for any signs of wear and tear. Replace them immediately if any damage is observed to ensure safe and effective therapy.

Troubleshooting

Specifications

• Model Number: 193068-100
• Length: 100 cm (approximately 40 inches)
• Connector Type (Device End): Female Insert Connection
• Connector Type (Electrode End): Two Pin Connections (standard 2mm)
• Compatible Devices: TENS/NMES Devices
• Manufacturer: EMPI

Warranty and Support

For information regarding warranty, returns, or technical support, please refer to the documentation provided with your original TENS/NMES device or contact the manufacturer, EMPI, directly. Specific warranty details for accessory items like lead wires may vary.
