ColorRite Automotive Touch-up Paint Instruction Manual

1. Product Overview

The ColorRite Quart Automotive Touch-up Paint is formulated for a superior color match and protection against environmental elements. This product is specifically designed for Porsche All vehicles with the original color code L6601 Slate Grey (1966). It is a pre-reduced, color-only package intended for application with a spray gun.

ColorRite guarantees that this paint will match the original factory color of your Porsche All vehicle. For optimal results, always perform a "spray-out" test on a non-critical surface before applying to the intended part.

Key Features:

• Exact Color Match: Designed to match Porsche All color code L6601 (1966) Slate Grey.
• Professional Grade: High-quality paint for durable and lasting repairs.
• Ready-to-Spray: Pre-reduced formula suitable for direct use with a paint gun.
• Quart Size: Ideal for larger repair areas such as a car door or multiple panels.

2. Setup and Preparation

Proper preparation is crucial for achieving a high-quality finish and ensuring the paint adheres correctly. Follow these steps carefully:

2.1 Safety Precautions

• Work in a well-ventilated area to avoid inhaling paint fumes.
• Wear appropriate personal protective equipment (PPE), including a respirator, safety glasses, and gloves.
• Keep paint away from open flames, sparks, and heat sources.
• Store paint in a cool, dry place, out of reach of children and pets.

2.2 Surface Preparation

1. Clean the Area: Thoroughly clean the repair area with a wax and grease remover to eliminate contaminants.
2. Sand the Surface: Lightly sand the repair area with fine-grit sandpaper (e.g., 600-800 grit wet sanding) to create a smooth, even surface for paint adhesion. Feather the edges of the repair into the surrounding original paint.
3. Re-clean: Clean the sanded area again to remove any sanding dust.
4. Masking: Mask off surrounding areas that are not to be painted using automotive masking tape and paper or plastic sheeting.

2.3 Environmental Conditions

Ensure the ambient temperature is between 65°F (18°C) and 75°F (24°C) and humidity is moderate. Avoid painting in direct sunlight or in excessively dusty environments.

3. Operating Instructions (Paint Application)

This ColorRite paint is pre-reduced and ready for use with a spray gun. Follow these steps for proper application:

3.1 Perform a Spray-Out Test

Before applying paint to your vehicle, it is critical to perform a "spray-out" test. Apply the paint to a test panel or an inconspicuous area (e.g., inside a door jamb) to verify color match and practice your spray technique. This step is essential, especially for TriCoat colors, which require two different colors (a base color and a pearl effect) to achieve the final match. While this specific product is a single color, testing ensures proper application technique and desired finish.

Image 1: ColorRite Quart Can of Urethane Colorcoat in Slate Grey. This image shows the product packaging, a quart-sized can of automotive paint with the ColorRite logo and "Urethane Colorcoat" text. A small color swatch in the top left corner indicates the Slate Grey color.

3.2 Spray Gun Setup

• Ensure your spray gun is clean and in good working order.
• Adjust the air pressure and fluid settings according to your spray gun manufacturer's recommendations and the results of your spray-out test.

3.3 Application Steps

1. Shake Well: Thoroughly shake the quart can for several minutes to ensure all pigments are evenly mixed.
2. First Coat (Tack Coat): Apply a light, even tack coat over the prepared area. This coat should be thin and slightly transparent.
3. Flash Time: Allow 5-10 minutes of flash time between coats, or until the paint appears dull and no longer wet.
4. Subsequent Coats: Apply medium, even coats, overlapping each pass by about 50%. Continue applying coats until the desired coverage and color depth are achieved. Typically, 2-3 coats are sufficient.
5. Clear Coat (Optional but Recommended): For enhanced durability and gloss, apply a compatible clear coat after the final color coat has flashed. Follow the clear coat manufacturer's instructions for application and drying.

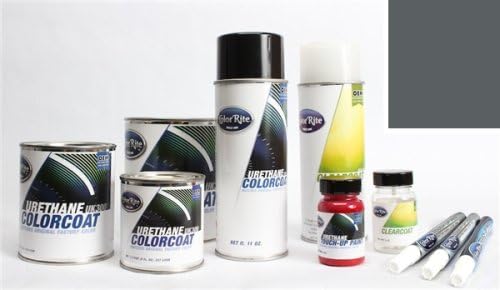

Image 2: A range of ColorRite automotive paint products in various sizes and forms, including quart cans, aerosol cans, small bottles, and paint pens. This image illustrates the different product options available from ColorRite for touch-up and repair.

4. Maintenance

Once the paint has fully cured, maintain the repaired area as you would the rest of your vehicle's finish. This includes regular washing with appropriate automotive soaps and waxing to protect the paint.

4.1 Paint Storage

• Store any remaining paint in its original sealed container in a cool, dry, and dark place.
• Ensure the lid is tightly sealed to prevent air exposure and drying.

5. Troubleshooting

If you encounter issues during or after application, consider the following common problems and solutions:

• Poor Color Match:
  • Ensure the correct color code (L6601 Slate Grey) was selected for your Porsche All vehicle.
  • Verify that the original paint on your vehicle has not faded significantly over time.
  • Confirm proper application technique, as paint thickness can affect perceived color.
• Uneven Application / Runs / Sags:
  • This often indicates applying paint too heavily or holding the spray gun too close to the surface.
  • Practice on a test panel to refine your spray technique, ensuring even, consistent passes.
  • Ensure adequate flash time between coats.
• Poor Adhesion:
  • Thorough surface preparation is key. Ensure the area was properly cleaned and sanded before painting.
  • Avoid painting in cold or humid conditions.

If issues persist, please refer to the Support section for assistance from ColorRite specialists.

6. Specifications

7. Color Match Guarantee

ColorRite guarantees that this paint will match the ORIGINAL factory color of your Porsche All vehicle, provided the correct color code (L6601 Slate Grey) was selected. This guarantee applies to the initial color match of the product when applied correctly to a properly prepared surface. Variations in application technique, existing paint fade, or incorrect color code selection are not covered under this guarantee.

8. Support and Contact Information

ColorRite is dedicated to helping you achieve the best possible results with your automotive touch-up paint. If you have questions, require assistance with application, or need troubleshooting advice, a team of experienced specialists is available to support you.

For further assistance, please visit the official ColorRite website or contact their customer support directly. Refer to the product packaging or the ColorRite website for the most current contact details.
