ColorRite Automotive Touch-Up Paint Pen Kit Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the proper use of your ColorRite Automotive Touch-Up Paint Pen Kit, specifically formulated for Porsche vehicles in L6601 Slate Grey. This kit is designed to repair small nicks, chips, and scratches, ensuring a factory-matched finish and protection against environmental elements. For optimal results, please read all instructions carefully before beginning the application process.

2. Package Contents

The Value Package includes the following components:

• One (1) 1/2 oz Touch-Up Pen: Primer
• One (1) 1/2 oz Touch-Up Pen: Factory-Matched Color (L6601 Slate Grey)
• One (1) 1/2 oz Touch-Up Pen: High-Quality Clearcoat
• Two (2) Prep Wipes: For removing wax or grease
• One (1) Pair of Latex Gloves: For hand protection during application

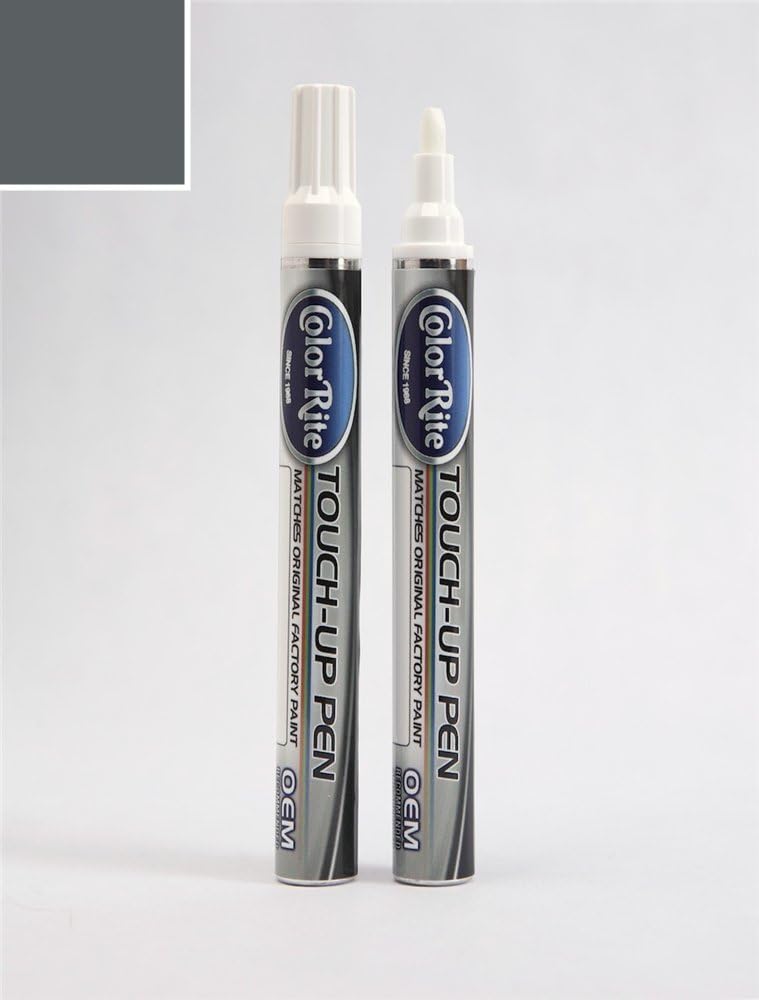

Image 1: The ColorRite Touch-Up Pen Kit, showing the primer, color, and clearcoat pens.

Image 2: Included Prep Wipes and latex gloves for surface preparation and protection.

3. Important Considerations Before Use

• Color Code Verification: Confirm that your vehicle's color code is L6601 (1966) Slate Grey. This ensures an accurate color match.
• Spray-Out Test: Before applying to your vehicle, perform a "spray-out" or test application on an inconspicuous area or a separate test surface. This is crucial to verify the color match and practice application technique.
• TriCoat Colors: If your vehicle has a TriCoat color, it requires two different colors to achieve the correct match (typically a base color and a pearl effect). This specific kit is for solid colors.

4. Preparation

Proper preparation is essential for a durable and seamless repair.

1. Clean the Area: Use the provided Prep Wipes to thoroughly clean the damaged area. Ensure all wax, grease, dirt, and debris are removed. Allow the area to dry completely.
2. Wear Gloves: Put on the latex gloves to protect your hands and prevent oils from transferring to the repair area.
3. Shake Pens: Vigorously shake each touch-up pen for at least 60 seconds before use to ensure the paint is thoroughly mixed.

5. Application Instructions

Follow these steps for applying the primer, color, and clearcoat.

5.1. Primer Application

1. Carefully uncap the Primer Pen. The pen features a chiseled nib tip, allowing for precise application.
2. Apply a thin, even coat of primer directly to the exposed metal or plastic of the scratch or chip. Avoid applying too much.
3. Allow the primer to dry for approximately 10-15 minutes, or until it is no longer tacky.

5.2. Color Application (L6601 Slate Grey)

1. Uncap the Color Pen (L6601 Slate Grey).
2. Apply thin coats of the color paint to the primed area. Use the chiseled nib for accuracy. Build up the color in multiple thin layers rather than one thick layer.
3. Allow each coat to dry for 10-15 minutes before applying the next. Continue until the color matches the surrounding paint.
4. Once the desired color depth is achieved, allow the final color coat to dry for at least 30 minutes before proceeding to the clearcoat.

Image 3: Demonstrating how to hold and apply paint with the touch-up pen for precise control.

5.3. Clearcoat Application

1. Uncap the Clearcoat Pen.
2. Apply 2-3 thin, even coats of clearcoat over the repaired area. The clearcoat provides gloss and protection.
3. Allow 10-15 minutes of drying time between each clearcoat layer.
4. After the final clearcoat layer, allow the repair to dry for at least 24 hours before exposing it to moisture or washing.

6. Maintenance and Care

To ensure the longevity of your touch-up repair:

• Avoid washing the repaired area with harsh chemicals or high-pressure washers for at least 7 days.
• After the curing period, regular car washing and waxing can be resumed.
• Store unused pens in a cool, dry place, tightly capped, to prevent drying out.

7. Troubleshooting

Here are solutions to common issues:

• Color Mismatch: Ensure the correct color code (L6601 Slate Grey) was selected. A spray-out test is critical to confirm the match before applying to the vehicle. Environmental factors and vehicle age can affect paint appearance.
• Uneven Application/Streaks: This often results from applying too much paint at once or insufficient drying time between coats. Apply thinner layers and allow adequate drying.
• Rough Texture: Ensure the surface was thoroughly cleaned and free of debris before application. Lightly sand with very fine-grit sandpaper (2000-3000 grit) after the clearcoat has fully cured, then polish to smooth.
• Paint Not Flowing: Ensure the pen is shaken vigorously before use. If the tip is clogged, gently clean it with a small amount of paint thinner on a cloth.

8. Product Specifications

9. Support Information

For further assistance, questions, or to explore additional ColorRite products, please visit the official ColorRite website or contact their customer support team. ColorRite is committed to helping you achieve the best possible results with their products.

For more information, visit: www.colorrite.com
