Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Luminus LED Dimmable Retrofit Light Kit. This product is designed to replace existing flood lamps in housings with openings from 5 inches (12.7cm) to 6 inches (15.2cm). It features 120V operation, 3000K bright white light, 1200 lumens output, and a 90-degree beam angle, all while consuming only 23 watts. The kit is dimmable and mercury-free, offering an energy-efficient and long-lasting lighting solution.

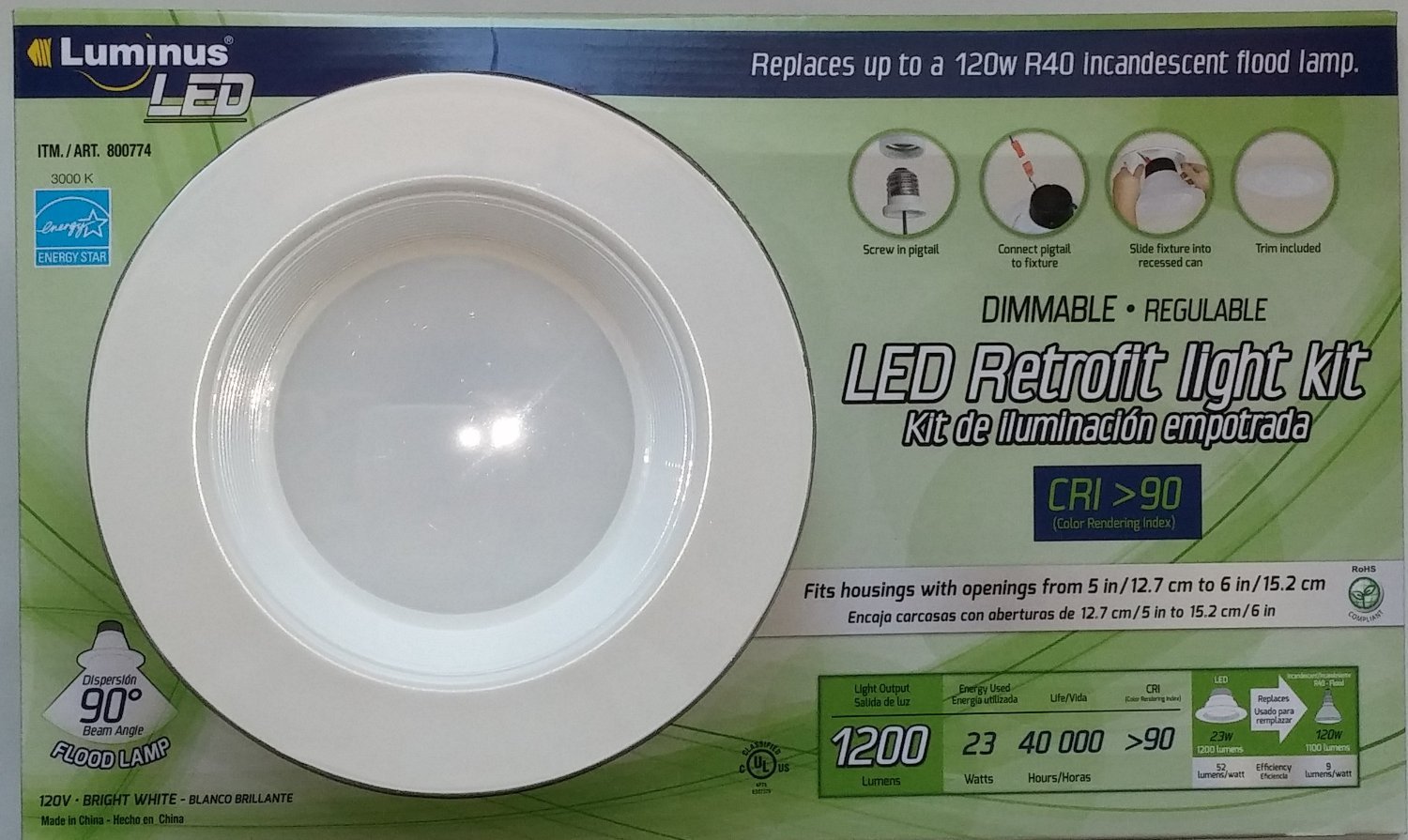

Image: Luminus LED Dimmable Retrofit Light Kit. This image displays the complete LED fixture, including the white light source and the surrounding metal trim, ready for installation into a recessed housing.
Safety Information
WARNING: Risk of electric shock. Disconnect power before installation or servicing.
- Ensure the power supply is turned off at the circuit breaker before beginning any installation or maintenance.
- This product is intended for indoor use only, as specified by "Indoor/Outdoor Usage: Indoor" and "Water Resistance Level: Not Water Resistant".
- Do not attempt to modify the fixture. Any modifications may void the warranty and create safety hazards.
- Consult a qualified electrician if you are unsure about any part of the installation process.
- Handle the light kit with care to avoid damage.
Package Contents
Verify that all components are present before proceeding with installation:
- Luminus LED Dimmable Retrofit Light Kit (Model 800774)
- Trim
- Housing or Mounting Hardware
Setup and Installation
The Luminus LED Dimmable Retrofit Light Kit is designed for easy flush mount installation into existing recessed housings. This kit fits housings with openings ranging from 5 inches (12.7 cm) to 6 inches (15.2 cm).
- Turn Off Power: Before starting, ensure the power to the existing fixture is turned off at the circuit breaker to prevent electrical shock.
- Remove Existing Fixture: Carefully remove the existing light bulb and trim from the recessed housing. Disconnect any wiring if necessary.
- Connect Wiring: Connect the wiring from the Luminus LED Retrofit Kit to the existing wiring in the housing. Typically, this involves connecting the black wire to the hot wire, the white wire to the neutral wire, and the ground wire to the ground wire. Use appropriate wire connectors (not included unless specified).
- Secure the Fixture: Compress the spring clips on the sides of the retrofit kit and insert the fixture into the recessed housing. The clips will expand to hold the fixture snugly against the ceiling. Ensure the included foam gasket (if present) is properly seated between the fixture and the ceiling for a tight fit.
- Install Trim: The trim is integrated or designed to fit seamlessly with the fixture. Ensure it is properly aligned and secured.
- Restore Power: Once the fixture is securely installed, turn the power back on at the circuit breaker.
Note: Assembly is required. If you encounter difficulties, consult a professional electrician.
Operating Instructions
This Luminus LED Retrofit Light Kit is designed for straightforward operation and features dimmable functionality.
- Power On/Off: Use your standard wall switch to turn the light kit on or off.
- Dimming Function: This light kit is dimmable. To utilize the dimming feature, ensure you have a compatible dimmer switch installed. The control method is listed as "Touch" and "Remote Control" in specifications, suggesting compatibility with various dimmer types. Adjust the dimmer switch to achieve your desired brightness level.
- Light Color: The light kit produces a 3000 Kelvin bright white light.
Maintenance
The Luminus LED Dimmable Retrofit Light Kit requires minimal maintenance due to its long lifespan and mercury-free design.
- Cleaning: To clean the fixture, ensure the power is off. Use a soft, dry, or slightly damp cloth. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
- Bulb Replacement: This is an integrated LED fixture; individual bulbs are not replaceable. The unit is designed for a long operational life of approximately 40,000 hours.
- Mercury-Free: This product does not contain mercury, simplifying disposal at the end of its life cycle.
Troubleshooting
If you experience issues with your Luminus LED Dimmable Retrofit Light Kit, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power, loose wiring, faulty switch. |
|
| Light flickers or dims improperly. | Incompatible dimmer switch, loose connection, dimmer malfunction. |
|
| Light is not securely seated in the housing. | Improperly engaged spring clips, housing size mismatch. |
|
If these steps do not resolve the issue, contact customer support.
Specifications
| Model Number | 800774 |
| Brand | Luminus |
| Voltage | 120 Volts |
| Wattage | 23 Watts |
| Brightness | 1200 Lumens |
| Color Temperature | 3000 Kelvin (Bright White) |
| Beam Angle | 90 degrees (Floodlight) |
| CRI | 90 |
| Lifespan | 40,000 Hours |
| Dimmable | Yes |
| Housing Compatibility | 5 to 6 inches (12.7cm to 15.2cm) openings |
| Installation Type | Flush Mount |
| Material | Metal |
| Indoor/Outdoor Usage | Indoor |
| Mercury-Free | Yes |
| Product Dimensions | 6 x 6 x 6 inches |
| Item Weight | 1 Pound |
| UPC | 059212871854 |
Warranty and Support
Specific warranty details are not provided in this manual. For warranty information or technical support regarding your Luminus LED Dimmable Retrofit Light Kit, please contact the manufacturer directly using the contact information provided on the product packaging or their official website.
When contacting support, please have your model number (800774) and purchase date available.
