EXTRAFLAME Emma 12 kW Pellet Stove User Manual

1. Introduction

Thank you for choosing the EXTRAFLAME Emma 12 kW Pellet Stove. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new pellet stove. Please read this manual thoroughly before using the appliance and keep it for future reference.

2. Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualified installer, service agency, or the gas supplier.

• Always ensure proper ventilation.
• Keep combustible materials at a safe distance from the stove.
• Do not store pellets or other flammable materials near the stove.
• Regularly inspect and clean the chimney and flue pipes.
• Never operate the stove with damaged components.
• Children and pets should be kept away from the hot surfaces of the stove.
• Only use approved wood pellets as fuel.

3. Product Overview

The EXTRAFLAME Emma 12 kW Pellet Stove is a high-efficiency heating appliance designed for residential use. It features a robust steel structure with a majolica coating and top, forced ventilation, and an automatic pellet feeding system. The stove is equipped with a 30 kg pellet tank capacity and includes a remote control for convenient operation.

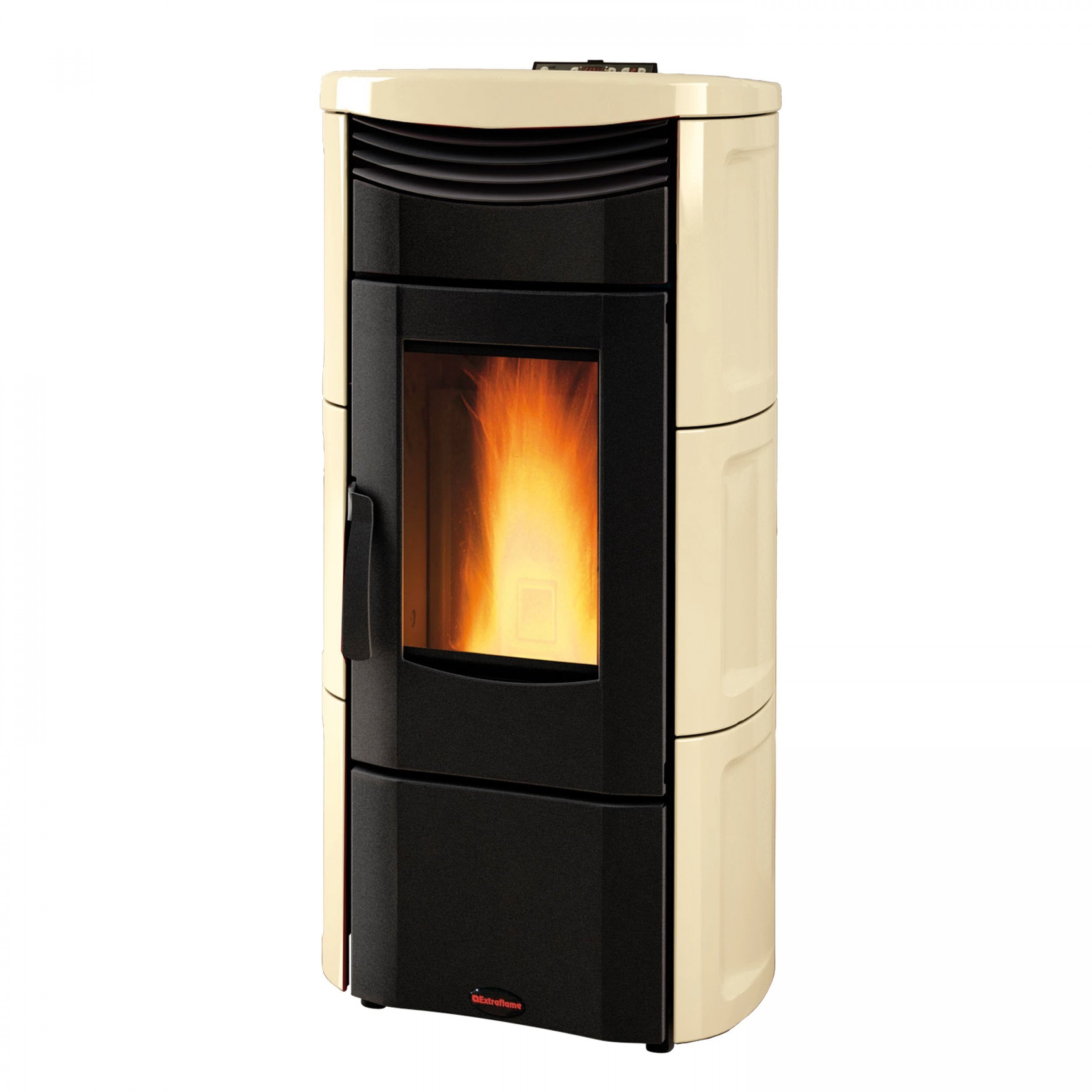

Figure 3.1: Front view of the EXTRAFLAME Emma 12 kW Pellet Stove with the fire visible through the glass door.

Figure 3.2: Side view of the EXTRAFLAME Emma 12 kW Pellet Stove, showcasing its elegant design and majolica finish.

Figure 3.3: Close-up view of the control panel or a specific feature of the EXTRAFLAME Emma 12 kW Pellet Stove.

4. Setup

The EXTRAFLAME Emma 12 kW Pellet Stove requires assembly and professional installation to ensure safe and optimal performance. It is recommended to have a qualified technician perform the installation.

4.1 Unpacking

1. Carefully remove the stove from its packaging.
2. Inspect the stove for any signs of damage during transit. Report any damage to your dealer immediately.
3. Remove all packing materials from inside and around the stove.

4.2 Placement and Clearances

• Place the stove on a non-combustible floor or a suitable floor protector.
• Ensure adequate clearance from combustible walls and materials as specified in local building codes and the stove's technical documentation.

4.3 Chimney and Flue Connection

• Connect the stove to a suitable chimney or flue system according to local regulations and manufacturer guidelines.
• Ensure all connections are sealed properly to prevent smoke leakage.

4.4 Electrical Connection

• Connect the stove to a grounded electrical outlet.
• Verify that the voltage and frequency match the stove's requirements.

5. Operating Instructions

Follow these steps for safe and efficient operation of your pellet stove.

5.1 Filling the Pellet Tank

1. Open the pellet tank lid.
2. Pour approved wood pellets into the tank, ensuring not to overfill. The tank capacity is 30 kg.
3. Close the lid securely.

5.2 Starting the Stove

1. Ensure the ash drawer is empty and the burn pot is clean.
2. Turn on the main power switch.
3. Using the control panel or remote control, select the desired operating mode (e.g., "Start" or "Ignition").
4. The automatic feeding system will deliver pellets to the burn pot, and the igniter will start the combustion process. This may take several minutes.
5. Once the fire is established, the stove will enter normal operating mode.

5.3 Adjusting Heat Output

• Use the control panel or remote control to adjust the heat output settings.
• The stove features forced ventilation, which can be adjusted to distribute heat effectively.

5.4 Shutting Down the Stove

1. Select the "Stop" or "Off" function on the control panel or remote control.
2. The stove will automatically stop feeding pellets and enter a cooling cycle.
3. Do not open the stove door or ash drawer until the stove has completely cooled down.

6. Maintenance

Regular maintenance is crucial for the longevity and efficient operation of your pellet stove.

6.1 Daily Maintenance

• Clean the Burn Pot: Remove any ash and unburnt pellets from the burn pot.
• Empty the Ash Drawer: The ash drawer should be emptied regularly, especially after prolonged use.
• Clean the Glass: Use a specialized glass cleaner for stoves to remove soot from the viewing window.

6.2 Weekly/Monthly Maintenance

• Clean the Heat Exchanger: Follow the manufacturer's instructions for cleaning the heat exchanger to maintain efficiency.
• Inspect Gaskets: Check door and glass gaskets for wear and tear. Replace if necessary to ensure an airtight seal.

6.3 Annual Maintenance

• Chimney and Flue Cleaning: Have a qualified professional clean the chimney and flue pipes annually.
• Professional Service: It is recommended to have a qualified technician perform a comprehensive service check on your stove annually.

7. Troubleshooting

This section provides solutions to common issues you might encounter with your pellet stove.

If the problem persists after attempting these solutions, please contact a qualified service technician.

8. Specifications

9. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or contact your authorized EXTRAFLAME dealer. For technical support or service inquiries, please visit the official EXTRAFLAME website or contact their customer service department.
